project dubbed :red bull:
#17
Seasoned Member
Thread Starter
Join Date: Aug 2011
Location: millville, new jersey
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
After a hellish time getting my jeep back up and running its finally time to get done more work on it
Last edited by lostdoors96; 03-19-2014 at 06:40 PM.
#19
Seasoned Member
Thread Starter
Join Date: Aug 2011
Location: millville, new jersey
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
#20
Seasoned Member
Thread Starter
Join Date: Aug 2011
Location: millville, new jersey
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
moving along
Starting on some tube doors
2inch aluminum square tubing
Using factory hinges and an aftermarket latch
2inch aluminum square tubing
Using factory hinges and an aftermarket latch
#21
Seasoned Member
Thread Starter
Join Date: Aug 2011
Location: millville, new jersey
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
my tube doors part 2
Making progress on the back doors now
And got the latch installed on the front door
A little bit of frustration getting that done so my buddy that's doing this for me says lol I was sitting in Vegas while he was working on it lol
Got the latches from speedway motors.com
Now I have to hunt down some new striker pins but they work great and are way better than the gate latches that people use
And got the latch installed on the front door
A little bit of frustration getting that done so my buddy that's doing this for me says lol I was sitting in Vegas while he was working on it lol
Got the latches from speedway motors.com
Now I have to hunt down some new striker pins but they work great and are way better than the gate latches that people use
#22
Seasoned Member
Thread Starter
Join Date: Aug 2011
Location: millville, new jersey
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Build sheet
Requested my build sheet and received a response in less than 24 hours and now I guess I need to check into a PCM reprogramming and have my cat checked
Thank you for contacting the Jeep Customer Assistance Center.
We are pleased to provide vehicle build information per your request.
According to our records, your vehicle was equipped from the factory
with the following:
1996 JEEP CHEROKEE SPORT UTILITY 4-DR
VIN # : 1J4FJ28S7 TL219057
*J5 Cloth/Vinyl High-Back Bucket Seats
APAS Monotone Paint
ARUP SE Decor Group
BAUS 117 Amp Alternator
BCDS 500 Amp Maintenance Free Battery
BGAS Power Front Disc/Rear Drum Brakes
CADP High Back Bucket Seats
CBWS Highline Door Trim Panel
CDBP Reclining Front Seats
CFMS Rear Fold w/Removable Cushion Seat
CGTS Driver Air Bag Only
CKAS Carpets - Floor and Cargo Area
CKNS Cargo Compartment Carpet
CKTS Cargo Tie Down Loops
CKXS Plastic Liftgate Trim Panel
CSRS Passenger Assist Handles
CUFP Full Length Floor Console
DGB All 4-Speed Automatic Transmissions
DGSS 4-Speed Automatic AW4 Transmission
DHAS Lock-Up Torque Converter
DHNS Command-Trac Part Time 4WD System
DHSS Floor Mount Automatic Shift Lever
DJHS Dana M30/181MM Front Axle
DMDS 3.55 Rear Axle Ratio
DRAS Corporate 8.25 Rear Axle
EAAC All Engines
ERH 4.0L I6 Power Tech Engine
GBBS Tinted Windshield Glass
GCBS Front Door Tinted Glass
GEDS Tinted Rr Drs/Qtr/Liftgate Glass
GEHS Fixed Door Vent Glass
GFA Rear Window Defroster
GRZP Left Remote Mirror
GSZP Right Remote Control Mirror
GTZ Power Mirrors, Fold-Away
GVAC All Vehicles W/O Power Mirrors
HAA Air Conditioning
JAZS Analog Instrument Cluster
JBFS Instrument Panel Black Bezel
JCAS 85 MPH Primary Speedometer
JHAS Var Intermittent Windshield Wipers
JHBP Rear Window Wiper/Washer
JJAS Cigar Lighter
JJBS Dual Note Electric Horns
K27P Bodyside Molding
LAJS Headlamps On Warning Chimes
LBCS Glove Box Lamp
LDBP Cargo Compartment Lamp
LMAS Halogen Headlamps
LPSS CHMSL Lamp
MB1S Black Front Bumper
MB5S Black Rear Bumper
MFFS Black Grille
MHAS Black Windshield Moldings
MMCS Rear Qtr Solid Window Insert
MMGS Belt Moldings
MMKS Body Color Drip Trough Molding
MNAS Black Door Handles
MUKS Silver/Chrome Badging
MWG Roof Rack
NAA Federal Emissions
NBKS EVAP Control System
NFAS 20 Gallon Fuel Tank
PR4 Flame Red Clear Coat
QR4S Flame Red Clear Coat
RAAC All Radio Equipped Vehicles
RAF AM/FM Cassette Radio
RCDP 4 Speakers
RDDS Fixed Long Mast Antenna
SBAS Power Rack and Pinion Steering
SCDS Luxury Steering Wheel
SDAS Normal Duty Suspension
SHAS Front Stabilizer Bar
SHCS Front and Rear Stabilizer Bars
TBCS Compact Spare Tire
TBLS Inside Mounted Spare Tire
TM6S P215/75R15 BSW Wrangler AP Tires
TZAP Goodyear Brand Tires
WJDS 15X7.0 Styled Steel Wheels
WLYC All Steel Wheels
YAAS Build To U.S. Mkt. Specifications
Our records indicate that the following recall campaign(s) have not been
performed by an Authorized dealer:
E22 - REPROGRAM PCM AND INSPECT CATALYTIC CONVERTER
We suggest that you contact your local authorized Chrysler, Dodge, Jeep®
or Ram dealer to make arrangements for an inspection and, if necessary,
corrective action.
Please take a copy of this message with you at the time of service to
aid the process. Although not required, it is recommended to bring a
copy of the recall notification with you to your dealer's service
department when you bring your vehicle in for this service.
If you wish to obtain further information, please contact the Chrysler
Group Recall Assistance Center at 1-800-853-1403.
Thank you again for your email. Should you require additional
assistance, or have any new information to provide, please reply to this
email message or call 1-877-I-AM-JEEP (1-877-426-5337).
Sincerely,
Nicole
Customer Service Representative
Jeep Customer Assistance Center
Thank you for contacting the Jeep Customer Assistance Center.
We are pleased to provide vehicle build information per your request.
According to our records, your vehicle was equipped from the factory
with the following:
1996 JEEP CHEROKEE SPORT UTILITY 4-DR
VIN # : 1J4FJ28S7 TL219057
*J5 Cloth/Vinyl High-Back Bucket Seats
APAS Monotone Paint
ARUP SE Decor Group
BAUS 117 Amp Alternator
BCDS 500 Amp Maintenance Free Battery
BGAS Power Front Disc/Rear Drum Brakes
CADP High Back Bucket Seats
CBWS Highline Door Trim Panel
CDBP Reclining Front Seats
CFMS Rear Fold w/Removable Cushion Seat
CGTS Driver Air Bag Only
CKAS Carpets - Floor and Cargo Area
CKNS Cargo Compartment Carpet
CKTS Cargo Tie Down Loops
CKXS Plastic Liftgate Trim Panel
CSRS Passenger Assist Handles
CUFP Full Length Floor Console
DGB All 4-Speed Automatic Transmissions
DGSS 4-Speed Automatic AW4 Transmission
DHAS Lock-Up Torque Converter
DHNS Command-Trac Part Time 4WD System
DHSS Floor Mount Automatic Shift Lever
DJHS Dana M30/181MM Front Axle
DMDS 3.55 Rear Axle Ratio
DRAS Corporate 8.25 Rear Axle
EAAC All Engines
ERH 4.0L I6 Power Tech Engine
GBBS Tinted Windshield Glass
GCBS Front Door Tinted Glass
GEDS Tinted Rr Drs/Qtr/Liftgate Glass
GEHS Fixed Door Vent Glass
GFA Rear Window Defroster
GRZP Left Remote Mirror
GSZP Right Remote Control Mirror
GTZ Power Mirrors, Fold-Away
GVAC All Vehicles W/O Power Mirrors
HAA Air Conditioning
JAZS Analog Instrument Cluster
JBFS Instrument Panel Black Bezel
JCAS 85 MPH Primary Speedometer
JHAS Var Intermittent Windshield Wipers
JHBP Rear Window Wiper/Washer
JJAS Cigar Lighter
JJBS Dual Note Electric Horns
K27P Bodyside Molding
LAJS Headlamps On Warning Chimes
LBCS Glove Box Lamp
LDBP Cargo Compartment Lamp
LMAS Halogen Headlamps
LPSS CHMSL Lamp
MB1S Black Front Bumper
MB5S Black Rear Bumper
MFFS Black Grille
MHAS Black Windshield Moldings
MMCS Rear Qtr Solid Window Insert
MMGS Belt Moldings
MMKS Body Color Drip Trough Molding
MNAS Black Door Handles
MUKS Silver/Chrome Badging
MWG Roof Rack
NAA Federal Emissions
NBKS EVAP Control System
NFAS 20 Gallon Fuel Tank
PR4 Flame Red Clear Coat
QR4S Flame Red Clear Coat
RAAC All Radio Equipped Vehicles
RAF AM/FM Cassette Radio
RCDP 4 Speakers
RDDS Fixed Long Mast Antenna
SBAS Power Rack and Pinion Steering
SCDS Luxury Steering Wheel
SDAS Normal Duty Suspension
SHAS Front Stabilizer Bar
SHCS Front and Rear Stabilizer Bars
TBCS Compact Spare Tire
TBLS Inside Mounted Spare Tire
TM6S P215/75R15 BSW Wrangler AP Tires
TZAP Goodyear Brand Tires
WJDS 15X7.0 Styled Steel Wheels
WLYC All Steel Wheels
YAAS Build To U.S. Mkt. Specifications
Our records indicate that the following recall campaign(s) have not been
performed by an Authorized dealer:
E22 - REPROGRAM PCM AND INSPECT CATALYTIC CONVERTER
We suggest that you contact your local authorized Chrysler, Dodge, Jeep®
or Ram dealer to make arrangements for an inspection and, if necessary,
corrective action.
Please take a copy of this message with you at the time of service to
aid the process. Although not required, it is recommended to bring a
copy of the recall notification with you to your dealer's service
department when you bring your vehicle in for this service.
If you wish to obtain further information, please contact the Chrysler
Group Recall Assistance Center at 1-800-853-1403.
Thank you again for your email. Should you require additional
assistance, or have any new information to provide, please reply to this
email message or call 1-877-I-AM-JEEP (1-877-426-5337).
Sincerely,
Nicole
Customer Service Representative
Jeep Customer Assistance Center
#23
Seasoned Member
Thread Starter
Join Date: Aug 2011
Location: millville, new jersey
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
my tube doors part 3
One completed door minus the powder coating it will receive when my powder coater is available.
#24
Seasoned Member
Thread Starter
Join Date: Aug 2011
Location: millville, new jersey
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
It's been too long.
My new hood vents.
I was way to excited amd couldnt wait until i got home, so i called up one of my kids and got them to open the package and send me a picture, and obviously they didnt share in my enthusiasm, hence the blurry picture lol.

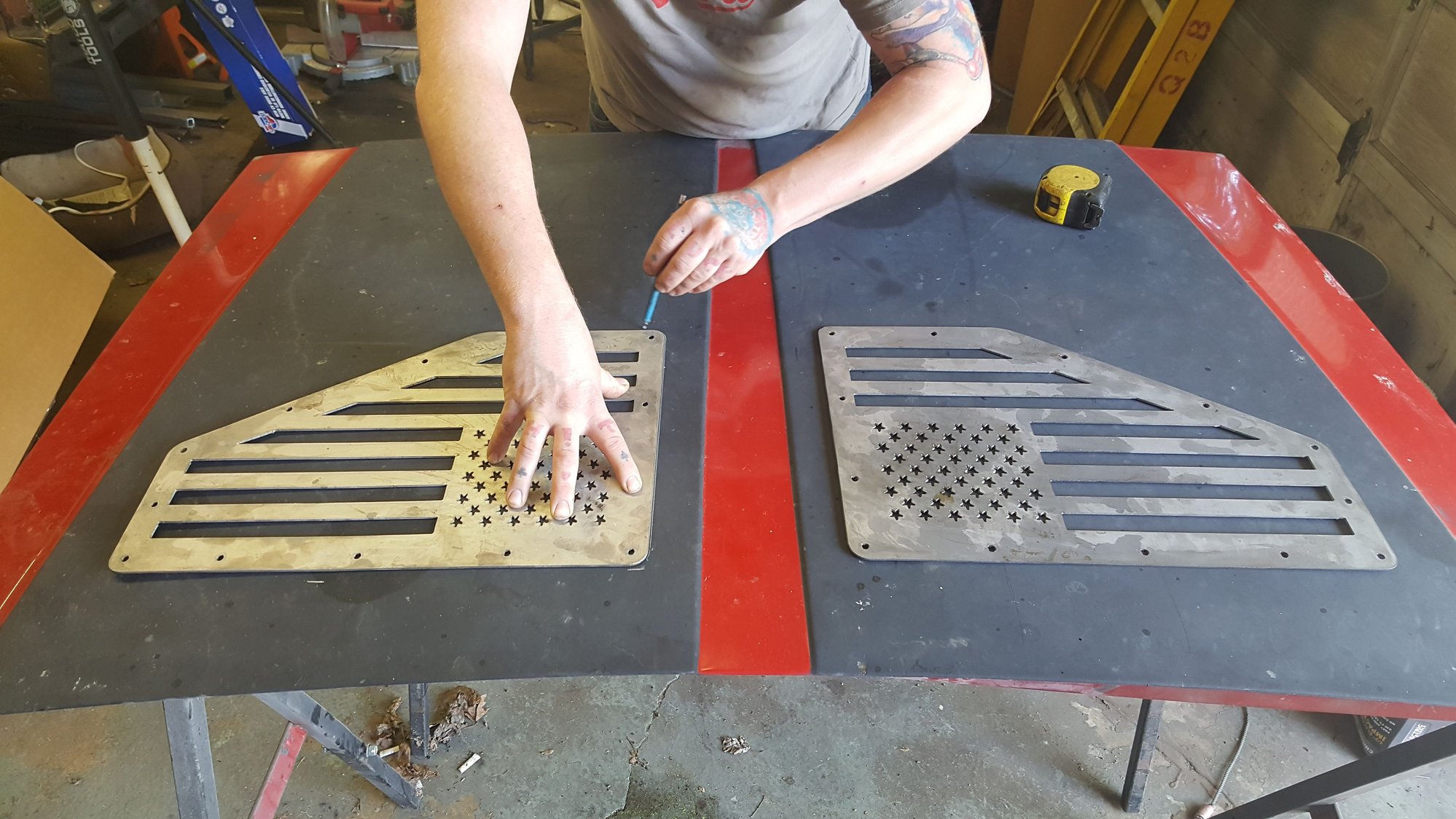

Marking out the lines for cutting.
First hole.cut successfully.
Painted and installed.
Both holes cut.
Hood back on and looking good.
I was way to excited amd couldnt wait until i got home, so i called up one of my kids and got them to open the package and send me a picture, and obviously they didnt share in my enthusiasm, hence the blurry picture lol.
Marking out the lines for cutting.
First hole.cut successfully.
Painted and installed.
Both holes cut.
Hood back on and looking good.
#26
Seasoned Member
Thread Starter
Join Date: Aug 2011
Location: millville, new jersey
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Cargo area
Beer keg air tank! Need i say more?
Cargo area drawer to hold all of my recovery gear. Still need to figure out what i want to do as far as painting or what not.
Side view fully open.
Everything in the back. Farm jack (going to be relocated sometime)
Air tank
Air hose (probably going to turn that spot into a drawer)
Cooler for those days we need to keep ice cold.
Cargo area drawer to hold all of my recovery gear. Still need to figure out what i want to do as far as painting or what not.
Side view fully open.
Everything in the back. Farm jack (going to be relocated sometime)
Air tank
Air hose (probably going to turn that spot into a drawer)
Cooler for those days we need to keep ice cold.
#27
Seasoned Member
Thread Starter
Join Date: Aug 2011
Location: millville, new jersey
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Jerry cans mounted
Mounted two cans to the back hatch.
They came in OD green, which I liked, but thought red and black would fit better. This probably isn't their permanent home, as I have plans to do something different with the back hatch entirely.
I've been riding around with them empty for now to see how they hold up. Probably won't use them at all unless I'm gonna hit a trail or go camping. Most likely will use one for water and the other gasoline.
Thread
Thread Starter
Forum
Replies
Last Post
cpnwrench
Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here
13
02-15-2024 08:09 AM
Cane
Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here
23
12-11-2015 11:09 AM
Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)
