Parking Lot Prerunner
#16
Newbie
Thread Starter
Join Date: Nov 2017
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0 H.O.

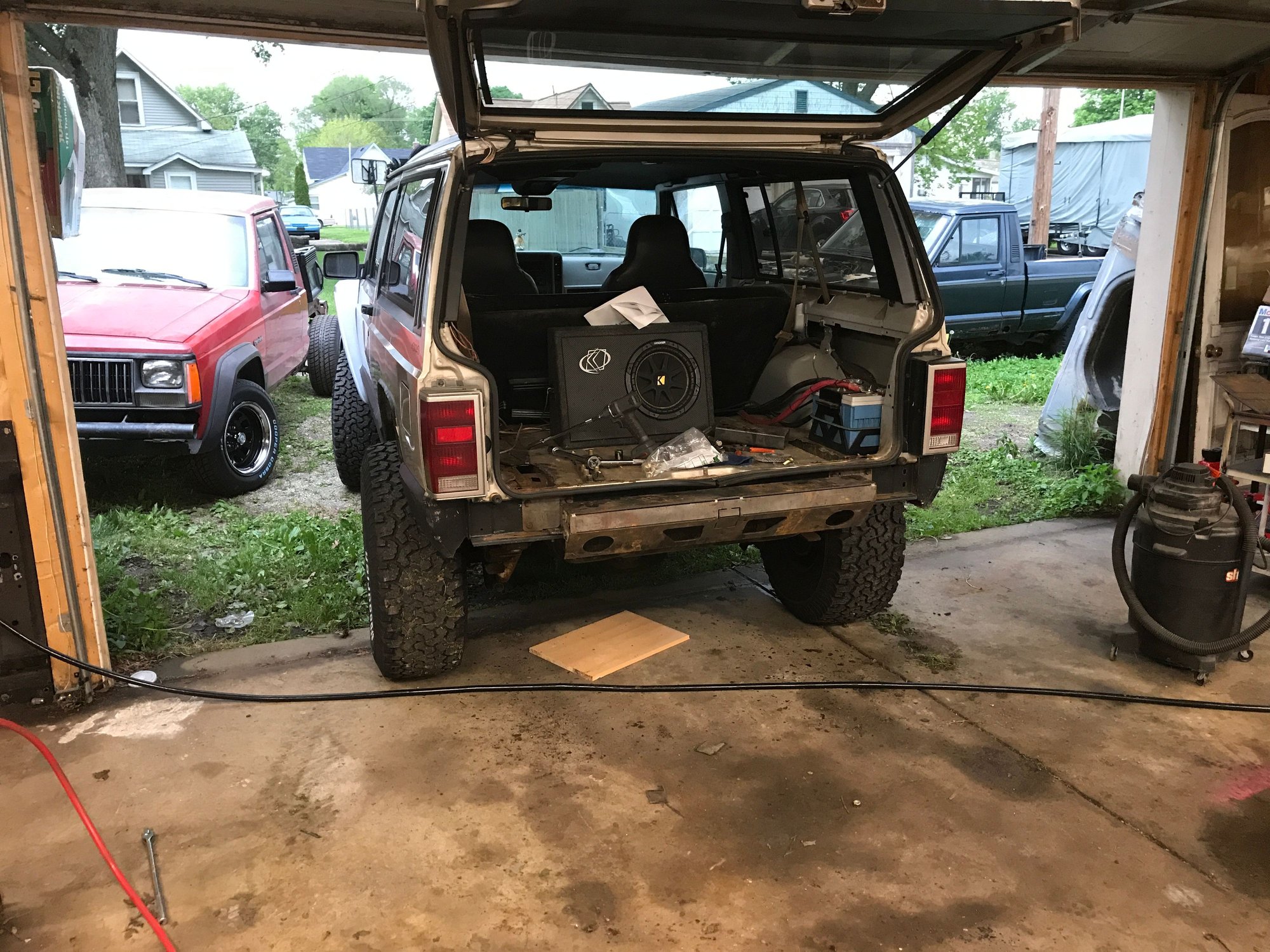

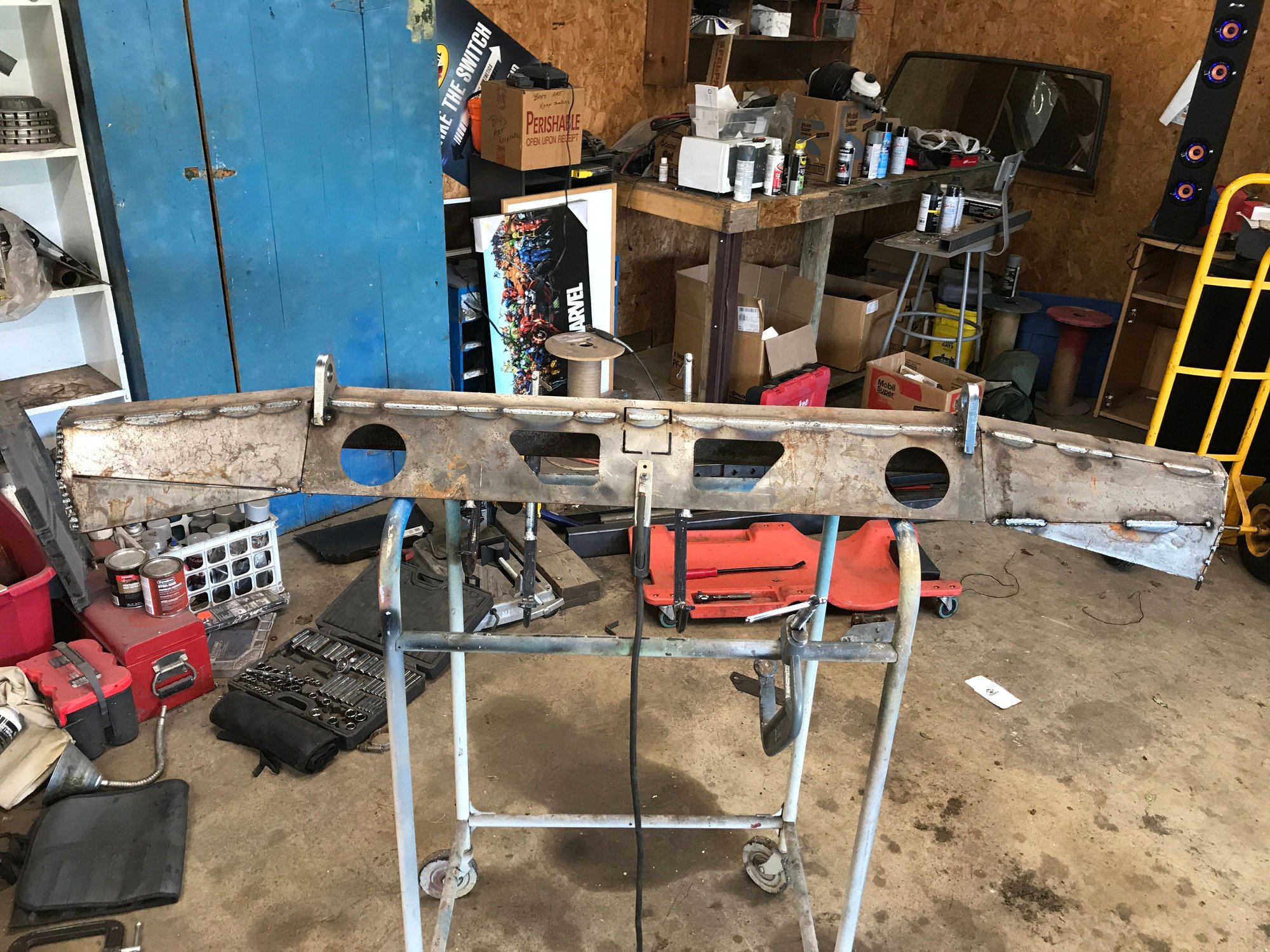

Dirt Bound DIY Mojave rear bumper
I welded 1x3 box tube in between the top plate and receiver, to help spread out the stress. Is it necessary? Probably not, but I was there, I had the extra material, why not for extra peace of mind?
No pics of it painted, haven’t taken the time to take them yet. POR15 base and top coated it with crinkle paint(I don’t recommend it, it’s a pain in the butt)
I welded 1x3 box tube in between the top plate and receiver, to help spread out the stress. Is it necessary? Probably not, but I was there, I had the extra material, why not for extra peace of mind?
No pics of it painted, haven’t taken the time to take them yet. POR15 base and top coated it with crinkle paint(I don’t recommend it, it’s a pain in the butt)
#18
CF Veteran
Join Date: Jun 2017
Location: Hangover, PA
Posts: 2,209
Likes: 0
Received 623 Likes
on
465 Posts
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0L
I love builds like this. You arent afraid to just go for it and get it done AND you take alot of pictures and talk about them
I will be fallowing this for sure keep it up dude
I will be fallowing this for sure keep it up dude
#19
Newbie
Thread Starter
Join Date: Nov 2017
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0 H.O.
Once I get all of the rust repair and door stiffeners finished, I should have everything gathered for the WJ brake upgrade, I’ve decided to go ahead and upgrade the rest of the steering at the same time. As far as the brake upgrade goes, I’ve had to weed through a lot of write-ups to get solid information and start collecting parts, I’ll try to keep this list updated.
WJ big brakes:
New Crown Automotive WJ steering knuckles $205 (Amazon) ✔️
JKS hub spacers $40 (Amazon) ✔️
09-01 XJ/99-06 TJ Timken hub bearings $150 (Amazon) ✔️
Alloy USA ball joints for JK $175 (Amazon)
WJ Centric Premium rotors $85 (Amazon) ✔️ +re drilled to 5-4.5" ($?)
Performance Friction brake pads $55 (Amazon)
New WJ AKEBONO Calipers/brackets $130 (eBay) ✔️
Dorman caliper to knuckle bolts $18(Rockauto) ✔️
Spicer hub to knuckle bolts $40 (eBay) ✔️
Dorman spindle hardware $13 (Amazon)
6 Ruff Stuff 3/4" Heim joints $200 (Ruff Stuff) ✔️
3 X 5 ft- 1 1/2" OD x 1/4" wall x 1" ID DOM $150? (local supplier)
1 ft- 1-1/4 OD x .250 wall x .750 ID DOM Track bar bracket $32 (The Metals Depot) ✔️
Synergy drop pitman arm $50 (Poly Performance)
Iron Man 4x4 steering box brace w/Blue Top steering gear $600(Iron Man 4x4 Fab)
T & M Metal Fabrication steering box stiffeners ($115 shipped T & M Metal Fabrication)
