Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

LG's Black '99 Expedition Build

Old 02-19-2016, 01:42 PM
  #1
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default LG's Black '99 Expedition Build

Starting this build thread to keep track of everything that I do to this (for now) 100% stock 1999 Sport 4x4.





L2daGee is offline
Old 02-19-2016, 01:53 PM
  #2
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default Factory cruise added

First upgrade was cruise control. One trip to the JY, $50, about an hour of my time to install, and she was cruising. I now noticed she was idleing way too high when in park.

It turns out the cruise servo cable was keeping the throttle open just a hair. I removed the throttle body for a thourough cleaning and replaced the gasket. Problem solved.





Cruise servo, clock spring, and switches.





Took about an hour to install.

Last edited by L2daGee; 02-19-2016 at 01:55 PM. Reason: Added title
L2daGee is offline
Old 02-20-2016, 10:16 AM
  #3
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default Oil Pressure sending unit replaced

My oil gauge all of a sudden went to a 0 pressure reading while I was driving home. Slapped on a mechanical gauge and pressure was fine. Bought a Mopar OPSU from Amazon for $60 and the problem is fixed. Took about 5 mins to install.





The OPSU was leaking through the electrical connection.

Last edited by L2daGee; 02-20-2016 at 10:16 AM. Reason: Spelling correction
L2daGee is offline
Old 02-20-2016, 04:25 PM
  #4
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default New stereo head unit

I just installed a JVC marine head unit. I chose a marine unit because I prefer the display it has over this super color disco show that every other HU seems to have now.


JVC marine HU

Out goes the crappy Pioneer CD player that the PO had installed. It was stuck on FM and could only be changed to CD by inserting a disc.


Goodbye 90s Pioneer CD player.

Also my left speakers (both driver side front and rear) didn't work when I bought her.

Upon further investigation, I discovered the infamous broken wire in the driver side door. I patched it up and of course the speaker now works. Now on to the rear.

Since the passenger side rear worked, I plugged it into the driver side and it worked, so that means the speaker is blown.

I picked up some Infinity tweeter trim pieces without the tweeter, so I'm hoping to find a tweeter that fits.

Last edited by L2daGee; 02-20-2016 at 04:30 PM. Reason: corrections
L2daGee is offline
Old 02-21-2016, 07:45 AM
  #5
Junior Member

Join Date: Aug 2013
Location: CT
Posts: 30
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Looks great, just did the cruise add on, on my 99 too. Yours looks like it went smoother then mine did though.
lafd04 is offline
Old 02-23-2016, 06:42 AM
  #6
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default Milestone reached

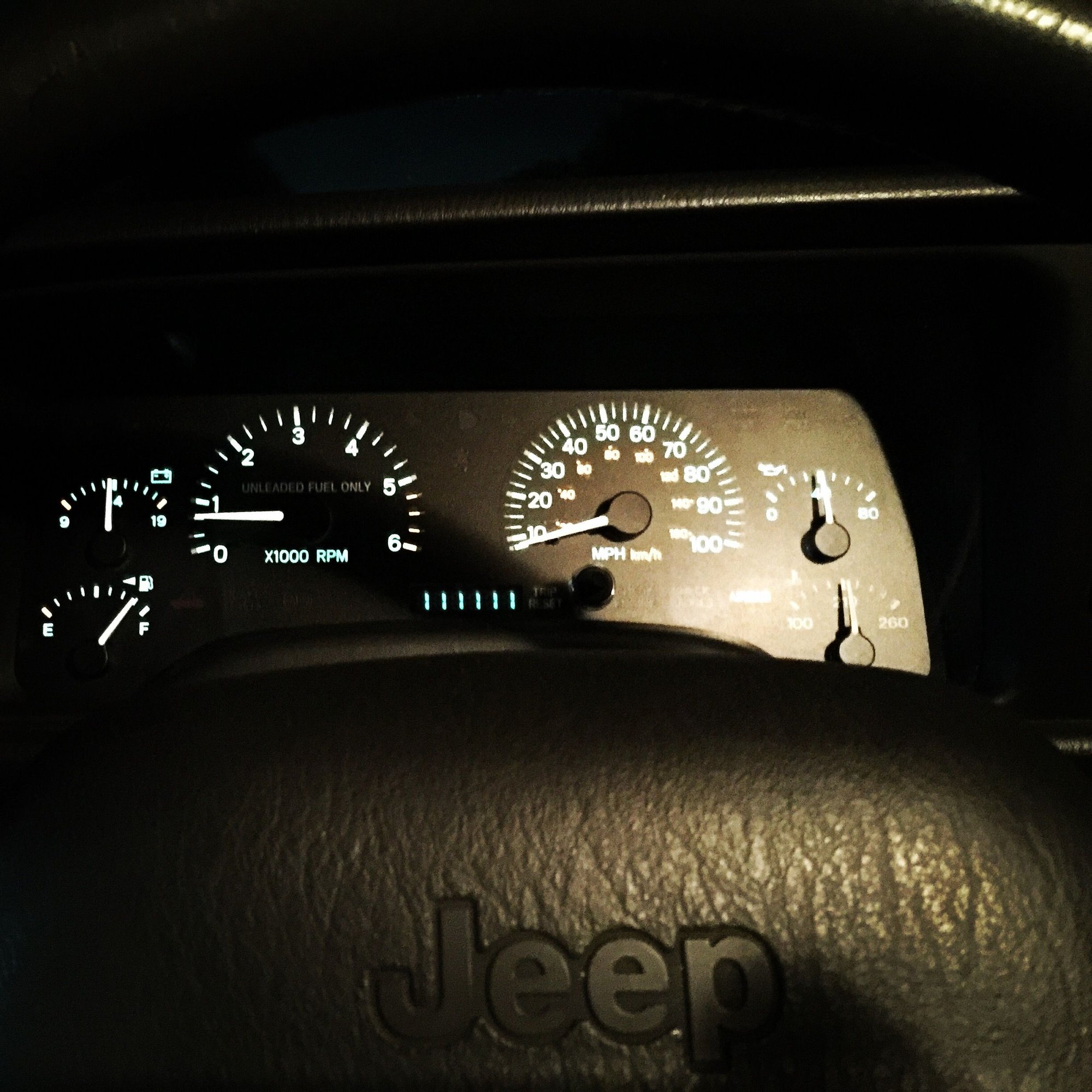

Hit all ones last night.

L2daGee is offline
Old 02-25-2016, 07:35 PM
  #7
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default Rear speaker upgraded

I replaced both of the rear speakers today since one of them was blown. These Pioneer 6.5" speakers fit perfectly in the rear ceiling without any need to drill holes or modify anything. The Jeep factory grills also fit nicely over them.


Last edited by L2daGee; 02-25-2016 at 07:36 PM. Reason: Corrections
L2daGee is offline
Old 02-26-2016, 03:52 PM
  #8
Junior Member

loveoldtrux's Avatar

Join Date: Feb 2016
Location: 7 miles from Rome, GA
Posts: 56
Year: 1996
Model: Cherokee
Engine: 4.0 Liter High Output
Default How SWEET it is!!

As Jackie Gleeson would say..."..how SWEET it is!!...". That is a very nice looking ride!!! There's just something about a shiny black Jeep - very nice; thanks for sharing!!
loveoldtrux is offline
Old 03-19-2016, 11:53 AM
  #9
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default New black headliner installed

Got rid of the sagging gray headliner and replaced with a flat knit black headliner fabric. Came out pretty good.




Black flat knit headliner installed.
L2daGee is offline
Old 03-19-2016, 12:33 PM
  #10
Junior Member

loveoldtrux's Avatar

Join Date: Feb 2016
Location: 7 miles from Rome, GA
Posts: 56
Year: 1996
Model: Cherokee
Engine: 4.0 Liter High Output
Default

Oh MY!! How ***striking** --->> now THAT looks GOOD!! Where did you get that - did you do it yerself?...
loveoldtrux is offline
Old 03-19-2016, 12:36 PM
  #11
Junior Member

loveoldtrux's Avatar

Join Date: Feb 2016
Location: 7 miles from Rome, GA
Posts: 56
Year: 1996
Model: Cherokee
Engine: 4.0 Liter High Output
Default

Nice install on that cruise control!! Hee hee... I bet you'll never use it :-)


Originally Posted by L2daGee View Post
First upgrade was cruise control. One trip to the JY, $50, about an hour of my time to install, and she was cruising. I now noticed she was idleing way too high when in park.

It turns out the cruise servo cable was keeping the throttle open just a hair. I removed the throttle body for a thourough cleaning and replaced the gasket. Problem solved.





Cruise servo, clock spring, and switches.





Took about an hour to install.
loveoldtrux is offline
Old 03-19-2016, 12:43 PM
  #12
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by loveoldtrux View Post
Oh MY!! How ***striking** --->> now THAT looks GOOD!! Where did you get that - did you do it yerself?...
I got the fabric from yourautotrim.com. It was about $50 for 4 yards. I removed the old headliner myself, and did the visors. I had a shop glue the fabric to the board for $75, then reinstalled myself.
L2daGee is offline
Old 03-19-2016, 12:55 PM
  #13
Junior Member

loveoldtrux's Avatar

Join Date: Feb 2016
Location: 7 miles from Rome, GA
Posts: 56
Year: 1996
Model: Cherokee
Engine: 4.0 Liter High Output
Default

L2daGee ---- you did all THAT yourself. Now I AM impressed!! What talent - thanks for sharing!! Looks REALLY SHARP!! That looks store bought.
loveoldtrux is offline
Old 03-30-2016, 05:18 PM
  #14
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default Pin stripe removal process started.

Just began removing the sun-cracked pin stripe. Halfway done with passengers side.

L2daGee is offline
Old 04-03-2016, 02:57 PM
  #15
Junior Member
Thread Starter

L2daGee's Avatar

Join Date: Jan 2016
Location: San Antonio, TX
Posts: 56
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by L2daGee View Post
Just began removing the sun-cracked pin stripe. Halfway done with passengers side.
Job done. Also removed the side "4x4" decals and rear "4.0L" decal. Now I'm debating whether to remove the "Cherokee Sport" emblems and rear "Jeep" emblem.


Looks much better without the pinstripe.

Last edited by L2daGee; 04-03-2016 at 03:06 PM. Reason: Updates
L2daGee is offline
