What type welding and technique did you use to weld to the cast pumpkin?
Is the D30 cast "Iron" or cast steel ?

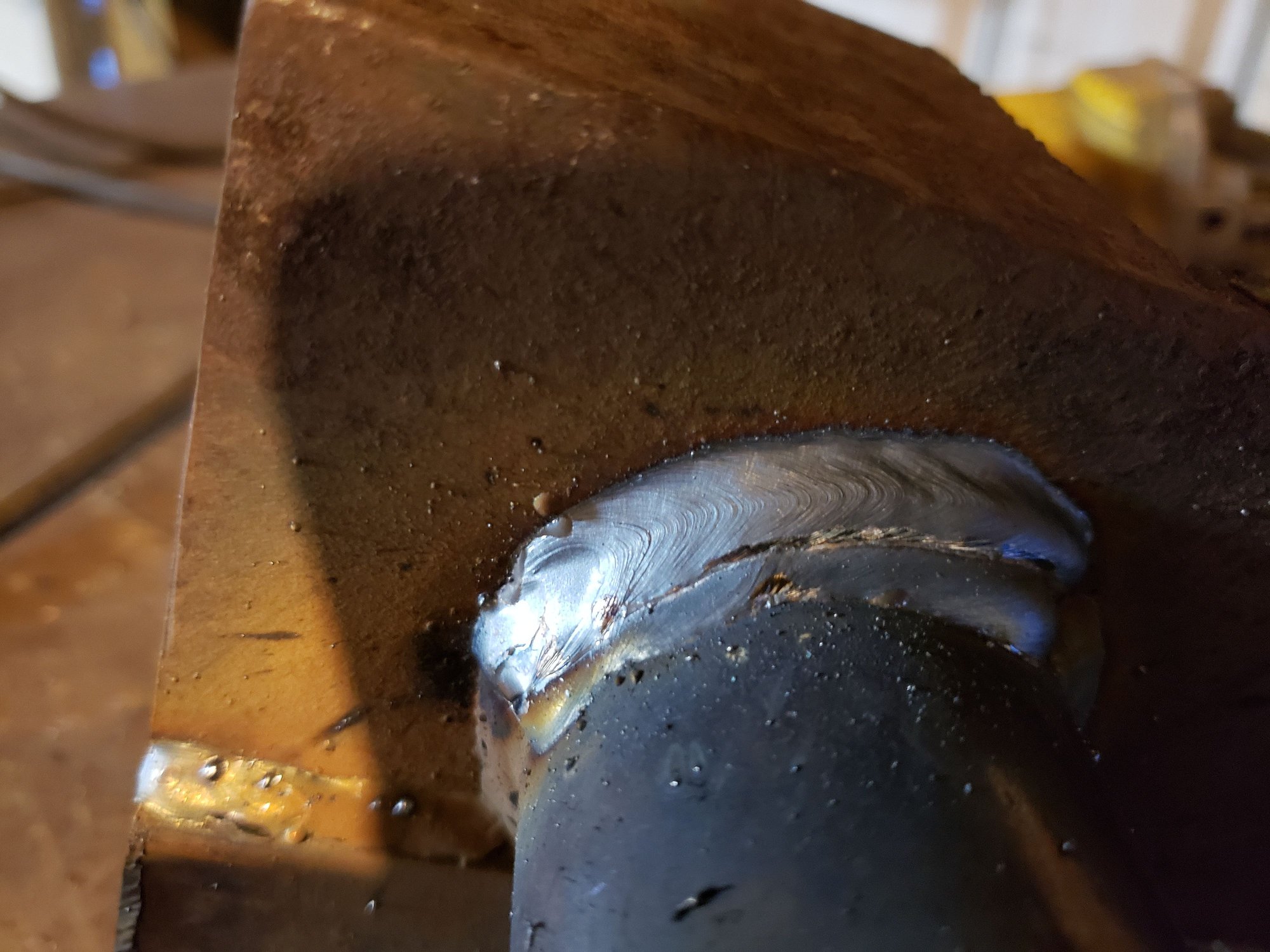

Pre heat to 350ish post heat cool down. Yes some kinda cast. 035 flux cored definitely not ideal but worked

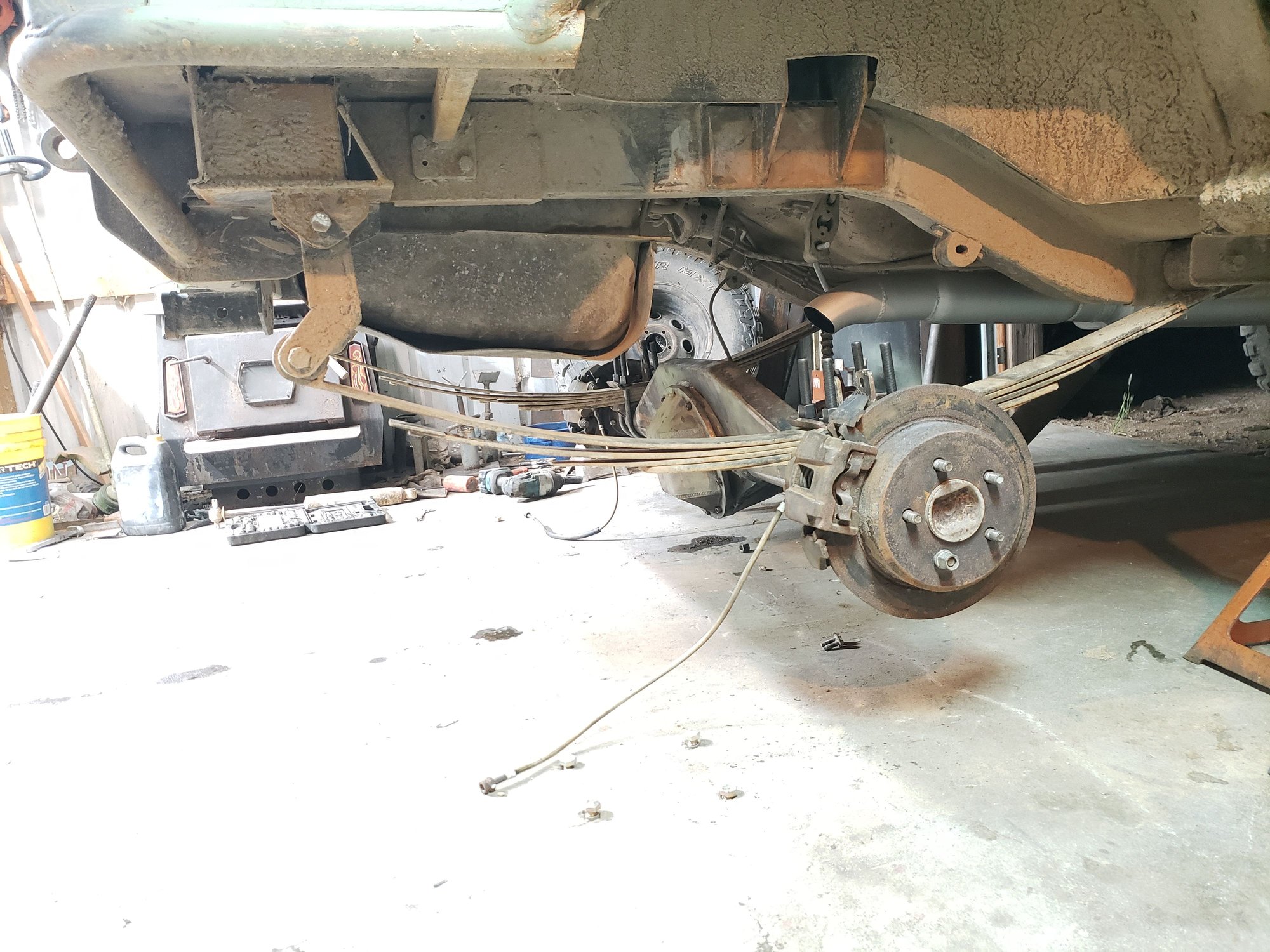

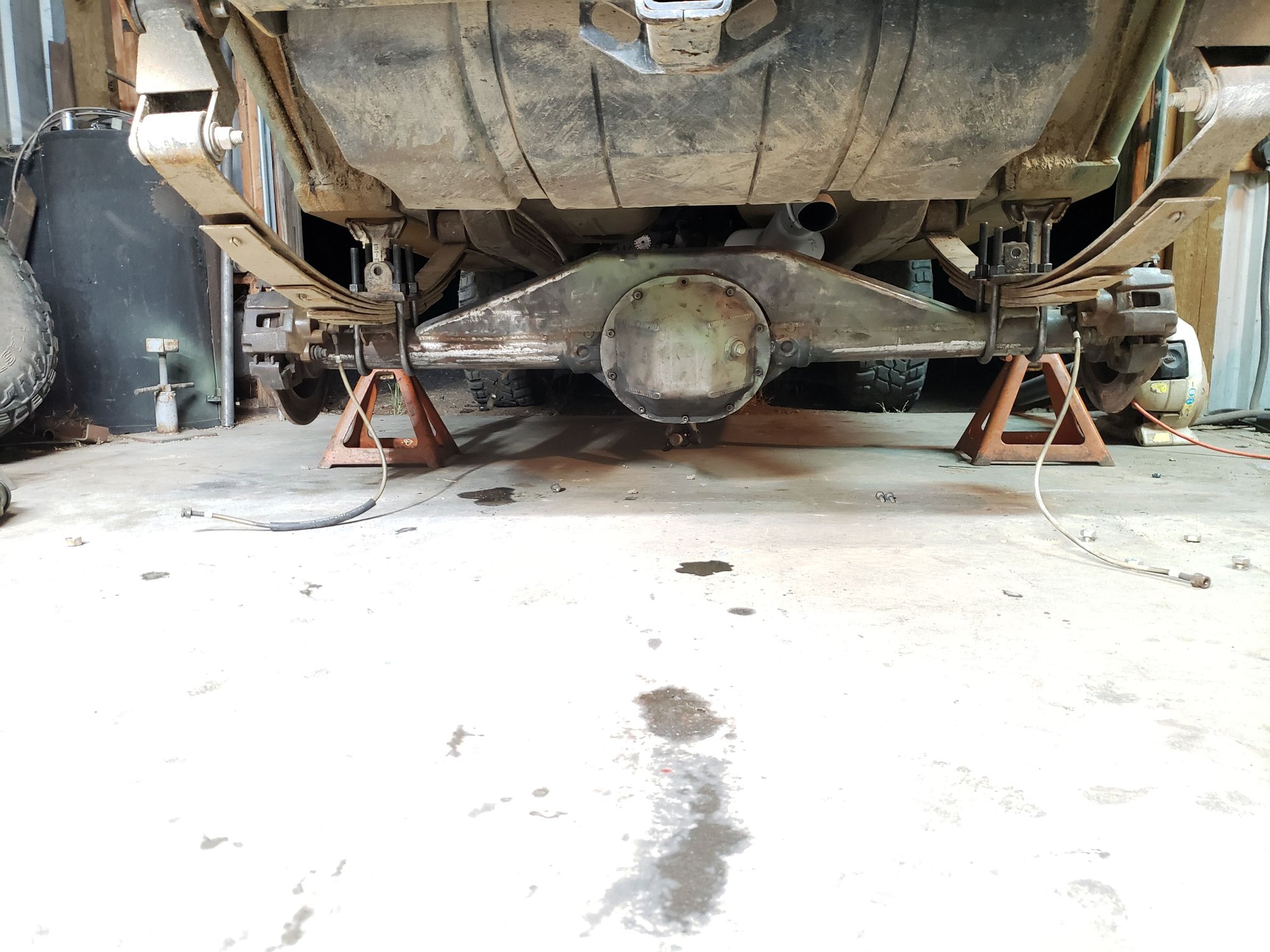

Transmission is in started swapping in the 8.25.

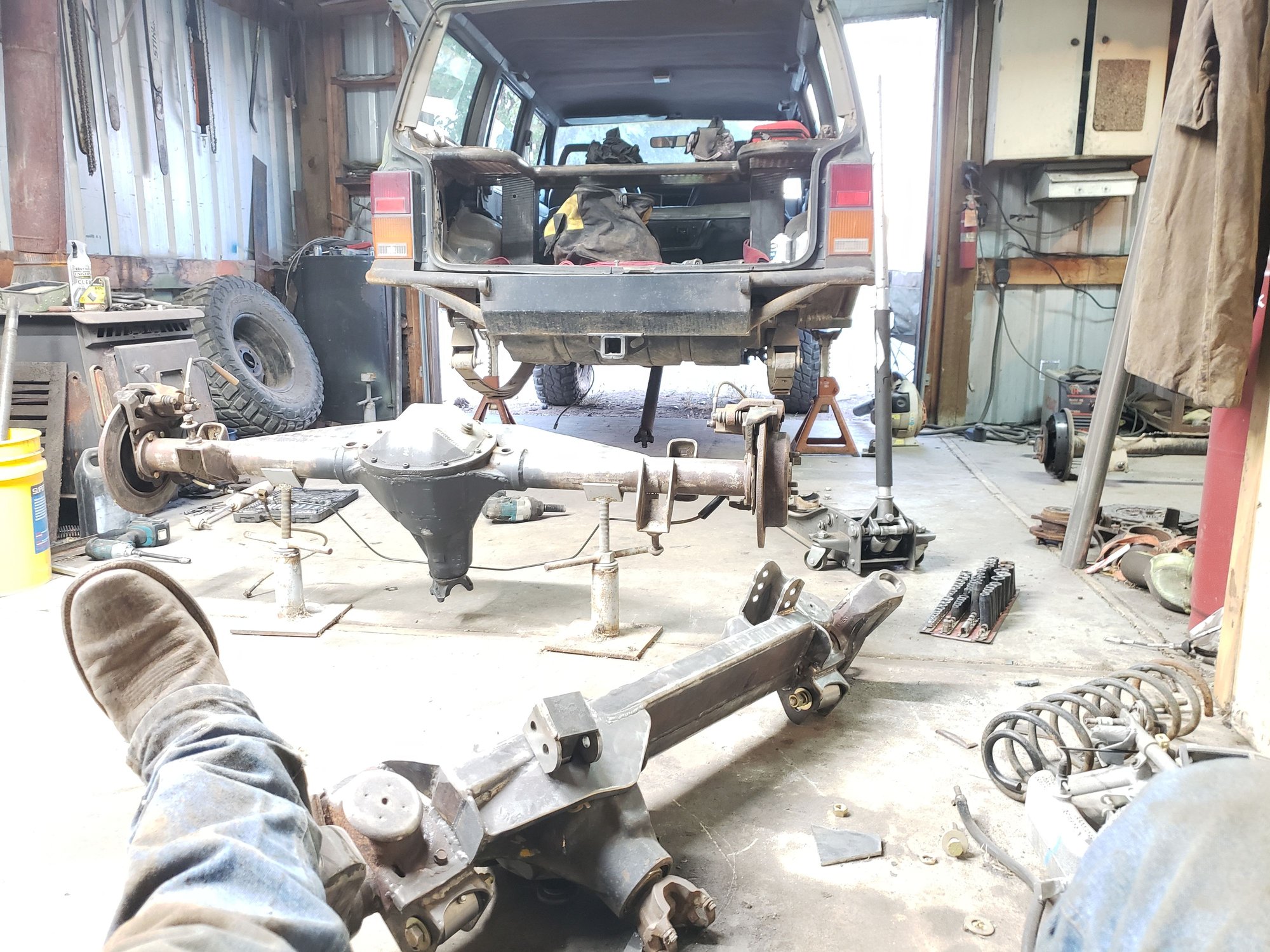

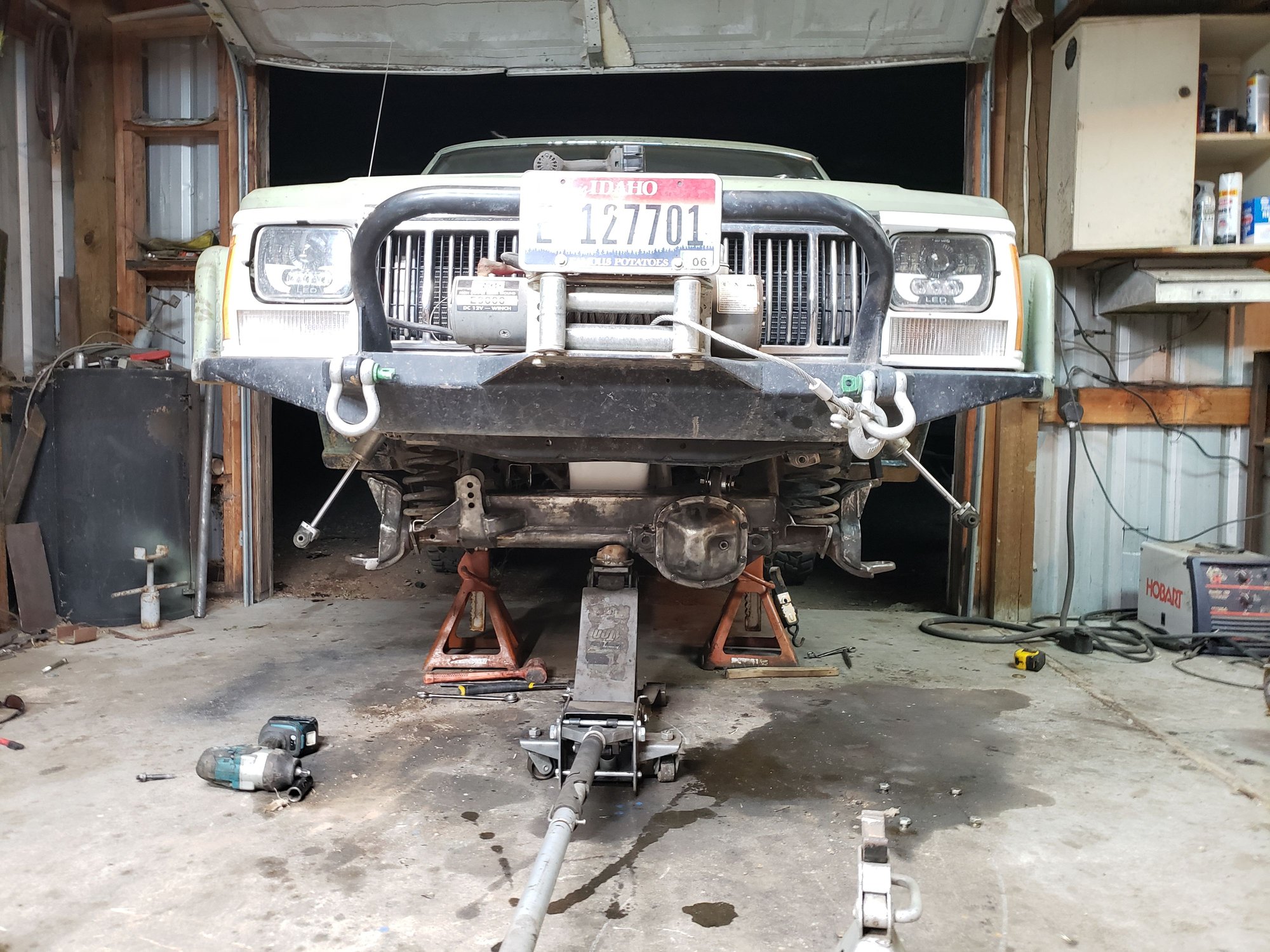

Button up a few things on it then start n the front axle swap




lipless

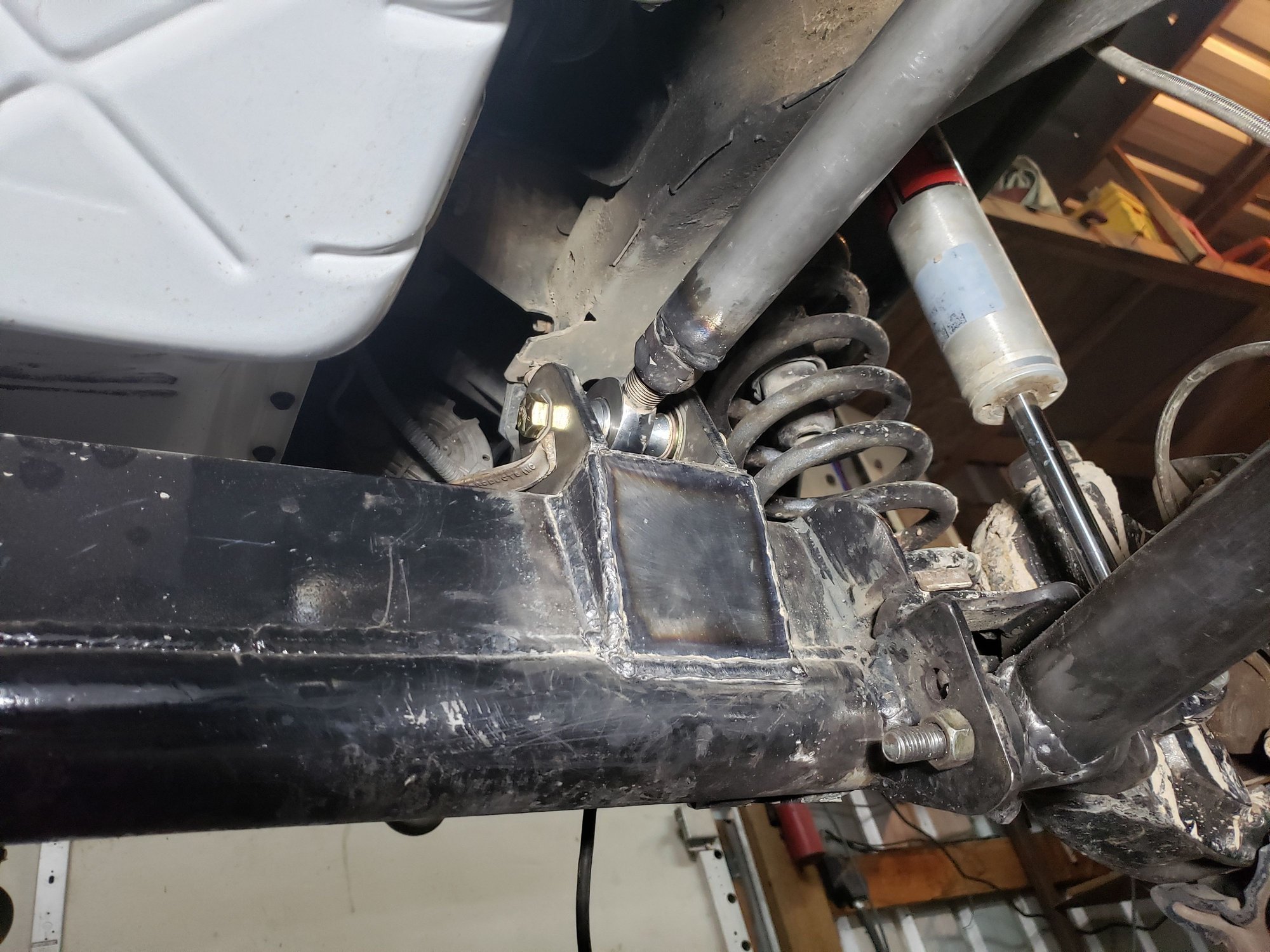

Trussed 30 is under it.

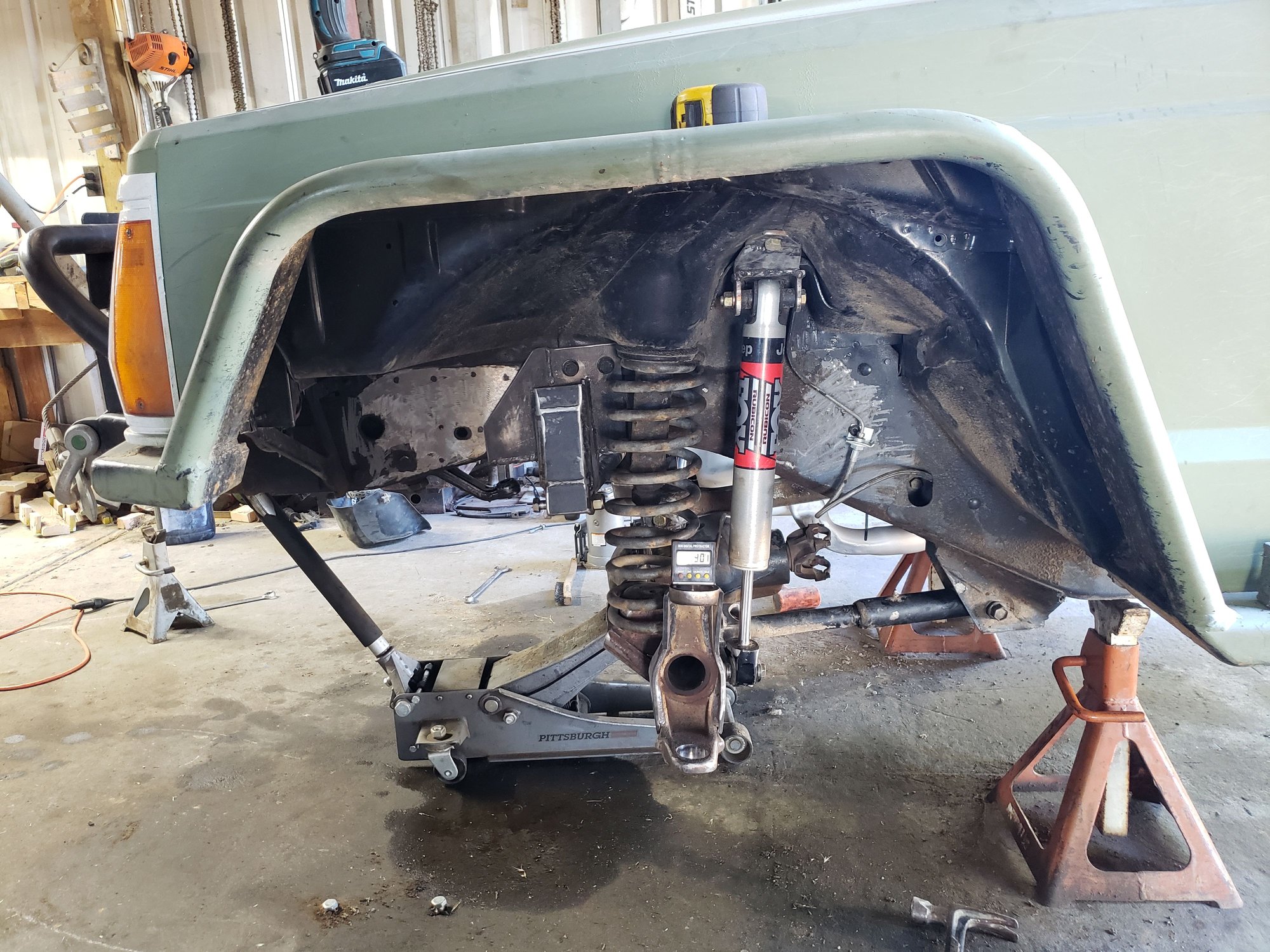

Shock mounts below lower control arm bolt. Theyre pretty close to living in the same place.

drove it around the block. 3.55 gears actually feel pretty good compared to 307. Not a power house but doesnt feel like it struggles from a stop anymore.
Gold clutch feels like stock, I guess that's good.

Hoping to be driving it in a couple days.i wnt to see how raised arms feel before going longer arms

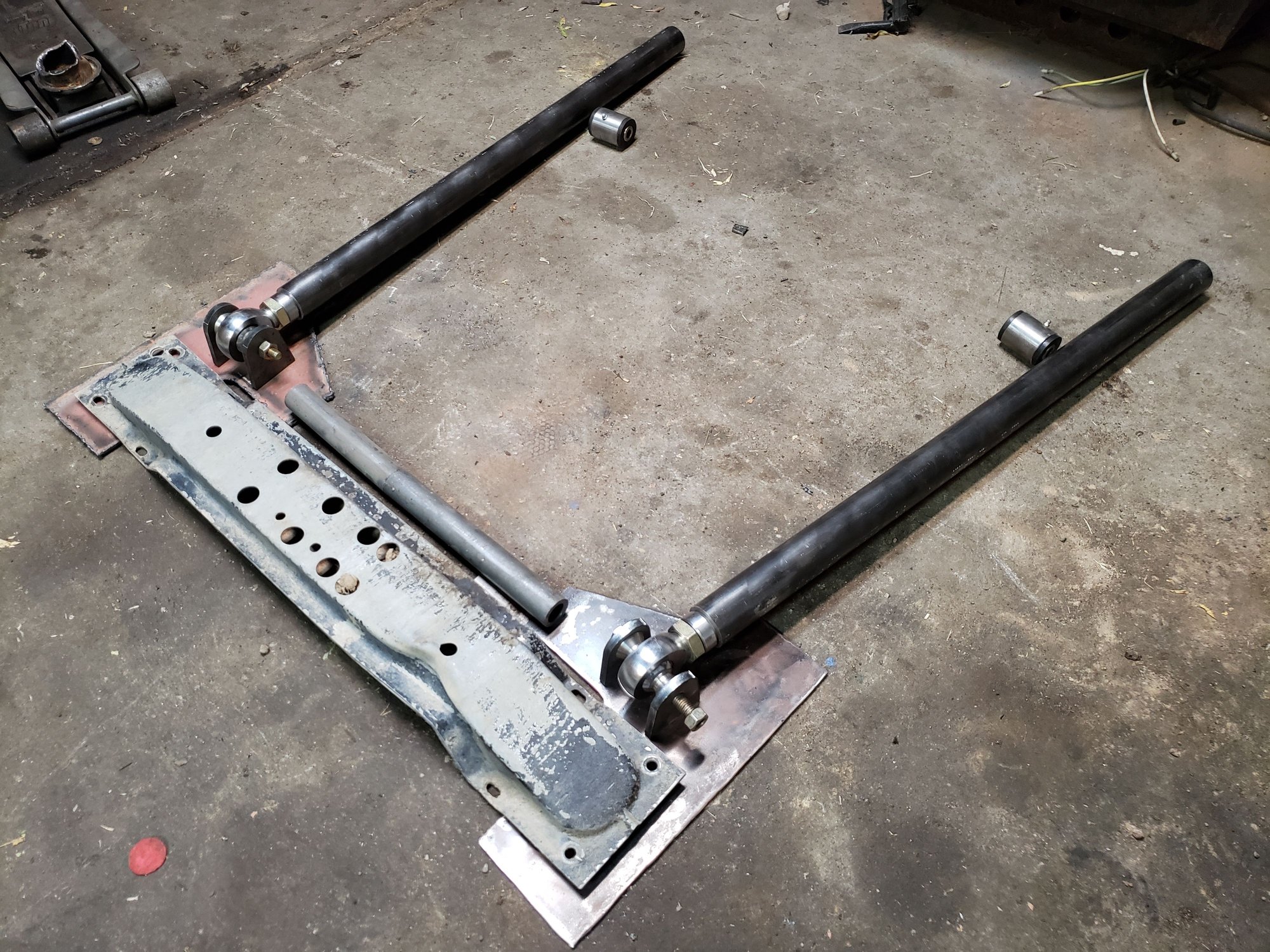

Scrunched some plate out of my stash to restart my long arm brackets.


poly bushing placed roughly at link length 28".

Bracket will weld on and bolt have some kinda crossmember that bolts in between

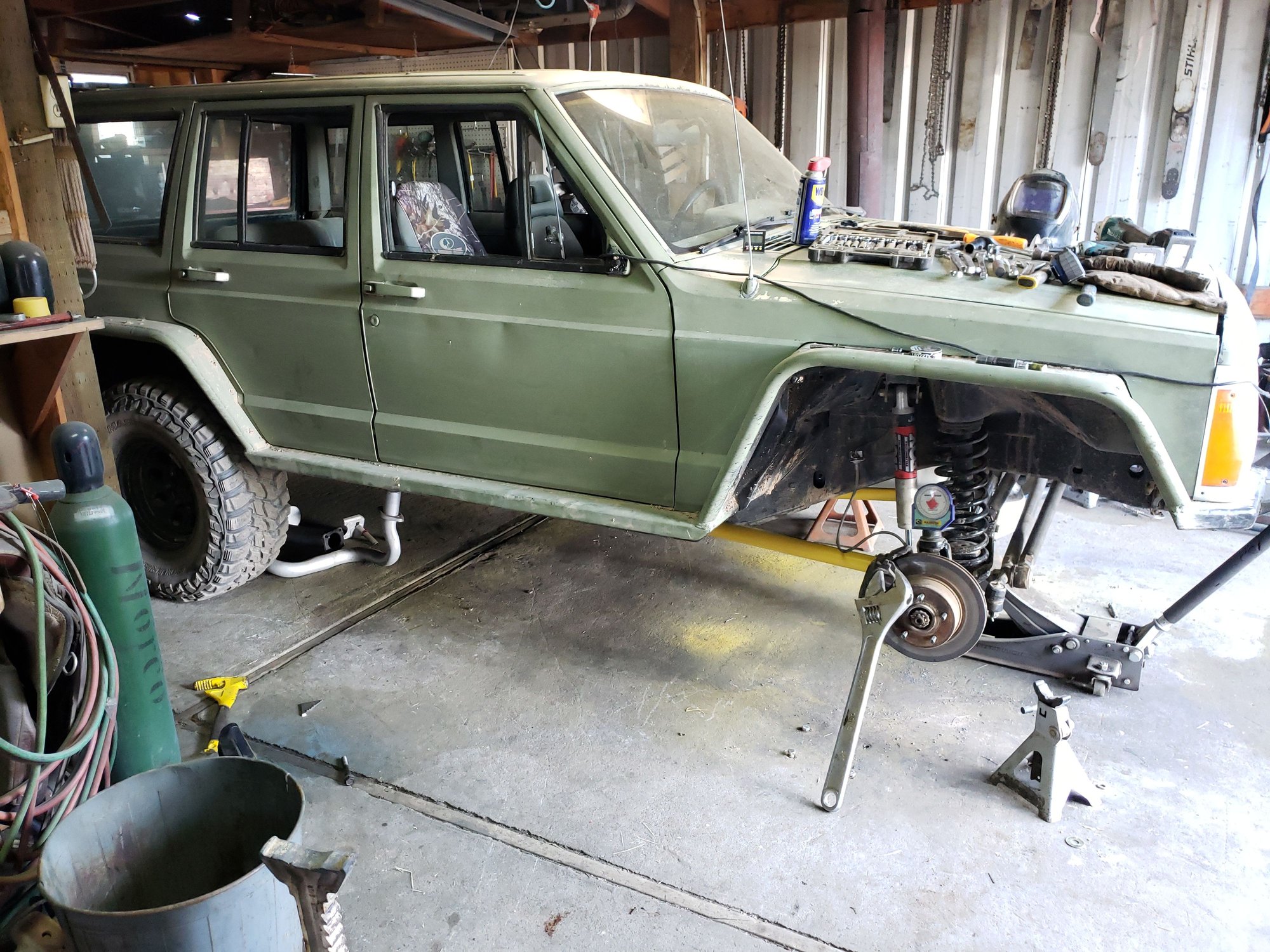

Might actually have this mid armed this week

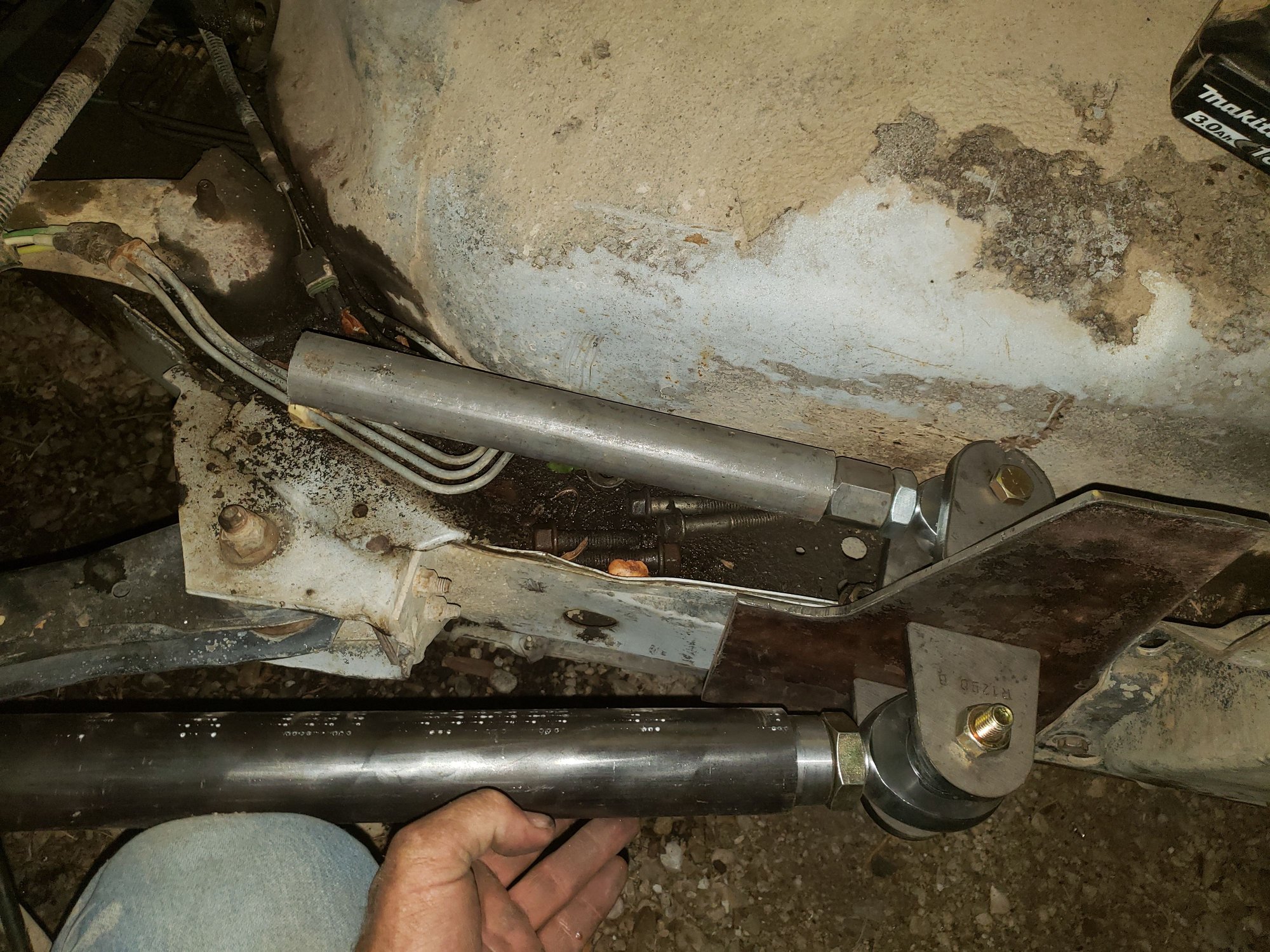

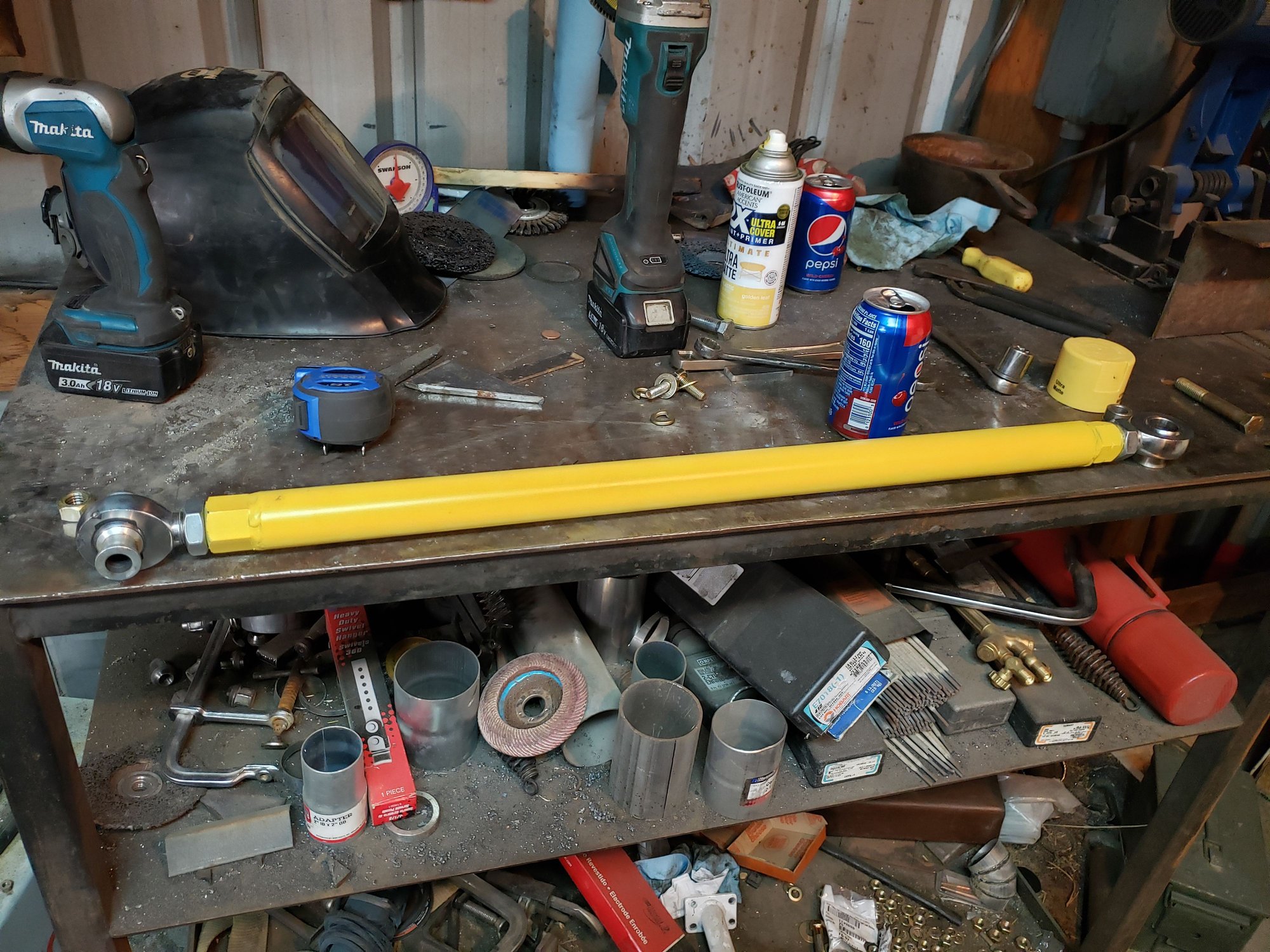

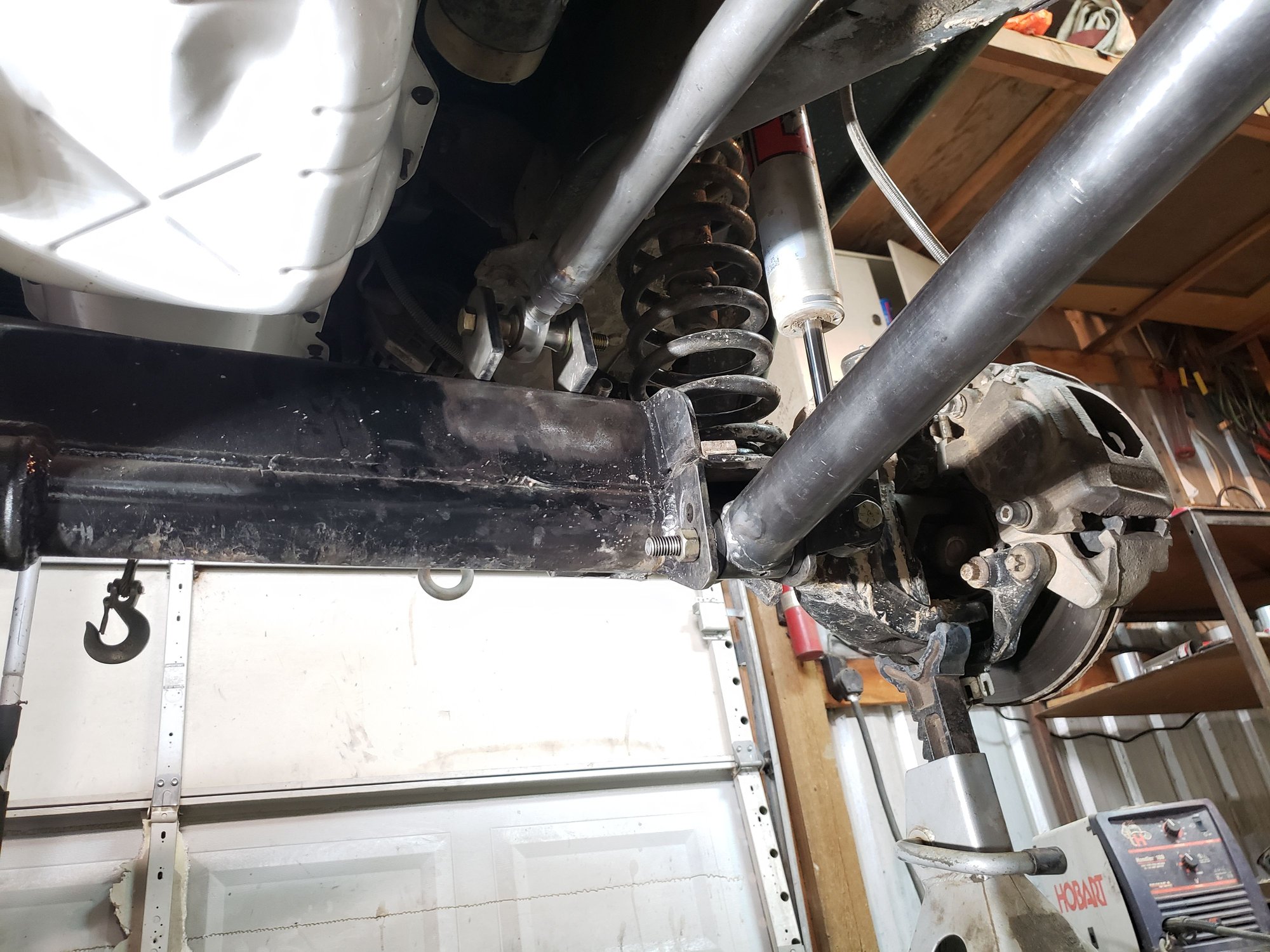

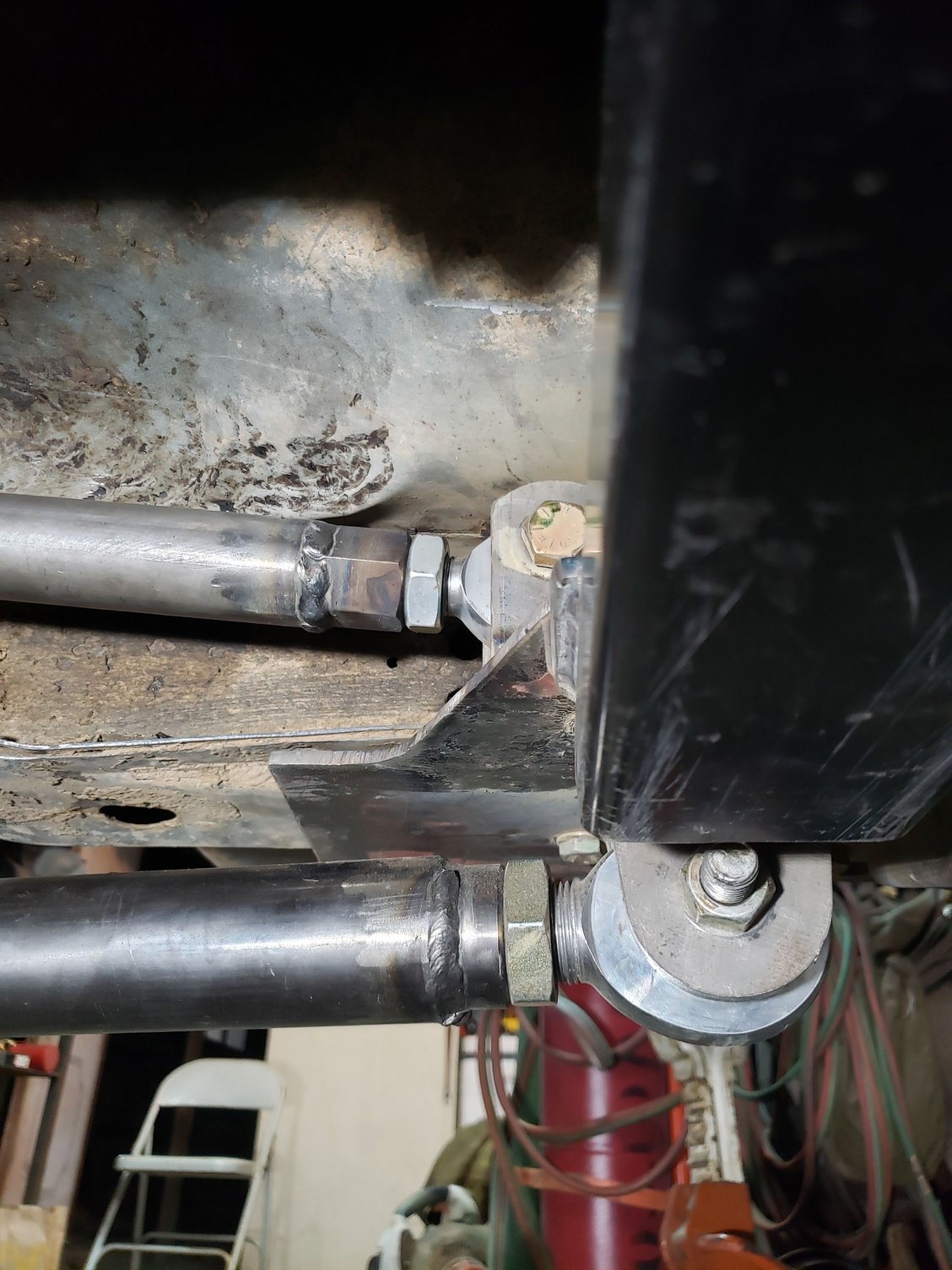

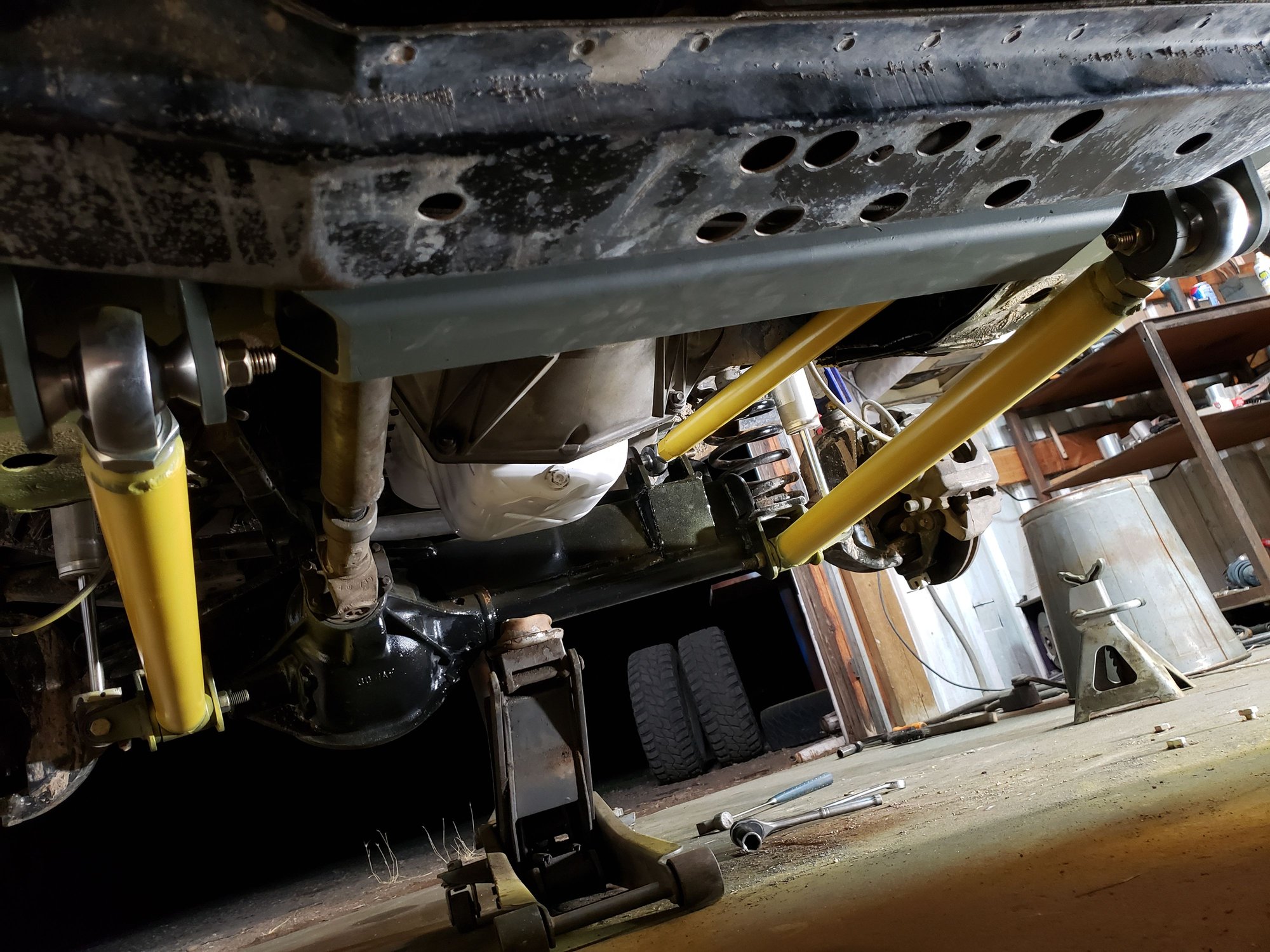

Upper link mock up. Ughhh



This photo brings things current. So so close to taking it for shake down. Pretty much wrestle exhaust in check bolts and go. I do need to re visit shocks soon as theyrw severally liitting down travel. Will rework mounts or run 11" 5125s (cough)





long mid arm has been getting a suke down is ohh so nice. Best offroad ride I've ever experienced

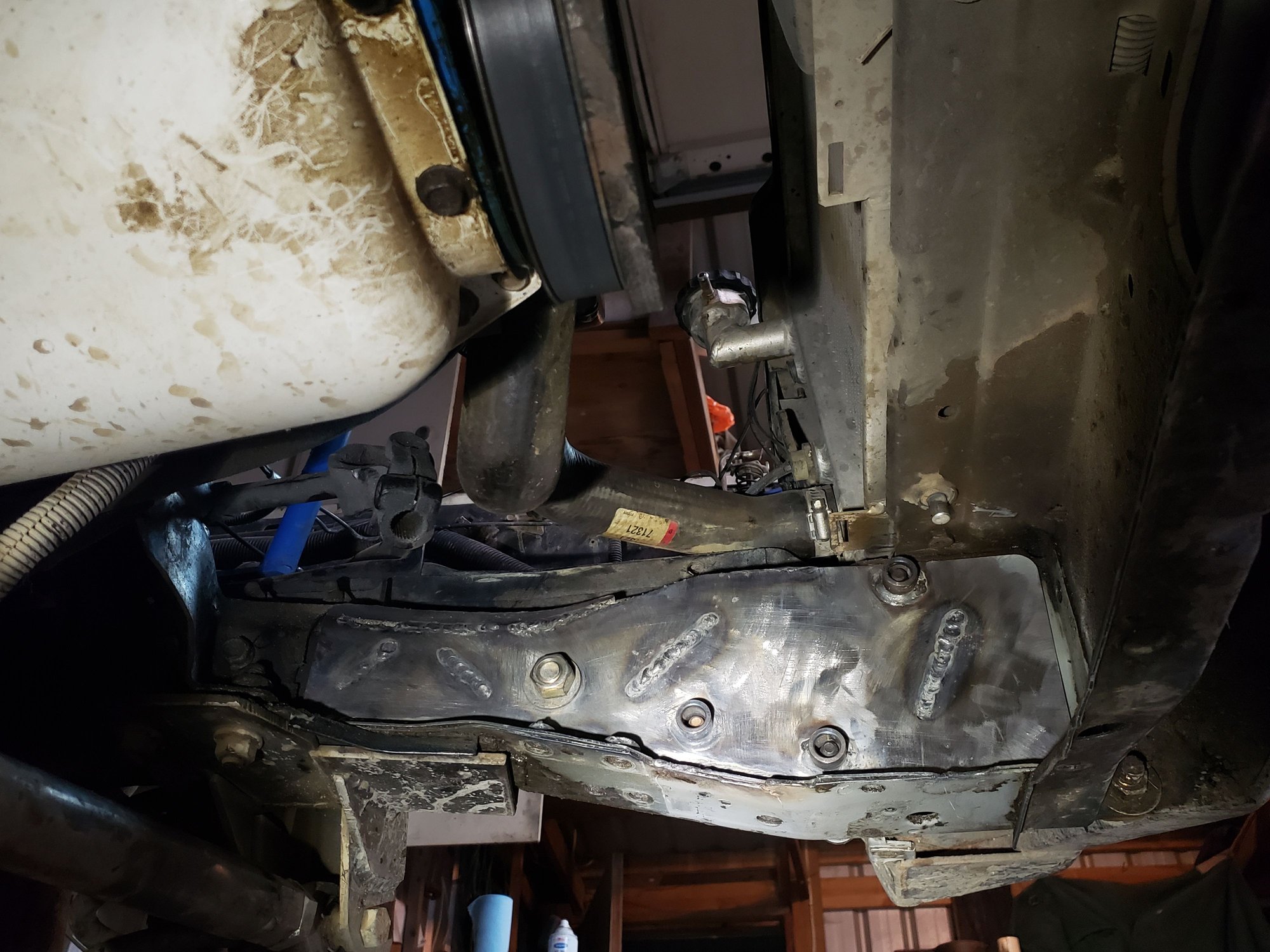

Sfr inner frame plate

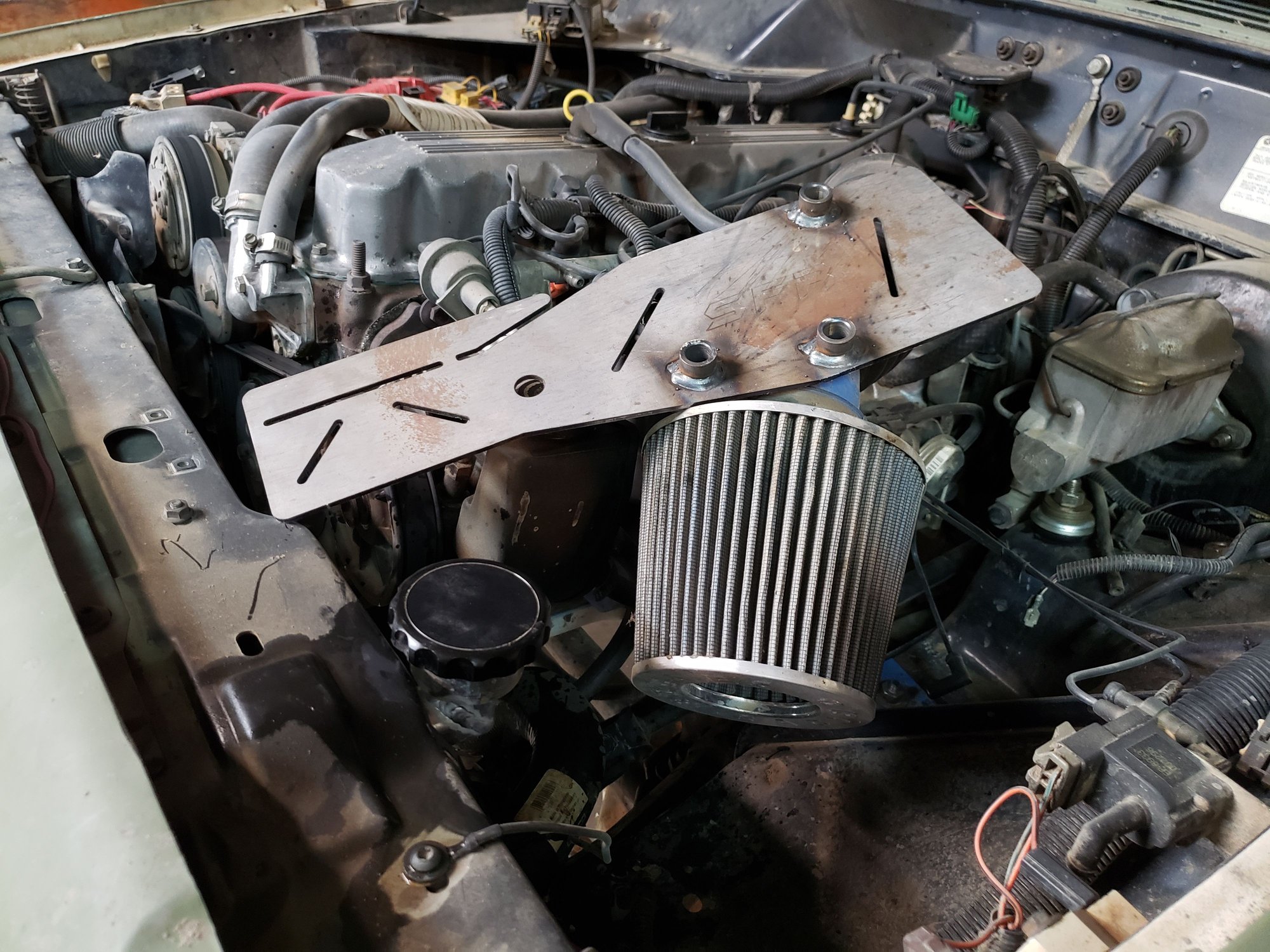

Not pretty but its glued on. Not real sure it will actually stifn things up but is a start. Phase 1 nextcwill be boost werx crossmember.



A friend of mine now has the xj bug.



very cool build so far. that color is cool too.

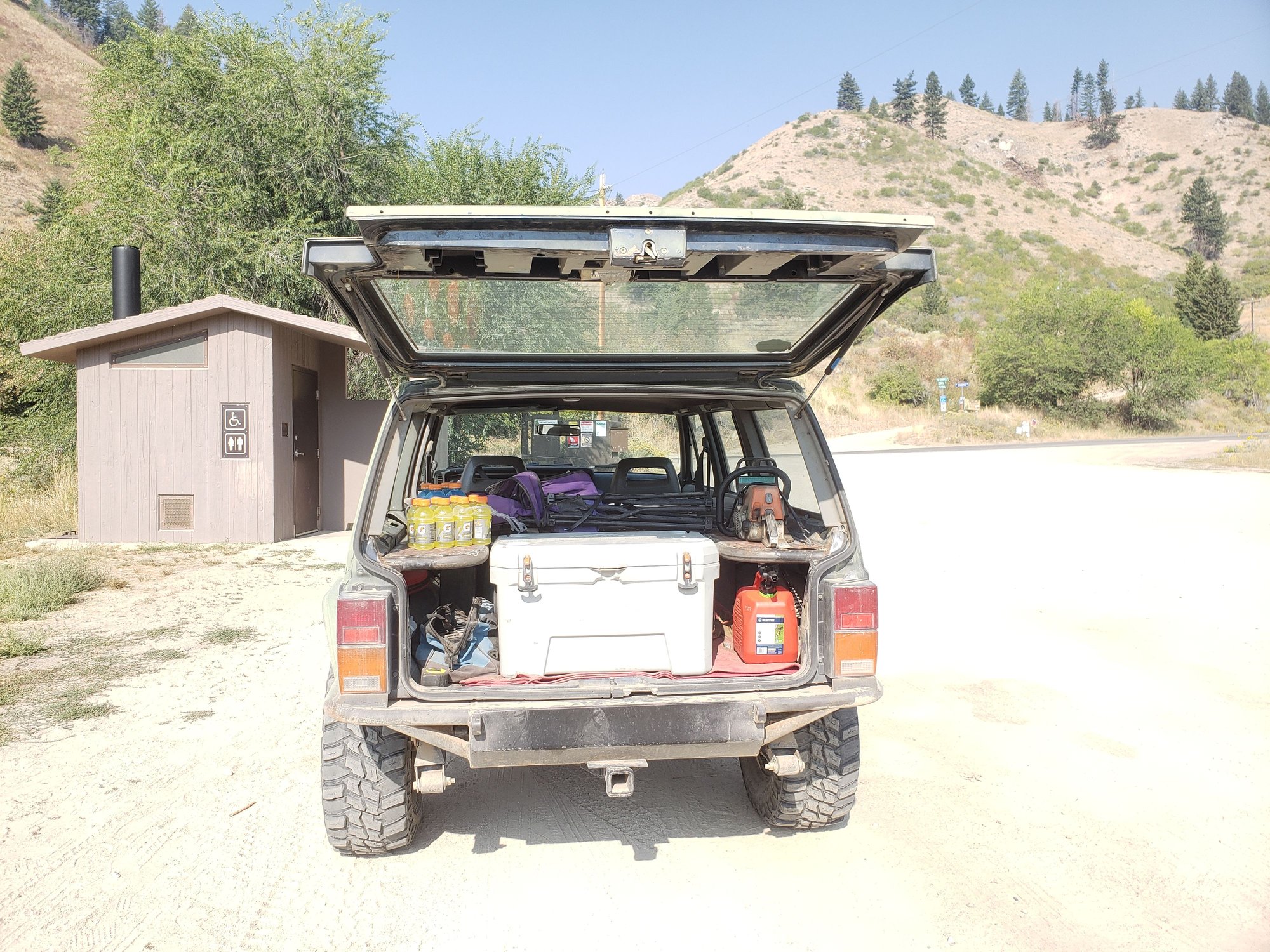

went on cruise checking out places in that are new to me. Ended up going 250 miles lots of pavement.

Steering is more solid after inside frame brace.
she's been parts runner for the 150


The fe 360 is coming along running well on all 8 now.



Recently found i like rocks and 3.55 gears don't. Thinkkng on 4.88 or 4.56 gears along with a possible 231/231 doubler. Or economy black box.

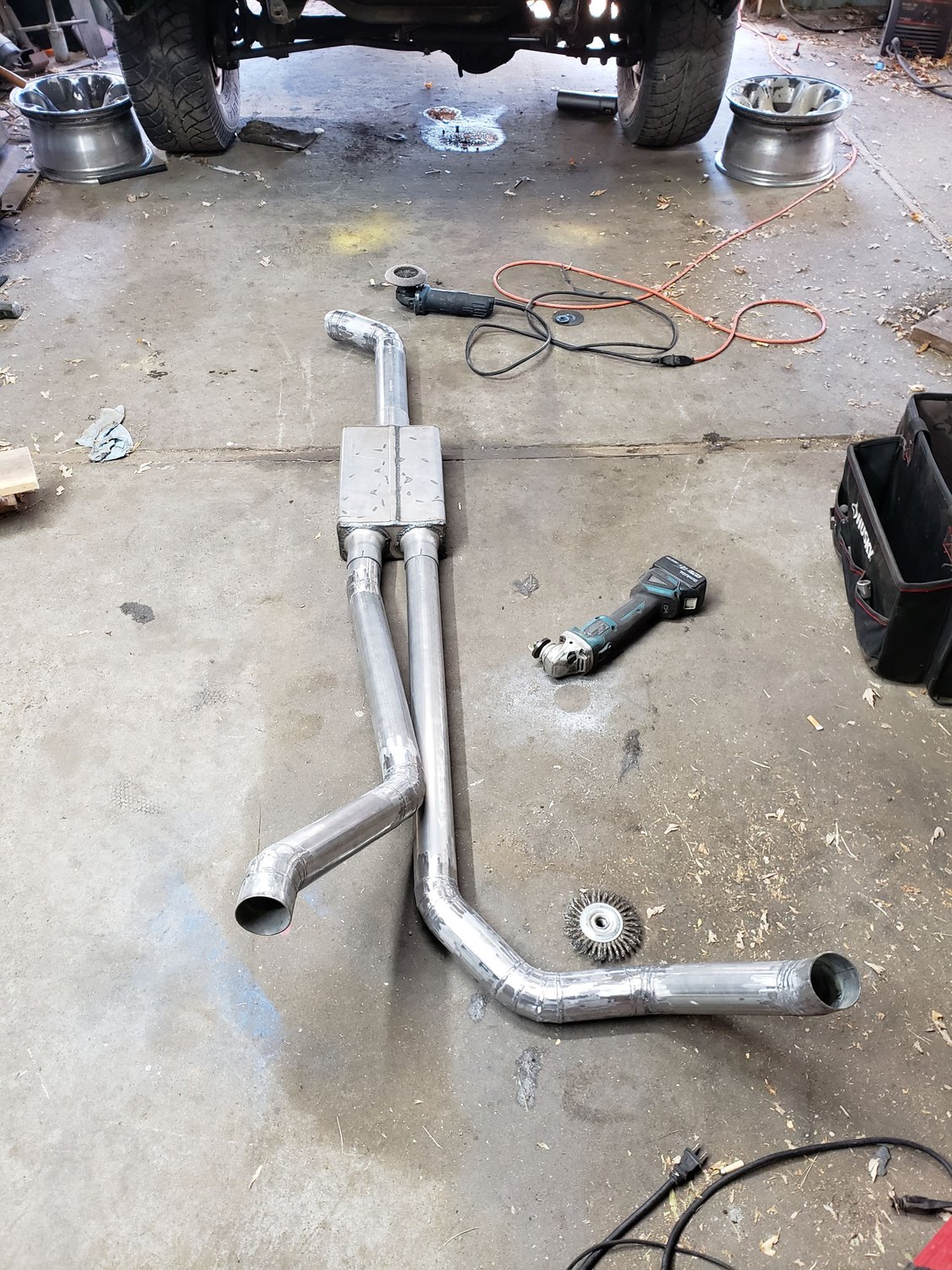

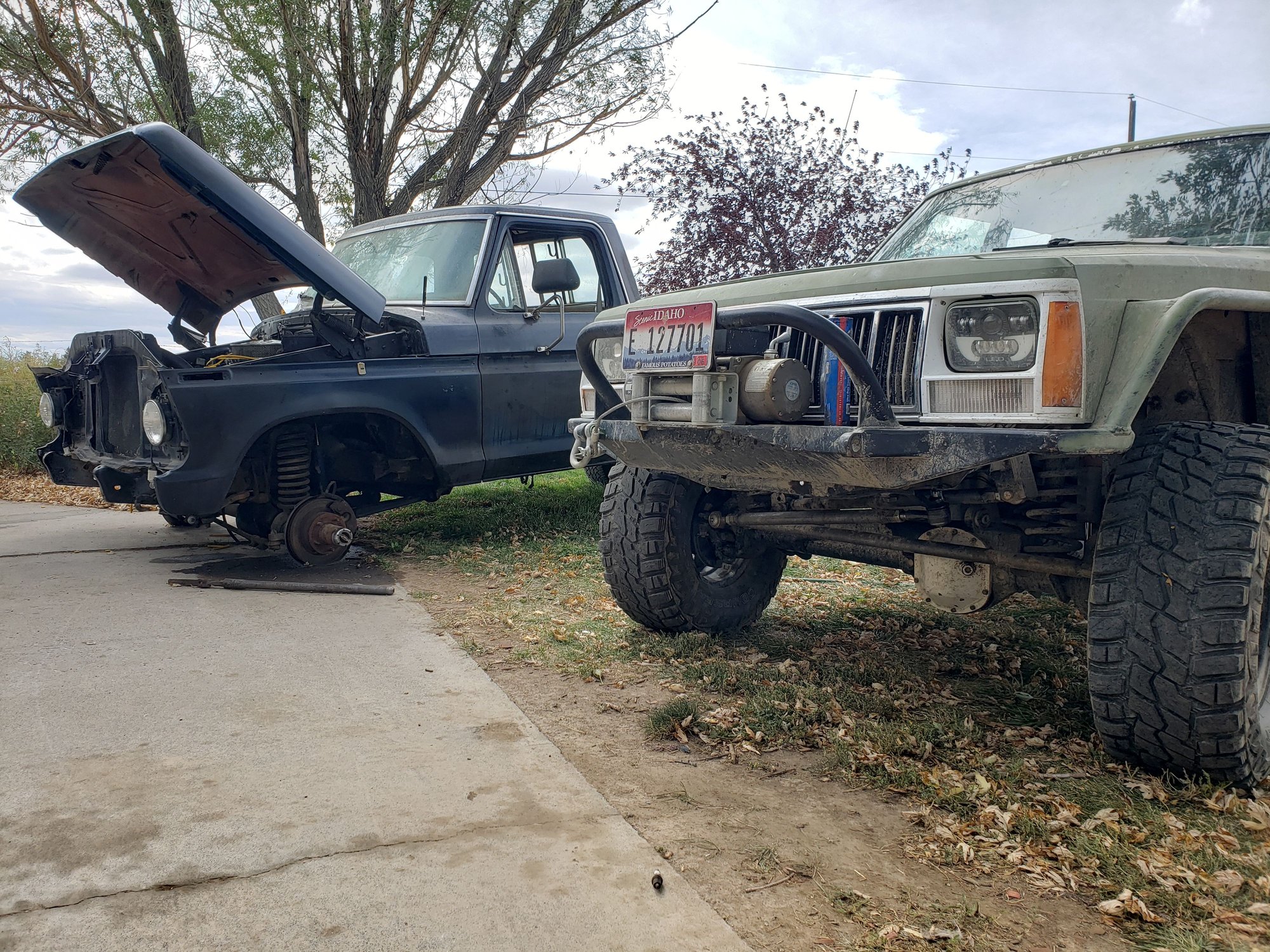

I have been distracted with the ford. Fabbed exhaust and got it running semi decent ish.

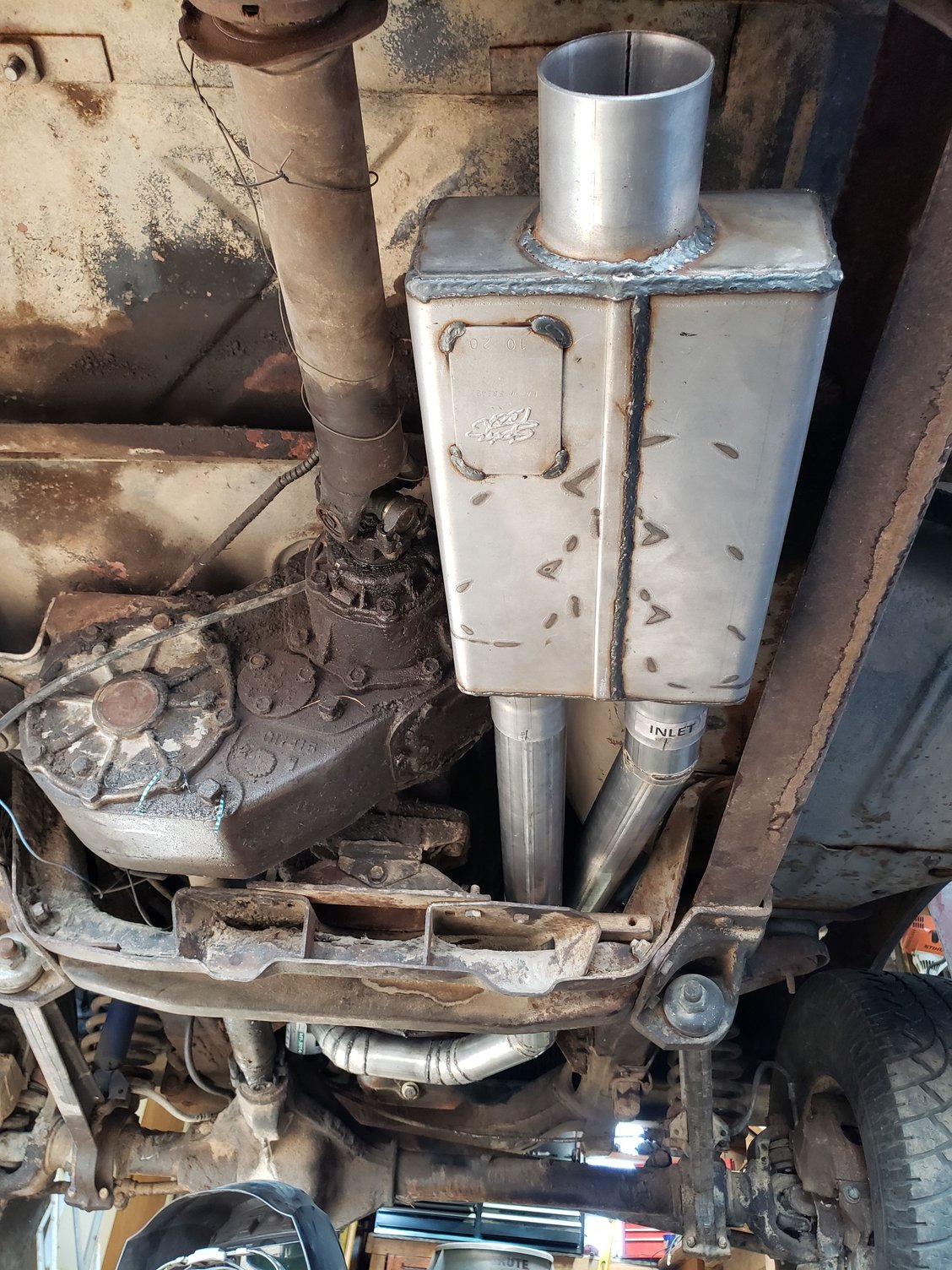

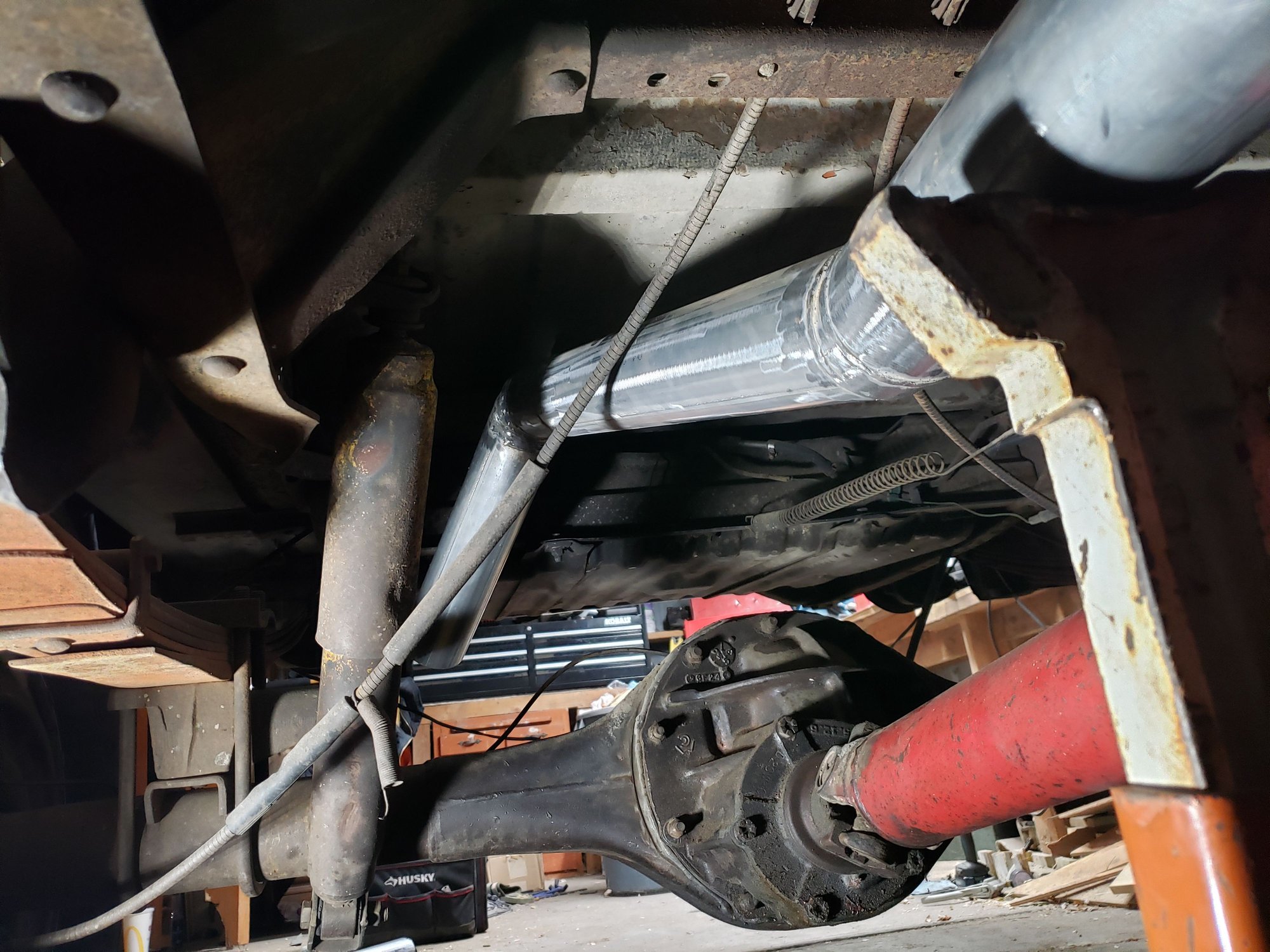

Pie cut bends from engine to tail pipe with spintech muffler


I did end up doing it to kinda a axle dump to kill some sound.


The 3link has seen 1500 miles now and is doing amazing. Freeway to rocks


I am thinking about changing the upper mount so I have adjust from 7-9" of link seperation. I have mounting points on lower links at 7-8 but I like lowers in the raised 7 spot. 8" is much more stable and alittle firmer ride.
link seperation plays a huge role in tuning. currently lowers are nearly flat and i want to leave them that way..

Thats all thats been going on.

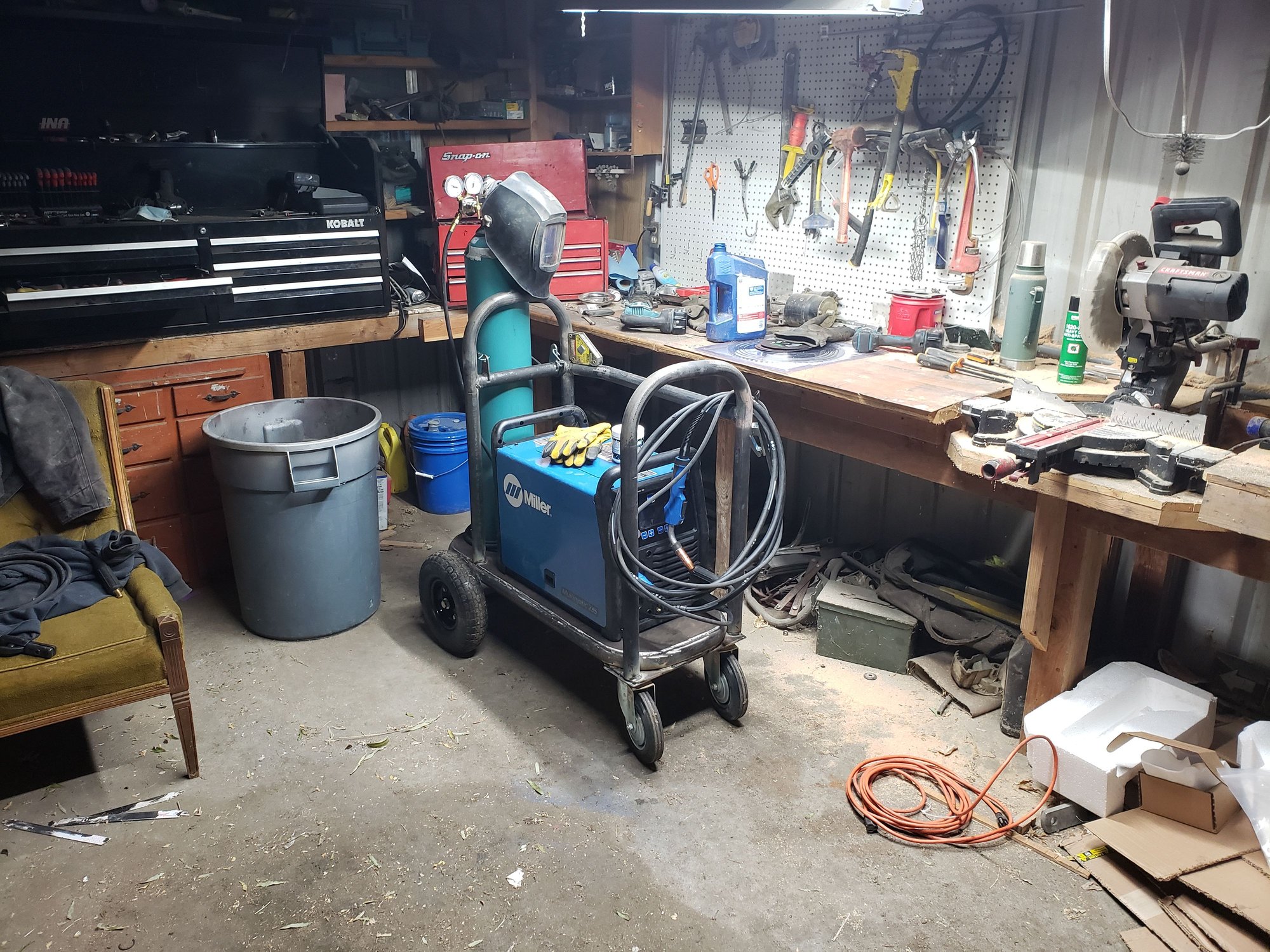

Time to upgrade welding machine
235 its brand spanking new.

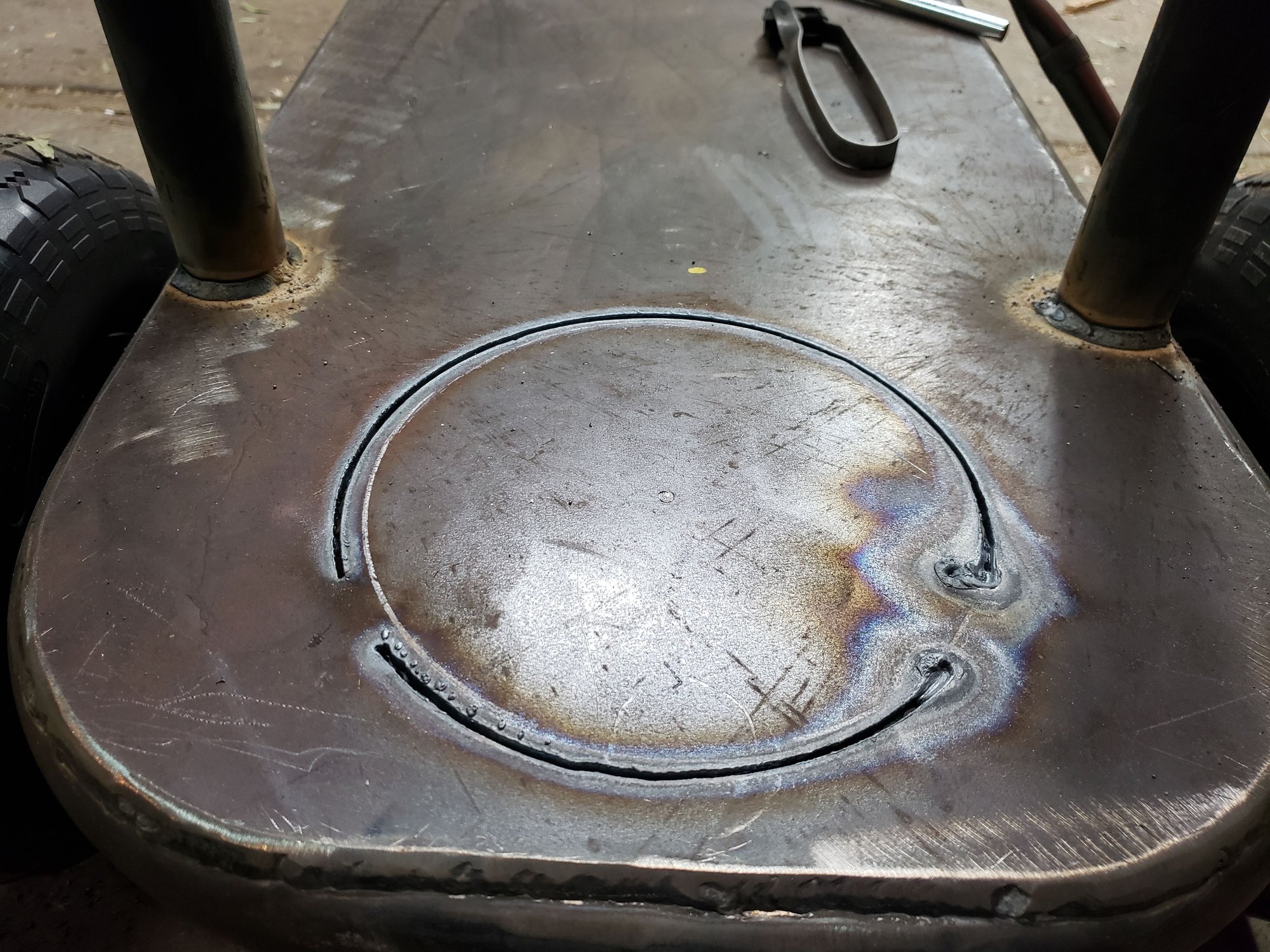

Offcourse a welding cart is a must.


Hmm my circle wiz hit the tubes.

Havent done much with it but its sure looking promising



Update.

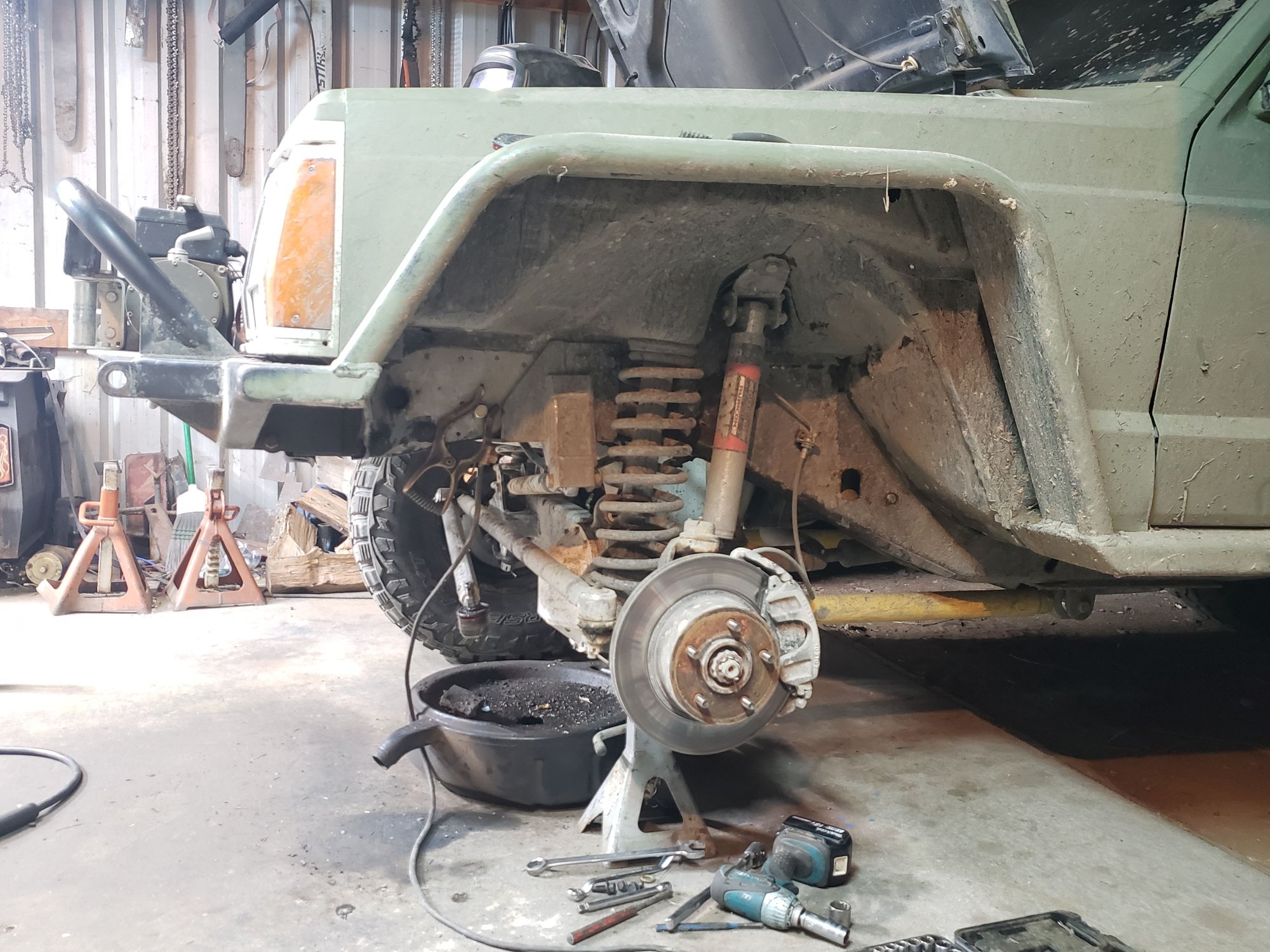

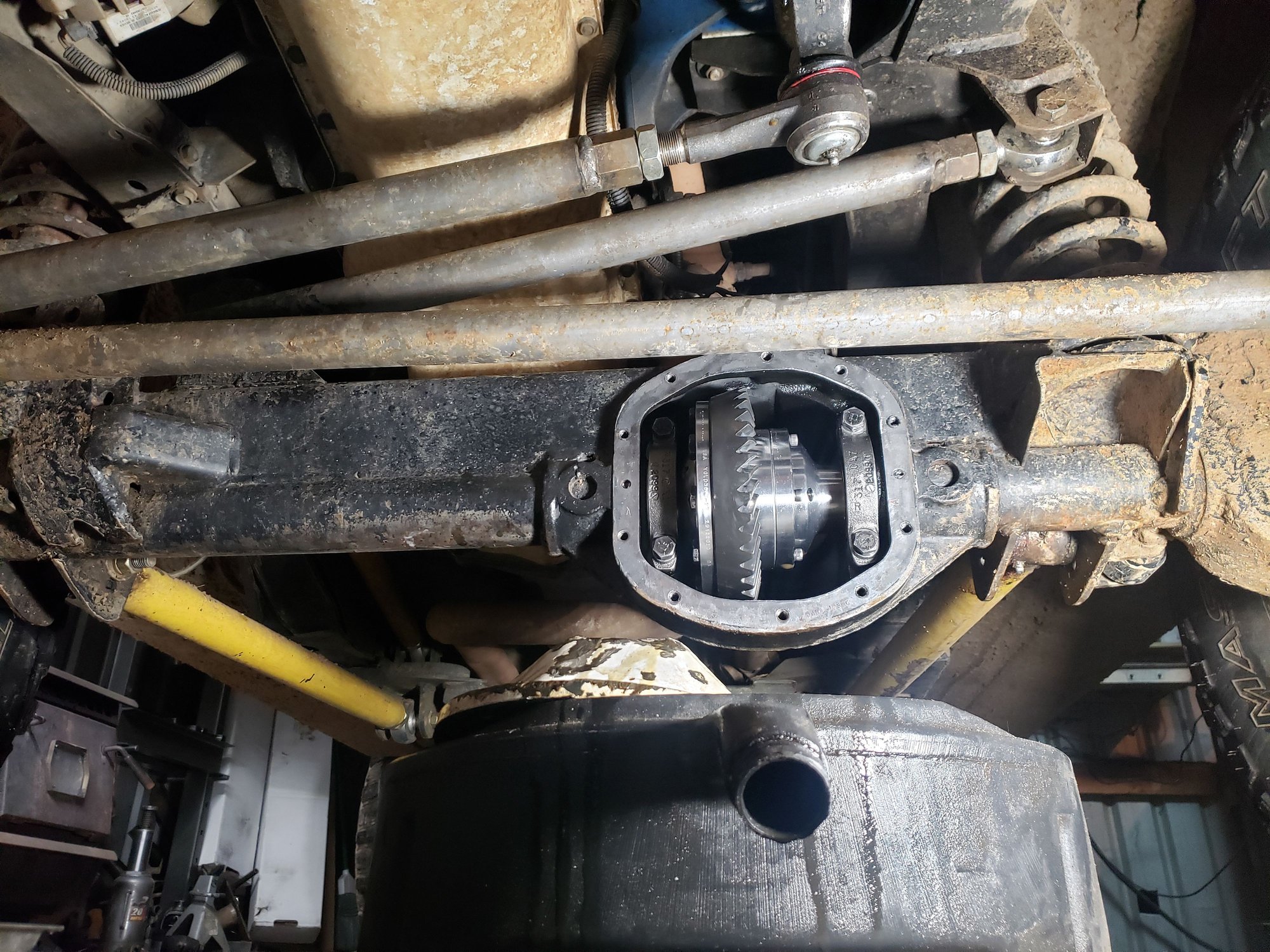

4.88 gears with grizzly front locker raised front a 1/2"

Gears and grizzly have turned this thing into a mtn goat.

Working on gather h1 stuff to recenter to 5x4.5 and possibly get a set of 35" boggers. Ive ran boggers before I really like them.


I scrounged up tools to do gears myself. And researched alot. Also made a set pf dana 30 set up bears

So far I've got one pvc insert fabbed from a 4ft of 16" i found.
the othere 4 are on my pickup

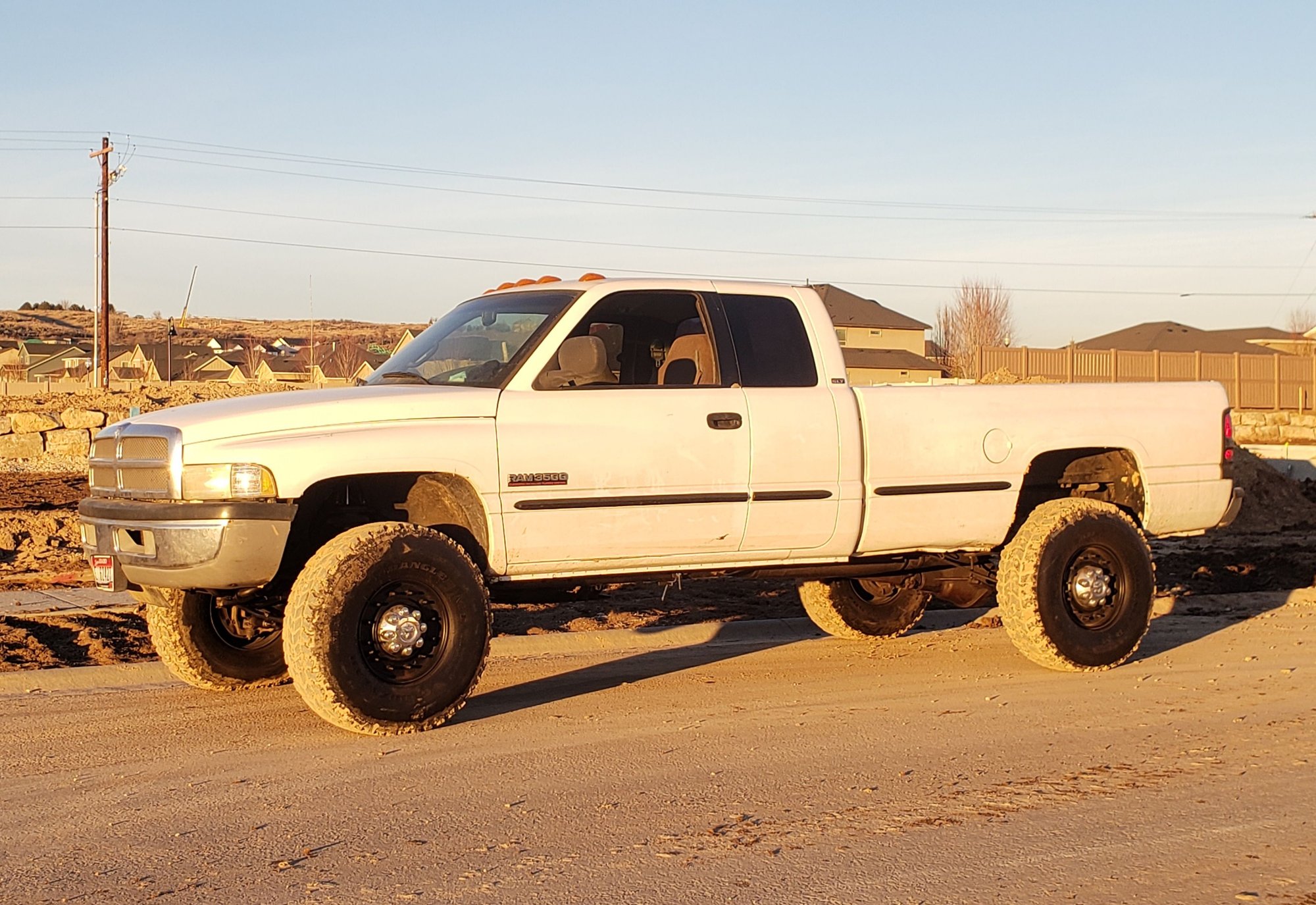

37s look good on the truck. Figured id burn these up on the truck while im gathering wheel fab stuff. I think theyre to big for the jeep i dont want to loose to much of the 4.88 to that much tire. 4.88 33s feels perfect on the trails 35 probly will to

One center cut out and trady for jeep center

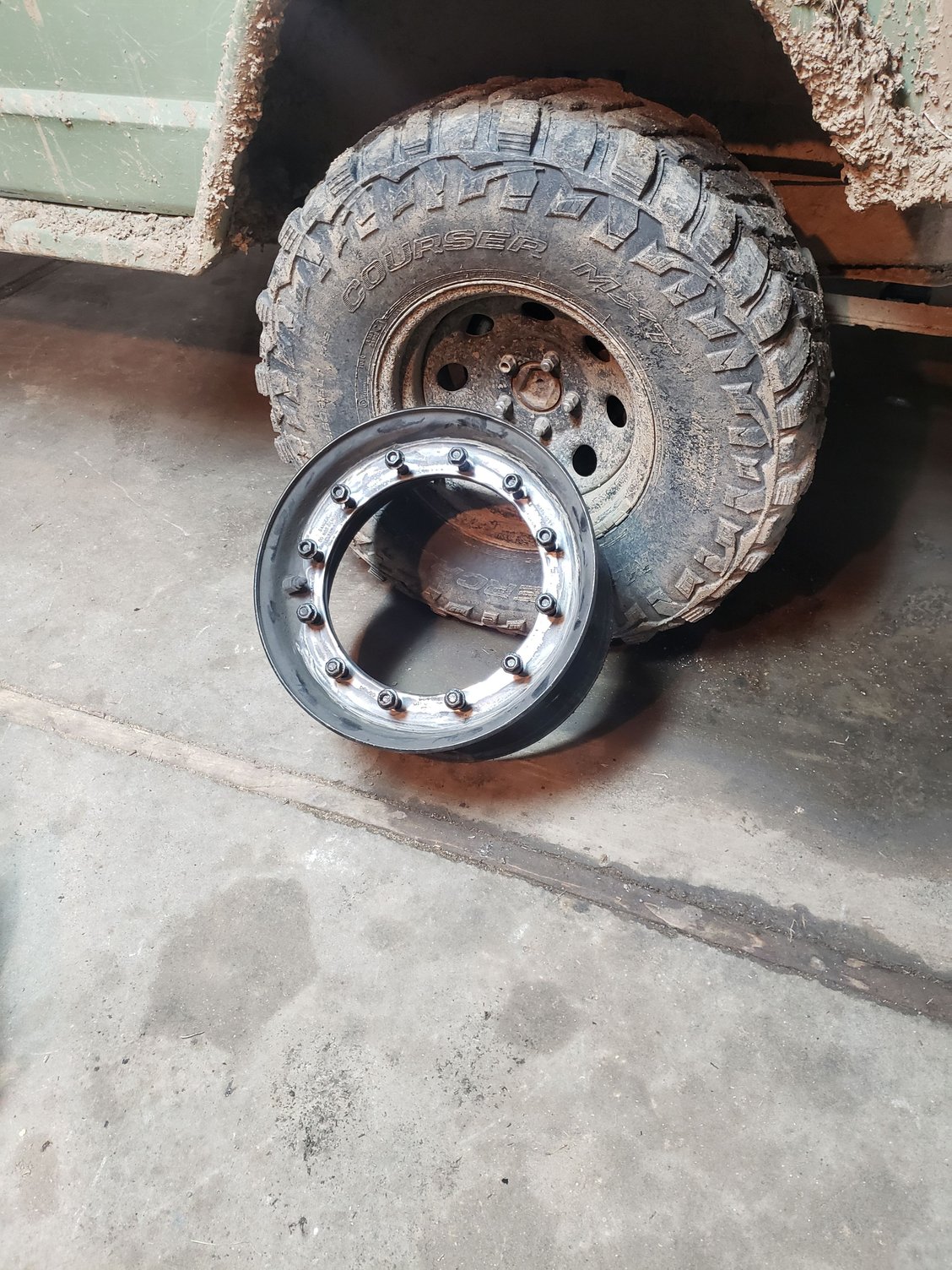

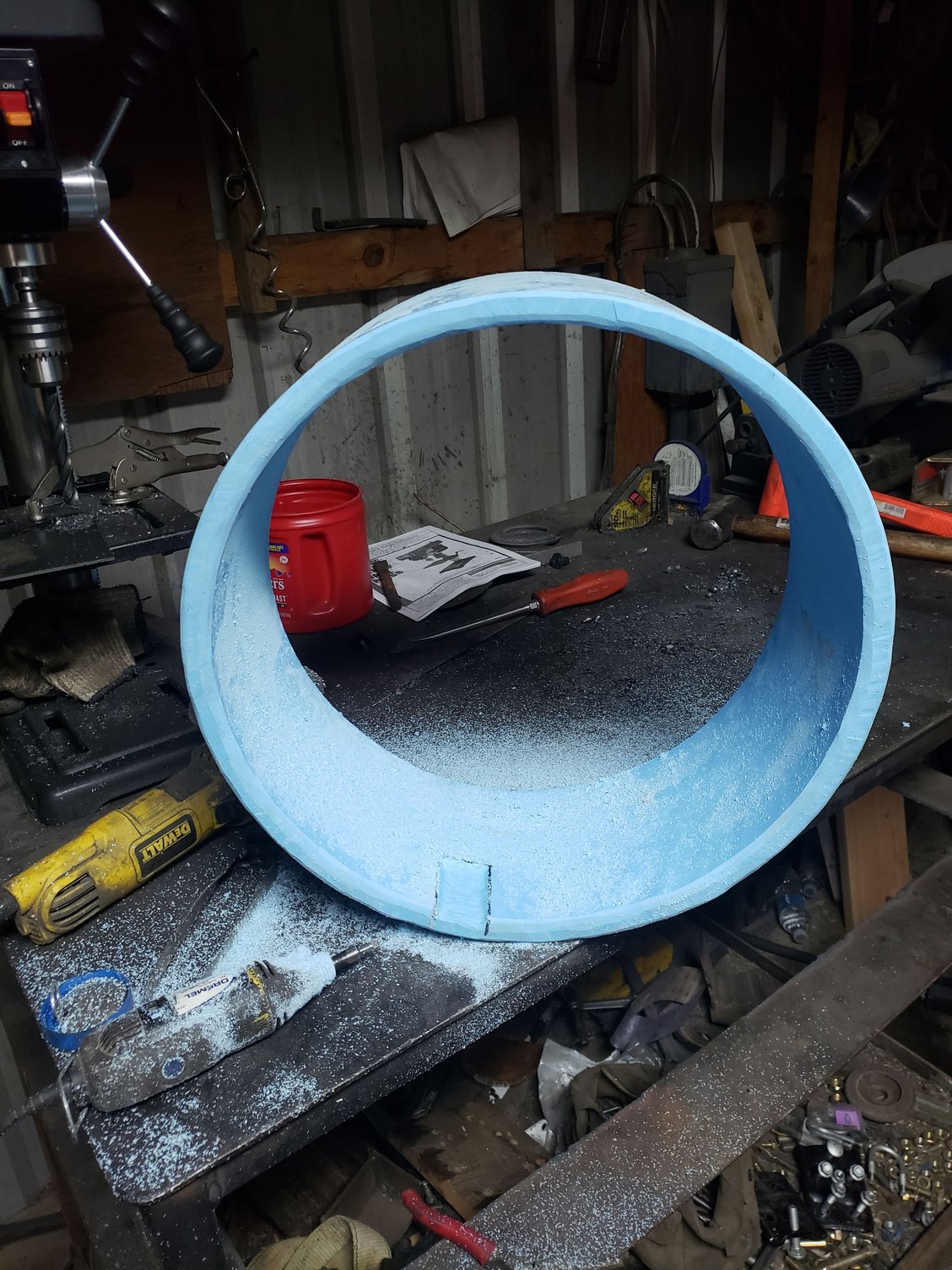

Pvc insert i made to replace the runflats

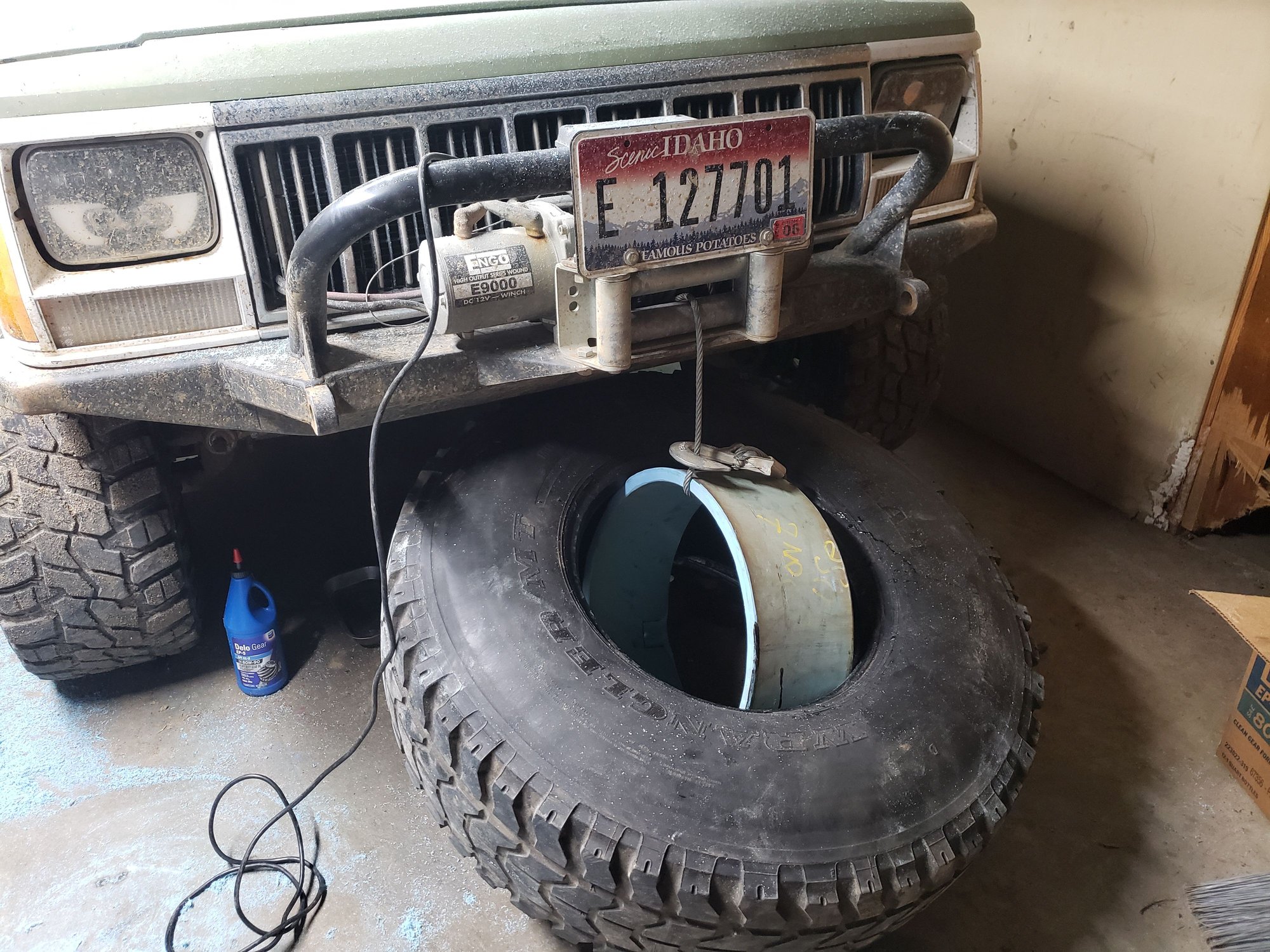

Test run winching insert into tire. With tgese wheels i can pack a spare tire no extra wheel needed

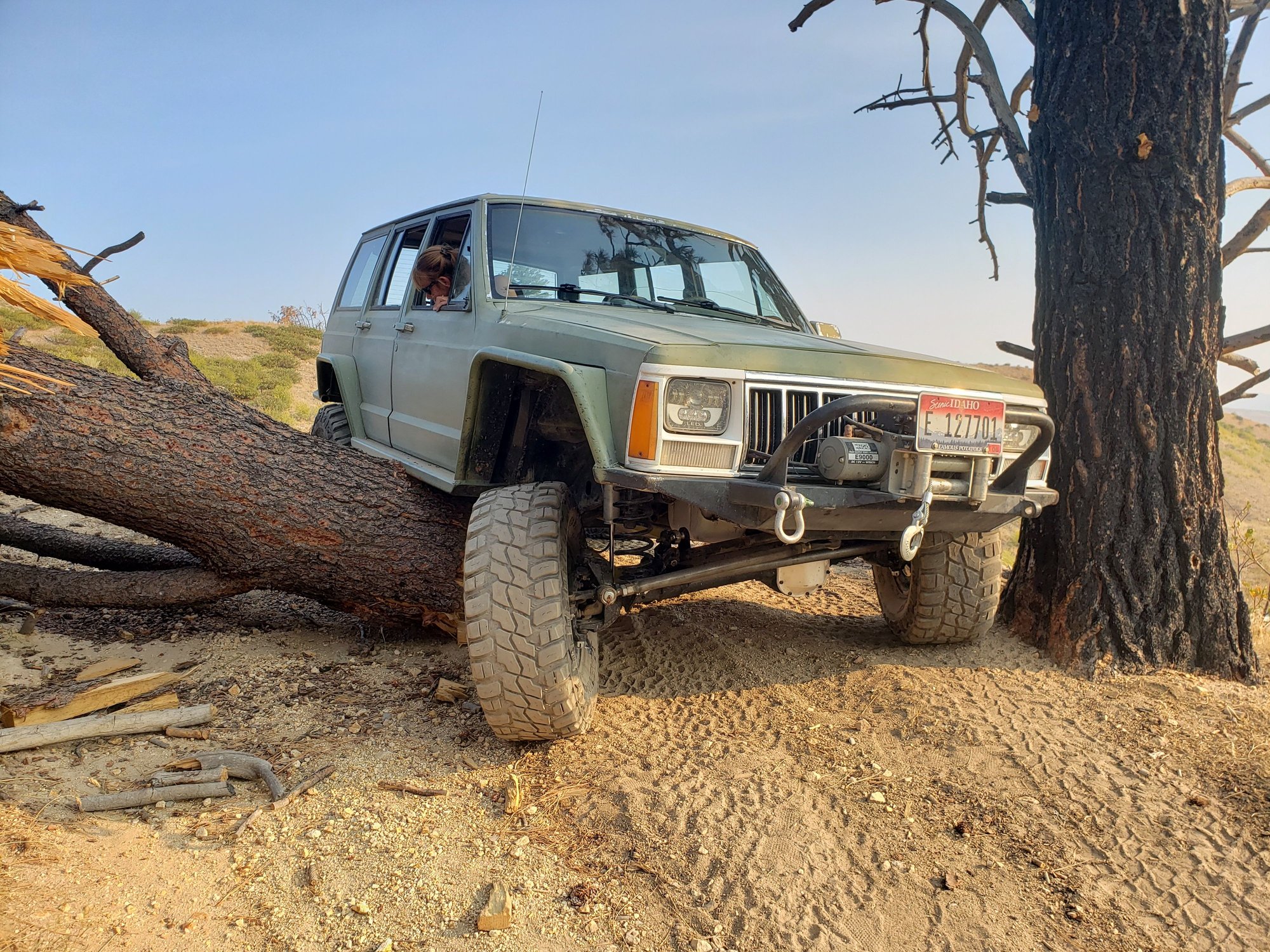

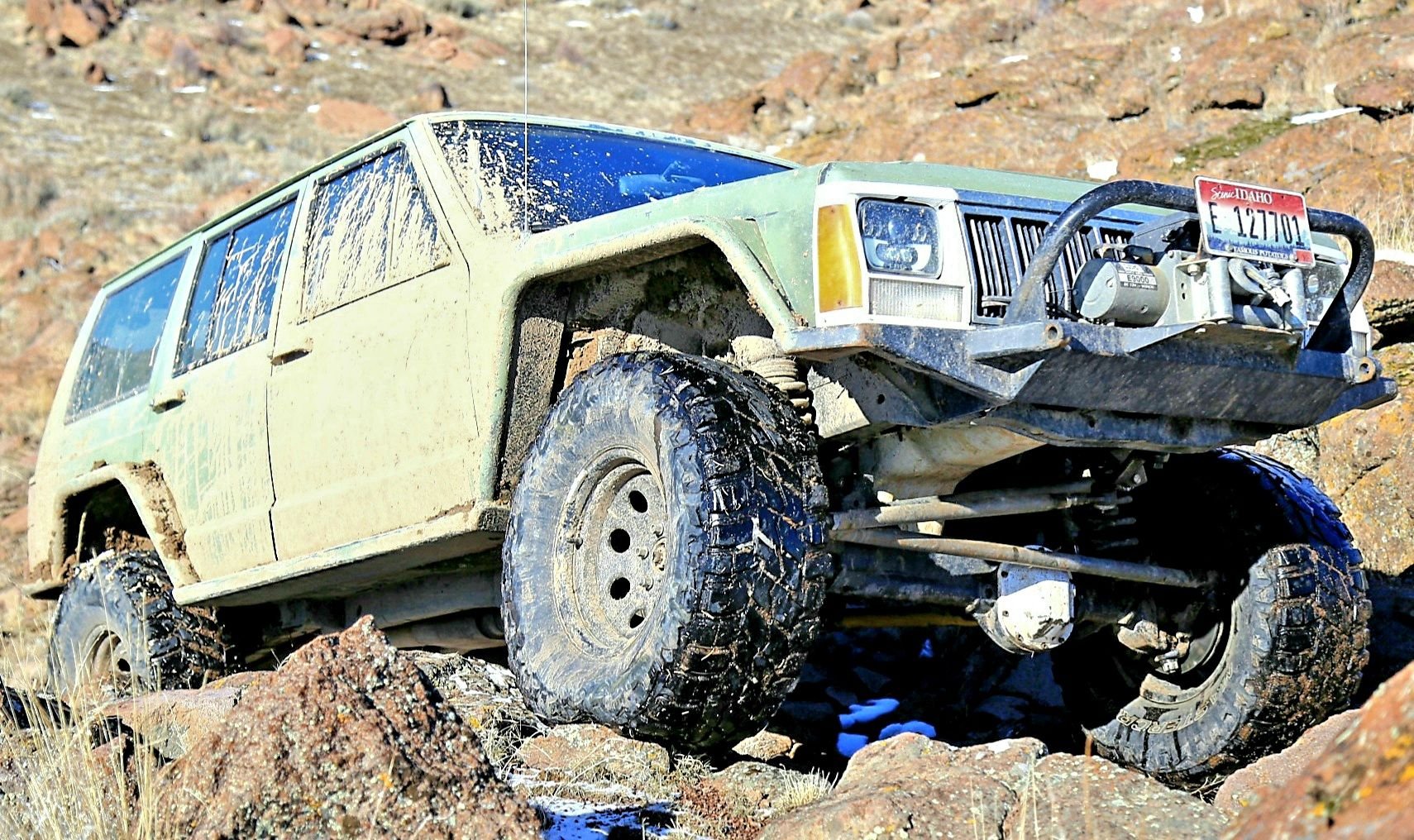

From a trail today


Centennial trail in idaho



Bought it for now. Constant tunning and changing. By the way tires will be from interco probly boggers.
