Back from the ROK yet?



I forgot about this thread. Thank Airborne for reminding me.

I got back from the ROK back at the end of Sept, and found our way from FL back to Alaska in Oct. I have some minor changes for the Cherokee so I'll get back on here tonight and update this after our trip with the wife's jeep.



Welcome back. I actually enjoyed my year in the ROK. I now have a white 97 cherokee kind of like yours. It needs a lift and new wheels and tires...



I've been slacking on the build here. So update time:

Finally re-geared the front end back in Feb.

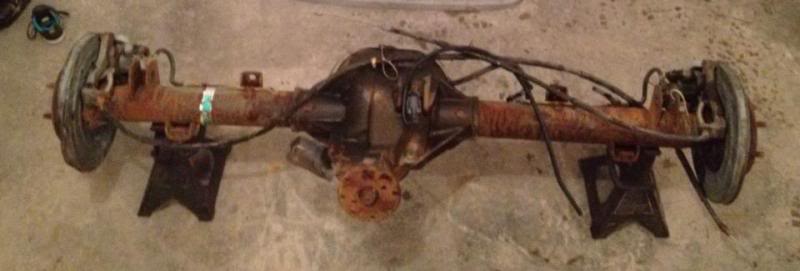

Picked up this little fella back in March:
"New" Ford 8.8 with 3.73s, limited slip, and 31-spline

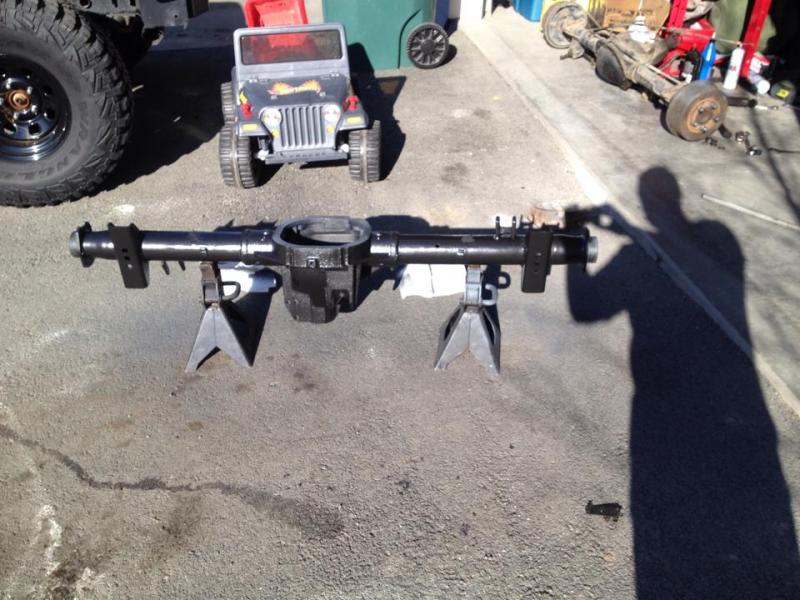

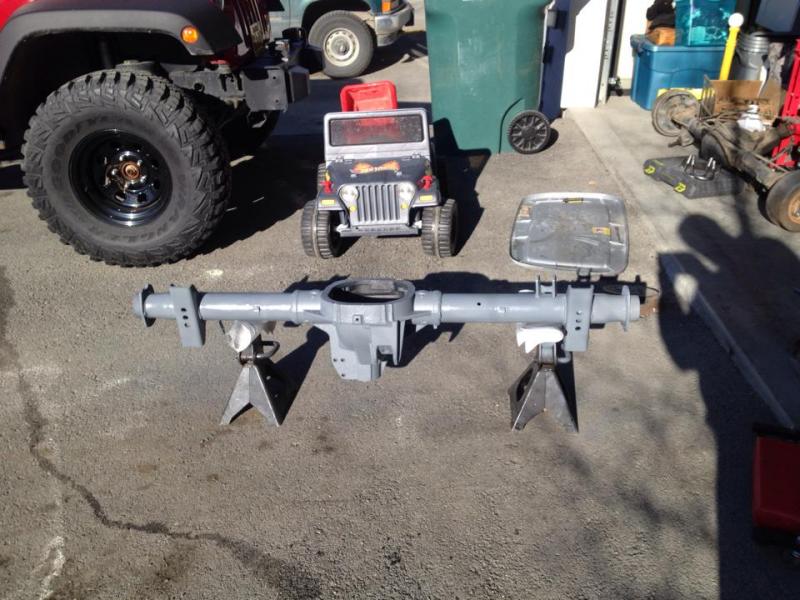

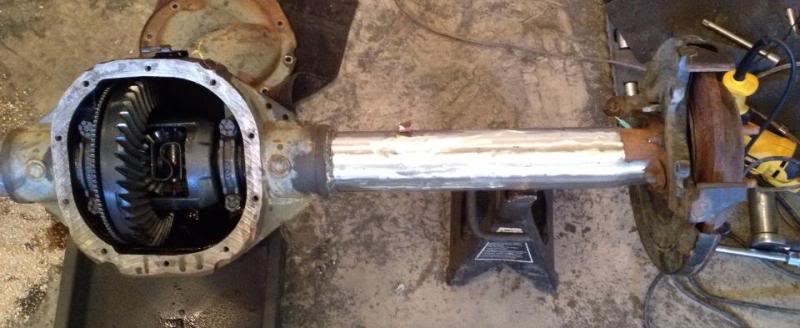

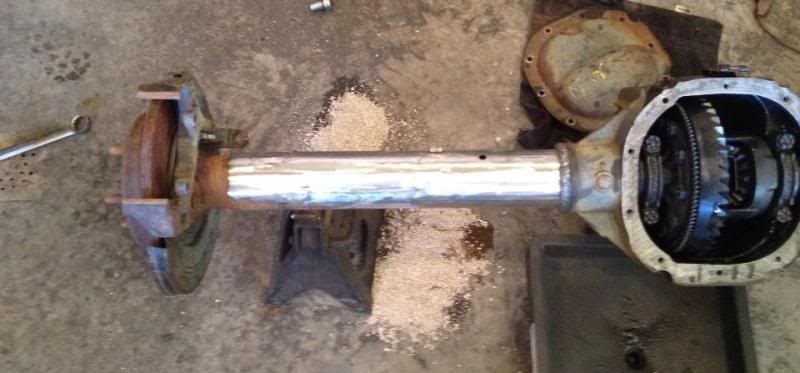

Tubes welded, sanded, most prep work done before burning the brackets on.

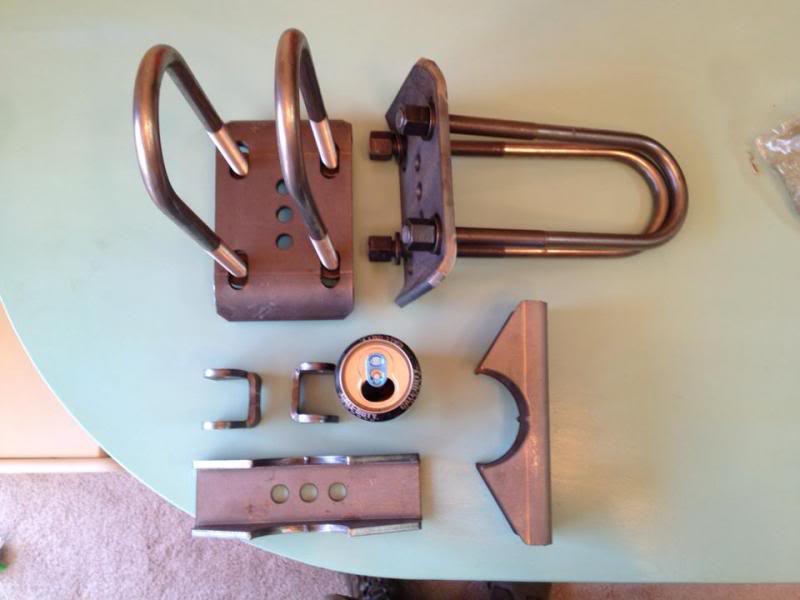

Ruff Stuff Specialties swap kit:

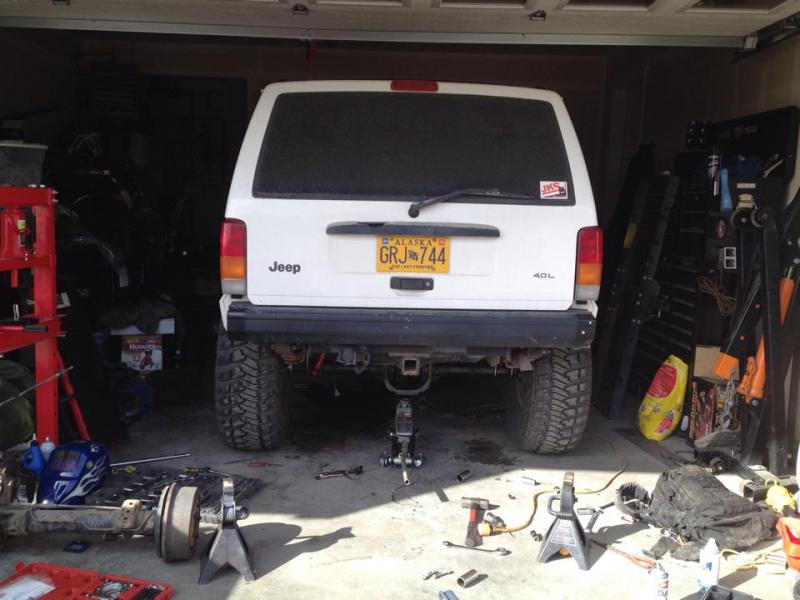

The 8.8 was stuffed in back near the end of April.




I didn't use wheel spacers on the rear so I wanted to make sure it wasn't going to rub at all, no issues:

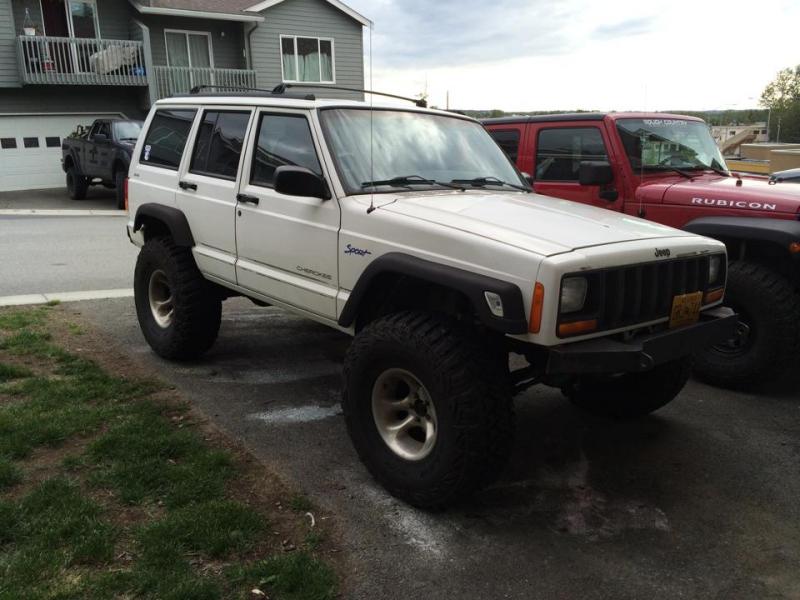

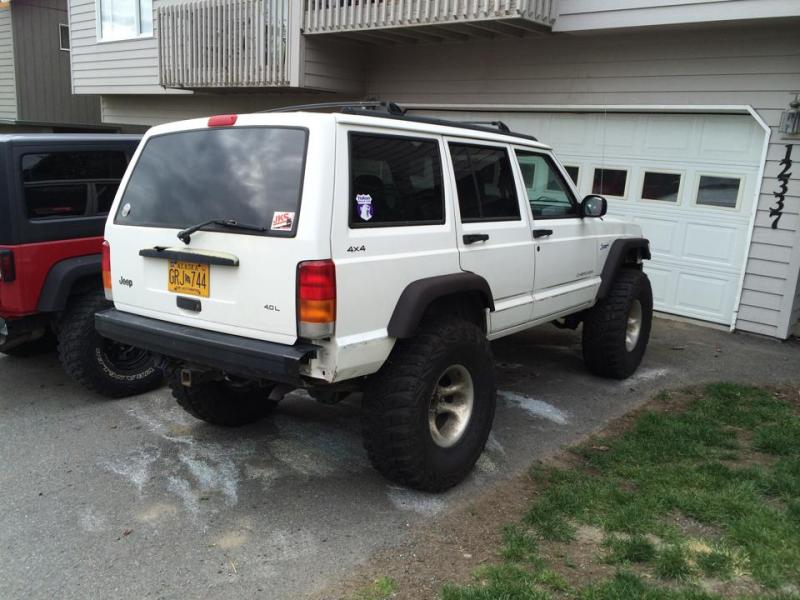

Then about a month ago i procured a set of TJ flares from a friend:

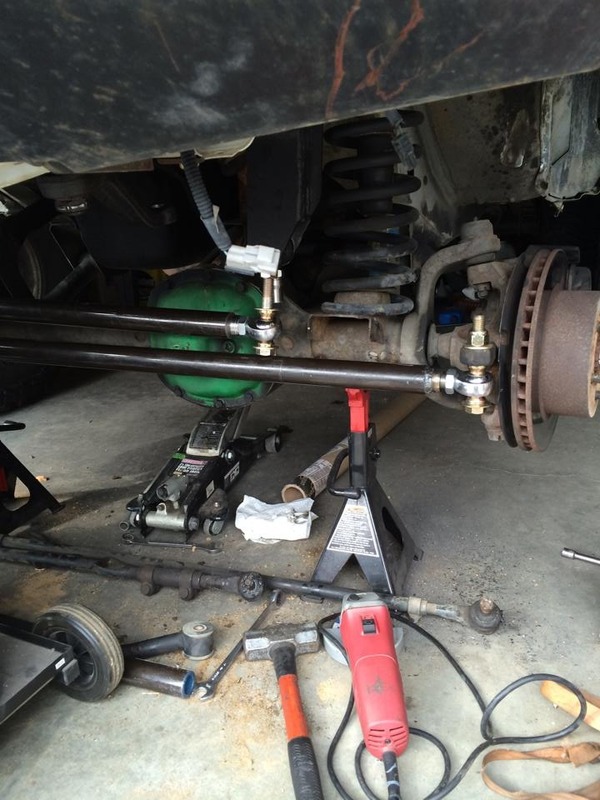

Last weekend I finally got around to building my steering setup:


1.5"x.25 wall DOM tubing, 3/4" rod ends with 5/8-grade 8 hardware

Now on to this weekends project:
New radiator, radiator cap, water pump, heater core, thermostat, and all new hoses.

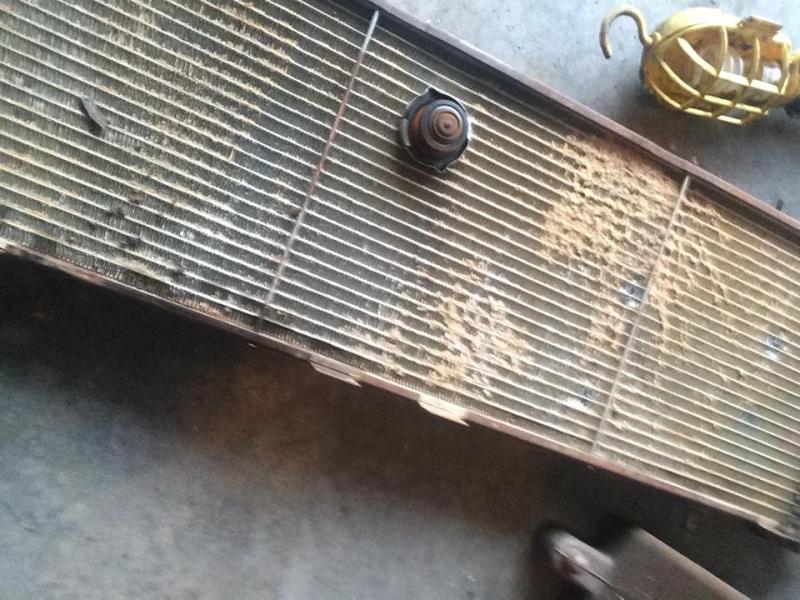

Old Radiator, I sure was the cause of my cooling issue while crawling around. This was the fan side of the radiator, the other side is completely clean.



Its been a long time since some updates...



First update Aug. 24, 2014:

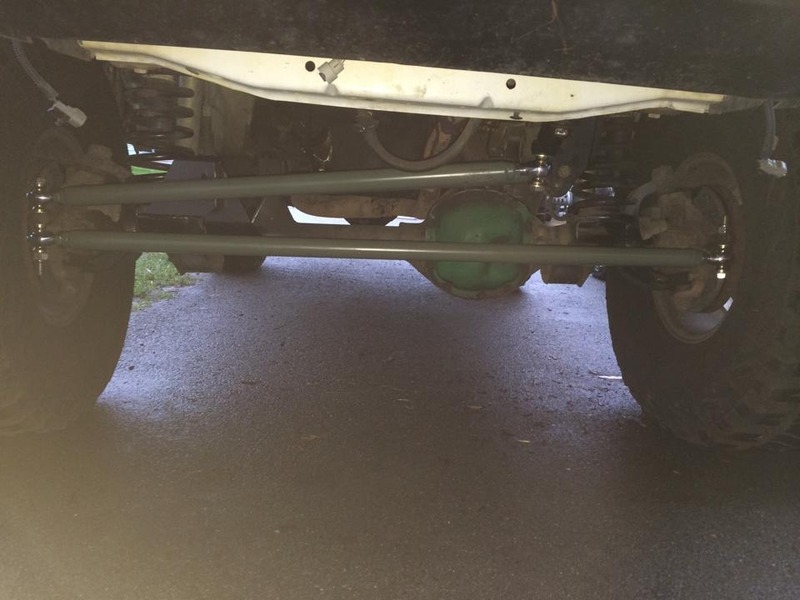

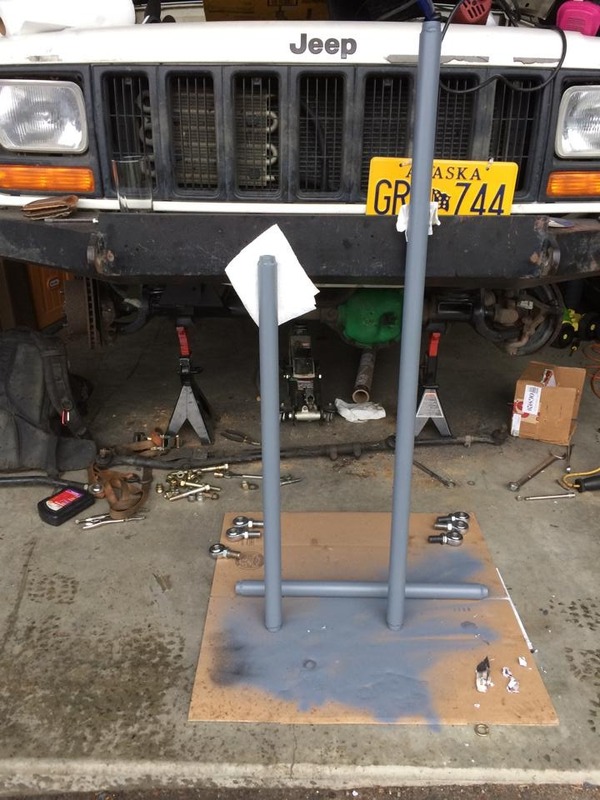

Steering and track bar build using 1.5" x .25" wall DOM tube and 3/4" x 3/4" rod ends all around



Second update Nov. 29, 2014:

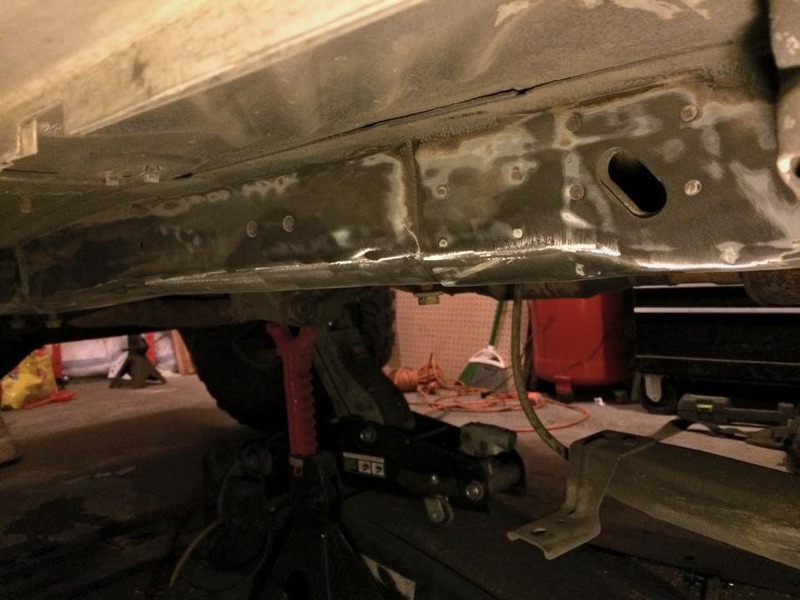

Unibody Stiffeners
3/16" full length plate cut out buy a local Anchorage guy



Third update Mar 10, 2015:

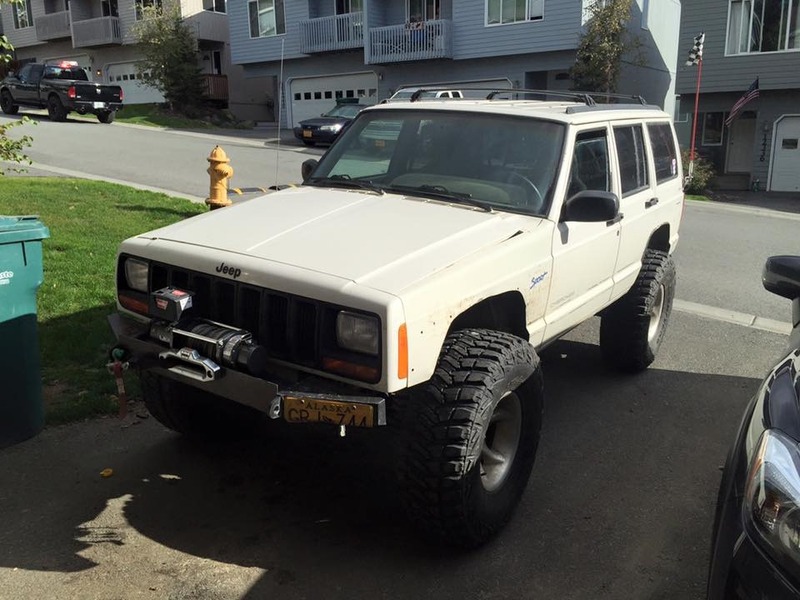

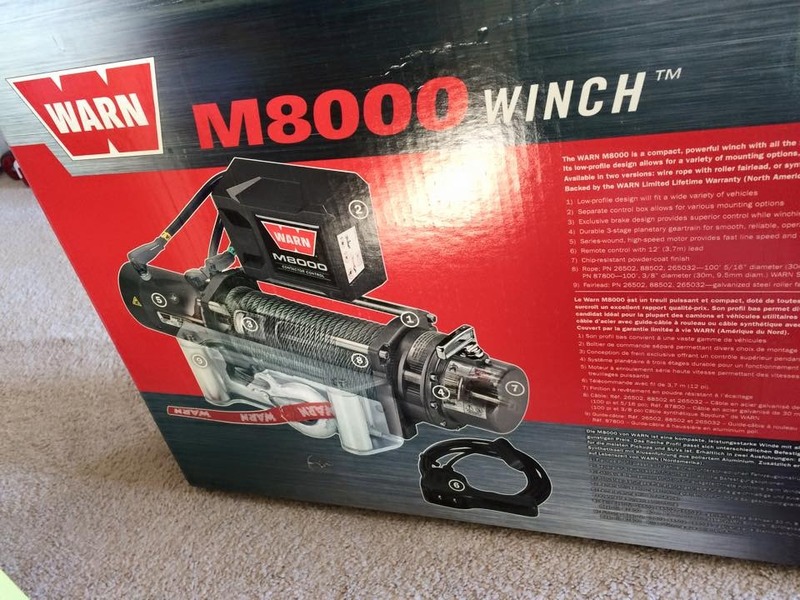

Warn M8000s



Fourth and current update Aug 27, 2015:

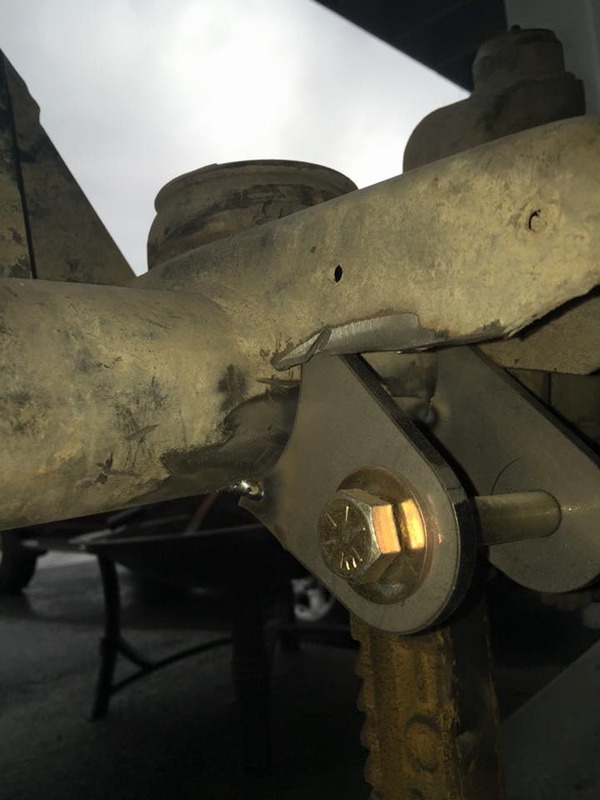

Found these on the track bar bracket:



so it led to a big change:

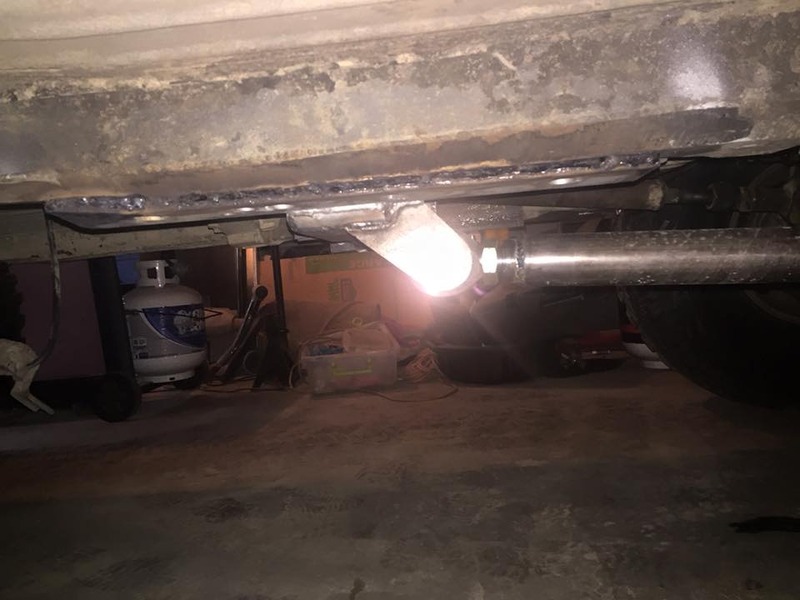

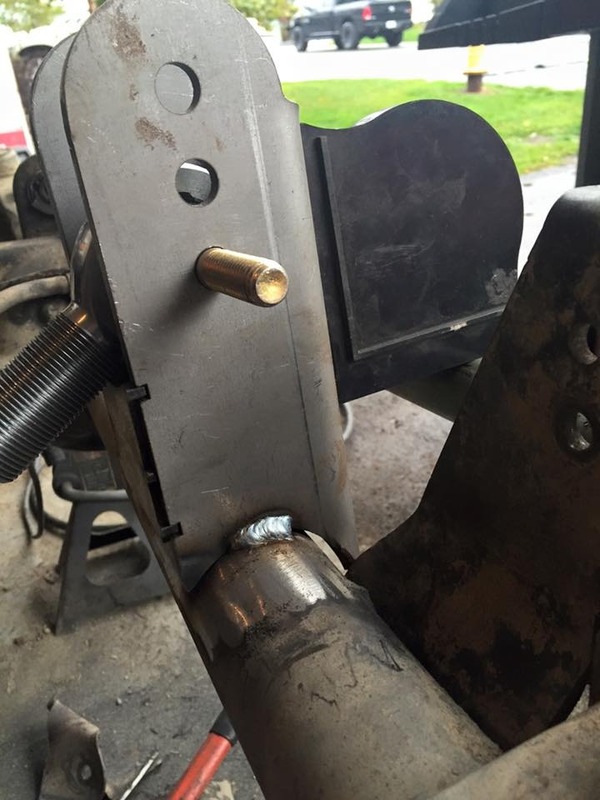

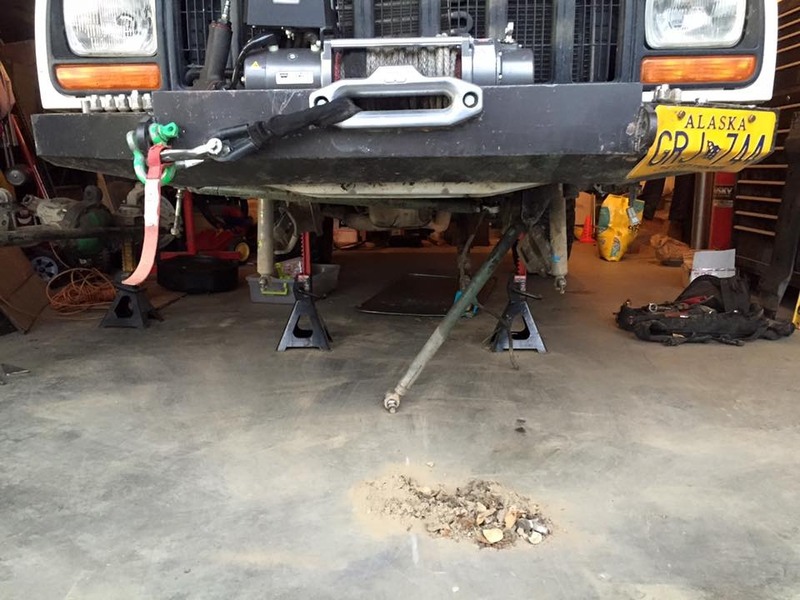

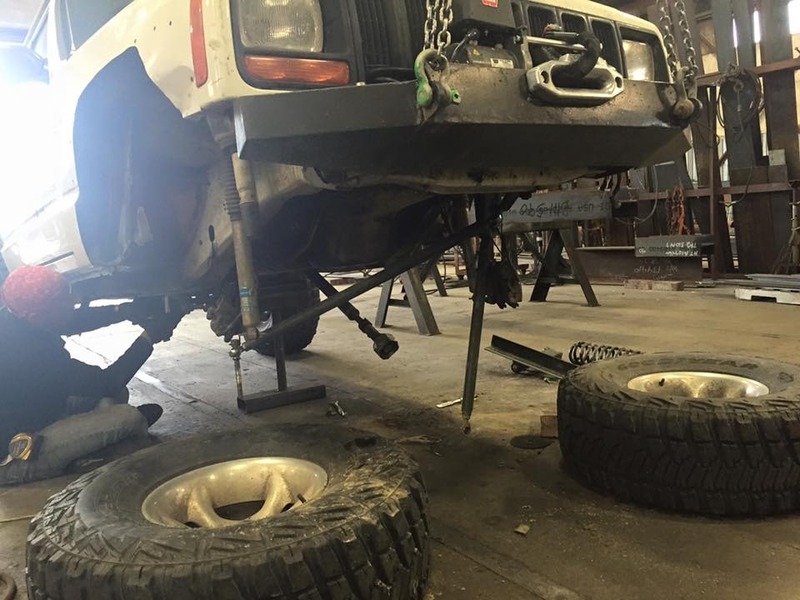

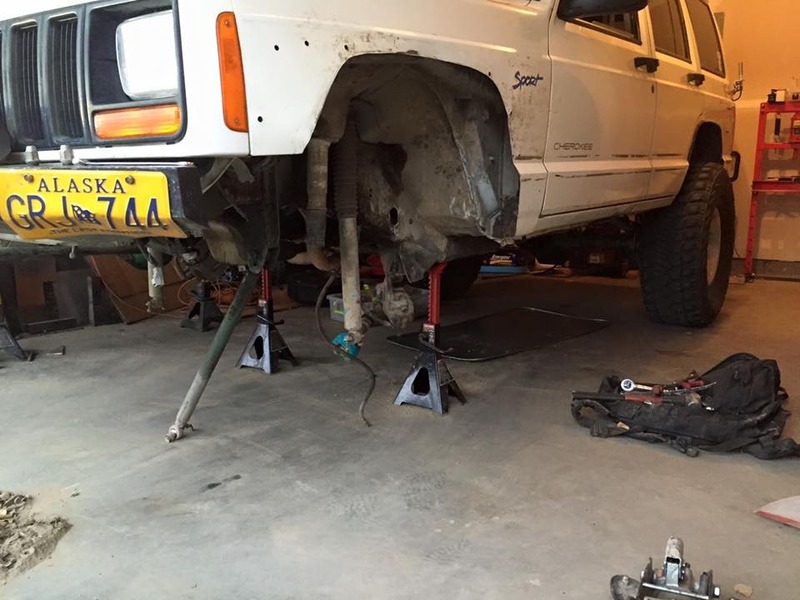

With the axle out it was time to get the 3-link underway:

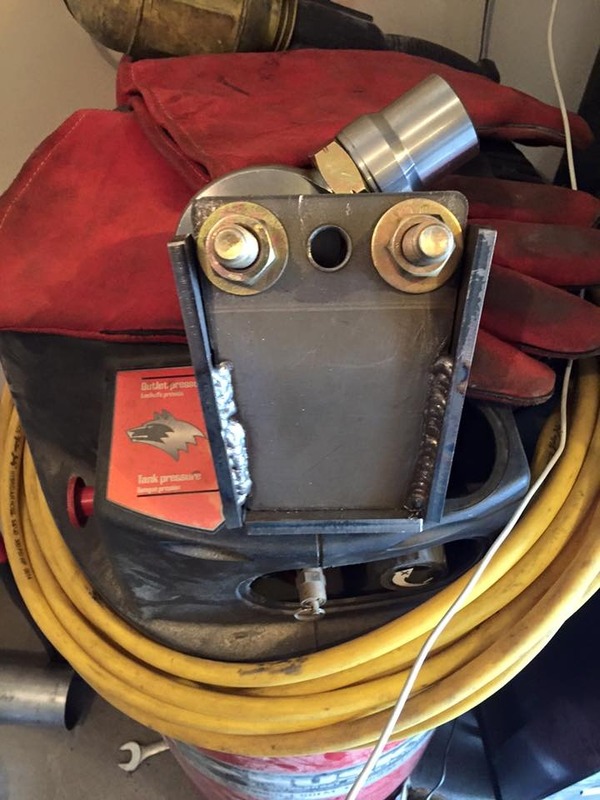

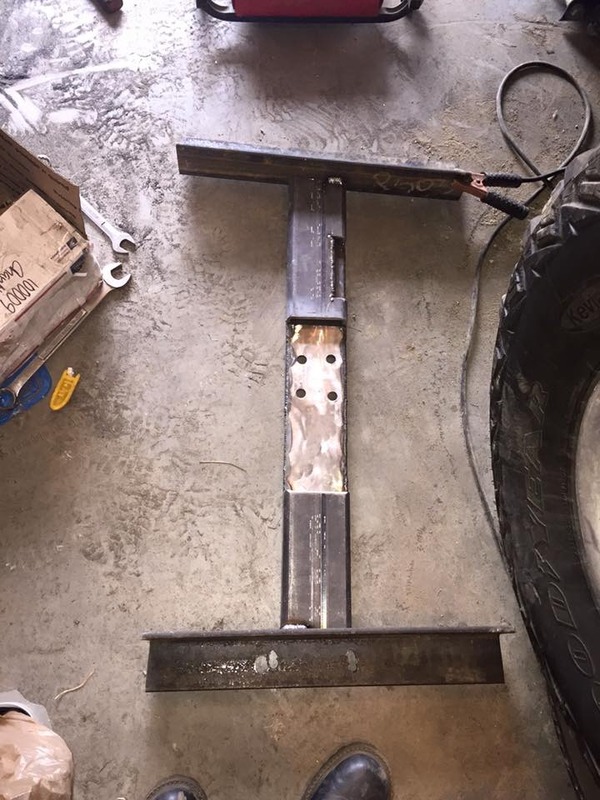

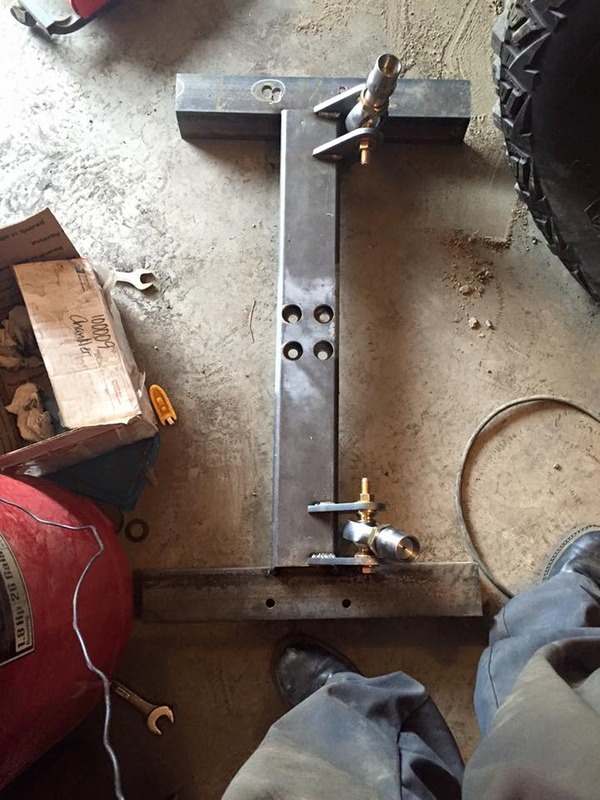

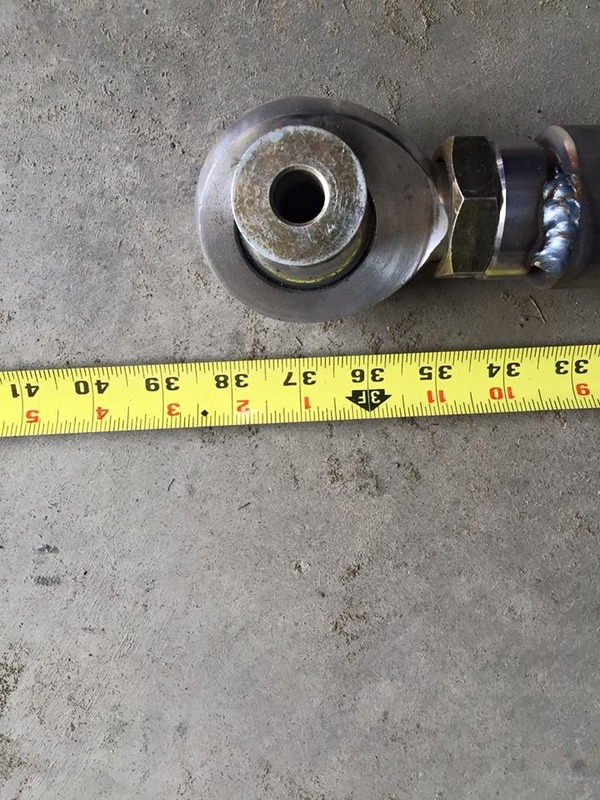

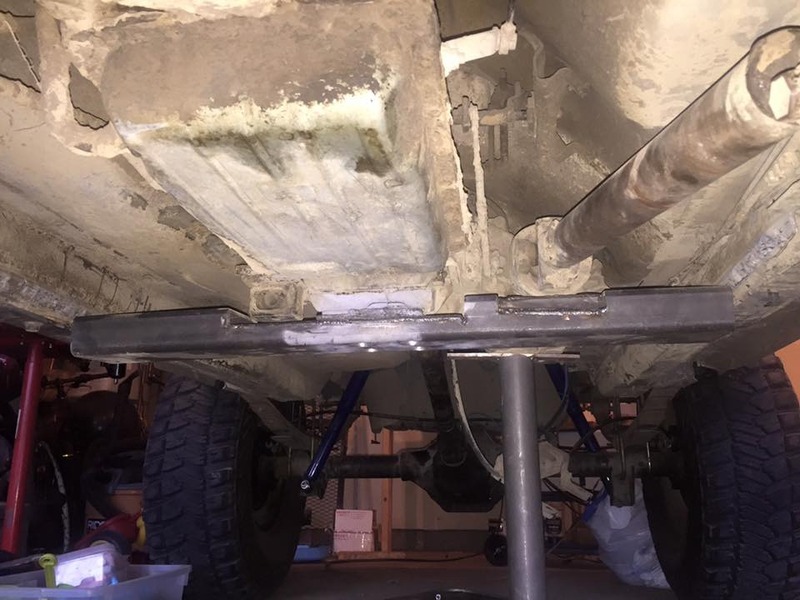

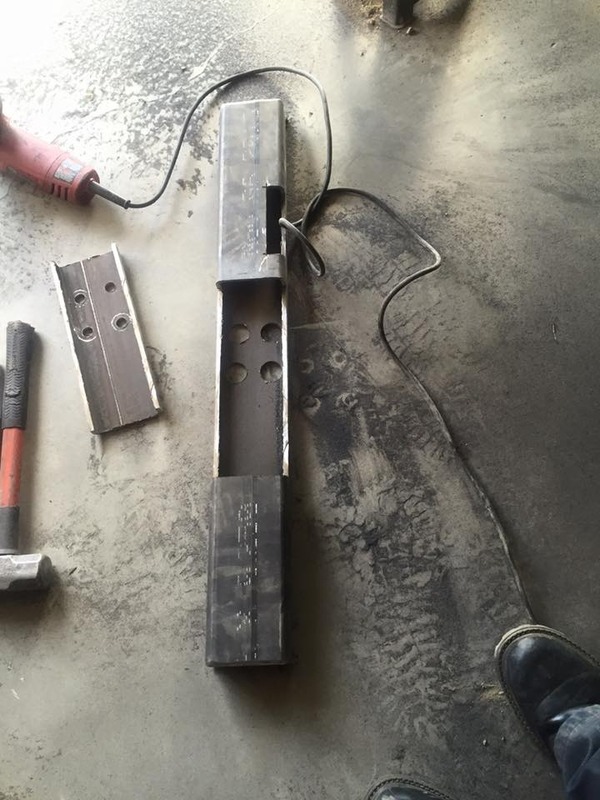

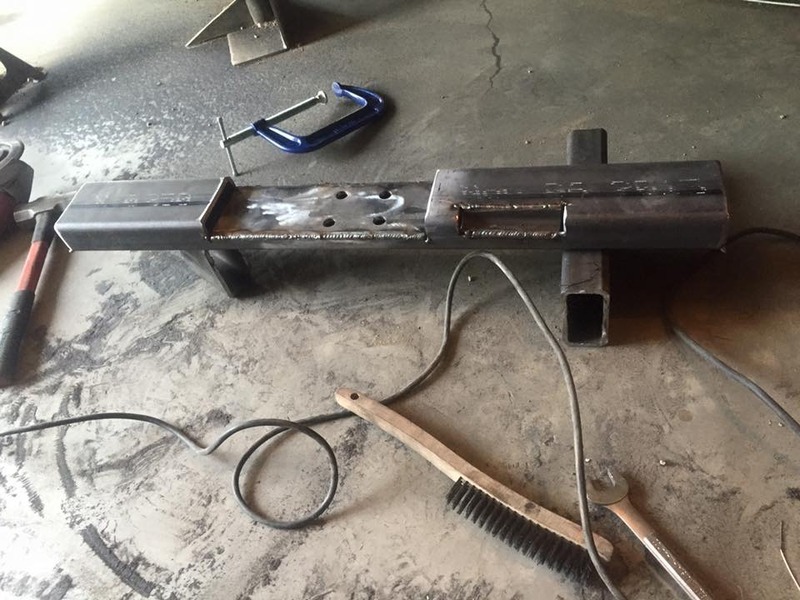

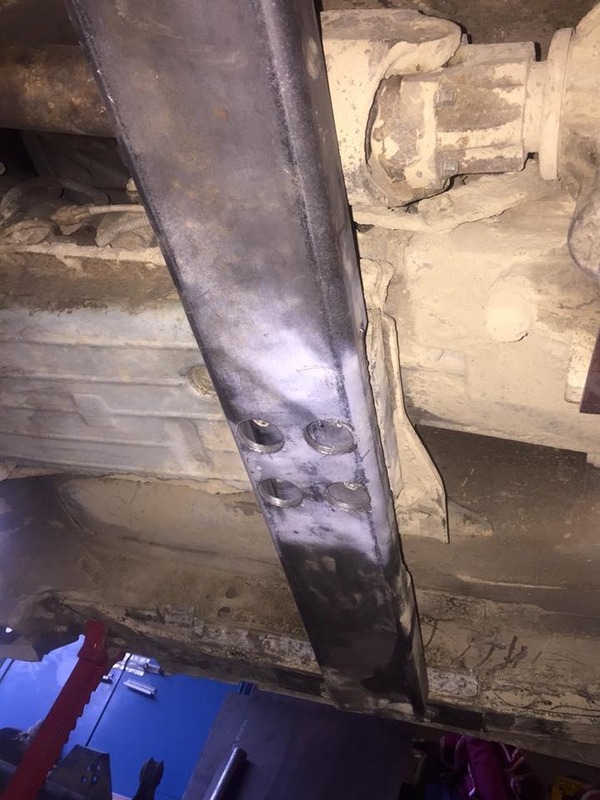

Crossmember made from 2"x4", .25" wall rectangle box using 3"x3", .375" angle. All link mounts are courtesy of Ruff Stuff Specialties holding on to 1.25" rod ends

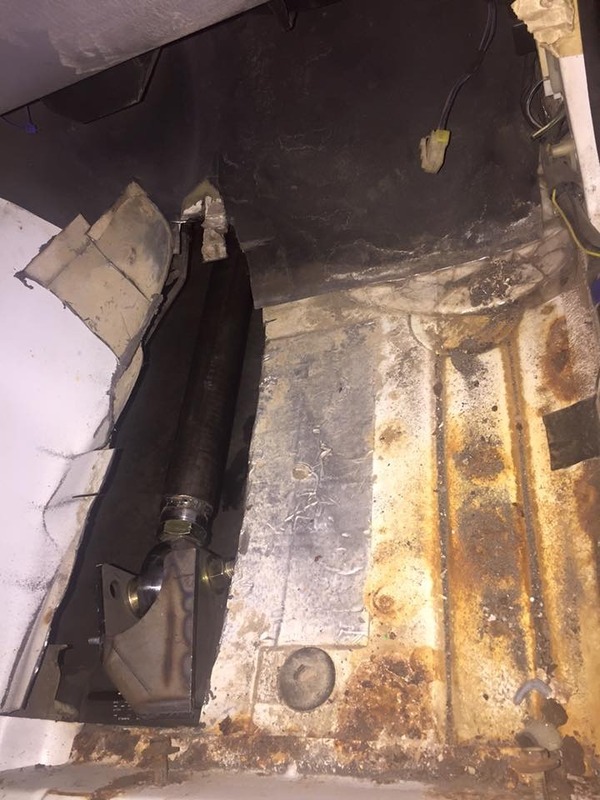

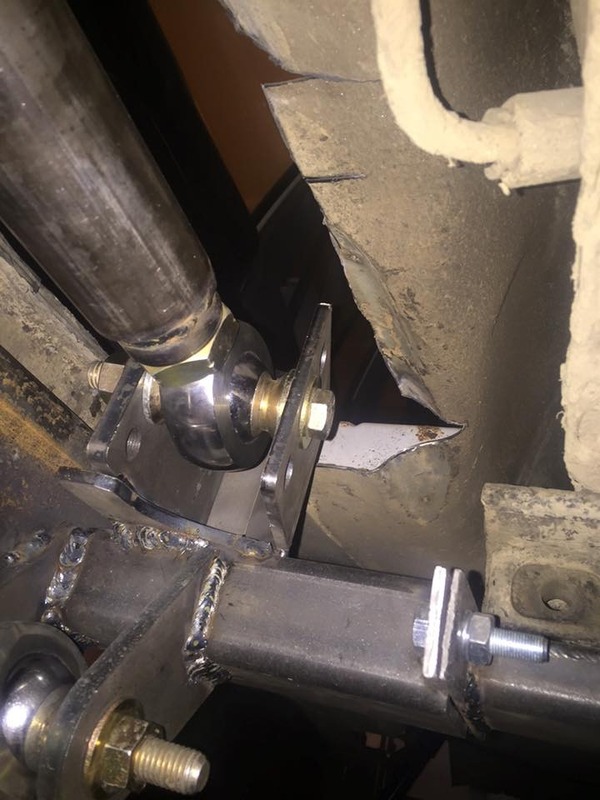

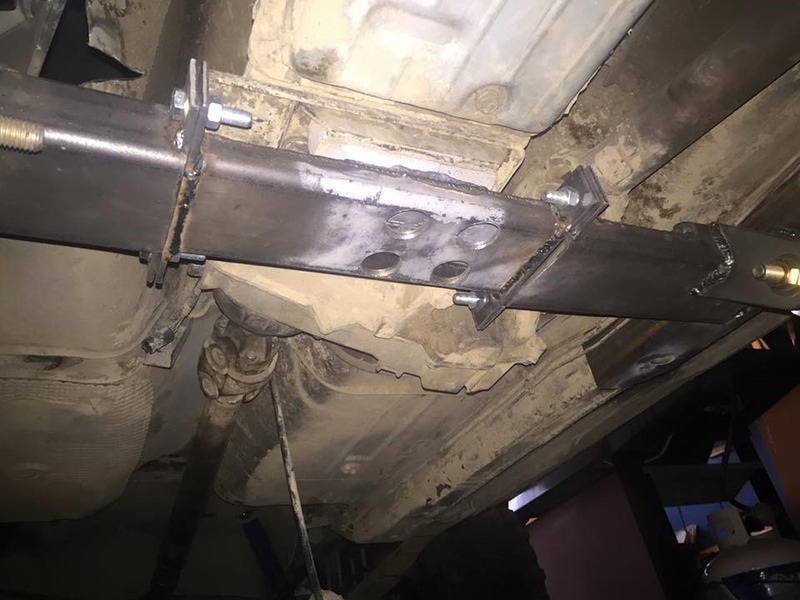

On to running the arms. While trying to keep the belly relatively flat there are sacrifices that have to be made. One of which is the floor:

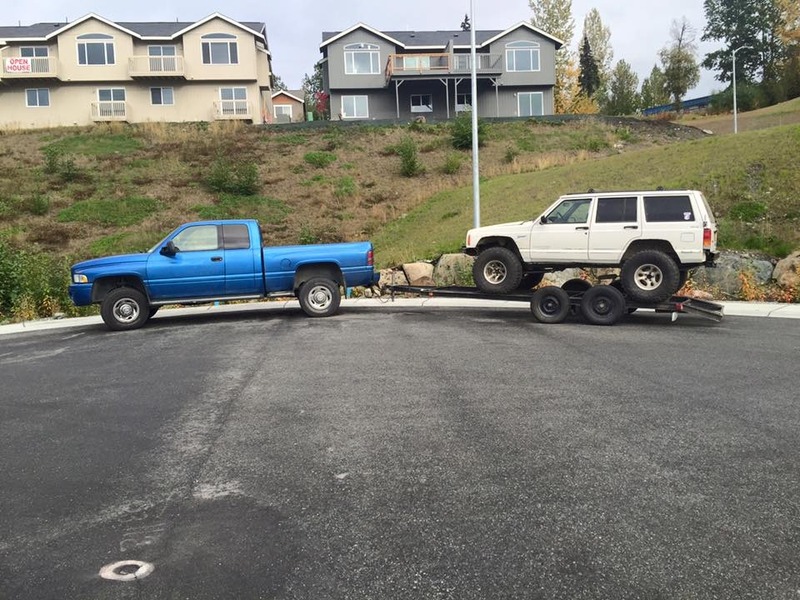

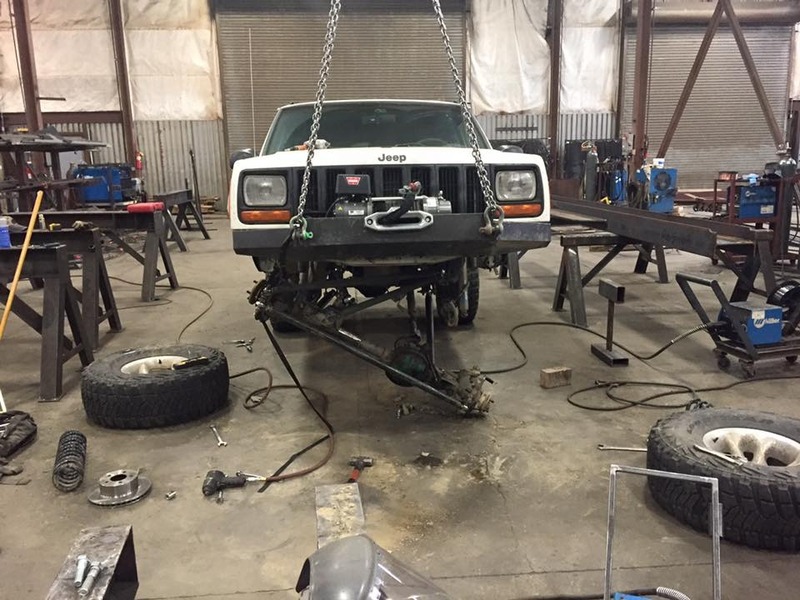

loaded up for its trip to the shop to finish up with the big kid welders

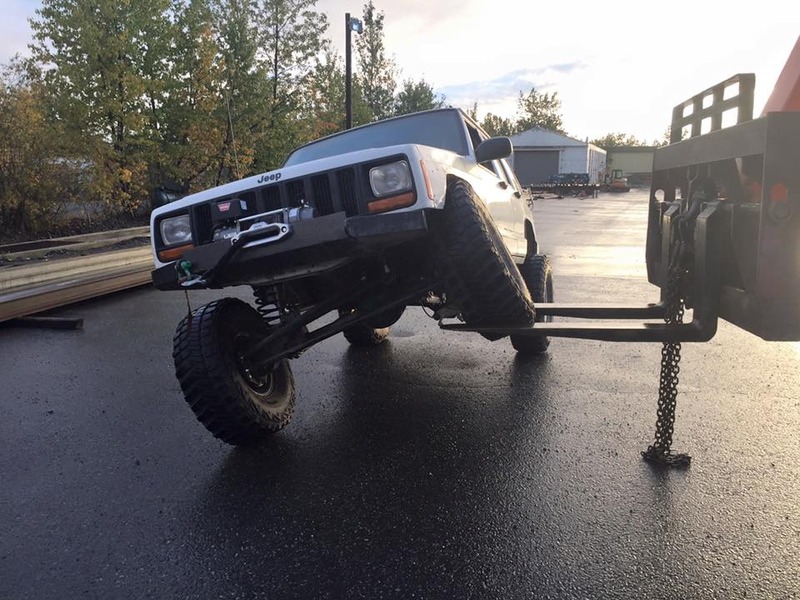

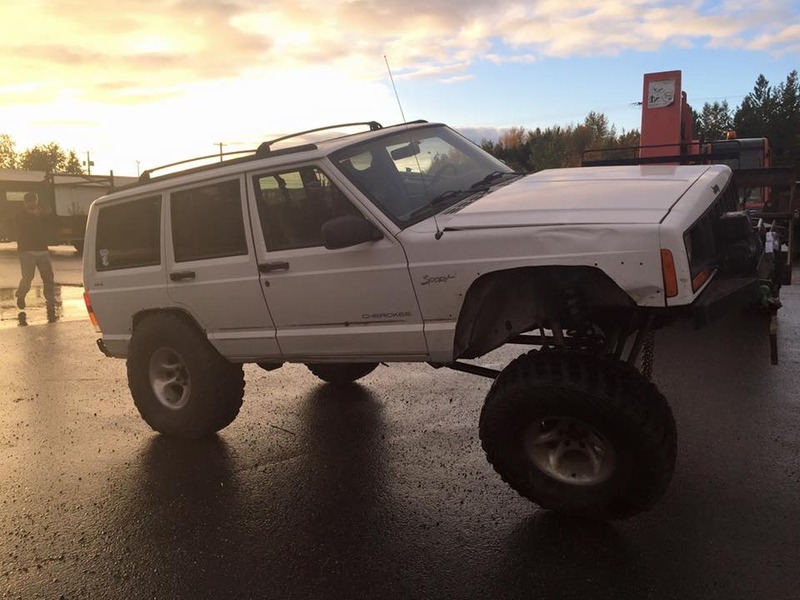

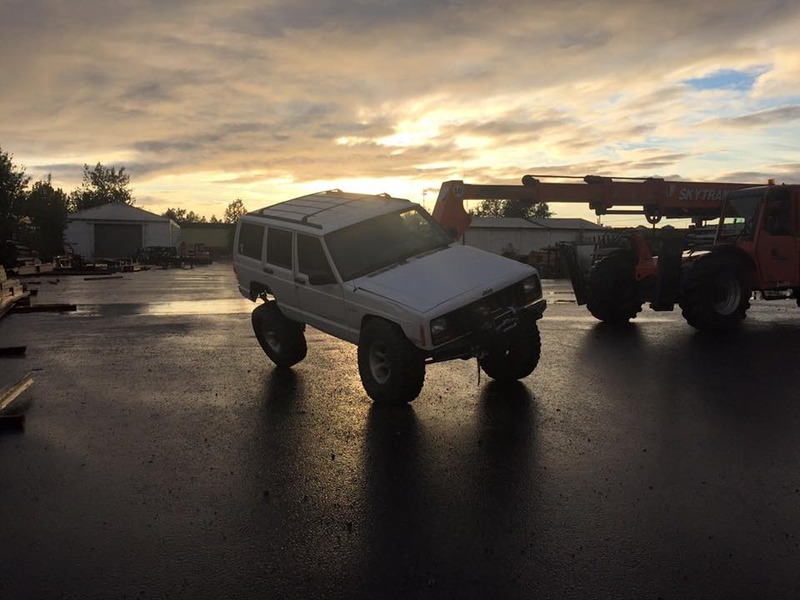

Of course with a project like this you have to throw up the poser shots:

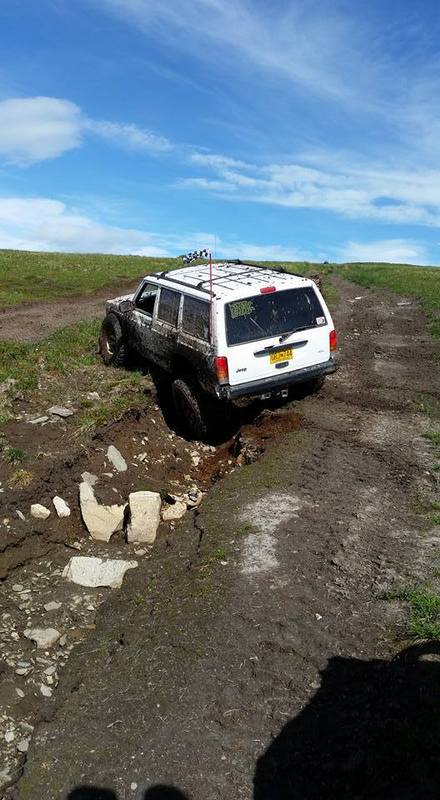

In the process of all this it was wheeled a ton this year. However since the Salmon run in Alaska claimed my old iPhone 4s i lost a toooon of pictures. I do however have a few on my new 6:
