Fire-Road Runner

Old 09-18-2014, 01:02 AM
  #1
TMC
Member
Thread Starter

TMC's Avatar

Join Date: Sep 2014
Location: Mountain Town, USA
Posts: 180
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0 6 Cyl
Default Fire-Road Runner

Ive been meaning to join and start a build thread ever since I got the Jeep 2 weeks ago, but on my time off I tried to get as much done as I could, so I apologize now for the lack of more detailed pics. After many months of searching and waiting I finally got another Jeep. This one is a 91 2 door with almost no rust and only 165K on the clock. (PO actually rebuilt the engine about 20k ago) From what I can gather, it does have the Upcountry add-ons, but someone removed the engine skid plate. It has the Upcountry 1" lift and 2" spacer/aal on 235/75/R15's. It actually rides and drives quite well for a 23 year old vehicle, but I will be upgrading to an actual 3" lift in the future.

Shortly after I got it:
Name:  IMG_0460_zpsca37bd31.jpg
Views: 133
Size:  103.4 KB


A week after I got it I made a JY run (which is an hour away) and it was a HUGE success.

I found:
Driver & Passenger Mirror from a '98
entire Center Console (lid, air duct, and bracket) from a '98
hand brake assembly from a '98
gauge cluster from a '91
oil pressure and temperature sensors from a '91
front passenger seat belt buckle

Grand Total? Only $68


My driver mirror was missing the glass when I bought it, and here it is with the bigger '98 mirror:
Name:  IMG_0458_zpsd313cdfa.jpg
Views: 130
Size:  134.3 KB


My next goal was to swap my idiot lights for actual gauges. I had read several threads on this and it actually was as straight forward as everyone says it is. I was even able to find one that was very close to my miles. The only problem I ran across was when I went to swap the temp sensor on the head, at some point in its past the connector and wire were cut and/or tore off. I was able to find the wire in the harness and make the necessary connections. Here are my two gauges side by side before the swap:
Name:  IMG_0451_zps7a8359ac.jpg
Views: 128
Size:  137.5 KB


The factory hand brake was broken because the button no longer worked and when you pulled on the handle it would just slide back down. So since I found a full newer style console and hand brake assembly I just swapped both from my older style. So I now have a working hand brake AND the elusive cup holders (that don't look like they came from the discount cart).
I still need to attach the front part of the old air duct to the new one so I don't have weak rear air. I also need to figure out the shift boot and the gap at the front of the console. As far as the newer style hand brake goes, I just used a small turnbuckle and attached it to the original linkage and it works great. Here is the (mostly) finished product:
Name:  IMG_0456_zps07680b46.jpg
Views: 134
Size:  141.2 KB




I've gotta say.....I am extremely happy with all of the changes I've made so far and how well they look/work. I would recommend them to anyone with an older XJ that want some newer style upgrades.

![WARNING]!
This will be a fairly slow build because it will be based on how much time and money I have available. Also I don't have a garage or shop and since winter is fast approaching it may slow down even more.

My goals for this long term:
-budget minded
-31" max tire size
-only 3-4" of lift
-MILD build minded
-all simple, yet useful mods
-daily drive/weekend explore
-nothing I dont need, yet everything I do
-family minded
-able to handle the MASSIVE amount of fire roads/back wood trails of North Idaho, hence, the name of the build

and oh yeah....BETTER PICS, MORE OFTEN!

Last edited by TMC; 01-08-2015 at 12:06 AM.
TMC is offline
Old 09-19-2014, 10:18 AM
  #2
TMC
Member
Thread Starter

TMC's Avatar

Join Date: Sep 2014
Location: Mountain Town, USA
Posts: 180
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0 6 Cyl
Default Update:

Well I usually have the weekends off, so I havent had a chance to work on the Jeep this week but am planning on working on it tomorrow morning. Until that time, here are some shots of the work I did last weekend and posted the other day.

Here are some shots of the '98 mirror. As you can see, it lines up almost perfectly and has definitely more overall viewing surface than the older square style. The mirrors I found were power, but right now the wiring is just tucked away. I may still add it later on.
Name:  mirrorside_zps7d02b78a.jpg
Views: 115
Size:  67.6 KB


Name:  mirrorback_zps5fdbd76a.jpg
Views: 116
Size:  109.7 KB



Those of you that know about/have installed the idiot light-to-gauge swap or already have gauges factory know what they look like. But for those of you who don't (or want to try it) it literally is plug and go other than swapping the oil pressure sensor near the oil filter and distributor and temperature sensor on the back of the head. Its one of my favorite mods so far.
Name:  gaugeinstalled_zpsad608fa8.jpg
Views: 124
Size:  59.6 KB



As I stated in the previous post, I still need to extend the air duct under the new console, cover the small gap at the front (newer dash sticks out further), and either find a ash tray cover lid or make one. I also still need to either find a newer shift boot and bracket, or make an adapter for the older style. I actually felt like the console and e-brake swap was rather straight forward as long as you have the following:
newer console
newer air duct
newer console bracket
newer hand brake assembly

I feel like having the two factory cup holders and newer console design really made this swap worth it in the end.
Name:  consoleabove_zps6ad31d8b.jpg
Views: 118
Size:  84.4 KB


Name:  consolepassenger_zps3b57edf1.jpg
Views: 147
Size:  94.9 KB


Well thats all I have for now. Those of you who are following along (if anyone even is) there should be some more in the next day or so.

Keep Jeepin'
TMC is offline
Old 09-19-2014, 11:48 AM
  #3
CF Veteran

adamk's Avatar

Join Date: Aug 2010
Location: Greensboro
Posts: 1,220
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

Well I'm reading along haha. My work blocks photobucket so I cant see the pics but so far it sounds good. I'll check it out again when I get home so I can actually see it
adamk is offline
Old 09-20-2014, 02:41 PM
  #4
TMC
Member
Thread Starter

TMC's Avatar

Join Date: Sep 2014
Location: Mountain Town, USA
Posts: 180
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0 6 Cyl
Default Valance removal/fender flare trim

I wanted to work on removing my lower exterior trim and cleaning off the remains, but I ended up working on removing my front valance and trimming the front flares while my son played in the front seat.


There are several ways of removing the valance:
-removing the bumper, then unbolting the valance
-if your patient reaching up behind the bumper and unbolting it (through a 1" gap)
-use a reciprocating saw
-use a utility knife and cut it at the mounting points
-use a pry bar or screwdriver and pop the plastic off
-some have said they just pulled it off if broken/loose


Because of time constraints I didn't want to remove the front bumper however, mine had all 5 front bolts and 3 of the 4 side clips so I used a combination of the above. Well minus the reciprocating saw because I had the windows down and didn't want to scare my son.


Name:  valance_zpscf57e718.jpg
Views: 119
Size:  105.6 KB



So I first used the utility knife to cut around the 4 (3 in my case) side clips and tow hooks. Then I used a screwdriver to pop out the 3 clips as well as prying the valance over the 5 front bolts. I then removed the "center section" of the valance.



Name:  cntrvalance2_zps10d2d65b.jpg
Views: 118
Size:  124.6 KB

Name:  cntrvalancegone_zpsdd952362.jpg
Views: 125
Size:  143.5 KB




I then used the utility knife to trim the side and front of the flare as well as the rubber backing trim of the flare. When thats done you will notice the bracket for the valance hangs down. Here it can be seen to the right of the driver's side tow hook:



Name:  driverflare_zpsa9824746.jpg
Views: 129
Size:  109.7 KB




I was going to just unbolt the bracket, but in my case I realize it was bolted twice to the subframe and to the fender. So I just quickly used the reciprocating saw to cut just the vertical piece off.



Name:  driverflare2_zpsdbf6a3c4.jpg
Views: 123
Size:  126.4 KB

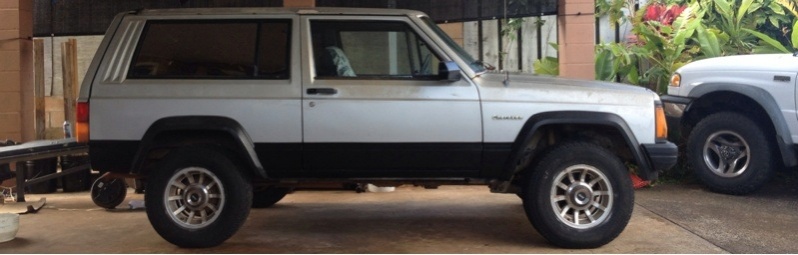

After that just repeat the process on the other side. Heres a before and after:



BEFORE:



AFTER:
Name:  valancegone_zps64c92da1.jpg
Views: 118
Size:  161.0 KB



Despite the odd looking angles from the above pictures, I really feel like it makes the whole front of the Jeep look better. As well as improving the approach angle, even though the valance only hangs down about 2". I also feel it falls right in line with the "simple, yet useful" theme of this build.

Near future mods:
-install '98 passenger mirror
-finishing touches on console (air duct/shift boot/front gap)
-remove lower exterior trim and clean up residue/remains
-paint flares and lower body
-pickup the 2nd set of wheels/tires that came with Jeep
-misc. small details

Future mods:
-real 3" lift replacing spacers/AAL
-31" tire
-install rear hitch
-figure out how I want my winch setup i.e.: new bumper or winch mount? what kind of bumper? front hitch with winch mount?



Decisions, decisions, decisions......





I don't think anyone is even reading all this, but I feel like it helps show me what all I've done to the Jeep in 3 weeks. I work 50hrs/wk with weekends off, so only 4-8 hours a weekend at a time to work on it.

So.....who cares? I'm happy with it!



Keep Jeepin.......

Last edited by TMC; 08-27-2015 at 12:34 AM.
TMC is offline
Old 09-28-2014, 02:25 AM
  #5
TMC
Member
Thread Starter

TMC's Avatar

Join Date: Sep 2014
Location: Mountain Town, USA
Posts: 180
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0 6 Cyl
Default A great weekend! (pic heavy)

Well I've gotta say, ........this weekend was a HUGE success because I got several things done on the Jeep.


First off, I got the center console air duct fixed so now I don't have weak rear air for any passengers. All I did was cut 1 1/2" off of the '91 air duct and attached it to the front of the '98.
(sorry no pics)

I also replaced several bulbs that were out throughout the Jeep, as well as did some other routine maintenance.




NEXT:

I started the lower body trim removal and cleaning. Here is a shot of my lower trim:



Name:  oldtrim_zps5fc0f93b.jpg
Views: 122
Size:  129.6 KB



So when I purchased the Jeep the passenger door trim strip was off, but came with the Jeep. I thought, "well I could clean up the door and reattach it or I could do something else"......well guess what?! "Let her rip!"



Name:  leftrearcorner_zpsa04f0081.jpg
Views: 116
Size:  129.3 KB



Name:  oldtrim5_zpsbd404546.jpg
Views: 118
Size:  169.8 KB



You know, people say when removing the factory fender flares there is a chance you'll find some rust. Well its the same chance when you look under the trim. It's just the nature of the beast. I luckily didn't have any what so ever, but there was quite a bit of dried mud and muck next to the double sided tape lines and I'm sure doing this whole project helped ward off rust, on a vehicle that still doesn't have hardly any.

Anyway....

like most things on a Jeep, there are several ways of removing the trim:
-use a heat gun/hair dryer then remove the trim
-use fishing line to slide behind the trim
-pull the trim off by hand if loose or old

then:
-roll the old double sided tape (dst) on newer models
-use fishing line again on dst
-use goof off/goo gone to remove dst
-use a razor blade to remove dst
-use an automotive eraser wheel to remove dst and residue

I went with 'pull trim off and razor blade' because I couldn't find an eraser wheel near me without having to special order it, and my trim was old/loose enough to just remove by hand. I did however use some goof off to help ease things up. My lower body is painted silver behind the trim pieces, so I knew I wanted to just get it all off and clean. Then I could prime/paint, bedline, plastidip or what have you. I gotta admit, my way probably wasn't the fastest or easiest, but it worked fine for what I had in mind. There were several spots where I did get into the paint layers, but like I said, I knew I'd have to sand and prime anyway.



Name:  leftrearcorner2_zpsd601726b.jpg
Views: 115
Size:  143.2 KB



I decided to go with Rustoleum Truck Bed Coating in black because I knew I wanted something that could hold up to the forest roads that are all over where I live. I scraped, then sanded, then added a light coat of primer, then the liner. I probably didn't need to sand or prime because it's suppose to stick no matter what, but better to be safe than sorry later on.



Name:  leftdoneOS_zpsa443748d.jpg
Views: 120
Size:  136.0 KB



As you can see, I should have done a better job at first taping/covering more because there was overspray that got on the upper body, but I was able to come right behind and clean it off with a little bit of mineral spirits.



Name:  leftfront_zps257dc51f.jpg
Views: 119
Size:  137.6 KB



Name:  leftrear_zps9b8261e2.jpg
Views: 114
Size:  115.3 KB



I used my recently learned knowledge and applied it to the other side.



Name:  oldtrim6_zps8e705ceb.jpg
Views: 114
Size:  134.7 KB



Name:  oldtrim7_zps0183b581.jpg
Views: 117
Size:  144.9 KB

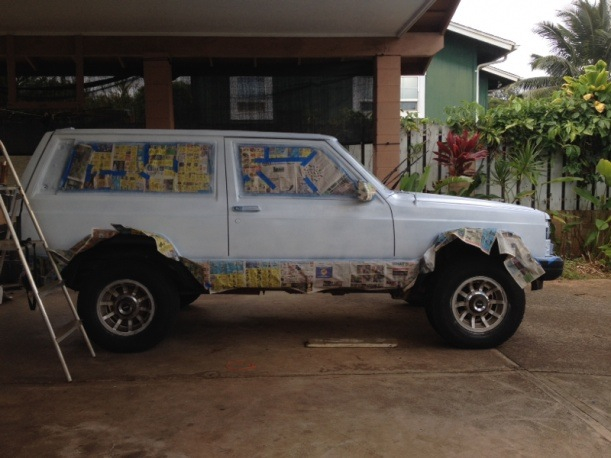

Then I started the fun task of taping and masking. I just happen to have a year old 4WD Hardware catalog on hand.



Name:  trim1_zpsccaef4b2.jpg
Views: 119
Size:  145.4 KB



Name:  trim2_zpse3731cf7.jpg
Views: 120
Size:  133.0 KB



Name:  trim3_zpsd4b0b88e.jpg
Views: 114
Size:  153.4 KB



Then I sprayed two coats and then removed all of the tape and paper.



Name:  trim5_zps175a9412.jpg
Views: 121
Size:  118.6 KB



Name:  trim4_zps4f264ae6.jpg
Views: 124
Size:  122.4 KB



Well, you can't really tell from the pictures, but there are a few run spots and a couple of "off" lines near the flares, but all in all I am very pleased with how it turned out. Here is the before and after....is it just me or does it look taller?

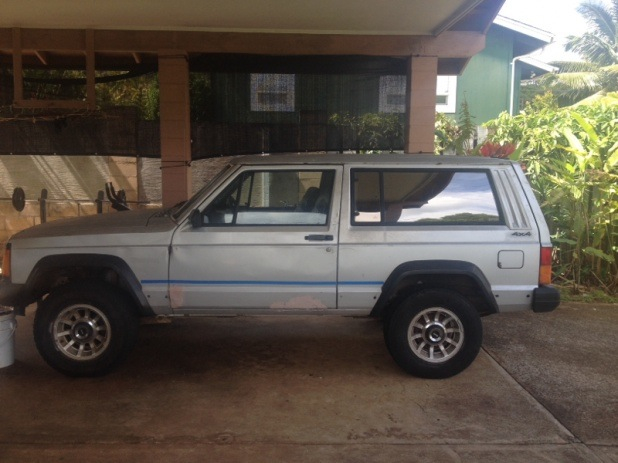

BEFORE:
Name:  IMG_0460_zpsca37bd31.jpg
Views: 133
Size:  103.4 KB

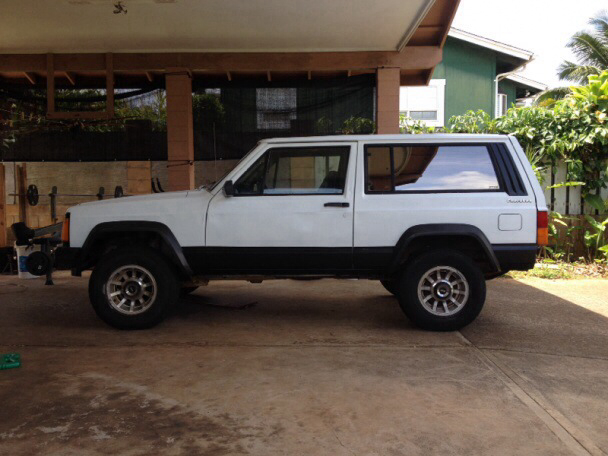

AFTER:
Name:  current_zps4eb560ef.jpg
Views: 123
Size:  135.9 KB


I have used Herculiner in the past in the bed of my old truck, but I really liked how the Rustoleum Truck Bed coating was not as rough as the Herc. Granted, the Herc liner was a roll on, but still I think it looks pretty sharp no matter how close or far you are standing. The whole project only took about 1 and a half cans, so this was all done fairly cheap. I also used one of the spray paint trigger caps. I didn't really feel a difference, but maybe I will on larger, future projects on the Cherokee.



Honestly, the more I look at it..........the more I like it.




NEXT!

My back two windows has some old tint on them. I really prefer tinted windows, but this had become purple-ish with time and needed to go. I actually was able to just use a razor blade and slowly, strip by strip, remove the old tint. It thankfully wasn't the old kind that was super sticky or just fell apart when trying to remove it. So other than just being time consuming, it went rather well.

Again, you can't really tell from the photos (my fault) but it actually is even more purple colored in person. It makes it weird to look through while driving.
Here is what it looked like before:



Name:  passrearwindow_zps2b745a66.jpg
Views: 111
Size:  111.0 KB



And here is what it looked like during the removal. Its quite a difference that I think helps make the Jeep, as a whole, not look so old.



Name:  driverrearwindow_zps3424bebd.jpg
Views: 120
Size:  111.4 KB



I actually didn't get a completed done picture because by the time I finished it was dark. But, I will try to get one ASAP with the new lower bedliner and cleaned rear windows. Thanks for reading and as always,

Keep Jeepin'...
TMC is offline
Old 09-28-2014, 10:17 AM
  #6
Senior Member

GreenXJ98's Avatar

Join Date: Jul 2014
Location: St. Louis
Posts: 793
Year: 1998
Model: Cherokee
Engine: 4.0 Liter I6 PowerTech
Default

Awesome Jeep so far man. Can't wait to see it lifted with some beefy tires
GreenXJ98 is offline
Old 09-28-2014, 10:24 AM
  #7
Junior Member

Join Date: Feb 2009
Location: Farmersville, TX
Posts: 48
Year: 1994
Model: Cherokee
Engine: 4.0
Default



my brotha !!!

cant wait to see some more progress
DTarve23 is offline
Old 09-28-2014, 02:09 PM
  #8
TMC
Member
Thread Starter

TMC's Avatar

Join Date: Sep 2014
Location: Mountain Town, USA
Posts: 180
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0 6 Cyl
Default

Originally Posted by GreenXJ98 View Post
Awesome Jeep so far man. Can't wait to see it lifted with some beefy tires
Thanks Green! I really appreciate it! Other than AdamK, I didn't think anyone was really reading or following along.

I actually know I wont go any higher than 3" to 4" with 31"s to 33"s. Mainly because the kind of wheeling I do up here is is mostly forest service and mountain back roads and the like in northern Idaho. No offense to anyone with 6" LA and 35"s, I just honestly wouldn't need it.
TMC is offline
Old 09-28-2014, 02:17 PM
  #9
TMC
Member
Thread Starter

TMC's Avatar

Join Date: Sep 2014
Location: Mountain Town, USA
Posts: 180
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0 6 Cyl
Default

Originally Posted by DTarve23 View Post

my brotha !!!

cant wait to see some more progress
Yeah me too! I just gotta keep saving some dinero....and I dont mean Robert.

Im sure you obviously feel the same way, but Im really loving my 2 door so far. Your's look really good with that wheel/tire combo and lift your running! Also your Conn Ferr rack seems to have a nice lower profile.

I like it!
TMC is offline
Old 09-28-2014, 06:03 PM
  #10
Senior Member

GreenXJ98's Avatar

Join Date: Jul 2014
Location: St. Louis
Posts: 793
Year: 1998
Model: Cherokee
Engine: 4.0 Liter I6 PowerTech
Default

Originally Posted by TMC View Post
Thanks Green! I really appreciate it! Other than AdamK, I didn't think anyone was really reading or following along.

I actually know I wont go any higher than 3" to 4" with 31"s to 33"s. Mainly because the kind of wheeling I do up here is is mostly forest service and mountain back roads and the like in northern Idaho. No offense to anyone with 6" LA and 35"s, I just honestly wouldn't need it.
3.5 inch lift and 31 inch tires is a pretty good way to go. Go any higher and it starts getting pretty expensive. I just got my 3.5 inch lift from Rusty's off road installed, and I love it. I'm running 31 inch mt's on 15x8 steelies, and it rides really nice. Totally better than the spacers and bastard packs it had on it when I got it. Luckily the previous owner put on a hack and tap SYE for the np242 TC and a ZJ driveshaft to take care of any driveline vibrations. I have no vibes and no death wobble at all, so happy with it. I was also lucky to get the limited slip rear end.
GreenXJ98 is offline
Old 09-28-2014, 06:45 PM
  #11
TMC
Member
Thread Starter

TMC's Avatar

Join Date: Sep 2014
Location: Mountain Town, USA
Posts: 180
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0 6 Cyl
Default

Yeah thats around what I'm shooting for. Im actually around 3" now, but I want to get actual coils and leaf springs. Honestly, I really don't feel like it handles that bad for being 23+ years old with a "budget lift" lol!

From all I can gather from the Forum, I think I may try to piece together a lift rather than just purchasing a "kit". It seems like its cheaper in the long run, plus you get what you want AND can get better quality.



I know most people can't wait to update after update. Just keep throwing mods on their Jeep and getting it done quick, but I actually am enjoying that its just a little bit at a time. You know?

Thats the life of a Jeeper.
TMC is offline
Old 09-28-2014, 10:10 PM
  #12
Seasoned Member

pittman71's Avatar

Join Date: Jul 2010
Location: NE FL
Posts: 337
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Its looking good! Funny how even small changes and upgrades make a big difference. Keep it up. Nice job on the flares and side trim. I'm debating on either painting my flares or using the heat gun technique.
pittman71 is offline
Old 09-29-2014, 12:33 AM
  #13
TMC
Member
Thread Starter

TMC's Avatar

Join Date: Sep 2014
Location: Mountain Town, USA
Posts: 180
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0 6 Cyl
Default

Originally Posted by pittman71 View Post
Its looking good! Funny how even small changes and upgrades make a big difference. Keep it up. Nice job on the flares and side trim. I'm debating on either painting my flares or using the heat gun technique.
Thanks bro! I appreciate hearing from other members on here what they think and any advice.


Exactly! I feel like after only having the Jeep 5 weeks or so now, I've gotten SO much done. I dont know which is my favorite mod....the gauge swap, or the lower trim update.


Yeah I've heard that trim removal on 97+ models are a little bit easier sometimes. Mainly due to the fact that they haven't been on as long as the older ones.
TMC is offline
Old 09-29-2014, 12:55 AM
  #14
Junior Member

Makoa89XJ's Avatar

Join Date: Apr 2014
Posts: 98
Model: Cherokee
Default

What's up guys saw this thread and I did a similar project on my jeep!

I painted the bottom strip as we'll with rust oleum primer and enamel

And then I just said f*** it and painted the top white gloss and I think it turned out pretty good for about a 100$

Also I'm debating on whether I wanna trim my fenders like you did in the front.
Nice job man!!
Attached Thumbnails Fire-Road Runner-image-758730046.jpg   Fire-Road Runner-image-2934784771.jpg   Fire-Road Runner-image-2385338917.jpg   Fire-Road Runner-image-1735357554.jpg
Makoa89XJ is offline
Old 09-29-2014, 01:14 AM
  #15
TMC
Member
Thread Starter

TMC's Avatar

Join Date: Sep 2014
Location: Mountain Town, USA
Posts: 180
Year: 1991
Model: Cherokee (XJ)
Engine: 4.0 6 Cyl
Default

Originally Posted by Makoa89XJ View Post
What's up guys saw this thread and I did a similar project on my jeep!

I painted the bottom strip as we'll with rust oleum primer and enamel

And then I just said f*** it and painted the top white gloss and I think it turned out pretty good for about a 100$

Also I'm debating on whether I wanna trim my fenders like you did in the front.
Nice job man!!
Thank you Makoa! Yeah I'm really happy with how it turned out!

Wow! Yours turned out great too! I've been toying with the idea of painting over the red on mine (even though the paint isn't in that bad of shape) but I go back and forth.

OD green or desert tan might look sick with that bed coat.....


I personally like how the front of mine looks now with the valance gone and the front fender edge trimmed, so I would vote yes unless you just specifically like the way it looks with it.
TMC is offline

Thread Tools
Search this Thread
Quick Reply: Fire-Road Runner


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
