1986 Jeep Comanche, A change in path >

1986 Jeep Comanche, A change in path

Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

1986 Jeep Comanche, A change in path

Old 04-13-2013, 06:00 PM
  #1
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,338
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default 1986 Jeep Comanche, A change in path

So after finally selling my 2-door XJ, i was in the market again for another jeep as a DD. I quickly decided its gotta be a Comanche. Having one for a trail-toy/turned DD you get a lot of comments and enjoy some of the looks. Have always wanted one as a dedicated DD while keeping it simple and not getting too overboard with upgrades. (mild gas saver)

Now after going 0/7 i finally caught a break and found one barely a mile from my house.

Name:  3I43Jd3N15Ne5Ea5Kfd4cdac11dfd9fbe17df.jpg
Views: 2883
Size:  53.8 KB

$400, 4cyl, 2wd, 4spd manual, Longbed. and this is one solid MJ.

out of the 7 MJ's i've looked at in the last couple weeks only 1 had an actual solid frame, all the others had frame rust at the least ranging from small holes on the inside rail to more the half the unibody frame gone

But finally a solid start to a long anticipated 2nd build. Gonna a be blast i'm sure, many plans to get started on and still a few $ to play with.

The initial plan is to go with a 94-95 XJ donor (ideally a rust bucket with solid driveline) and swap. Complete harness, engine, trans, drivetrain. Simple D30 up front and a C8.25 from a Liberty (disc brakes and factory LSD). Possibly a simple lift >3" and a good amount of rust proofing.

I'll be taking a number of pictures to start out as a solid starting base and then update as I get going.
That Jeep Guy XJMJ is offline
Old 04-16-2013, 07:30 PM
  #2
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,338
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

So the plan is to find a solid drivetrain out of a 94-95 XJ. Swap the complete drivetrain and wire harness. End up with an H.O, updated MJ with (in my opinion) the easiest and most reliable operating system they put out. Until then its just a matter of picking away at it.

but here are some pics as it sits

1986 Jeep Comanche, A change in path-img_20130415_185022.jpg
4cyl. motor is completely locked. Went to start it and the starter turns ** but won't turn over. Tried a breaker bar on the crank/balancer bolt and its not moving. So the motor is scrap weight, Kinda anticipated this.

1986 Jeep Comanche, A change in path-img_20130415_184213.jpg

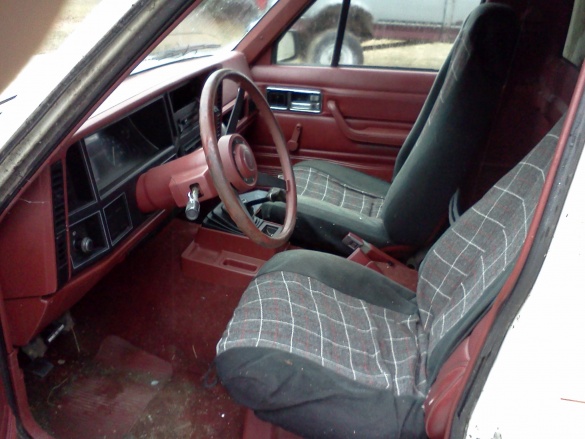

despite the smell of old interior and wild animal life, the interior isn't too bad. Its even got bucket seats!

1986 Jeep Comanche, A change in path-img_20130415_184236.jpg

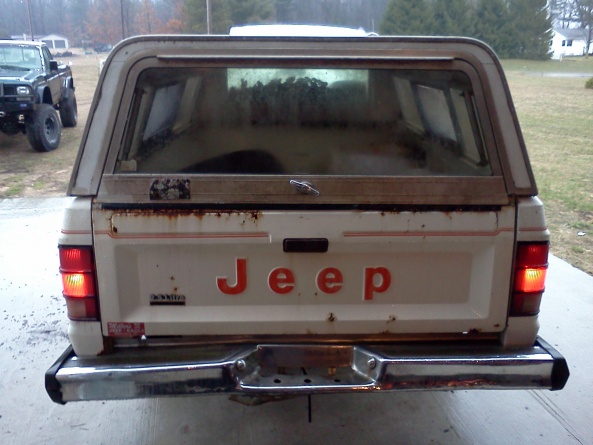

1986 Jeep Comanche, A change in path-img_20130415_185540.jpg

Gonna start tearing this down soon and start the rust P.M. part of the build
That Jeep Guy XJMJ is offline
Old 04-17-2013, 08:26 PM
  #3
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,338
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

Picked up my donor jeep tonight.. 95 XJ- $650. What a beer can this body is but at least the drive train is solid!

Name:  3E33I43H35If5N75Edd4g1151e6fc31711308.jpg
Views: 1935
Size:  53.8 KB
That Jeep Guy XJMJ is offline
Old 04-17-2013, 10:38 PM
  #4
Member

coloradowheeler's Avatar

Join Date: Oct 2012
Posts: 168
Default

Seems interesting! Subd
coloradowheeler is offline
Old 04-22-2013, 08:39 PM
  #5
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,338
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

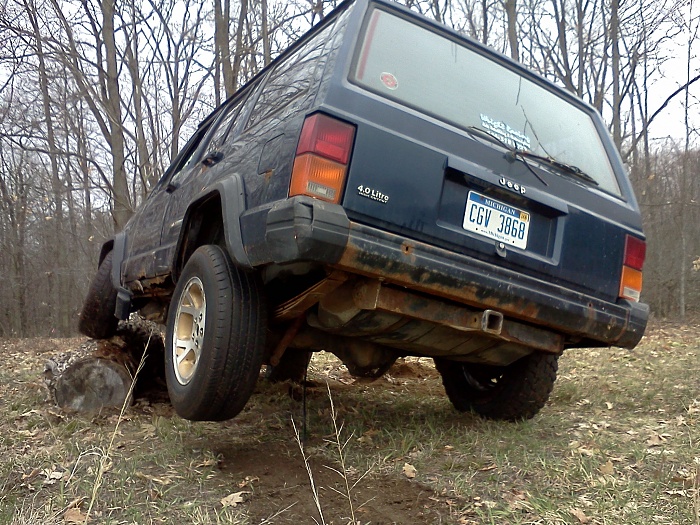

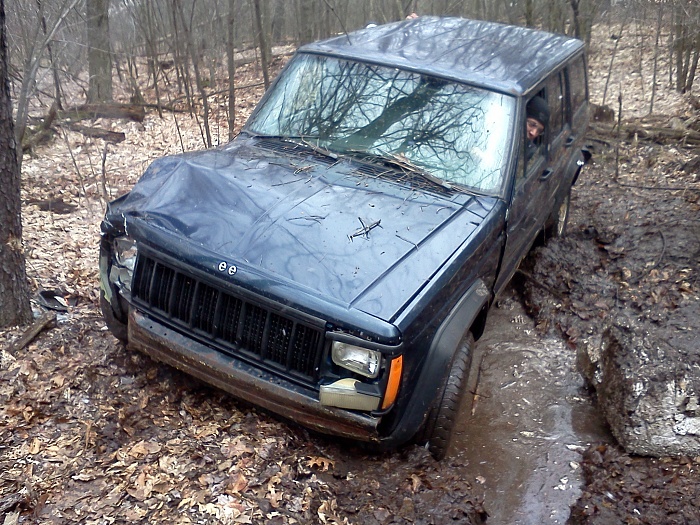

After some fun with the donor jeep and a small incident with a tree
1986 Jeep Comanche, A change in path-img_20130420_122257.jpg

1986 Jeep Comanche, A change in path-img_20130420_123303.jpg

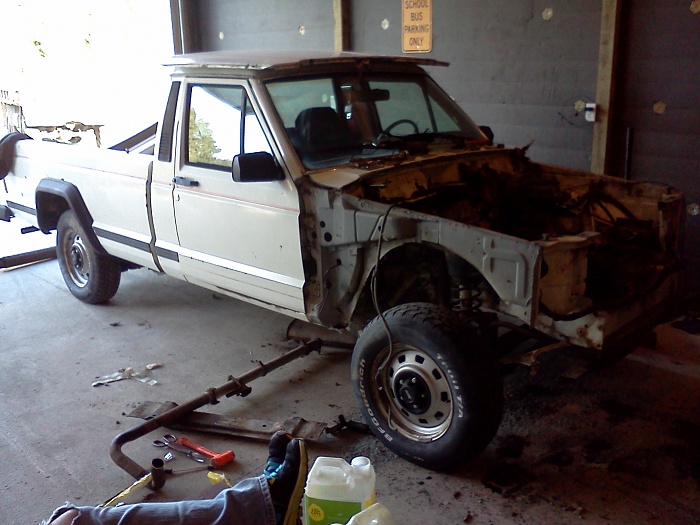

it was time to tear into the MJ

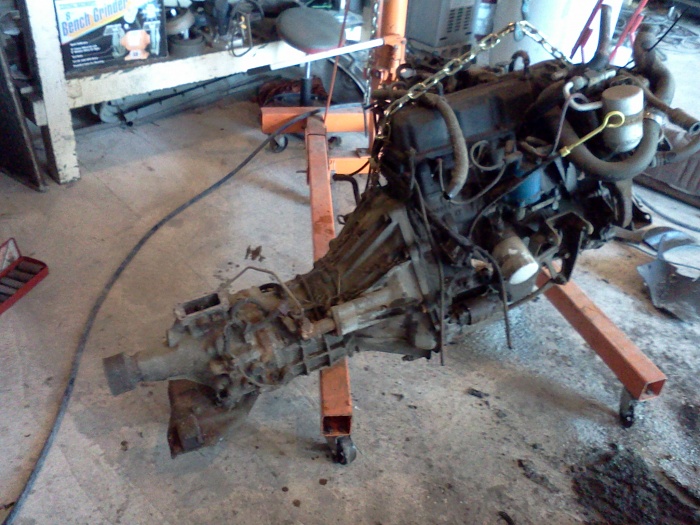

1986 Jeep Comanche, A change in path-img_20130421_185613.jpg

1986 Jeep Comanche, A change in path-img_20130421_185642.jpg

gonna hopefully finish up removing the interior and the rest of the wiring in the cab this weekend... then starts the dusty part.... body prep and rust repair
That Jeep Guy XJMJ is offline
Old 04-23-2013, 07:35 AM
  #6
CF Veteran

Join Date: Aug 2012
Location: Bentonville, AR
Posts: 1,281
Year: 1990
Model: Cherokee
Engine: I6 4.0
Default

Nice bucket seats. I'm gonna swap in some in my soon.
rmoore1031 is offline
Old 04-28-2013, 09:36 PM
  #7
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,338
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

interior is gone, floors are not as solid as i had thought. No big deal just some sheet metal to weld in and its good to go. Also got the bed removed and besides the top of the wheel wells the bed is SOLID. Not to mention all the bolts came right out, it ended up being fairly painless.

going to remove the doors and then power was the entire thing then the wire brush storm begins!
That Jeep Guy XJMJ is offline
Old 05-07-2013, 07:10 PM
  #8
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,338
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

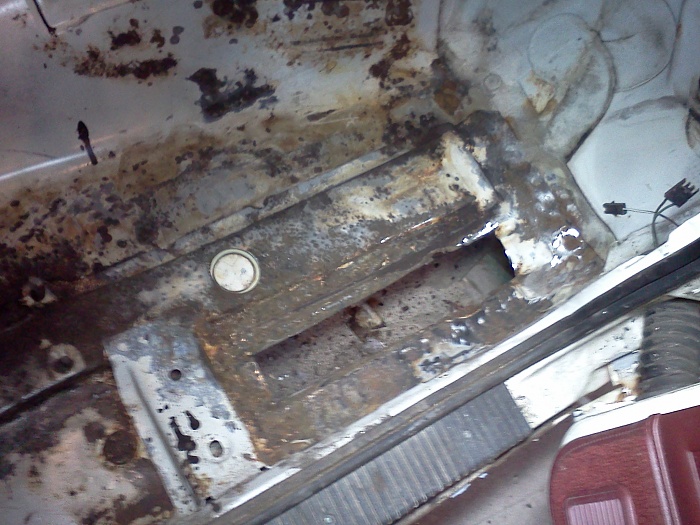

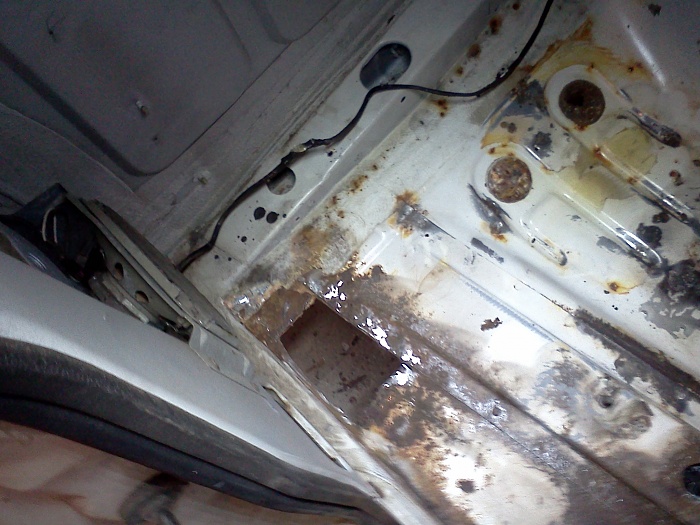

passenger side floor boards. just 2 spots to fix. Everything else is solid enough to keep.

1986 Jeep Comanche, A change in path-img_20130506_200105.jpg

1986 Jeep Comanche, A change in path-img_20130506_200110.jpg
That Jeep Guy XJMJ is offline
Old 05-07-2013, 10:04 PM
  #9
Junior Member

Corvette1099's Avatar

Join Date: Apr 2013
Location: Port St. John, Florida
Posts: 87
Year: 1995
Model: Grand Cherokee
Engine: 4.0L I6 Power Tech Engine
Default

Looks like its gonna be a nice build. Subbed!
Corvette1099 is offline
Old 05-07-2013, 11:22 PM
  #10
Seasoned Member

ColdWarrior's Avatar

Join Date: Jul 2011
Location: Interior of Alaska
Posts: 289
Year: 1991
Model: Cherokee
Engine: 4.0 HO
Default

I have a Comanche weakness....subbed.
ColdWarrior is offline
Old 05-13-2013, 09:07 PM
  #11
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,338
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

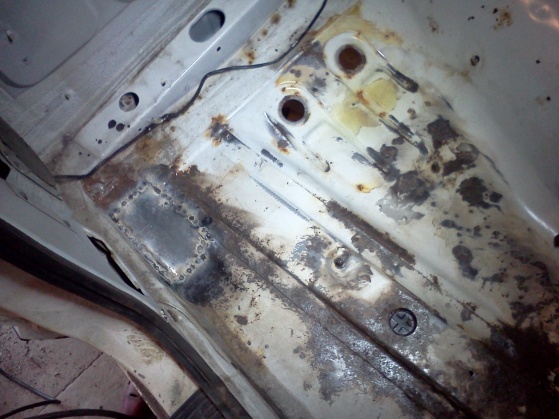

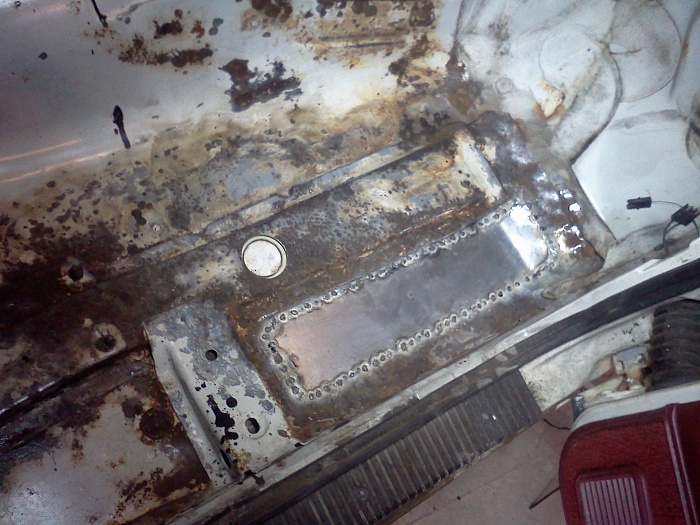

1986 Jeep Comanche, A change in path-img_20130513_195901.jpg

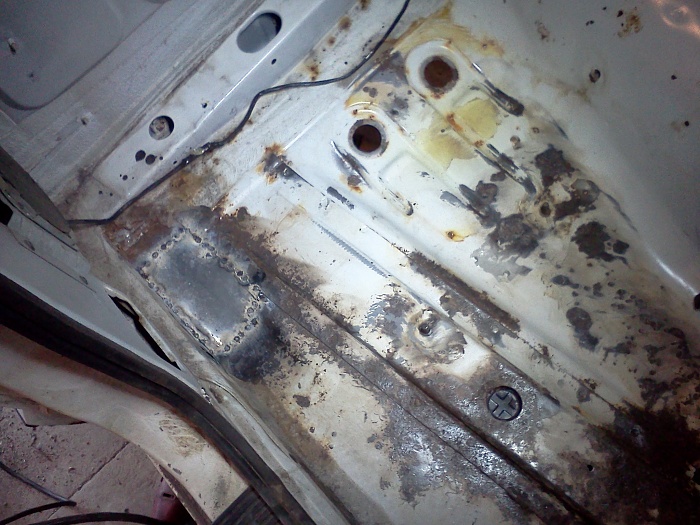

1986 Jeep Comanche, A change in path-img_20130513_195850.jpg


passenger floor fixed!
That Jeep Guy XJMJ is offline
Old 06-08-2013, 10:53 PM
  #12
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,338
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

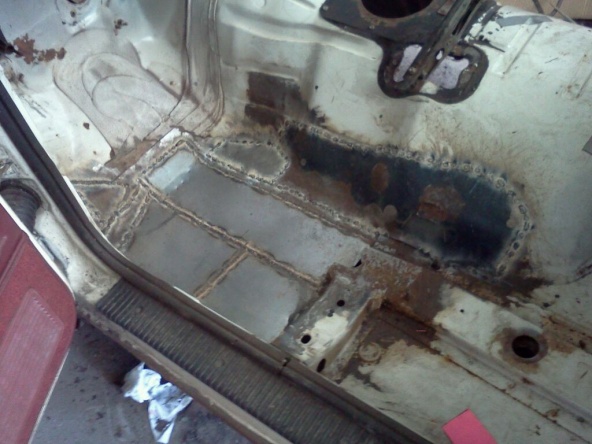

1986 Jeep Comanche, A change in path-img_20130525_132042.jpg
salvaged some floor board from the donor xj... mostly part of the tunnel

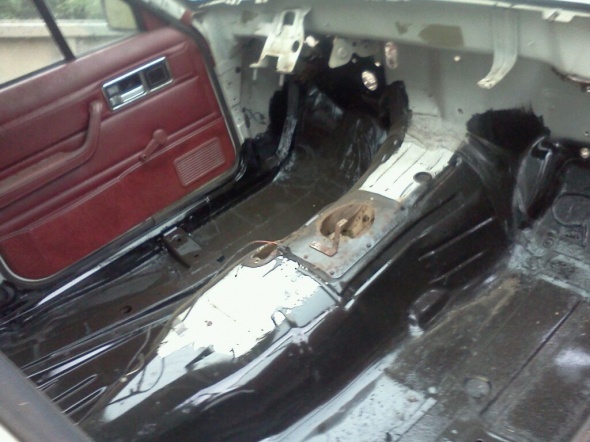

1986 Jeep Comanche, A change in path-img_20130605_201539.jpg
interior floors sealed and coated

1986 Jeep Comanche, A change in path-img_20130605_201527.jpg
rear chassis sanded sealed and coated
That Jeep Guy XJMJ is offline
Old 06-09-2013, 06:28 AM
  #13
CF Veteran

OttawaXJ's Avatar

Join Date: Nov 2010
Location: Ottawa, on
Posts: 1,158
Default

What did you use for coating?

Also its funny that you paid 250$ more for the donor than the original vehicle. lol
OttawaXJ is offline
Old 06-09-2013, 08:23 AM
  #14
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,338
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

Originally Posted by OttawaXJ View Post
What did you use for coating?

Also its funny that you paid 250$ more for the donor than the original vehicle. lol

i used rustoleum rust reformer as a down coating, then brush applied rustoleum industrial semi-gloss paint. added a little "will-bond" to the paint for some extra stick!

I would have went lower on the donor but there were other people on the way to look at it.... Or so he said.

but now that i think of it yea its kinda funny i payed more for the parts vehicle than i did for the jeep i wanna keep. I guess $250 is the difference between buying one that runs and drives and one that doesn't
That Jeep Guy XJMJ is offline
Old 06-09-2013, 08:46 AM
  #15
Seasoned Member

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

Must be true. I payed 1250 for my running XJ and 1000 for my donor.

Build looks like its gonna be a good one.
