02 WJ Overland Build

Old 10-02-2013, 07:52 AM
  #46
Senior Member
Thread Starter

MudMann94's Avatar

Join Date: May 2011
Location: Paramus NJ
Posts: 747
Year: 2002
Model: Grand Cherokee
Engine: 4.7L HO V8
Default

Originally Posted by Anomic View Post
nice wj, like your plans for the low mileage one more though. I am running an RCV ultimate d30 kit in front with a selectable air locker. works great, the rest of your proposed build sounds good but wondered why no front locker.
My d60 for my rear is being built now at ECGS, it'll have an ARB. It is going on same time as my Clayton 6 inch long arms.
I dont really need a front locker for around here, but i may go for like an ARB or something selectable in the future
MudMann94 is offline
Old 10-02-2013, 07:53 AM
  #47
Senior Member
Thread Starter

MudMann94's Avatar

Join Date: May 2011
Location: Paramus NJ
Posts: 747
Year: 2002
Model: Grand Cherokee
Engine: 4.7L HO V8
Default

Originally Posted by Killallblue View Post
looks good i love seeing more wjs maybe we can meet up one weekend at rausch creek
Im definitly down to go in a few weeks. just let me know!
MudMann94 is offline
Old 10-02-2013, 07:54 AM
  #48
Senior Member
Thread Starter

MudMann94's Avatar

Join Date: May 2011
Location: Paramus NJ
Posts: 747
Year: 2002
Model: Grand Cherokee
Engine: 4.7L HO V8
Default

Originally Posted by tyler_zj View Post
I'm building my wj up its a dd right now. It's a Columbia edition and has same wheels as your. Where did you find a spare wheel at?
it came with the spare tire and rim, mines an overland with all available features at the time
MudMann94 is offline
Old 10-02-2013, 02:27 PM
  #49
Senior Member

Killallblue's Avatar

Join Date: Dec 2012
Location: linthicum
Posts: 697
Model: Cherokee
Default

Originally Posted by MudMann94 View Post
Im definitly down to go in a few weeks. just let me know!
i need to get my front shaft fixed and i need 1 more rim for my spare
and then im ready i can pm you my number ir you want it
Killallblue is offline
Old 10-02-2013, 02:44 PM
  #50
Senior Member
Thread Starter

MudMann94's Avatar

Join Date: May 2011
Location: Paramus NJ
Posts: 747
Year: 2002
Model: Grand Cherokee
Engine: 4.7L HO V8
Default

Originally Posted by Killallblue View Post
i need to get my front shaft fixed and i need 1 more rim for my spare and then im ready i can pm you my number ir you want it
Yeah man, definitly
MudMann94 is offline
Old 10-02-2013, 02:46 PM
  #51
Senior Member
Thread Starter

MudMann94's Avatar

Join Date: May 2011
Location: Paramus NJ
Posts: 747
Year: 2002
Model: Grand Cherokee
Engine: 4.7L HO V8
Default

02 WJ Overland Build-image-2677496132.jpg

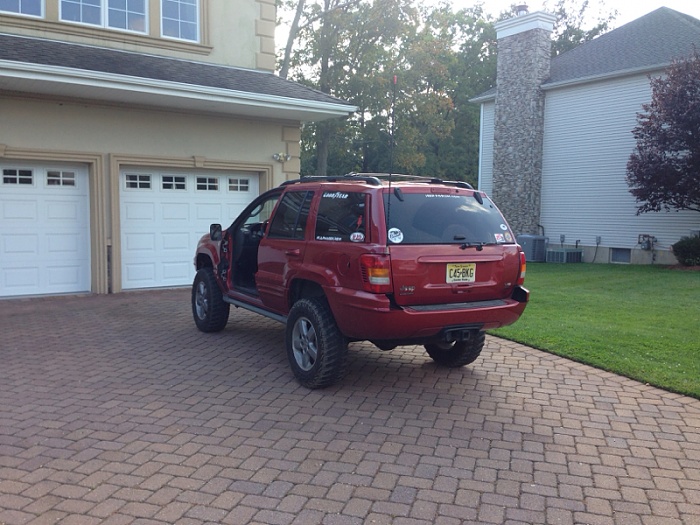

Went doorless today and also mounted my CB antenna!


02 WJ Overland Build-image-3179329596.jpg

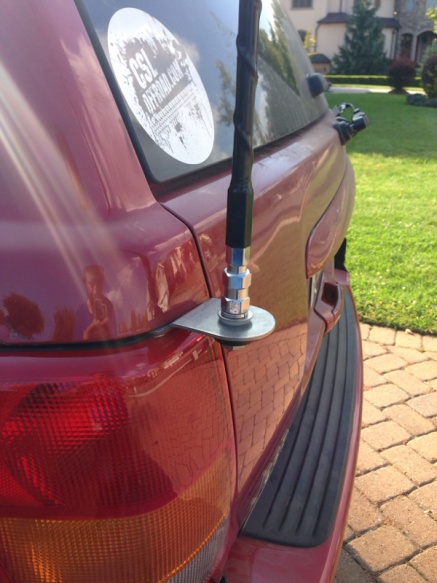

Use a dodge ram hood mount, right under the taillight, next week i gotta install my cb
MudMann94 is offline
Old 10-02-2013, 02:53 PM
  #52
Senior Member

Killallblue's Avatar

Join Date: Dec 2012
Location: linthicum
Posts: 697
Model: Cherokee
Default

how hard was it to do that mod i want to do it so bad

Last edited by Killallblue; 10-02-2013 at 02:57 PM.
Killallblue is offline
Old 10-02-2013, 03:01 PM
  #53
Member

Join Date: Jan 2013
Location: north jersey
Posts: 156
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Killallblue View Post
how hard was it to do that mod i want to do it so bad
He just unbolted them gotta realign them each time though, xjs its easier
henry9419 is offline
Old 10-02-2013, 03:04 PM
  #54
Senior Member

Killallblue's Avatar

Join Date: Dec 2012
Location: linthicum
Posts: 697
Model: Cherokee
Default

i saw some guys using pins on the wjs didnt know if he was using those
Killallblue is offline
Old 10-02-2013, 06:13 PM
  #55
Senior Member
Thread Starter

MudMann94's Avatar

Join Date: May 2011
Location: Paramus NJ
Posts: 747
Year: 2002
Model: Grand Cherokee
Engine: 4.7L HO V8
Default

Originally Posted by Killallblue View Post
i saw some guys using pins on the wjs didnt know if he was using those
Takes like 10 mins to take both off, but putting them back on is a little bit longer, you gotta lign them back up
MudMann94 is offline
Old 10-03-2013, 08:44 AM
  #56
Junior Member

Outkazt's Avatar

Join Date: Apr 2012
Location: Rip City
Posts: 41
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Man, I might be shooting for a WJ now. Sweet looking WJ
Outkazt is offline
Old 10-04-2013, 10:28 PM
  #57
Senior Member
Thread Starter

MudMann94's Avatar

Join Date: May 2011
Location: Paramus NJ
Posts: 747
Year: 2002
Model: Grand Cherokee
Engine: 4.7L HO V8
Default

02 WJ Overland Build-image-861328794.jpg

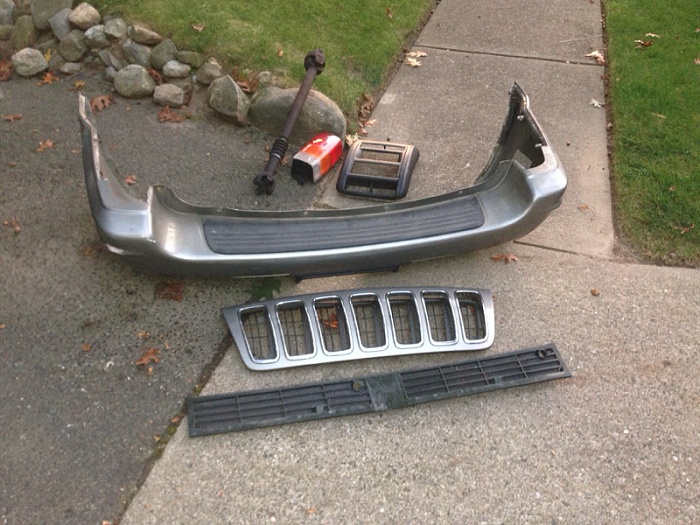

Got parts from tge yard
MudMann94 is offline
Old 10-07-2013, 05:30 PM
  #58
Senior Member
Thread Starter

MudMann94's Avatar

Join Date: May 2011
Location: Paramus NJ
Posts: 747
Year: 2002
Model: Grand Cherokee
Engine: 4.7L HO V8
Default

So i did the tank tuxk yesterday with my buddy. It wasnt too hard, just time consuming, took around 7-8 hours. Heres some pics.



02 WJ Overland Build-image-3665635273.jpg

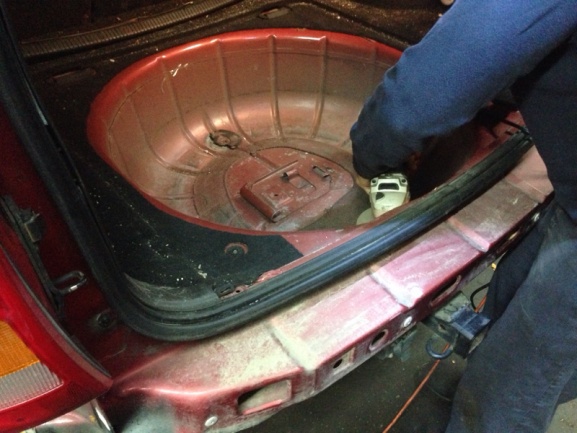

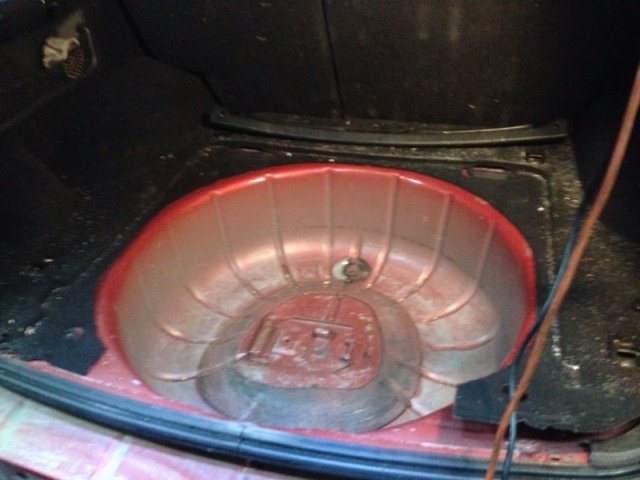

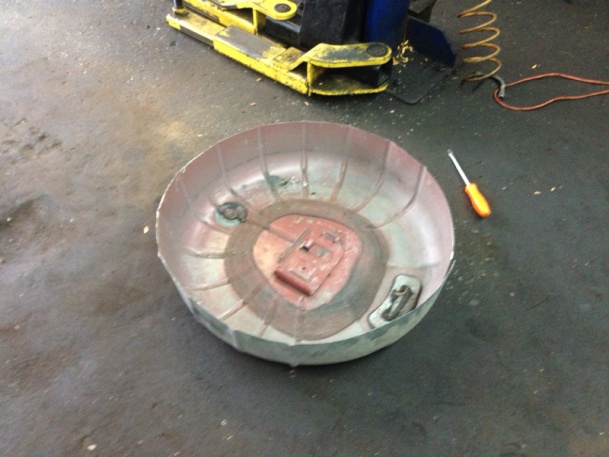

We started off by removing everything out of the spare tire well and cut that out.



02 WJ Overland Build-image-3908541955.jpg



02 WJ Overland Build-image-1903504663.jpg

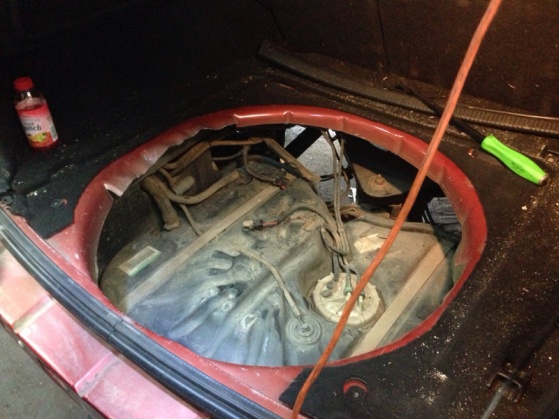

Then we were left with a hole in the trunk with visable access to the tank.


02 WJ Overland Build-image-1567793584.jpg

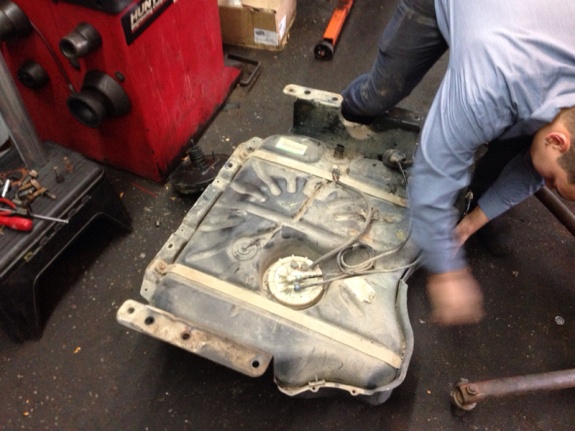

The next step was to unbolt the gastank, the hitch and the evap canister, and move everytging out of the way.

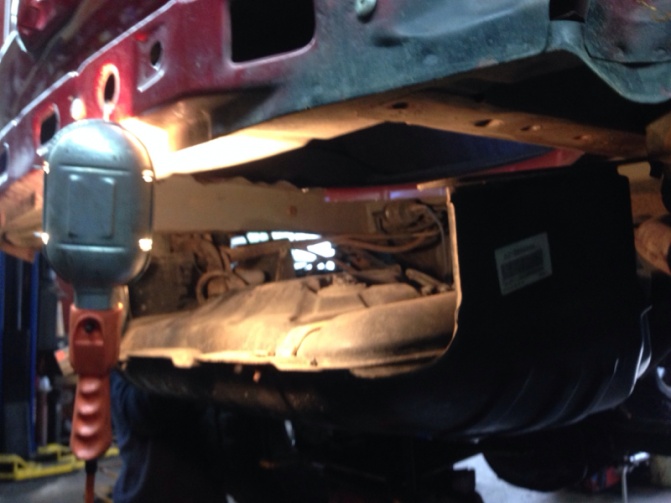

02 WJ Overland Build-image-2619802748.jpg



02 WJ Overland Build-image-3185479122.jpg



02 WJ Overland Build-image-2426503998.jpg

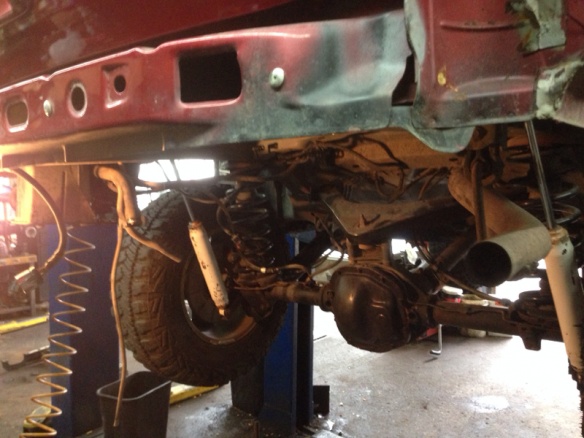

The above picture is with no tank in the jeep at all.

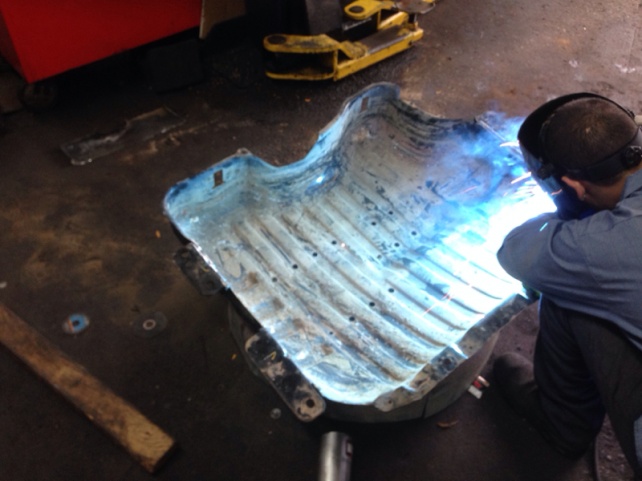

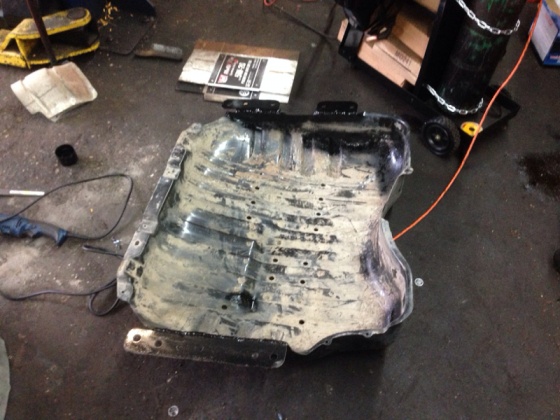

We then had to cut off the mounts on the tank skid and then cut another 6" lower to get rid of all that material. Then we welded up the mounts back onto the skid creating a tuck


02 WJ Overland Build-image-1449843383.jpg



02 WJ Overland Build-image-4217352129.jpg

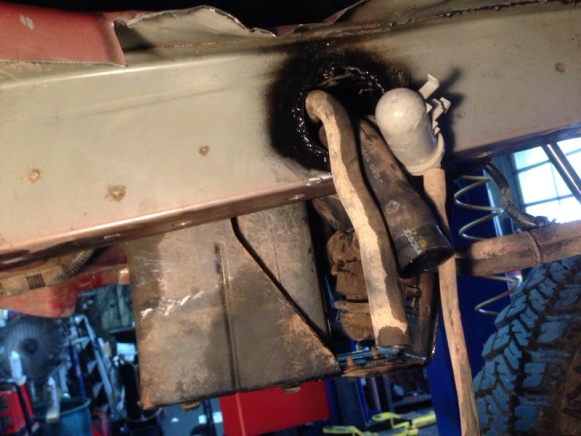

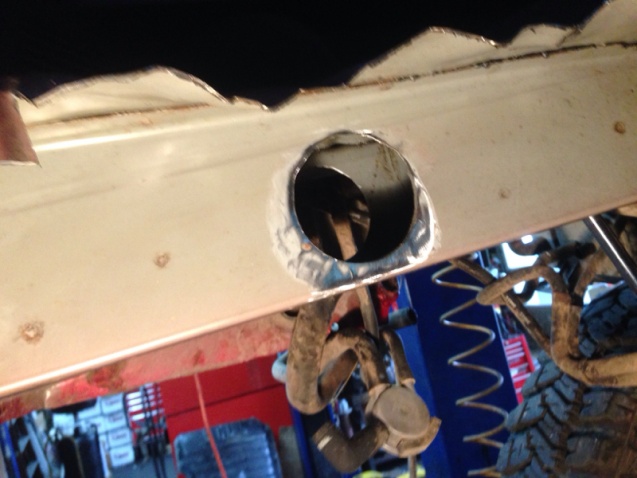

We then had to drill a 3" hole through the frame to run the gas lines through, and we surrounded the hole with 3" exhaust piping



02 WJ Overland Build-image-1711737652.jpg



02 WJ Overland Build-image-194386909.jpg

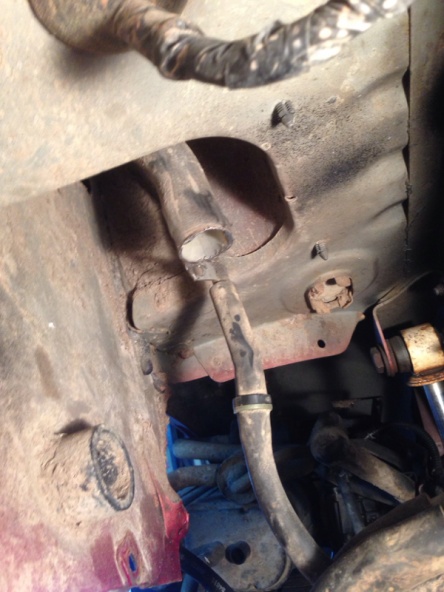

The filler neck had to be cut down so that the hose wouldnt kink.


02 WJ Overland Build-image-3722910532.jpg

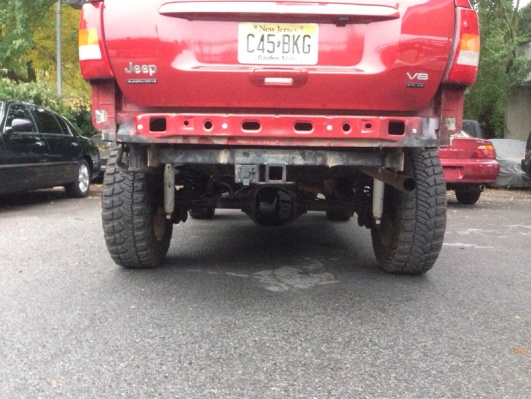

After the skid was welded, and the hoses were ran, we bolted the tank back up and put the jeep down on its own weight. Overall we gained 7 inches out of the tuck. Im very happy with the way it came out.


02 WJ Overland Build-image-1872789667.jpg
MudMann94 is offline
Old 10-07-2013, 05:32 PM
  #59
Senior Member
Thread Starter

MudMann94's Avatar

Join Date: May 2011
Location: Paramus NJ
Posts: 747
Year: 2002
Model: Grand Cherokee
Engine: 4.7L HO V8
Default

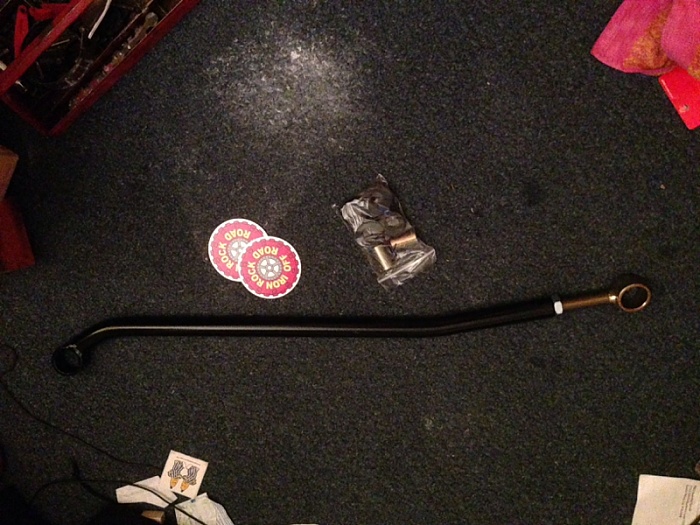

Also, just got this in the mail, my new IRO Trackbar to tighten everytging up in the front end. Looks beefy!


02 WJ Overland Build-image-3751933020.jpg
MudMann94 is offline
Old 10-07-2013, 10:09 PM
  #60
Senior Member

Killallblue's Avatar

Join Date: Dec 2012
Location: linthicum
Posts: 697
Model: Cherokee
Default

looks good im so jelly got to work on a lift and got it done lol when i do it it will be on the floor and in the driveway lol
