K I have searched and searched. I am looking for a write up for installing lights with pictures. I've looked at every diagram pretty much but I don't understand that well enough. Anyone have any step by step pictures of installing lights on a bumper? I'm looking to install 2 hella 500ff on my front orfab bumper. Any help will be much appreciated.
Heck, if there's anyone in the Detroit metro area that could spend a day to show me I'd buy beer n pizza n prolly throw some $ their way. I just want to learn, instead of paying my local shop to do it

Thnx all
TLK



Do you have your diagram?



The one included in the box? Yea



Did your lights come with a relay? A switch? Or do you have those items, or just the lights?

The basic idea is to mount a switch in the cab. The switch controls a relay you mount under the hood. The relay connects the fog lights to battery + when the switch is thrown.

Basic step by step:
Run +12V from an "acc" or "ign" terminal in your interior fuse box to one terminal of the switch.
Connect the other terminal of the switch to the "+" terminal of the relay.
Connect the "-" terminal of the relay to chassis ground.
Connect one "load" tab of the relay to battery + through a fuse. You can use an inline fuse, or chassis mount. For 2 X 500ff (55 watt) lamps, it should be a 15 Amp fuse.
Connect the other "load" tab of the relay to the positive wire on each fog light.
Ground the negative wire on each fog light.

I would use 14ga wire, and a relay rated for 20 amps.

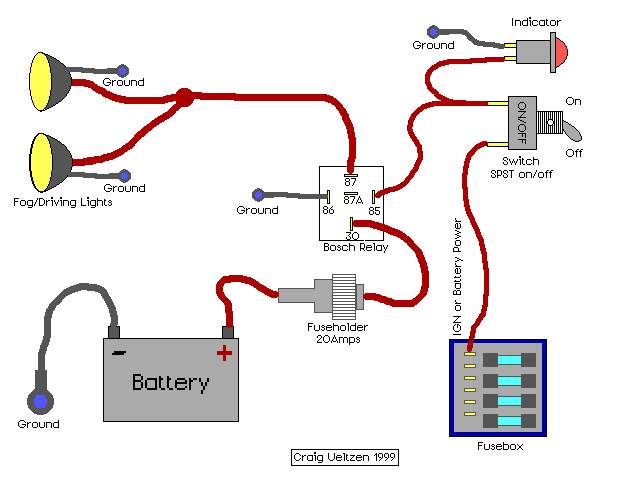

Drawing:



Yes i have a switch, already set up. With a relay. I just have tried hooking every thing up with no luck. Maybe its just bad grounds idk.
