Where is the coolant temperature sending unit on a 90 Cherokee?
09-10-2011, 03:46 PM
#1
Junior Member
Thread Starter
Join Date: Oct 2009
Location: San Antonio, TX
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Where is the coolant temperature sending unit on a 90 Cherokee?
Hello,
I have a closed cooling system (1990 Cherokee) and need to burp the air easily. I read that you can simply remove the "Coolant Temperature Sending Unit". Where is this? I understand this is different than the Coolant Temperature Sensor", yes?
I have a closed cooling system (1990 Cherokee) and need to burp the air easily. I read that you can simply remove the "Coolant Temperature Sending Unit". Where is this? I understand this is different than the Coolant Temperature Sensor", yes?
09-10-2011, 04:00 PM
#2
Senior Member
Join Date: Jul 2011
Location: Wilmington, NC
Posts: 598
Likes: 0
Received 1 Like
on
1 Post
Year: 1997
Model: Cherokee
Engine: 4.0L

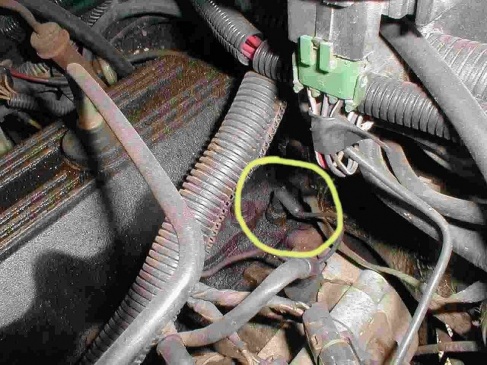

The sensor in the tstat housing is the ECT (Electronic Coolant Temperature sensor) which is what the computer uses for it's engine temp readings and it is quite important. The one they say to remove is, as you stated the gauge SENDER which is on the back of the head, driver's side on a Renix (Not my picture):
09-10-2011, 07:03 PM
#3
Junior Member
Thread Starter
Join Date: Oct 2009
Location: San Antonio, TX
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
The sensor in the tstat housing is the ECT (Electronic Coolant Temperature sensor) which is what the computer uses for it's engine temp readings and it is quite important. The one they say to remove is, as you stated the gauge SENDER which is on the back of the head, driver's side on a Renix (Not my picture):
09-11-2011, 08:07 PM
#4
Junior Member
Thread Starter
Join Date: Oct 2009
Location: San Antonio, TX
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Hey guys,
I just burped the coolant system by removing the coolant temp. sending unit. however, it seems to run hotter now and my coolant gauge sets past the 210' temp mark at around the 1-2 tick marks after that! Almost near red.
So....is it possible that I didn't screw the coolant temp. sending unit in all the way? I noticed that when I put it back, I didn't screw it in all the way...could that be the culprit? See pic below (notice teflon tape), Maybe I should take that tape off and try it again so it sets all the way in?
The other possible reason for the hotter temps could be the "Tee" that I left on my heater hose after flushing. Could be a weak link, but I have a hunch it is the sending unit...
I just burped the coolant system by removing the coolant temp. sending unit. however, it seems to run hotter now and my coolant gauge sets past the 210' temp mark at around the 1-2 tick marks after that! Almost near red.
So....is it possible that I didn't screw the coolant temp. sending unit in all the way? I noticed that when I put it back, I didn't screw it in all the way...could that be the culprit? See pic below (notice teflon tape), Maybe I should take that tape off and try it again so it sets all the way in?
The other possible reason for the hotter temps could be the "Tee" that I left on my heater hose after flushing. Could be a weak link, but I have a hunch it is the sending unit...
Last edited by skunker; 09-11-2011 at 08:10 PM.
