What is this?
01-09-2012, 10:02 AM
#1
Seasoned Member
Thread Starter
Join Date: Mar 2011
Location: Johnsonburg, Pa
Posts: 252
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L I6
What is this?

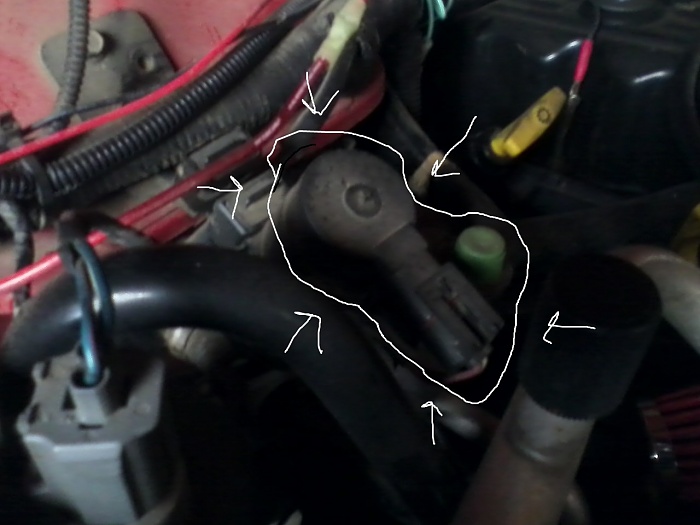

What is this part and why does it start ticking when my engine starts to get to op temperature?
01-09-2012, 10:43 AM
#3
Senior Member
Join Date: Jun 2009
Location: West Texas
Posts: 553
Likes: 0
Received 1 Like
on
1 Post
Year: 1991
Model: Cherokee
Engine: 4.0 L
I believe that is the "charcoal canister" replacement to manage evaporatvie gases from fuel tank.
on my 91 it is a charcoal canister with three hoses.
on yours it apparently electronically controlled and it may be that your activator/sensor is going bad or the canister its attached to is saturated.
cheers!
cpnwrench
01-09-2012, 11:45 AM
#7
CF Veteran
Join Date: Jan 2011
Location: Las Vegas
Posts: 1,894
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
EVAP Solenoid.
Ticking is normal.
Ticking is normal.
DUTY CYCLE EVAP CANISTER PURGE
SOLENOID
The Duty Cycle EVAP Canister Purge Solenoid regulates
the rate of vapor flow from the EVAP canister
to the intake manifold. The Powertrain Control Module
(PCM) operates the solenoid.
During the cold start warm-up period and the hot
start time delay, the PCM does not energize the solenoid.
When de-energized, no vapors are purged. The
PCM de-energizes the solenoid during open loop operation.
The engine enters closed loop operation after it
reaches a specified temperature and the time delay
ends. During closed loop operation, the PCM cycles
(energizes and de-energizes) the solenoid 5 or 10
times per second, depending upon operating conditions.
The PCM varies the vapor flow rate by changing
solenoid pulse width. Pulse width is the amount
of time that the solenoid is energized. The PCM
adjusts solenoid pulse width based on engine operating
condition.
The solenoid attaches to a bracket located in the
right-rear side of engine compartment (Fig. 3).The
top of the solenoid has the word UP or TOP on it.
The solenoid will not operate properly unless it is
installed correctly.
SOLENOID
The Duty Cycle EVAP Canister Purge Solenoid regulates
the rate of vapor flow from the EVAP canister
to the intake manifold. The Powertrain Control Module
(PCM) operates the solenoid.
During the cold start warm-up period and the hot
start time delay, the PCM does not energize the solenoid.
When de-energized, no vapors are purged. The
PCM de-energizes the solenoid during open loop operation.
The engine enters closed loop operation after it
reaches a specified temperature and the time delay
ends. During closed loop operation, the PCM cycles
(energizes and de-energizes) the solenoid 5 or 10
times per second, depending upon operating conditions.
The PCM varies the vapor flow rate by changing
solenoid pulse width. Pulse width is the amount
of time that the solenoid is energized. The PCM
adjusts solenoid pulse width based on engine operating
condition.
The solenoid attaches to a bracket located in the
right-rear side of engine compartment (Fig. 3).The
top of the solenoid has the word UP or TOP on it.
The solenoid will not operate properly unless it is
installed correctly.
