Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Ugly a$$ frayed wire, what is it

Thread Tools

Search this Thread

Old Dec 12, 2016 | 07:11 PM
  #1
xjohnmatrix's Avatar
Thread Starter
Member

Joined: Oct 2016
Posts: 127
Likes: 1
From: Sarasota, FL
Year: 2001
Model: Cherokee
Engine: 4.0
Default Ugly a$$ frayed wire, what is it

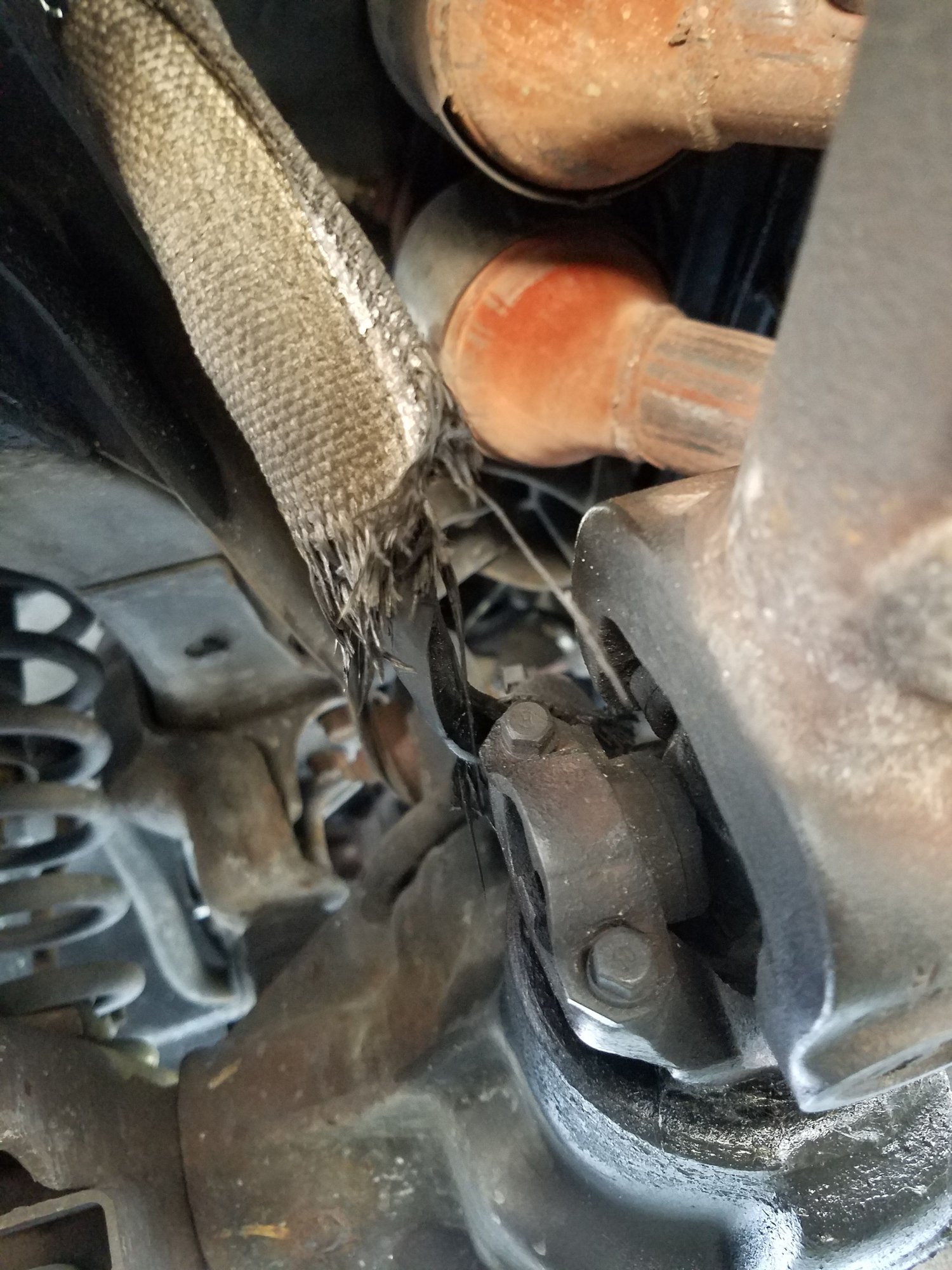

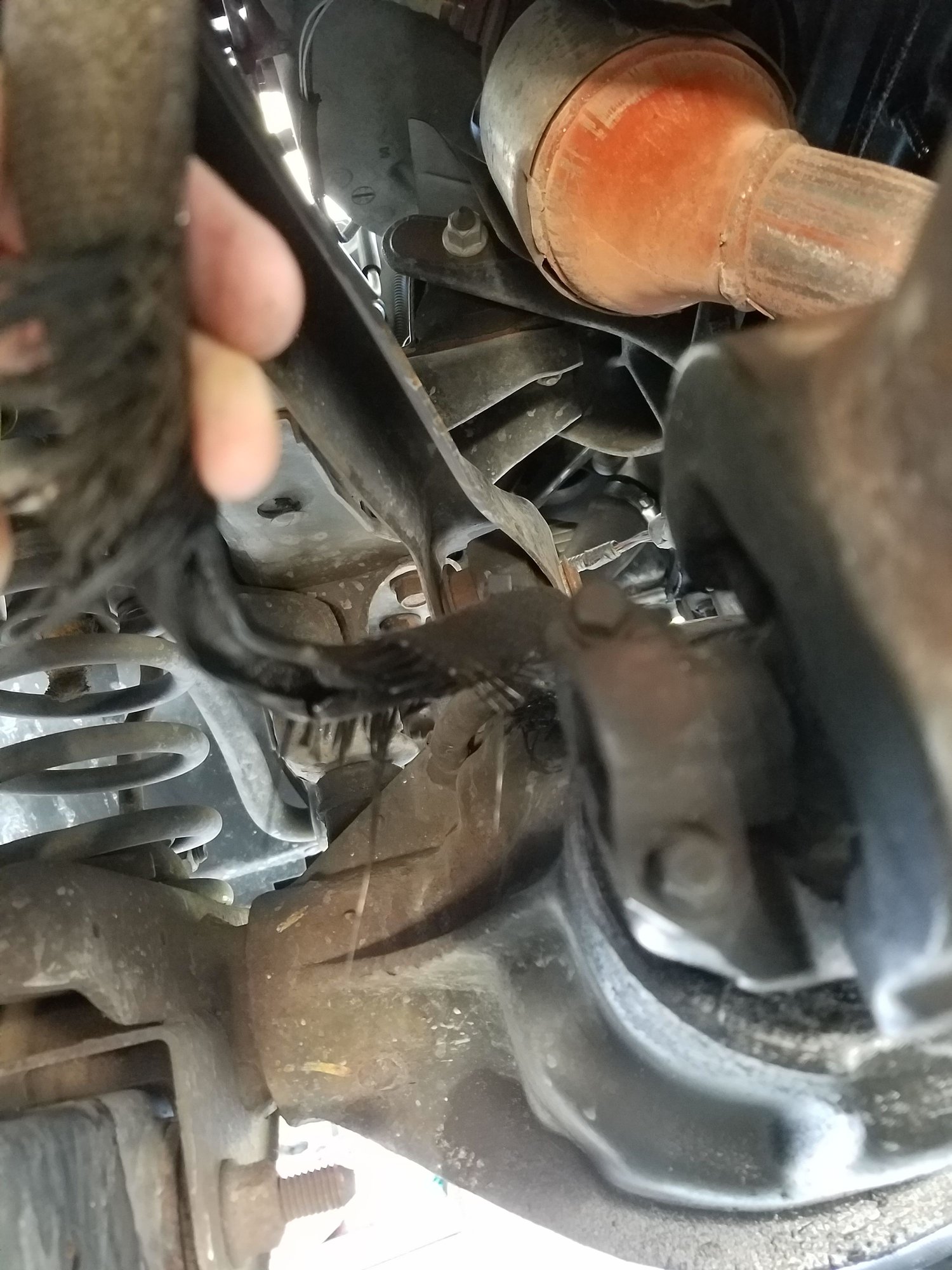

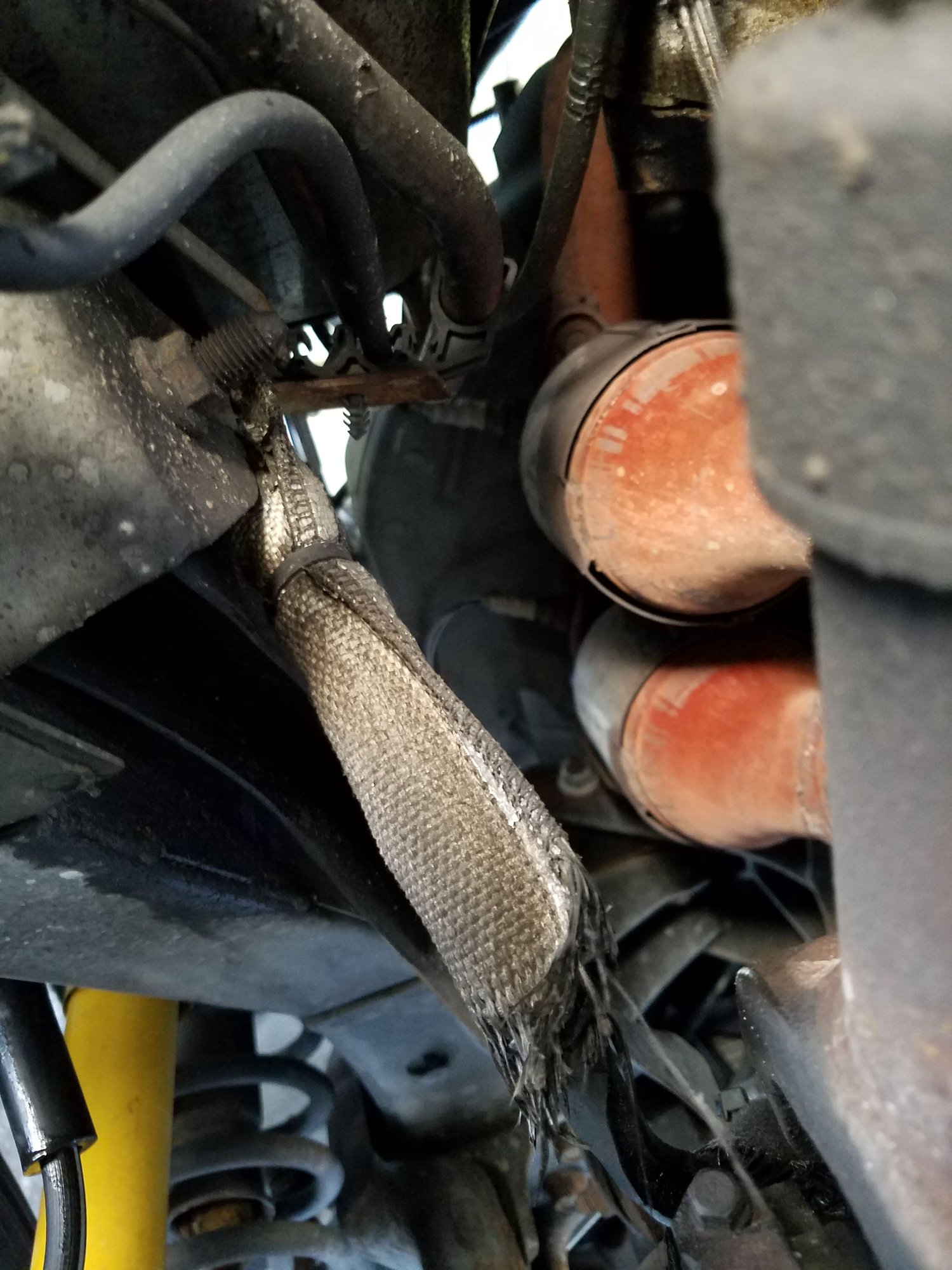

So I was looking underneath and found this heinous black "wire" - appears to be hollow with nothing inside? Located near my front left tire, under my seat kinda.

Any ideas? Safe to remove?








Reply
Old Dec 12, 2016 | 09:11 PM
  #2
XJ-kee's Avatar
Junior Member

Joined: Jul 2011
Posts: 63
Likes: 0
From: Grand Rapids, MI
Year: 2000
Model: Cherokee
Engine: 4.0 I-6
Default

That's your differential breather tube. Follow it up and there's a little plastic bulb on the end. The frayed end connects to your front differential , on the dana 30 it's on the upper left hand side (sitting facing the front of the jeep like you were sitting in your seat) of the diff.

Buy a replacement tube and splice em together or replace the tube completely. I wouldnt remove it, axles gotta breathe and having the hose up towards the top helps water and gunk not get in it. make sure to route it away from the axle and it won't fray again.

edit: some people call them vent tubes, they're for letting the air expand in the diff while not building up pressure.
Josh

Last edited by XJ-kee; Dec 12, 2016 at 09:15 PM. Reason: Your :(
Reply
Old Dec 12, 2016 | 09:54 PM
  #3
LACK's Avatar
CF Veteran

Joined: Oct 2016
Posts: 1,535
Likes: 10
From: CA
Year: 1994
Model: Cherokee (XJ)
Default

Originally Posted by XJ-kee
That's your differential breather tube. Follow it up and there's a little plastic bulb on the end. The frayed end connects to your front differential , on the dana 30 it's on the upper left hand side (sitting facing the front of the jeep like you were sitting in your seat) of the diff.

Buy a replacement tube and splice em together or replace the tube completely. I wouldnt remove it, axles gotta breathe and having the hose up towards the top helps water and gunk not get in it. make sure to route it away from the axle and it won't fray again.

edit: some people call them vent tubes, they're for letting the air expand in the diff while not building up pressure.
Josh
Nailed it

Definitely want to keep it vented up where water and debris won't get it in it. If it gets plugged up, as your front diff gets hot pressure builds up and it will cause your axle seals to leak.
Reply
Old Dec 13, 2016 | 05:46 AM
  #4
wizardpc's Avatar
Senior Member

Joined: May 2014
Posts: 777
Likes: 5
From: Nolensville, TN
Year: 1998
Model: Cherokee
Engine: 4.0
Default

And change your diff fluid for good measure.
Reply
Old Dec 13, 2016 | 08:06 PM
  #5
xjohnmatrix's Avatar
Thread Starter
Member

Joined: Oct 2016
Posts: 127
Likes: 1
From: Sarasota, FL
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Thanks all
Reply
Old Dec 14, 2016 | 04:11 AM
  #6
bad_idea's Avatar
CF Veteran
5 Year Member

Joined: Apr 2016
Posts: 1,820
Likes: 60
From: Pasquotank, NC
Year: 1990
Model: Cherokee
Engine: 4.0
Default

My vent tube is zip tied to the upper control arm. Keeps it out of the way. Leave slack for suspension travel.
Reply
Old Dec 14, 2016 | 06:46 PM
  #7
extrashaky's Avatar
Banned

Joined: Feb 2014
Posts: 2,379
Likes: 18
From: Florida
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
Default

Originally Posted by xjohnmatrix
Ugly a$$ frayed wire, what is it
***-frayed wire is pretty ugly.
Reply
