Trackbar STUCK

Thread Tools

Search this Thread

Old Dec 16, 2010 | 07:41 PM
  #1
Ross L's Avatar
Thread Starter
Seasoned Member

Joined: Sep 2010
Posts: 290
Likes: 0
From: Pensacola, Florida
Year: 1994
Model: Cherokee
Engine: 4.0 liter
Default Trackbar STUCK

So I have been beating my trackbar for 4 hours now and taking a break to post this on here. It is stuck on the frame mount I can not get the pop out. I have bent a ball joint seperator to hell and just bought a tie rod seperator and it starting to bend now. Any ideas on one to do to get it out. While I wait for a response I am going to go try a c- clamp if you want pictures let me know and ill take some.
Reply
Old Dec 16, 2010 | 07:43 PM
  #2
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

pics would help never heard of one that tight
Reply
Old Dec 16, 2010 | 07:44 PM
  #3
FOXxX's Avatar
Member

Joined: May 2010
Posts: 205
Likes: 0
From: Mississippi
Year: 94
Model: Cherokee
Engine: 4.0 Stroked - 4.7
Default

Well sounds like it is in more of a bind than stuck - Best try and Move the axle to the left and the body to the right to free up the bar. Or try to separate the bar from the Axle first then remove. Pics would be nice too
Reply
Old Dec 16, 2010 | 07:46 PM
  #4
b4wheeler's Avatar
Junior Member

Joined: Aug 2010
Posts: 56
Likes: 0
From: Pasadena, Md
Year: 1996
Model: Cherokee
Engine: 4.0
Default

I had a similar problem when I was removing my track bar.
I was letting the bar hang while I tried to beat it out. That had no effect.
Once I lifted up on the axle end of the bar, it came loose on its own.

Try supporting the axle end to take the pressure off the frame end.

Might help.
Reply
Old Dec 16, 2010 | 08:02 PM
  #5
Ross L's Avatar
Thread Starter
Seasoned Member

Joined: Sep 2010
Posts: 290
Likes: 0
From: Pensacola, Florida
Year: 1994
Model: Cherokee
Engine: 4.0 liter
Default

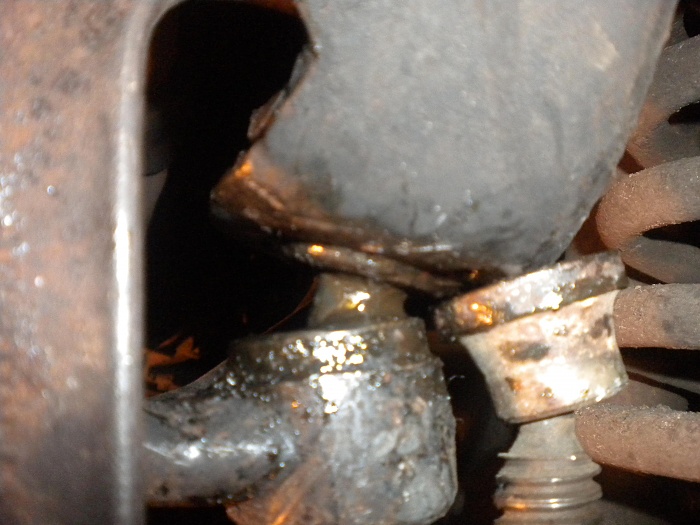

I have the c-clamp on right now trying to press it out but here is a picture. I have taken axle end off but I cannot lift it up high enough to take stress off frame end.
Attached Thumbnails Trackbar STUCK-bolt.jpg   Trackbar STUCK-track.jpg
Reply
Old Dec 16, 2010 | 08:04 PM
  #6
Donnie_K's Avatar
CF Veteran

Joined: Jun 2009
Posts: 2,173
Likes: 0
From: Columbus, Ohio
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
Default

or just ditch that whole bracket and track bar, and get ya a double shear
Reply
Old Dec 16, 2010 | 08:42 PM
  #7
Ross L's Avatar
Thread Starter
Seasoned Member

Joined: Sep 2010
Posts: 290
Likes: 0
From: Pensacola, Florida
Year: 1994
Model: Cherokee
Engine: 4.0 liter
Default

Any ideas c- clamp didnt work it just started to bend. So what now
Reply
Old Dec 16, 2010 | 08:51 PM
  #8
21yearsofjeeps's Avatar
Junior Member

Joined: Nov 2010
Posts: 48
Likes: 0
From: Maryland
Year: 1994
Model: Cherokee
Engine: 4.0L I6 MPI "Power Tech HO" (High Output) - 190 hp @ 4750 rpm, 220 ft lb @ 4,000 rpm
Default

are you replacing it?
Reply
Old Dec 16, 2010 | 08:51 PM
  #9
21yearsofjeeps's Avatar
Junior Member

Joined: Nov 2010
Posts: 48
Likes: 0
From: Maryland
Year: 1994
Model: Cherokee
Engine: 4.0L I6 MPI "Power Tech HO" (High Output) - 190 hp @ 4750 rpm, 220 ft lb @ 4,000 rpm
Default

if you are, use a torch....
Reply
Old Dec 16, 2010 | 08:53 PM
  #10
nismo5's Avatar
Senior Member

Joined: Feb 2009
Posts: 553
Likes: 1
From: chico,ca
Year: 1989
Model: Cherokee
Engine: 4.0
Default

maybe try turning the wheels to the left or right to get the axle side mount out ??is your jeep on jack stands or is it sitting on the ground ??or jack up the axle if you cant get the bar out of the mount it might raise the track bar enough that way
Reply
Old Dec 16, 2010 | 08:54 PM
  #11
21yearsofjeeps's Avatar
Junior Member

Joined: Nov 2010
Posts: 48
Likes: 0
From: Maryland
Year: 1994
Model: Cherokee
Engine: 4.0L I6 MPI "Power Tech HO" (High Output) - 190 hp @ 4750 rpm, 220 ft lb @ 4,000 rpm
Default

if you don't want to cut it off, at least heat it cherry red let it cool and then knock it out. the metal will expand when heated, and after it cools, shrink. you could also spray with PB Blaster when its hot.
Reply
Old Dec 16, 2010 | 09:31 PM
  #12
sandaddik2's Avatar
Former Sponsor

Joined: Feb 2010
Posts: 2,021
Likes: 1
From: Hesperia
Year: 89
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Donnie_K
or just ditch that whole bracket and track bar, and get ya a double shear
x2
Reply
Old Dec 16, 2010 | 09:42 PM
  #13
Ross L's Avatar
Thread Starter
Seasoned Member

Joined: Sep 2010
Posts: 290
Likes: 0
From: Pensacola, Florida
Year: 1994
Model: Cherokee
Engine: 4.0 liter
Default

I am replacing it I have tried cutting it but I keep breaking blades. It is jacked up on axle and I have axle bolt out its just the frame one I cannot get out. I tried heating it some but didnt get it red hot. I am gonna go get some PB blaster tomorrow when Oriely's opens and then heat it and spray it on to see if that works. I have beat the hell out of it so if I do not end up getting it out do you think I could bolt it back up and as a last resort drive down road to Big 10 Tires and have them replace it. It is only about 2 miles away down one road no turning.
Reply
Old Dec 16, 2010 | 09:47 PM
  #14
sandaddik2's Avatar
Former Sponsor

Joined: Feb 2010
Posts: 2,021
Likes: 1
From: Hesperia
Year: 89
Model: Cherokee
Engine: 4.0
Default

you should be okay to bolt it back up.
its not like its going to come off
Reply
Old Dec 16, 2010 | 09:59 PM
  #15
Ross L's Avatar
Thread Starter
Seasoned Member

Joined: Sep 2010
Posts: 290
Likes: 0
From: Pensacola, Florida
Year: 1994
Model: Cherokee
Engine: 4.0 liter
Default

Originally Posted by sandaddik2
you should be okay to bolt it back up.
its not like its going to come off
Hahaha yeah I was just wondering if it would mess anything up since I beat the hell out of it.
