Sensor question for a tech. Or those really familiar with 00 xj's
I got my new engine in my xj a while back and got it running. It runs great when its cold, once it warms up it stalls and doesn't want to restart. I have two 02 sensors in my exhaust header, just switched them over from my old engine. I cannot for the life of me find where they plug into. I thought that might be causing my issue once it warms up. I have crawled all over that thing lookin for the mating parts on the wiring harness. My xj is a federal emission not a Cali version. I looked at a coworkers 2000 xj federal spec at work today. No 02 sensors in the manifold, it just has plugs in the bungs.
I had the engine replaced a few years back because I cracked a piston skirt. Is it possible that I had a Cali spec engine swapped into my xj with the sensors in the manifold and just drove it without them hooked up? Am I chasing two plugs that may not exist?

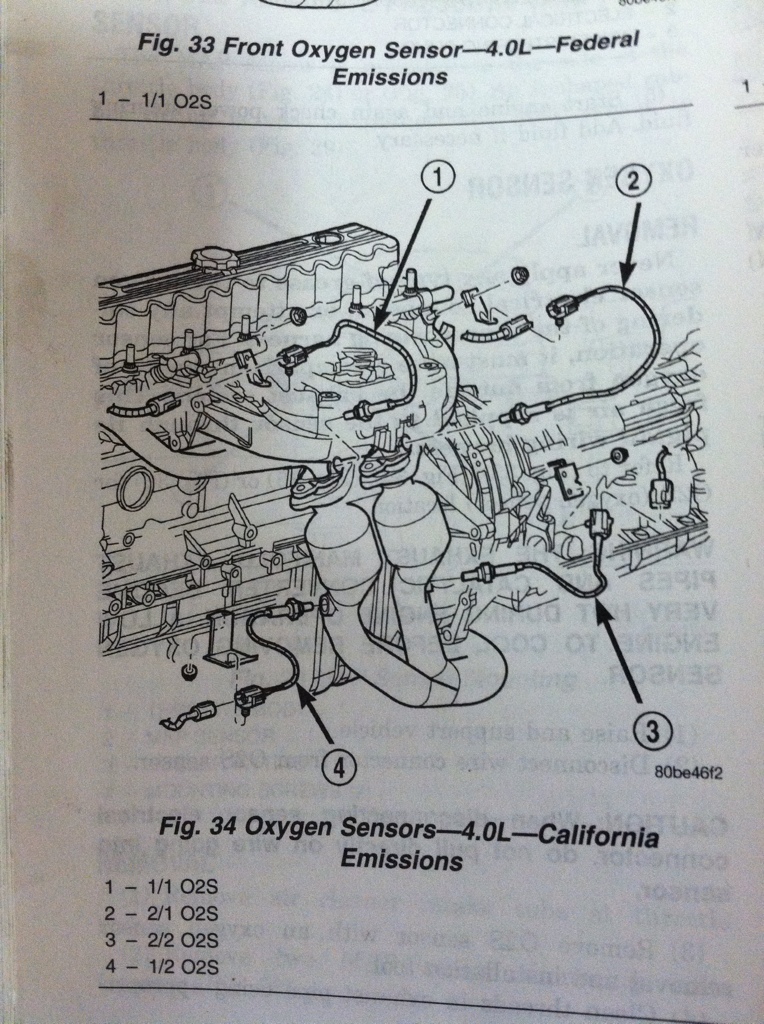

This is from the 2000 xj FSM. it says the Cali has 2 sensors in the manifold.
This is the federal spec. The version I have. It shows no sensors in the manifold at all.
I am wondering if maybe I dont have anywhere to plug this into. My idle issue may be caused by something else. Let me know what you think. Thanks!
I had the engine replaced a few years back because I cracked a piston skirt. Is it possible that I had a Cali spec engine swapped into my xj with the sensors in the manifold and just drove it without them hooked up? Am I chasing two plugs that may not exist?
This is from the 2000 xj FSM. it says the Cali has 2 sensors in the manifold.
This is the federal spec. The version I have. It shows no sensors in the manifold at all.
I am wondering if maybe I dont have anywhere to plug this into. My idle issue may be caused by something else. Let me know what you think. Thanks!
#2
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
Unless you have the Cali spec wiring and PCM there won't be anywhere to plug those additional sensors in. Do you have the plugs for the pre and post-cat sensors down lower? Are those installed and operating?
#3
Seasoned Member
Thread Starter
Join Date: Mar 2012
Location: Northern Michigan
Posts: 365
Likes: 0
Received 1 Like
on
1 Post
Year: 2000 XJ
Model: Cherokee
Engine: 4.8L Stroker
I do not have Cali wiring. So that pretty much explains it. I have the other two sensors installed. The sensor in the cat. Conv. Is new because I could not get the old one out of the old cat when I replaced it.
I guess I won't spend any more time looking for this plugs. I just need to track down why it won't idle now.
I guess I won't spend any more time looking for this plugs. I just need to track down why it won't idle now.
