Running wires from engine compartment

Thread Tools

Search this Thread

Old Jun 16, 2012 | 07:55 AM
  #1
Fire18's Avatar
Thread Starter
Junior Member

Joined: Nov 2011
Posts: 69
Likes: 0
From: Wernersville, PA
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default Running wires from engine compartment

Where is a good spot to run wires through the firewall for adding additional lights and power wires for other stuff? Have a 95 sport with 4.0. Please help!!
Reply
Old Jun 16, 2012 | 08:12 AM
  #2
RenegadeT's Avatar
Seasoned Member

Joined: Apr 2011
Posts: 328
Likes: 1
From: GSO NC
Model: Cherokee
Engine: 4.0L HO
Default

poke a hole thru the grommet for throttle cable
Reply
Old Jun 16, 2012 | 08:12 AM
  #3
Nperryman's Avatar
CF Veteran

Joined: Dec 2010
Posts: 1,246
Likes: 1
From: Missouri
Year: 1998
Model: Cherokee
Engine: I6 4.0 L
Default

On my 98, there is a big wire grommet in the driver's floorboard above the pedals. I don't know if there is one there on a 95 but it's worth taking a look
Reply
Old Jun 16, 2012 | 08:25 AM
  #4
Fire18's Avatar
Thread Starter
Junior Member

Joined: Nov 2011
Posts: 69
Likes: 0
From: Wernersville, PA
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

Thanks I'll give it a look!!!! Will keep you all posted.
Reply
Old Jun 16, 2012 | 08:27 AM
  #5
Fire18's Avatar
Thread Starter
Junior Member

Joined: Nov 2011
Posts: 69
Likes: 0
From: Wernersville, PA
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

Trying to put some driving lights and install my scanner.
Reply
Old Jun 16, 2012 | 09:38 AM
  #6
DFlintstone's Avatar
CF Veteran

Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

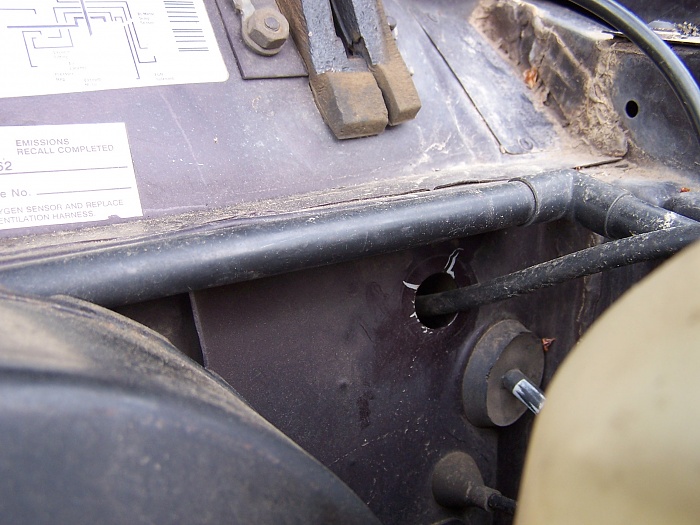

My 90 has a hole behind the vac booster. Here you can see the marks from the cramp-onns the mice were using to climb. Actually I'm not sure what gear their teams use. (was thinking I could drop a little piano on them)
Attached Thumbnails Running wires from engine compartment-101_0240.jpg
Reply
Old Jun 16, 2012 | 02:20 PM
  #7
XJ.89.Limited's Avatar
CF Veteran

Joined: Jan 2012
Posts: 1,057
Likes: 2
From: Nazareth/Pen Argyl, Pennsylvania
Year: 1989
Model: Cherokee
Engine: 4.0L 242ci I6
Default

Any holes where there is a rubber grommet are good. You could also find a blank area and drill another small hole (watch where you drill!) and seal it up with another grommet or something of the sort. You can also get small diameter rubber hose and slit it longways down the middle and put that around the circumference of the hole to protect the wires from ripping on the sharp metal of the firewall. Keep any drilled holes as far up as possible so water doesn't enter and make sure you don't drill into anything important. Use existing holes as much as possible.
Reply
