Reverse lights not working
#1
Newbie
Thread Starter
Join Date: Dec 2016
Location: North Texas
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1986, 1997
Model: Cherokee
Engine: 2.8L, 4.0l
Reverse lights not working
1986 XJ 2d 4WD Autotrans 2.8L
My reverse lights are not working and I am unable to find a NSS on the passenger side. Can anyone tell me where the NSS is on this year vehicle?The auto transmission is completely different than my 97 and there's no NSS in the same location.
I've checked the bulbs, they are fine, not getting any juice to the sockets when I put it in reverse.
I tried to search the forums, but I'm only able to find info on the newer XJ models. Any help/info that can be provided would be appreciated.
Thanks ahead ya'll
Paul
My reverse lights are not working and I am unable to find a NSS on the passenger side. Can anyone tell me where the NSS is on this year vehicle?The auto transmission is completely different than my 97 and there's no NSS in the same location.
I've checked the bulbs, they are fine, not getting any juice to the sockets when I put it in reverse.
I tried to search the forums, but I'm only able to find info on the newer XJ models. Any help/info that can be provided would be appreciated.
Thanks ahead ya'll
Paul
#3
Newbie
Thread Starter
Join Date: Dec 2016
Location: North Texas
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1986, 1997
Model: Cherokee
Engine: 2.8L, 4.0l

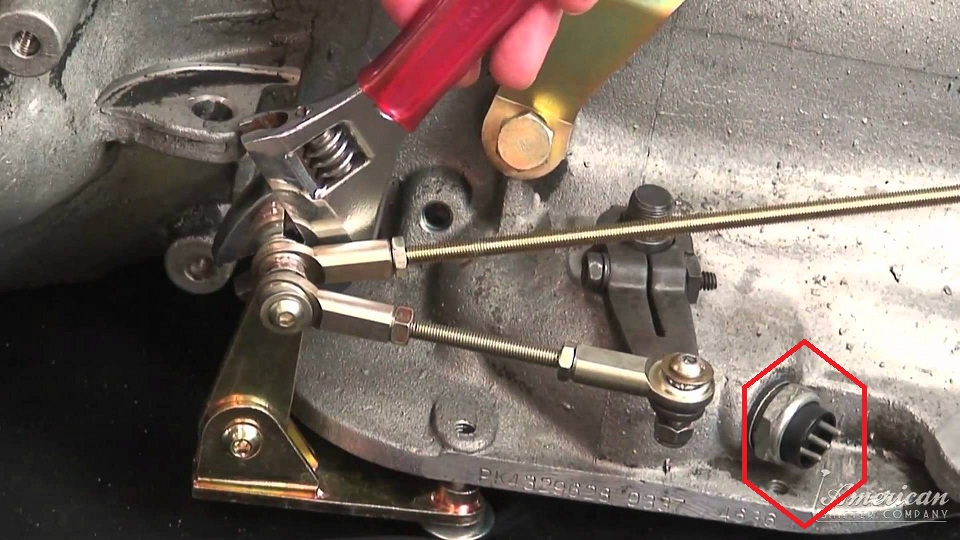

Thanks for the quick reply Freegdr. All my fuses are good, all my other lights(turn, hazard,signal,brake,parking) work.....I forgot to mention I'd already checked that earlier. I'm trying to figure out where the Backup Switch is located on the transmission for this vehicle. I don't think there is a NSS like on the 97 and up auto trans. attached is an image below I found on RockAuto.
#4
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Thanks for the quick reply Freegdr. All my fuses are good, all my other lights(turn, hazard,signal,brake,parking) work.....I forgot to mention I'd already checked that earlier. I'm trying to figure out where the Backup Switch is located on the transmission for this vehicle. I don't think there is a NSS like on the 97 and up auto trans. attached is an image below I found on RockAuto.
#6
Newbie
Thread Starter
Join Date: Dec 2016
Location: North Texas
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1986, 1997
Model: Cherokee
Engine: 2.8L, 4.0l
Ah HA! Found it. Thank you, Thank you..... Now I know why the reverse lights don't work...the connector wont stay on the switch.. the lights work if I hold the connector on the switch... darndest thing. ....... I'm going to just hardwire it..... ...
