Renix burping question

Thread Tools

Search this Thread

Old Feb 8, 2015 | 08:58 AM
  #16
austinjoe13's Avatar
CF Veteran

Joined: Nov 2011
Posts: 2,433
Likes: 6
From: Northern MN
Year: 1990
Model: Cherokee (XJ)
Engine: Renix 4.0
Default

Originally Posted by Firestorm500
No. Read my and Cruiser 54's post. Replace thermostat. Fill. Drive. Monitor fluid level for a few hot/cold cycles.
This is gold bud. I did the temp sensor thing with my old jeep and it never really worked. So with my new renix, I fill the bottle while the engine's idling. When it stops draining cap it and drive, check it out later.
Reply
Old Feb 8, 2015 | 01:25 PM
  #17
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

Originally Posted by Steffen84
than I have to change the t-stat again and let it be as it is

I think I know how do burp the air off now Back up and sensor out, filling it in the bottle until it comes out, sender in. bottle filled to ground when the jeep is back on ground. start...

right?
^^^^^^^ Just a couple of the many cooling systems myths that continue to be perpetuated on the Internet. Why one would want to raise the low end of the motor is beyond me. Coolant enters and exits the front (high end) of the motor. Air naturally migrates up, does it not? No air/coolant exits the back of the motor so why would u want to raise the back end? Why would u want to remove a plug at the low end of the motor? That's just another duh myth.

What I post here, regarding cooling systems, is true for virtually any water cooled vehicle out there.

Anybody that does any type of cooling system maintenance on an old/used car, then slams the hood down for a year calling it good is just asking for problems. Read my sig.

Last edited by djb383; Feb 8, 2015 at 01:30 PM.
Reply
Old Feb 8, 2015 | 09:42 PM
  #18
Firestorm500's Avatar
CF Veteran

Joined: Apr 2009
Posts: 4,734
Likes: 12
Year: 2015, 2012
Model: Grand Cherokee (WK2)
Engine: 3.6L
Default

Well, that's the same people that only check or change the oil when the oil light comes on.
Reply
Old Feb 8, 2015 | 10:03 PM
  #19
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

Yep.......I saw the red light but I thought it would get brighter when things got really bad.
Reply
Old Feb 11, 2015 | 03:52 AM
  #20
Steffen84's Avatar
Thread Starter
Junior Member

Joined: Jan 2015
Posts: 61
Likes: 0
From: Germany
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Originally Posted by djb383
For each one of these TRUE/CORRECT XJ cooling system statements, there must be 10,000+ FALSE/INCORRECT statements post on the Internet.

I will reemphasize "do not drill hole(s) in the XJ stat"......doing so accomplishes nothing other than slowing down the engine warm-up process and fast engine warm-up is important. Besides, there is a dime sized hole directly beside the t-stat anyway (the bypass) so why drill holes in the stat??????.....because some goober on the Internet says it's a good idea?....NOT.
that makes sense !!!
Reply
Old Feb 11, 2015 | 03:08 PM
  #21
Steffen84's Avatar
Thread Starter
Junior Member

Joined: Jan 2015
Posts: 61
Likes: 0
From: Germany
Year: 1990
Model: Cherokee
Engine: 4.0
Default

I installed a new CTS and flushed the cooling system. I put a new thermostat in without holes!

So I started to burb like I should, filled with 50/50 mix cap open and idle.

started to go higher revs, about 3000 rpm. than idle again and so on. there are still small bubles coming up from the bottle...

Is there any chance air could get into the system?

Reply
Old Feb 11, 2015 | 04:16 PM
  #22
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

Is your video showing fresh 50/50 coolant?......kinda looks like straight water and a little rusty at that. It takes several heat/cool cycles for all the air to work it's way to the bottle. The upper portion of the bottle will always have some air in it but the bottle must never be allowed to be empty of coolant. If the bottle is ever completely empty, then air is being re-introduced into the cooling system.

On this side of the pond, here's what fresh coolant looks like.
Attached Thumbnails Renix burping question-006-2-.jpg

Last edited by djb383; Feb 11, 2015 at 06:06 PM.
Reply
Old Feb 12, 2015 | 01:12 AM
  #23
Steffen84's Avatar
Thread Starter
Junior Member

Joined: Jan 2015
Posts: 61
Likes: 0
From: Germany
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Yes fresh 50/50 but not with green but yellow antifreeze
Reply
Old Feb 12, 2015 | 10:07 AM
  #24
Firestorm500's Avatar
CF Veteran

Joined: Apr 2009
Posts: 4,734
Likes: 12
Year: 2015, 2012
Model: Grand Cherokee (WK2)
Engine: 3.6L
Default

Looks like pond or ditch water.
Reply
Old Feb 12, 2015 | 01:08 PM
  #25
Steffen84's Avatar
Thread Starter
Junior Member

Joined: Jan 2015
Posts: 61
Likes: 0
From: Germany
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Yellow antifreeze looks like this when it is mixed up. Sounds strange but is true. Believe me:-)

Last edited by Steffen84; Feb 15, 2015 at 04:39 AM.
Reply
Old Feb 15, 2015 | 04:43 AM
  #26
Steffen84's Avatar
Thread Starter
Junior Member

Joined: Jan 2015
Posts: 61
Likes: 0
From: Germany
Year: 1990
Model: Cherokee
Engine: 4.0
Default

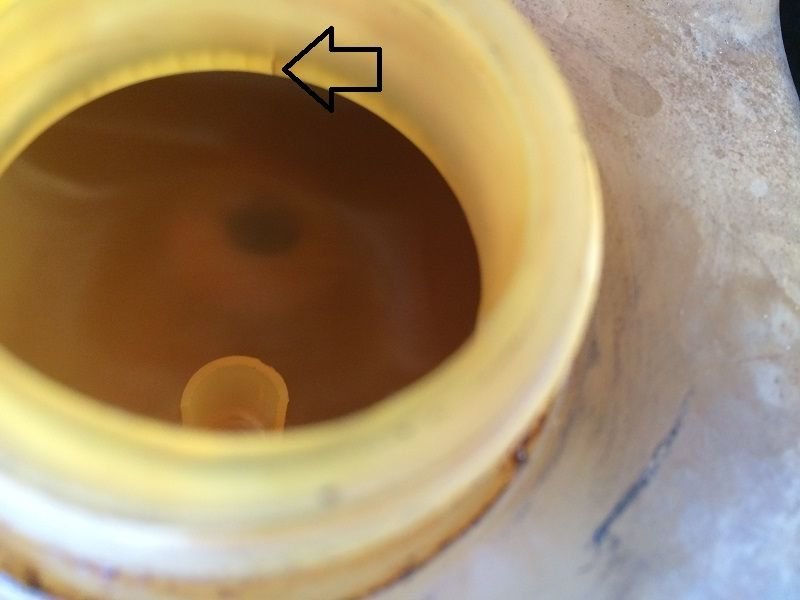

I have found a little crack in my bottle.

when I came home I saw that pressure comes out right under the cap.






Reply
Old Feb 15, 2015 | 09:23 AM
  #27
austinjoe13's Avatar
CF Veteran

Joined: Nov 2011
Posts: 2,433
Likes: 6
From: Northern MN
Year: 1990
Model: Cherokee (XJ)
Engine: Renix 4.0
Default

Originally Posted by Steffen84
I have found a little crack in my bottle. when I came home I saw that pressure comes out right under the cap. Video Link: http://youtu.be/stVfcLxqPsE
Yeah they like to pop. You can get a new one at any parts store.
Reply
Old Feb 19, 2015 | 06:02 PM
  #28
robinz's Avatar
Junior Member

Joined: Sep 2009
Posts: 60
Likes: 1
From: Edmonton, Alberta
Model: Cherokee
Default

Originally Posted by Steffen84
I have found a little crack in my bottle. when I came home I saw that pressure comes out right under the cap. http://youtu.be/stVfcLxqPsE

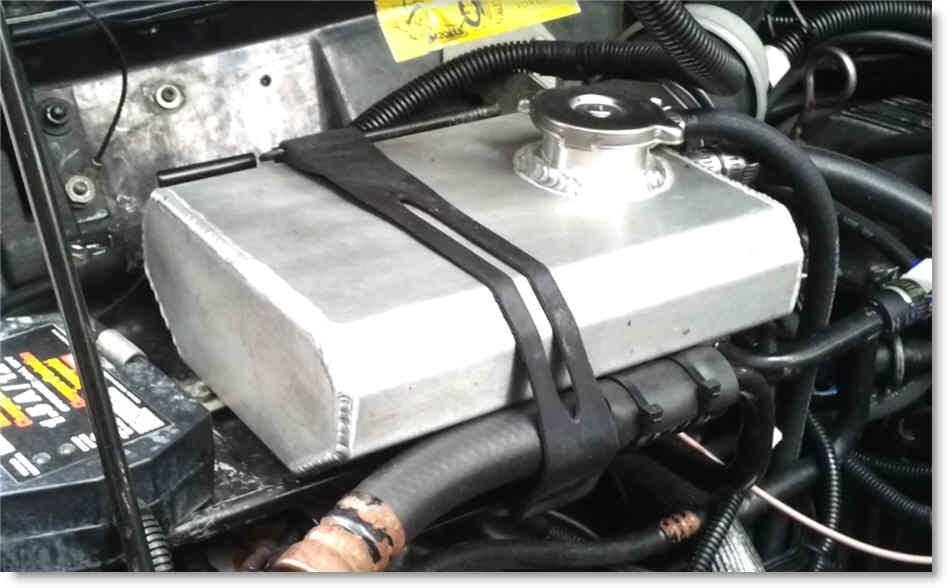

Get one of these from MAC's Radiator in USA. I installed one in my Jeep years ago ... no more pop!

http://macsradiatorshop.com/surge-ov...tanks-366.html

Reply
Old Feb 19, 2015 | 07:19 PM
  #29
djb383's Avatar
CF Veteran

Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

How do u see coolant level? Frequent checks?
Reply
Old Feb 19, 2015 | 07:41 PM
  #30
robinz's Avatar
Junior Member

Joined: Sep 2009
Posts: 60
Likes: 1
From: Edmonton, Alberta
Model: Cherokee
Default

Originally Posted by djb383
How do u see coolant level? Frequent checks?
... Frequent checks. Although, once you have a stable system, the checks become just that. A check that everything is still A-OK.


Reply
