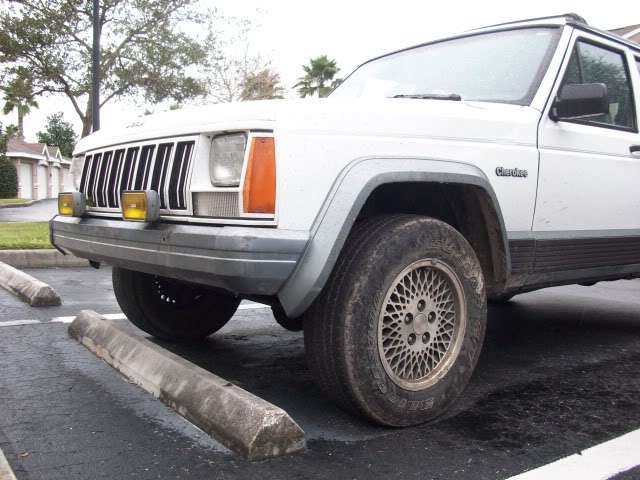

Removing front bumper "edit" Got it off... PICS
When I bought my XJ it has this stulid looking towbar on the front of it from a motor home I guess, It has a 4 pin plug on it so i'm assuming it was towed. Anyway all of the bolts that hold it on are spinning so I guess there in there with bolts. I need to get the bumper off and i'm not sure what bolts to remove. Do I have to remove it with the torxs bolts or can I remove it with the 6 hex bolts that go into the frame? Also will removing the bumper give me acess to the inside if the frame rail?
Last edited by arsxj; 12-27-2009 at 11:47 AM.
#2
Member
Join Date: Dec 2009
Location: san diego
Posts: 205
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 2002 WJ 4.0
you can pull the brackets off the frame to remove the bumper, 3 on each side. one is threaded in to the frame and two have a "nutclip" that they go into. may need spray them with PB to make sure they come out. make sure to unbolt or disconnect the Vacuum bottle on the right side before removing the bumper. as for access to the framerail, there is a hole but not that big. why did you need to get in there?
zedpapa
zedpapa
#3
Member
Thread Starter
Join Date: Dec 2009
Location: Tampa FLA
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Year: 93
Model: Cherokee
Engine: 4.0
I have to get in there because the bolts that are holding the tow bar on go down through the bottom of the frame rail and I have to hold the top of them with a wrench.
