Rear Speaker help Pics Included

Thread Tools

Search this Thread

Old Jan 16, 2011 | 10:15 AM
  #1
Greenwire6's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2010
Posts: 358
Likes: 0
From: Stevensville, Maryland
Year: 1994
Model: Cherokee
Engine: 4.0L
Default Rear Speaker help Pics Included

Okay i have tooken headliner down to replace and i want to install new speakers.
I dont know how to run speaker wire to the lift gate.
I have found 3 wires that run to nowhere just sitting there, is that the speaker wire?
Pics included pm me for more info or post below Thanks

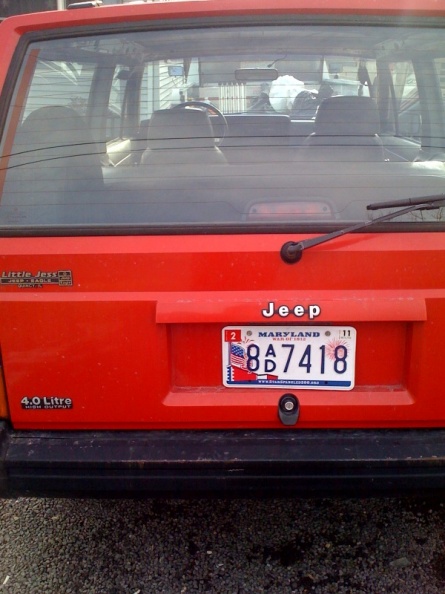

Attached Thumbnails Rear Speaker help Pics Included-photo-3-.jpg   Rear Speaker help Pics Included-jc.jpg   Rear Speaker help Pics Included-photo-5-.jpg   Rear Speaker help Pics Included-photo-7-.jpg
Reply
Old Jan 16, 2011 | 10:25 AM
  #2
Greenwire6's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2010
Posts: 358
Likes: 0
From: Stevensville, Maryland
Year: 1994
Model: Cherokee
Engine: 4.0L
Default Hey

Colors of the wires are Purple/Yellow Yellow and Some sort of pinkish wire.
Reply
Old Jan 16, 2011 | 10:49 AM
  #3
XJ5150's Avatar
Member

Joined: Jan 2011
Posts: 206
Likes: 1
From: Concord, NC
Year: 1995
Model: Grand Cherokee
Engine: 4.0L AWD
Default

We need to know what year your Cherokee is... If it is a '93-'94 then the rear speaker wires should be as follows:

Left Rear (+) Brown with Yellow stripe
Left Rear (-) Brown with light Blue stripe
Right Rear (+) Dark Blue with White stripe
Right Rear (-) Dark Blue with Orange stripe

Hope this helps.
Reply
Old Jan 16, 2011 | 10:53 AM
  #4
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

go here and check your yearhttp://www.the12volt.com/installbay/vehicles.html my 94 had no rear speaks or wire i had to run them over head down the drivers side headliner trim pcs and in to the hatch with the other factory ones its not that hard
Reply
