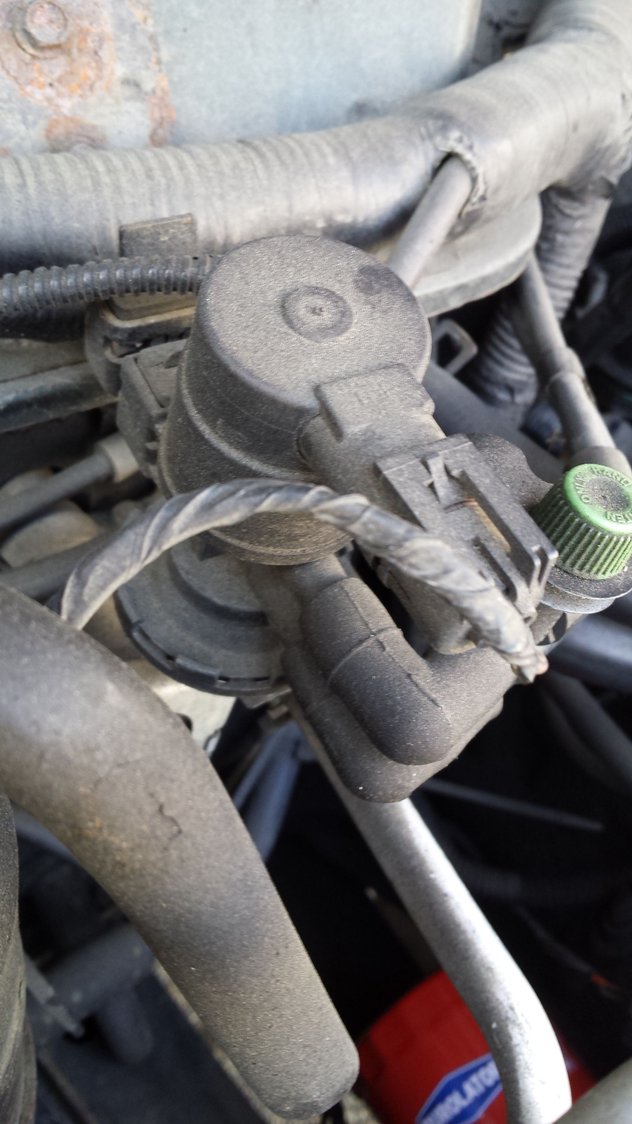

That's the Duty Cycle Purge Solenoid Valve.
At around 150*F coolant temp it's activated (clicking) to purge fuel vapors from the EVAP charcoal canister and route them to the intake manifold to be burned. The intake sucks the vapors up thru the valve.
At around 150*F coolant temp it's activated (clicking) to purge fuel vapors from the EVAP charcoal canister and route them to the intake manifold to be burned. The intake sucks the vapors up thru the valve.
