oil leak... help me pinpoint it
Hi cherokeeforum,
I am seeing a small oil leak from my 01 XJ.
I don't want to rule out the rear main seal, but the engine was just rebuilt 2k miles ago. I see oil under the starter. Does it mean it is the oil filter seal oring?
From a quick search, it seems like the three main places that leak on the 4.0l is rear main, oil filter seal oring, or the valve gasket.
Any ideas? I'll post a pic when I can. Currently on my phone.
I am seeing a small oil leak from my 01 XJ.
I don't want to rule out the rear main seal, but the engine was just rebuilt 2k miles ago. I see oil under the starter. Does it mean it is the oil filter seal oring?
From a quick search, it seems like the three main places that leak on the 4.0l is rear main, oil filter seal oring, or the valve gasket.
Any ideas? I'll post a pic when I can. Currently on my phone.
#2
Senior Member
Join Date: Feb 2011
Location: NJ
Posts: 897
Likes: 0
Received 1 Like
on
1 Post
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Valve cover gasket and oil filter adapter O rings are 2 very common leaking spots. I would venture a guess that it's one of those 2. I would start there.
#3
Senior Member
Join Date: Sep 2014
Location: Saginaw Mi area
Posts: 580
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
If you raise it & put it on jack stands, & crawl under it, you may find the the fresh oil trail....
And use an inspection mirror to look behind the block below the rear of the valve cover for fresh oil....simple stuff first...
And use an inspection mirror to look behind the block below the rear of the valve cover for fresh oil....simple stuff first...
#5
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
Clean it off and watch for the fresh oil. Oil filter, adapter and pressure sender all drip on to the starter. Pull the plug from the oil pressure sender and see if there is oil inside. It should be dry.
#6
Member
Join Date: May 2014
Location: Albuquerque, NM
Posts: 115
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0L
I would clean everything where it could possibly be coming from and then put some baby powder all up in there and then run it and see where it is coming from. When my RMS went out it leaked straight down and not anywhere near the starter.
#7
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
You need to get under there to see if it's the adapter, you might not see it well from above...
OIL FILTER ADAPRER O RINGS http://www.myjeepxj.com/cherokee-rep...filter-adapter And a link with torx.. https://www.cherokeeforum.com/f51/oi...o-ring-127359/
OIL FILTER ADAPRER O RINGS http://www.myjeepxj.com/cherokee-rep...filter-adapter And a link with torx.. https://www.cherokeeforum.com/f51/oi...o-ring-127359/
Last edited by DFlintstone; 02-02-2015 at 01:03 PM.
Trending Topics
#8
Man that would just drive me crazy but I hate oil leaks. I would clean everything where it could possibly be coming from and then put some baby powder all up in there and then run it and see where it is coming from. When my RMS went out it leaked straight down and not anywhere near the starter.
#9
Junior Member
Thread Starter
Join Date: Jan 2015
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#10
#11
Member
Join Date: May 2014
Location: Albuquerque, NM
Posts: 115
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0L
I would start by ruling out the valve cover and the oil filter adapter as they are a lot easier to do than the RMS and also easier to diagnose. If they aren't where most of the leaking is then do your RMS. But since the RMS is a two piece, it will almost always leak some even when it is good. The last time I did my RMS on my old engine, it lasted maybe 4 months before I started to notice a drop every now and again on my driveway. It never got worse than just a drop or two a week but it was always there.
#12
I would start by ruling out the valve cover and the oil filter adapter as they are a lot easier to do than the RMS and also easier to diagnose. If they aren't where most of the leaking is then do your RMS. But since the RMS is a two piece, it will almost always leak some even when it is good. The last time I did my RMS on my old engine, it lasted maybe 4 months before I started to notice a drop every now and again on my driveway. It never got worse than just a drop or two a week but it was always there.
#13
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
You could buy a can of foaming engine degreaser, and hit all sorts of cosmetic areas, inner fenders, firewall, under hood, right in the Mall Wart parking lot. Then when you get to the car wash 10 minutes later, gave her a bath.
Just use common sense, don't bean stuff that looks like it shouldn't be too wet.
Now it's sort of clean. If you even drive two blocks, the oil might be everywhere, and you won't know where it came from. You gotta watch it right away, with good light, to see where it's coming from. If you drive it and let it blow around, you end up right back to where you are now.

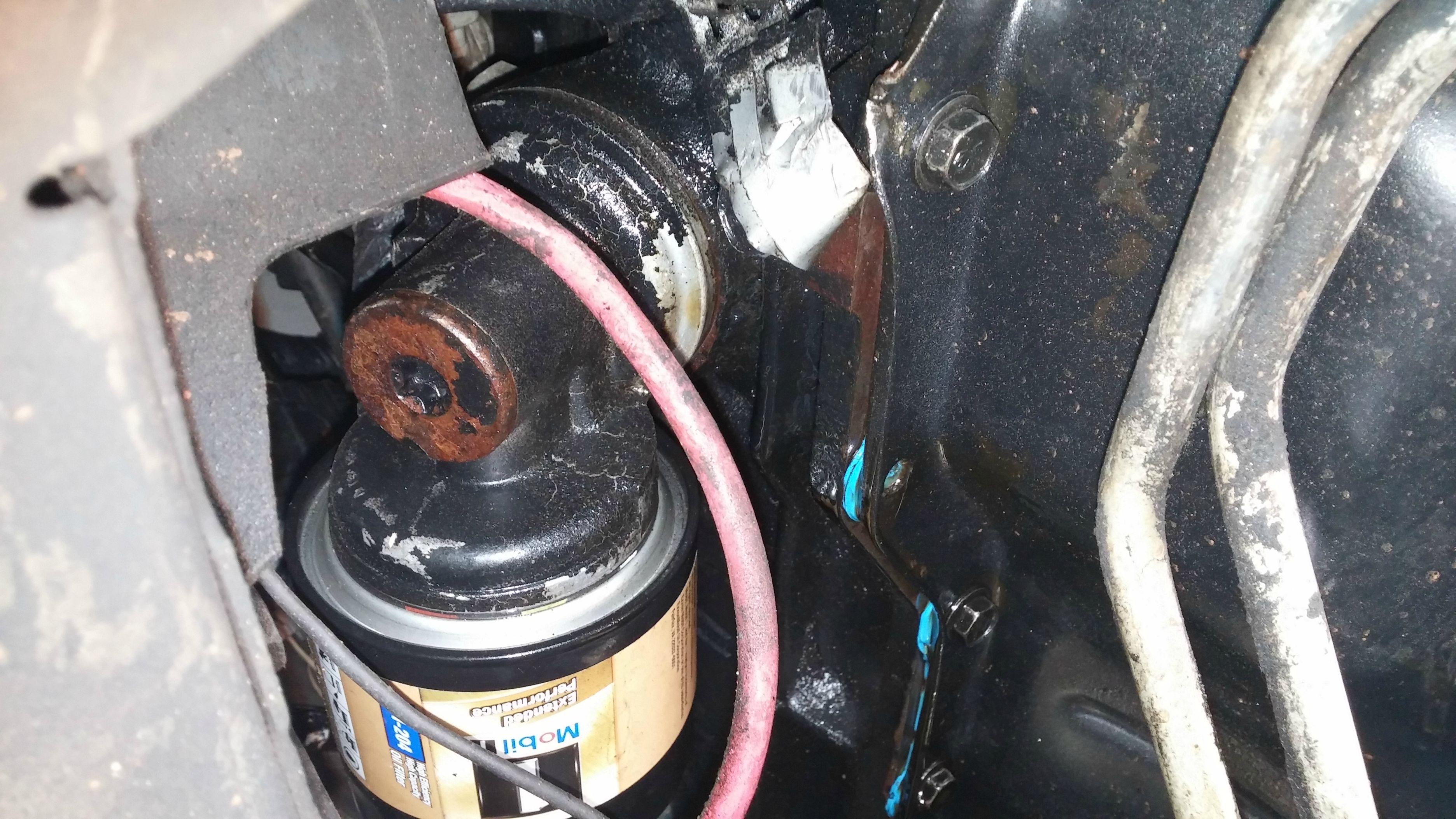

We do see oil on, and around the adapter, a very common culprit.
#14
Junior Member
Thread Starter
Join Date: Jan 2015
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
i really cant tell. i feel like if it was the valve cover i could see it really easily.

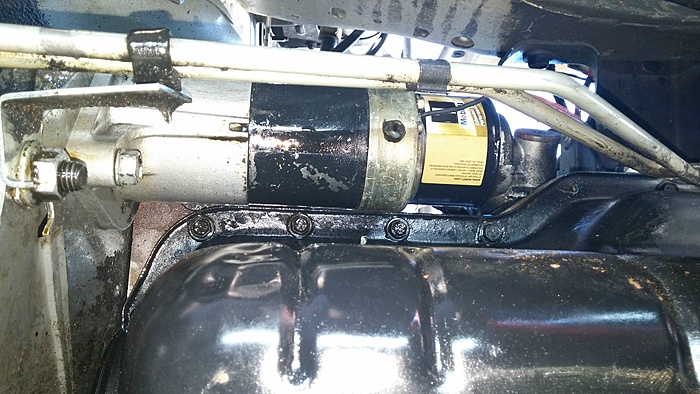

I went wheeling today and when I parked it i checked under to see where the oil was, and the side of my oil pan is also wet with oil.
So I'm currently still hoping its not the rear main, and its the oil filter adapter? is there any way to be sure? really hard to trace
I went wheeling today and when I parked it i checked under to see where the oil was, and the side of my oil pan is also wet with oil.
So I'm currently still hoping its not the rear main, and its the oil filter adapter? is there any way to be sure? really hard to trace
