Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Oil drain plug

Thread Tools

Search this Thread

Old Mar 20, 2013 | 08:53 AM
  #16
CCKen's Avatar
CF Veteran

Joined: Aug 2010
Posts: 8,357
Likes: 103
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by redxj96
Well it's not the plug it looks like either a rear main seal leak or oil pan gasket. I'm leaning towards the RMS can I put some bars leak or CRC Enginseal for the leak? It's a DD but total mileage is only 50 miles a day. It's a standard so id need to add the stop leak to the transmission if I'm not mistaken.
What oil are you using? Synthetic oils will cause oil leaks in high mileage engines. I had this problem before I changed my RMS.

Try using Valvoline high mileage oil and see if the leak slows down.

Don't add anything to the engine oil or transmission ATF to stop leaks.
Reply
Old Mar 20, 2013 | 08:57 AM
  #17
Muaddib420's Avatar
Seasoned Member

Joined: Jun 2012
Posts: 485
Likes: 3
Model: Cherokee
Default

I have a rear mail seal leak also. I just live with it. Wife doesn't like the silver dollar spot in the garage but oh well. Your options are to live with it and watch your oil levels frequently, fix it yourself, or pay a shop to do it for $500-800.
Reply
Old Mar 20, 2013 | 09:23 AM
  #18
redxj96's Avatar
Thread Starter
Junior Member

Joined: Aug 2012
Posts: 37
Likes: 0
Default

Ok well I thought it was engine oil at the time because it appeared to be leaking at the drain plug. Now it seems it's higher up now that I had time to look at it. I guess I'll just check my fluid levels
Reply
Old Mar 20, 2013 | 10:28 AM
  #19
rand4x4's Avatar
Member

Joined: Feb 2011
Posts: 201
Likes: 0
From: Corpus Christi
Year: 1995
Model: Cherokee
Default

Ok check if you have oil by your starter, If so it is your oil sencer or filter assy.
Look around valve cover is it wet of dry. It could be any of theses. Or your oil pan.
Reply
Old Mar 20, 2013 | 11:14 AM
  #20
mlepesant's Avatar
Member

Joined: Jul 2009
Posts: 188
Likes: 0
From: Los Angeles CA
Year: 1998
Model: Cherokee
Engine: 4.0L 6 Cyl
Default

Check your distributor gasket as well.
Reply
Old Mar 20, 2013 | 12:10 PM
  #21
bigbadon's Avatar
Senior Member

Joined: Jan 2012
Posts: 952
Likes: 4
Year: 2004
Model: Grand Cherokee
Engine: 2000 4.0
Default

I have had that problem with other vehicles and I fixed by making a gasket washer out of cardboard (shoe box,oil filter box,etc.)
Reply
Old Mar 20, 2013 | 01:51 PM
  #22
ZINGGG's Avatar
CF Veteran

Joined: Oct 2011
Posts: 4,440
Likes: 3
From: Seal Beach, CA
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

Whatever you do, do NOT use a stop leak product. Not good stuff right there.

Next, find out where you're leaking from and fix it. Sounds like it's either your valve cover or oil filter adapter. Very common leaks and there are a ton of write ups on both the procedures to fix them.
Reply
Old Apr 3, 2013 | 02:19 PM
  #23
redxj96's Avatar
Thread Starter
Junior Member

Joined: Aug 2012
Posts: 37
Likes: 0
Default

Well here is an update I didn't replace any gasket or change to a thicker oil or add a leak sealer and I check the oil level and it's full all the way up same spot as the day I changed the oil.

So I think it's the transmission right? Well wrong again. I checked the tranny and it has fluid barely easing out the fill hole. I'm stumped I haven't seen the drip in two days so I'm out of theories.

All my other fluid levels are the same as well.

Could it have been that I ran so long between oil changes that the oil could have just gotten so thin and leaked through the oil pan gasket maybe?
Reply
Old Apr 3, 2013 | 02:25 PM
  #24
NewJerseyXJ609's Avatar
CF Veteran

Joined: Jul 2009
Posts: 2,522
Likes: 0
From: New Jersey
Year: 2000
Model: Cherokee
Engine: l6 HO
Default

Originally Posted by redxj96
Well here is an update I didn't replace any gasket or change to a thicker oil or add a leak sealer and I check the oil level and it's full all the way up same spot as the day I changed the oil.

So I think it's the transmission right? Well wrong again. I checked the tranny and it has fluid barely easing out the fill hole. I'm stumped I haven't seen the drip in two days so I'm out of theories.

All my other fluid levels are the same as well.

Could it have been that I ran so long between oil changes that the oil could have just gotten so thin and leaked through the oil pan gasket maybe?
Did you check your oil filter adapter housing? They leak all the time.

I'm confused though. Is this engine oil or trans fluid that's leaking??

And to answer your question. No. It wouldn't start to leak just bc you hadn't changed it in a while.
Reply
Old Apr 3, 2013 | 02:36 PM
  #25
redxj96's Avatar
Thread Starter
Junior Member

Joined: Aug 2012
Posts: 37
Likes: 0
Default

I can't tell the fluid the amount of dirt that was caked around the pan made it difficult to determine if it was gear oil or motor oil.

I checked my oil filter and that's all dry. I'm stumped and thankful I have fluid in everything though.
Reply
Old Apr 3, 2013 | 02:41 PM
  #26
redxj96's Avatar
Thread Starter
Junior Member

Joined: Aug 2012
Posts: 37
Likes: 0
Default

I'm shifting good and my motor isn't making any noises. The oil pressure gauge is reading just a tad higher than 40psi. It's a mystery.

I'm going to get some degreaser and spray it and then power wash it off to maybe see of I can see where it was coming from. But like stated earlier I haven't seen the leak in two days.
Reply
Old Apr 3, 2013 | 03:47 PM
  #27
NewJerseyXJ609's Avatar
CF Veteran

Joined: Jul 2009
Posts: 2,522
Likes: 0
From: New Jersey
Year: 2000
Model: Cherokee
Engine: l6 HO
Default

Check the adapter that connects to the block, not the filter itself.

Engine oil is brownish/black and trans fluid is red(unless it's burnt) and gear oil smells horrible so you'd know. Plus the only gear oil in the jeep should be in the rears. The t-case takes ATF also.
Reply
Old Apr 3, 2013 | 06:53 PM
  #28
ZINGGG's Avatar
CF Veteran

Joined: Oct 2011
Posts: 4,440
Likes: 3
From: Seal Beach, CA
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

Next time fluid leaks and drips, touch it with your finger. What color is it? I guarantee it's motor oil. You're not going to see a noticable difference in the oil level on the dipstick after driving around for a couple days if you have a very slow and steady oil leak.

And what fill hole are you talking about on your transmission? You fill the transmission through the dipstick...

Degreasing the engine is a great start though...
Reply
Old Apr 3, 2013 | 07:24 PM
  #29
redxj96's Avatar
Thread Starter
Junior Member

Joined: Aug 2012
Posts: 37
Likes: 0
Default

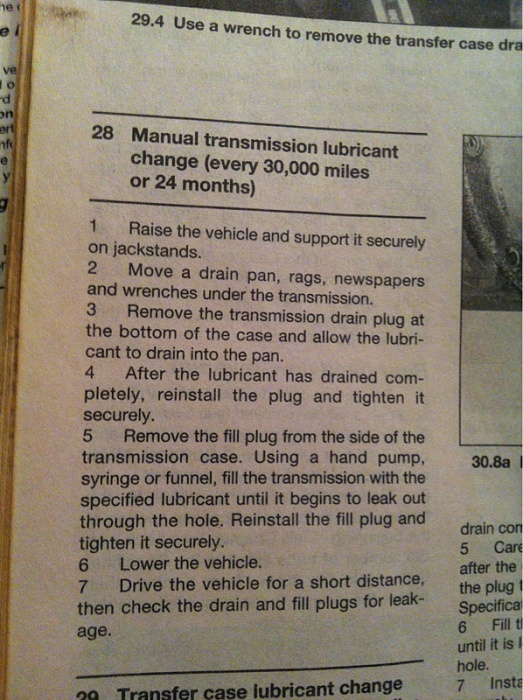

I don't have a dipstick on my tranny. I read in the Haynes manual you fill it through the fill plug on the driver side of the tranny because its a standard. It was clearish so I first assumed motor oil. But I changed my oil on the 20th of March. The oil level on my dipstick is the same level as it is every time.
Reply
Old Apr 3, 2013 | 07:33 PM
  #30
redxj96's Avatar
Thread Starter
Junior Member

Joined: Aug 2012
Posts: 37
Likes: 0
Default

Yea just double checked and I fill my transmission fluid on the driver side of the case through the fill hole.
Attached Thumbnails Oil drain plug-image-1761779671.jpg
