OEM Key Fob Circuit Board
I was wondering if someone would be able to post a picture of the circuit board inside of their RKE key fob. I dropped mine the other day and it stopped working. I looked at it and it is missing a surface mount component next to the power pad on the one side. I can tell it broke off because the pads where the component used to be still have solder on them and you can tell something broke off of it. I'm trying to see what component went there so I can replace it. I can get parts where I work, (Electrical Engineer). I can't seem to find a schematic for it either along with a picture of the correct side. It has to either be a resistor or a capacitor that's missing. More likely a capacitor since it is close to the power input. I know some of you were or are currently Jeep techs so maybe someone has this bit of info laying around somewhere. Thanks!
#2
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)

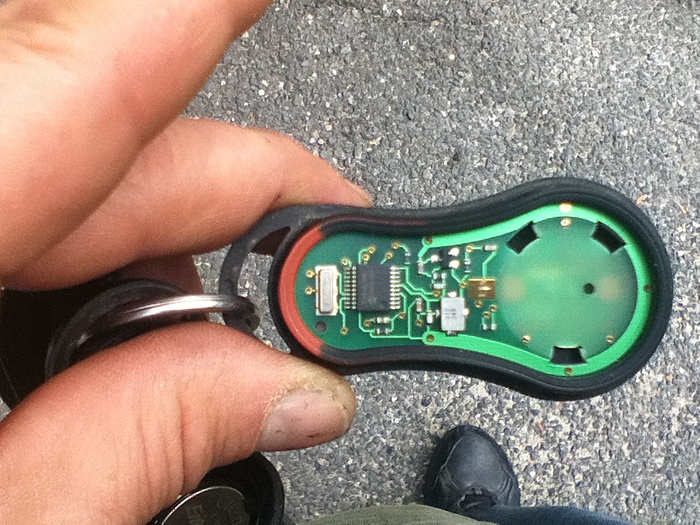

Best I can do picture wise. From an '00 XJ. Has numbers on it.
315
349 With a line between the 2 like a fraction. Numbers are read right when you have the hook that attaches to your key ring at the top.
315
349 With a line between the 2 like a fraction. Numbers are read right when you have the hook that attaches to your key ring at the top.
#3
Senior Member
Thread Starter
Join Date: Sep 2014
Location: Austintown, OH
Posts: 625
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Is there any way you can see if there are numbers on the part that I circled on your picture? That's the part that is missing. I think the numbers you see are on the white chip that is below it? The very small black part is a resistor. That's what I need. The number on the part gives the resistance value.
#4
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
I am sorry. I was all confused and looking at the wrong thing. Forget the fraction number. Eyesight leaves a lot to be desired but looks like 472. Again sorry.
#5
Senior Member
Thread Starter
Join Date: Sep 2014
Location: Austintown, OH
Posts: 625
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
That one looks a little different than mine as well. There are a couple of different parts beside the micro that mine doesn't have. Mine is a 2000 as well but the RKE is one from a 99. I thought that the 97-01 RKEs would be the same since they interchange. It's always worked until I dropped it and it came apart and that part broke off.
#6
Senior Member
Thread Starter
Join Date: Sep 2014
Location: Austintown, OH
Posts: 625
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
A buddy has a WJ and I looked at his and it was a 470 ohm (471 marking) and when I tried it it didn't work still. I will try a 4.7K ohm and try it again. Thanks!
#7
Senior Member
Join Date: Jan 2017
Location: usa
Posts: 799
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2000
Model: Cherokee
Engine: 6 cylinder
The 3-digit code for a 471 SM resistor should be 470 Ohms.
For industry standard 3 digit codes:
The third digit is a times 10 multiplier.
For example if it was:
472, that would be 47 X 10 X 10 = 4700 Ohms = 4.7K Ohms
473, that would be 47 X 10 X 10 X 10 = 47000 Ohms = 47K Ohms
There are also a couple different codes depending on the resistor mfg'er.
And some resistor mfg'ers use their own custom codes.
If in doubt, best to measure the resistor out of the circuit with an accurate digital Ohmmeter.
For industry standard 3 digit codes:
The third digit is a times 10 multiplier.
For example if it was:
472, that would be 47 X 10 X 10 = 4700 Ohms = 4.7K Ohms
473, that would be 47 X 10 X 10 X 10 = 47000 Ohms = 47K Ohms
There are also a couple different codes depending on the resistor mfg'er.
And some resistor mfg'ers use their own custom codes.
If in doubt, best to measure the resistor out of the circuit with an accurate digital Ohmmeter.
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Sep 2014
Location: Austintown, OH
Posts: 625
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
The 3-digit code for a 471 SM resistor should be 470 Ohms.
For industry standard 3 digit codes:
The third digit is a times 10 multiplier.
For example if it was:
472, that would be 47 X 10 X 10 = 4700 Ohms = 4.7K Ohms
473, that would be 47 X 10 X 10 X 10 = 47000 Ohms = 47K Ohms
There are also a couple different codes depending on the resistor mfg'er.
And some resistor mfg'ers use their own custom codes.
If in doubt, best to measure the resistor out of the circuit with an accurate digital Ohmmeter.
For industry standard 3 digit codes:
The third digit is a times 10 multiplier.
For example if it was:
472, that would be 47 X 10 X 10 = 4700 Ohms = 4.7K Ohms
473, that would be 47 X 10 X 10 X 10 = 47000 Ohms = 47K Ohms
There are also a couple different codes depending on the resistor mfg'er.
And some resistor mfg'ers use their own custom codes.
If in doubt, best to measure the resistor out of the circuit with an accurate digital Ohmmeter.
I deal with surface mount components everyday, (electrical engineer). If I could find a schematic somewhere of the fob circuit board itself it would make troubleshooting it a lot easier.
#9
Senior Member
Join Date: Jan 2017
Location: usa
Posts: 799
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2000
Model: Cherokee
Engine: 6 cylinder

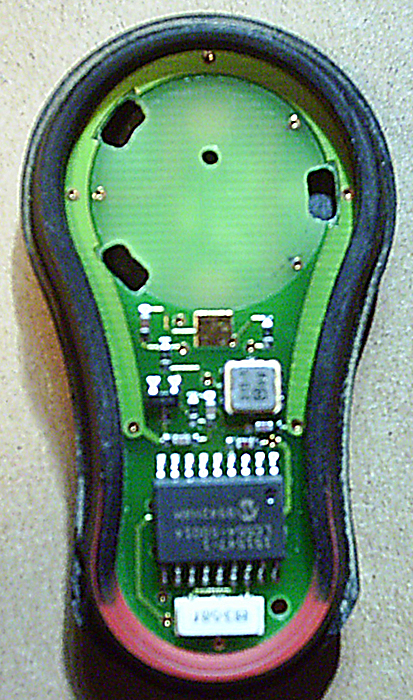

The one that was on my friends WJ remote was a 470 ohm. The one on the 2000 XJ remote is a 4.7k ohm according to them. I've tried both and neither work still so I'm still seeing if there was anything different between the 1999 and 2000 fobs since the one I'm using is a 1999.
