New XJ..steering issue, cuz ima newb!
#1
Junior Member
Thread Starter
Join Date: Sep 2009
Posts: 66
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
New XJ..steering issue, cuz ima newb!
Well first off heres the front end.
It's a 95 xj with 5inches of lift and it's got upgraded tie rod from the ZJ. When i was driving around I noticed that when I drive straight, the steering wheel has lots of play towards the right side, however when turned to the left, there is no play and the steering is fine. Could this be an alignment issue or something greater?
It's a 95 xj with 5inches of lift and it's got upgraded tie rod from the ZJ. When i was driving around I noticed that when I drive straight, the steering wheel has lots of play towards the right side, however when turned to the left, there is no play and the steering is fine. Could this be an alignment issue or something greater?
#2
First off the ZJ tie rod is backwards. The adjuster should be at the knuckle and not at the drag link. The play could be alignment or just due to not having the sway bar connected.
#3
Junior Member
Thread Starter
Join Date: Sep 2009
Posts: 66
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Thanks for the reply! So this could be the issue of my loose steering towards the right. The adjuster must be loose? I should put the tie rod on correctly and then adjust accordingly correct?
#4

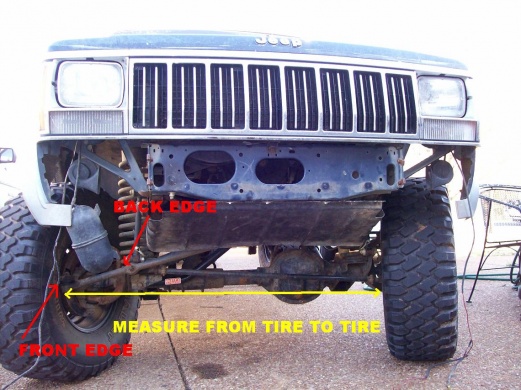

At least put the tie rod on correctly and have the alignment checked. You can do a quick driveway alignment by measuring the distance between the inside edges of the rims on the front tires. Measure the front edge of the rim then the back edge and adjust the tie rod accordingly until they are as close as possible then have a shop do a full alignment.
#7
CF Veteran
First you need to adjust your steering box to tighten your steering up. Then go from there
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Sep 2009
Posts: 66
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
New problem, the guy that sold me the xj didnt tell me about this!
Where can i get new mounting brackets from? anything stronger or better then stock?
Where can i get new mounting brackets from? anything stronger or better then stock?
Last edited by polo609; 01-18-2010 at 01:12 PM.
#9
CF Veteran
Just weld it back on. You can buy stronger mounts, but you have to weld them also. You can run just one top link. Some lift kits do that. Mine is currently only one top link.
#10
Junior Member
Thread Starter
Join Date: Sep 2009
Posts: 66
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
By one top link you mean just one upper arm connected? I feel the need to get some RC flex arms because its sitting at 6" in the front and the short arms have a really steep angle on them. Might as well get upper and lower RC countrol arms, but where can I get those mounts you speak of? Thanks man
#11
Do you hear banjos?
You can run 1 top link on the street only, as 4.3 suggests, but I would get that fixed ASAP. His set up utilizes HD parts and brackets, so his will be plenty strong. The stock pieces are not near strong enough to run in a single UCA application, IMHO.
#12
Junior Member
Thread Starter
Join Date: Sep 2009
Posts: 66
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Ok so here's the plan, Im going to buy the RC control arm drop and their flex control arms.
http://www.roughcountry.com/jeep_xj_..._arm_drop.html
http://www.roughcountry.com/jeep_xtr...trol-arms.html
I still am wondering where I can get the upper control arm brackets, either aftermarket or stock. I found these but not sure if it will do the trick.
http://www.extremegearoffroad.com/st...cat=546&page=1
http://www.roughcountry.com/jeep_xj_..._arm_drop.html
http://www.roughcountry.com/jeep_xtr...trol-arms.html
I still am wondering where I can get the upper control arm brackets, either aftermarket or stock. I found these but not sure if it will do the trick.
http://www.extremegearoffroad.com/st...cat=546&page=1
#14
CF Veteran
By one top link you mean just one upper arm connected? I feel the need to get some RC flex arms because its sitting at 6" in the front and the short arms have a really steep angle on them. Might as well get upper and lower RC countrol arms, but where can I get those mounts you speak of? Thanks man
