Need Help: What are these wires for?

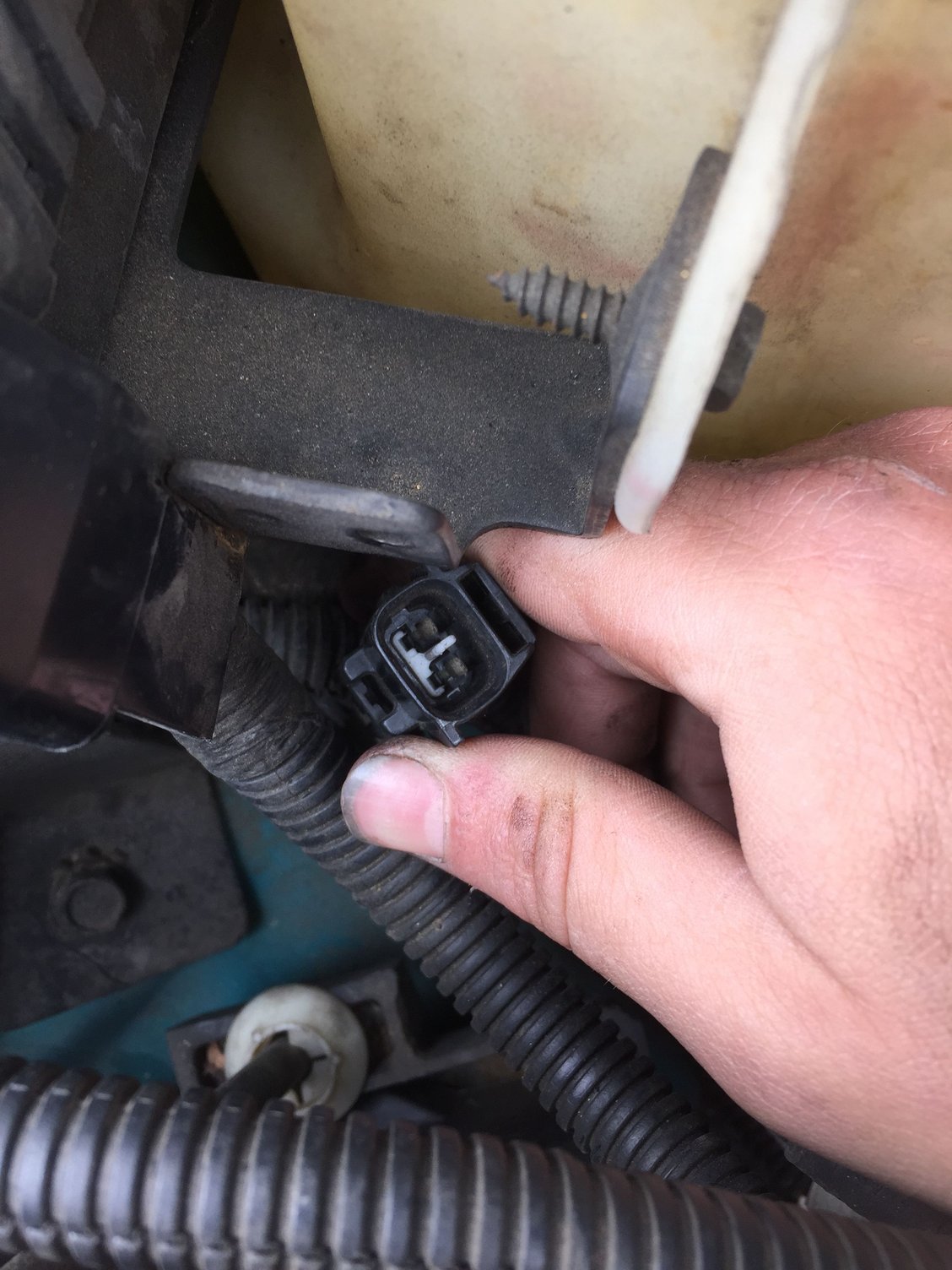

Working on the '96 (4.0, manual trans) today I spotted a wiring harness not plugged into anything. First picture below. I looked around for what it should be connected to, and saw a female connection below the coolant reservoir, however they were not compatible. Second picture below. I'm unsure of the proper path of the first connector, its wire has decent length and a plastic mounting bracket attached in the middle of its length. More importantly, does anyone have knowledge of what these connections are for? The Jeep does run (albeit not well right now due to faulty CPS), so I guess they aren't critical. Couldn't find any helpful information in my service manual: pretty hard to look something up when you don't even have a clue what system its used in.
Any help would be greatly appreciated.
Highlighted the assumed path of the unknown wire in red. It's rooted next to the purge solenoid.
Any help would be greatly appreciated.
Highlighted the assumed path of the unknown wire in red. It's rooted next to the purge solenoid.
#5
Junior Member
Thread Starter
Join Date: Aug 2016
Location: Santa Clara, CA
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
So I figured out the first harness goes to the light bulb that attaches to the underside of the hood - mine's nonexistant. Haven't had a chance to look around if the other is a connector for the A/C.
#7
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
First picture is the data link connection for a scan tool. Second picture is the under hood light connector. Third picture is the seatbelt light connection.
