Need help identifying various lines under the hood
#1
Junior Member
Thread Starter
Join Date: Aug 2016
Location: Washington
Posts: 44
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0L AMC-242 I6
Need help identifying various lines under the hood

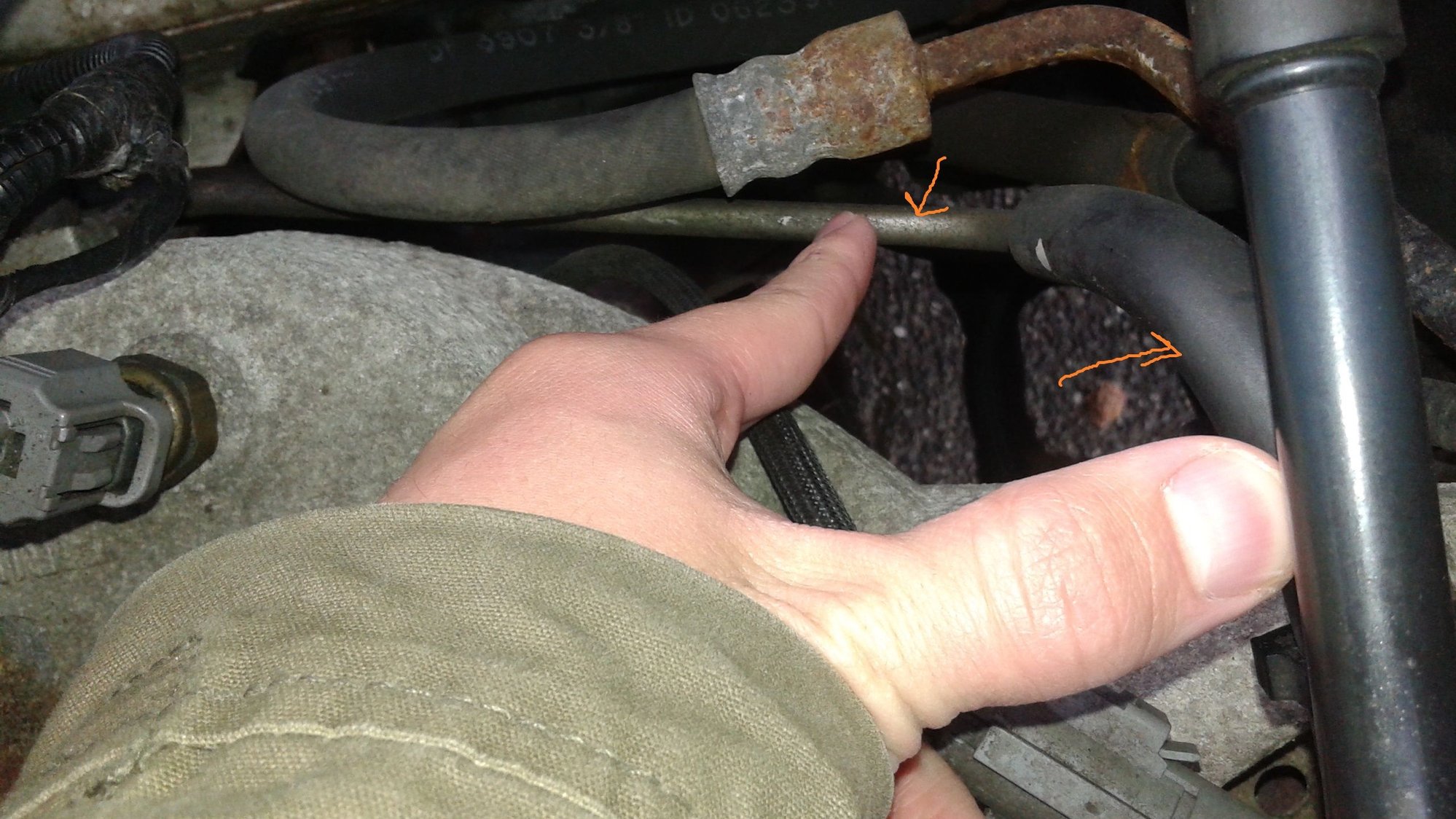

So I have some lines that I need replaced sooner than later. My problem is that I'm not sure what they're called, their part number, or how much new ones would be. Many pics below. Hoping some might be able to help with this.
I know these are heater hoses, I just am not sure on the length.
Oil seems fine. Last change was around 300-400 miles ago.
I know these are heater hoses, I just am not sure on the length.
Oil seems fine. Last change was around 300-400 miles ago.
#2
Hopefully I can help.
1. power steering high pressure line
2. looks liek the power steering return line (comes off the back of the reservoir). Be very careful removeing this. If you put any kind of pressure on it, it will crack the PS pump reservoir. Iy you repalce it, use knife to cut the rubber hose.
3. heater hoses: http://www.rockauto.com/en/catalog/j.../+pipe,6892?a=
4. electrical lines for injector/sensors( don't need to replace unless the wiring is damaged. yours looks good to me)
5. brake lines (front, rear). These look fine to me. Just a little surface rust.
6. power steering lines (if you repalce both lines, you can get them off of the PS box witha crows foot wrench)
6. hard line from water pump to heater core hoses (when you replace the water pump, take the hard line off, sand it down and paint it. Put plumbers tape on the threads and you should be good to go)
7. transmission fluid line(runs from radiator to transmission)
Overall, all those pieces all look in pretty decent shape. This looks like a 2000 or 20001 since I see coil packs.
Rockauto is a good source of looking at parts.
Can also look around 4wd.com or quadratec for good parts diagrams.
Fill out your profile with year and that will allow more people to help you.
1. power steering high pressure line
2. looks liek the power steering return line (comes off the back of the reservoir). Be very careful removeing this. If you put any kind of pressure on it, it will crack the PS pump reservoir. Iy you repalce it, use knife to cut the rubber hose.
3. heater hoses: http://www.rockauto.com/en/catalog/j.../+pipe,6892?a=
4. electrical lines for injector/sensors( don't need to replace unless the wiring is damaged. yours looks good to me)
5. brake lines (front, rear). These look fine to me. Just a little surface rust.
6. power steering lines (if you repalce both lines, you can get them off of the PS box witha crows foot wrench)
6. hard line from water pump to heater core hoses (when you replace the water pump, take the hard line off, sand it down and paint it. Put plumbers tape on the threads and you should be good to go)
7. transmission fluid line(runs from radiator to transmission)
Overall, all those pieces all look in pretty decent shape. This looks like a 2000 or 20001 since I see coil packs.
Rockauto is a good source of looking at parts.
Can also look around 4wd.com or quadratec for good parts diagrams.
Fill out your profile with year and that will allow more people to help you.
#3
Junior Member
Thread Starter
Join Date: Aug 2016
Location: Washington
Posts: 44
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0L AMC-242 I6
Hopefully I can help.
1. power steering high pressure line
2. looks liek the power steering return line (comes off the back of the reservoir). Be very careful removeing this. If you put any kind of pressure on it, it will crack the PS pump reservoir. Iy you repalce it, use knife to cut the rubber hose.
3. heater hoses: http://www.rockauto.com/en/catalog/j.../+pipe,6892?a=
4. electrical lines for injector/sensors( don't need to replace unless the wiring is damaged. yours looks good to me)
5. brake lines (front, rear). These look fine to me. Just a little surface rust.
6. power steering lines (if you repalce both lines, you can get them off of the PS box witha crows foot wrench)
6. hard line from water pump to heater core hoses (when you replace the water pump, take the hard line off, sand it down and paint it. Put plumbers tape on the threads and you should be good to go)
7. transmission fluid line(runs from radiator to transmission)
Overall, all those pieces all look in pretty decent shape. This looks like a 2000 or 20001 since I see coil packs.
Rockauto is a good source of looking at parts.
Can also look around 4wd.com or quadratec for good parts diagrams.
Fill out your profile with year and that will allow more people to help you.
1. power steering high pressure line
2. looks liek the power steering return line (comes off the back of the reservoir). Be very careful removeing this. If you put any kind of pressure on it, it will crack the PS pump reservoir. Iy you repalce it, use knife to cut the rubber hose.
3. heater hoses: http://www.rockauto.com/en/catalog/j.../+pipe,6892?a=
4. electrical lines for injector/sensors( don't need to replace unless the wiring is damaged. yours looks good to me)
5. brake lines (front, rear). These look fine to me. Just a little surface rust.
6. power steering lines (if you repalce both lines, you can get them off of the PS box witha crows foot wrench)
6. hard line from water pump to heater core hoses (when you replace the water pump, take the hard line off, sand it down and paint it. Put plumbers tape on the threads and you should be good to go)
7. transmission fluid line(runs from radiator to transmission)
Overall, all those pieces all look in pretty decent shape. This looks like a 2000 or 20001 since I see coil packs.
Rockauto is a good source of looking at parts.
Can also look around 4wd.com or quadratec for good parts diagrams.
Fill out your profile with year and that will allow more people to help you.
Indeed, it is a 2000 Cherokee.
This is super helpful. Thank you!
