Manual trans 4wd swap issues
I hope I am posting this in the right section since the parts I am using are oem.
So, as some of you know, I went from 2wd to 4wd. I have a manual trans and 231 t-case. I am using all factory parts. This is now the 2nd time I have had the same issue after doing the same thing to 2 XJs. The issue, part of the t-case hits the trans tunnel. I had to cut part of the t-case off to make it fit. Thats how bad it hits. I am using the stock 2wd trans cross member and mount. To me, it seems like the trans sits too high and too far to the drivers side. I do not have any trans drop installed either.

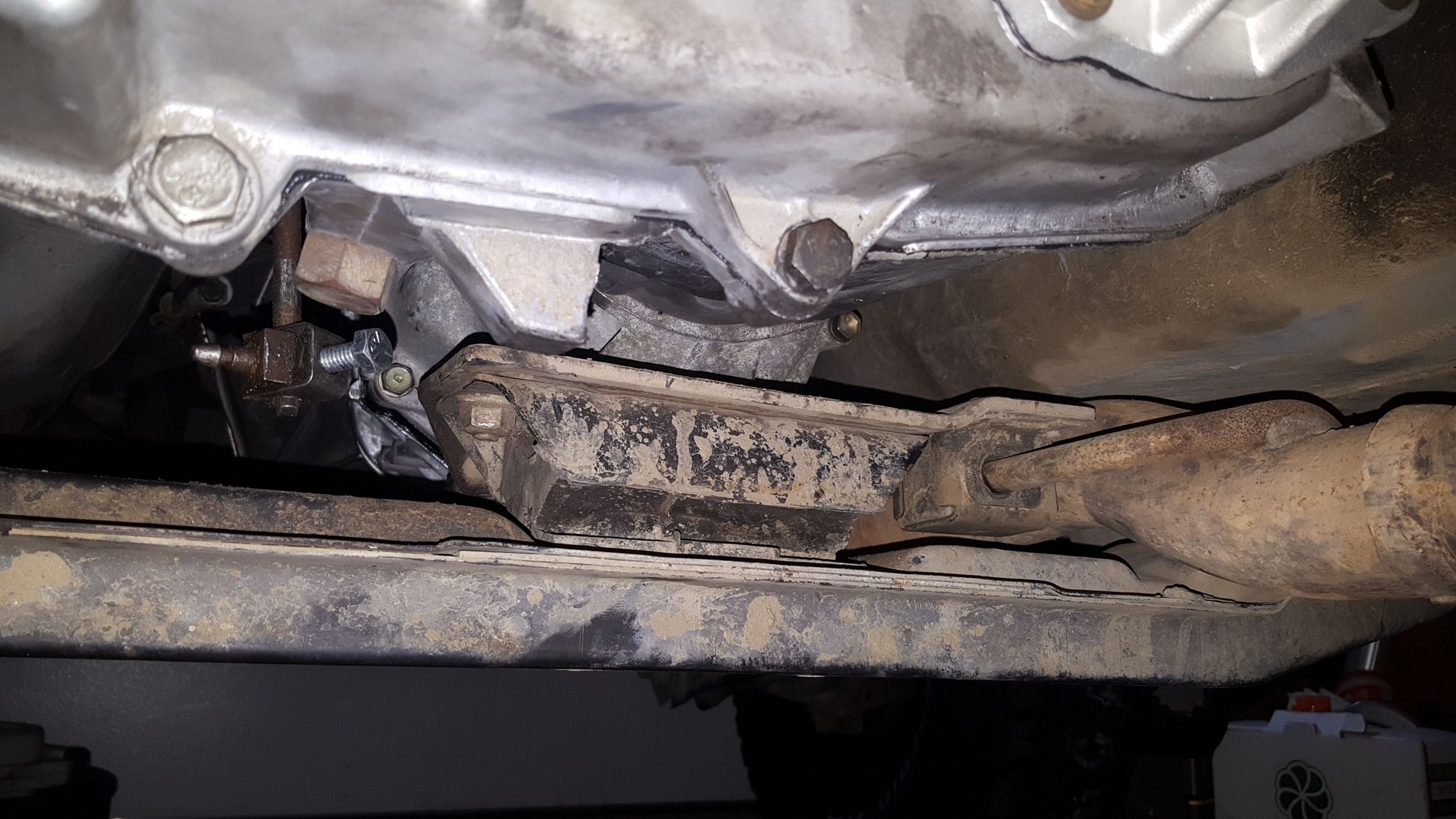

I have searched and dont see different part numbers for trans mounts. Can anyone with a manual trans 4wd take a look at theirs and see if it looks the same? From the bolts that hold on the cross member on the drives side to the center of the rear output shaft, I am at 18.5". From the top of the cross member to the top of the trans mount I get 2-5/8".
Anyone have any ideas?
So, as some of you know, I went from 2wd to 4wd. I have a manual trans and 231 t-case. I am using all factory parts. This is now the 2nd time I have had the same issue after doing the same thing to 2 XJs. The issue, part of the t-case hits the trans tunnel. I had to cut part of the t-case off to make it fit. Thats how bad it hits. I am using the stock 2wd trans cross member and mount. To me, it seems like the trans sits too high and too far to the drivers side. I do not have any trans drop installed either.
I have searched and dont see different part numbers for trans mounts. Can anyone with a manual trans 4wd take a look at theirs and see if it looks the same? From the bolts that hold on the cross member on the drives side to the center of the rear output shaft, I am at 18.5". From the top of the cross member to the top of the trans mount I get 2-5/8".
Anyone have any ideas?
#2
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Its not a xj tranny. Clocking is different. As for mount the motor mounts being bad can cause motor to be sitting at angle. http://www.ironrockoffroad.com/10644.html
#3
CF Veteran
Thread Starter
I did get my trans with no tail housing, then handed over one later, so that could be possible. But, what tail housing do I have? Do the Wranglers clock the case different? And I have seen the re-clocking kit. Looking at some of my pictures, that might just work going the opposite way. Looks like there is plenty of meat below the current bolt holes, but not much above them.
Thanks!
Thanks!
#4
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Manuals and automatics use different mounts and crossmembers, but it's the same for 2WD and 4WD.
Looks to me like you've got some parts from a TJ. TJ cases wind up being more clocked more horizontally than XJs. I've never seen a TJ one in person but I remember reading about this. Check out a Google Image Search for both and be the judge.
Looks to me like you've got some parts from a TJ. TJ cases wind up being more clocked more horizontally than XJs. I've never seen a TJ one in person but I remember reading about this. Check out a Google Image Search for both and be the judge.
#5
CF Veteran
Thread Starter
Manuals and automatics use different mounts and crossmembers, but it's the same for 2WD and 4WD.
Looks to me like you've got some parts from a TJ. TJ cases wind up being more clocked more horizontally than XJs. I've never seen a TJ one in person but I remember reading about this. Check out a Google Image Search for both and be the judge.
Looks to me like you've got some parts from a TJ. TJ cases wind up being more clocked more horizontally than XJs. I've never seen a TJ one in person but I remember reading about this. Check out a Google Image Search for both and be the judge.

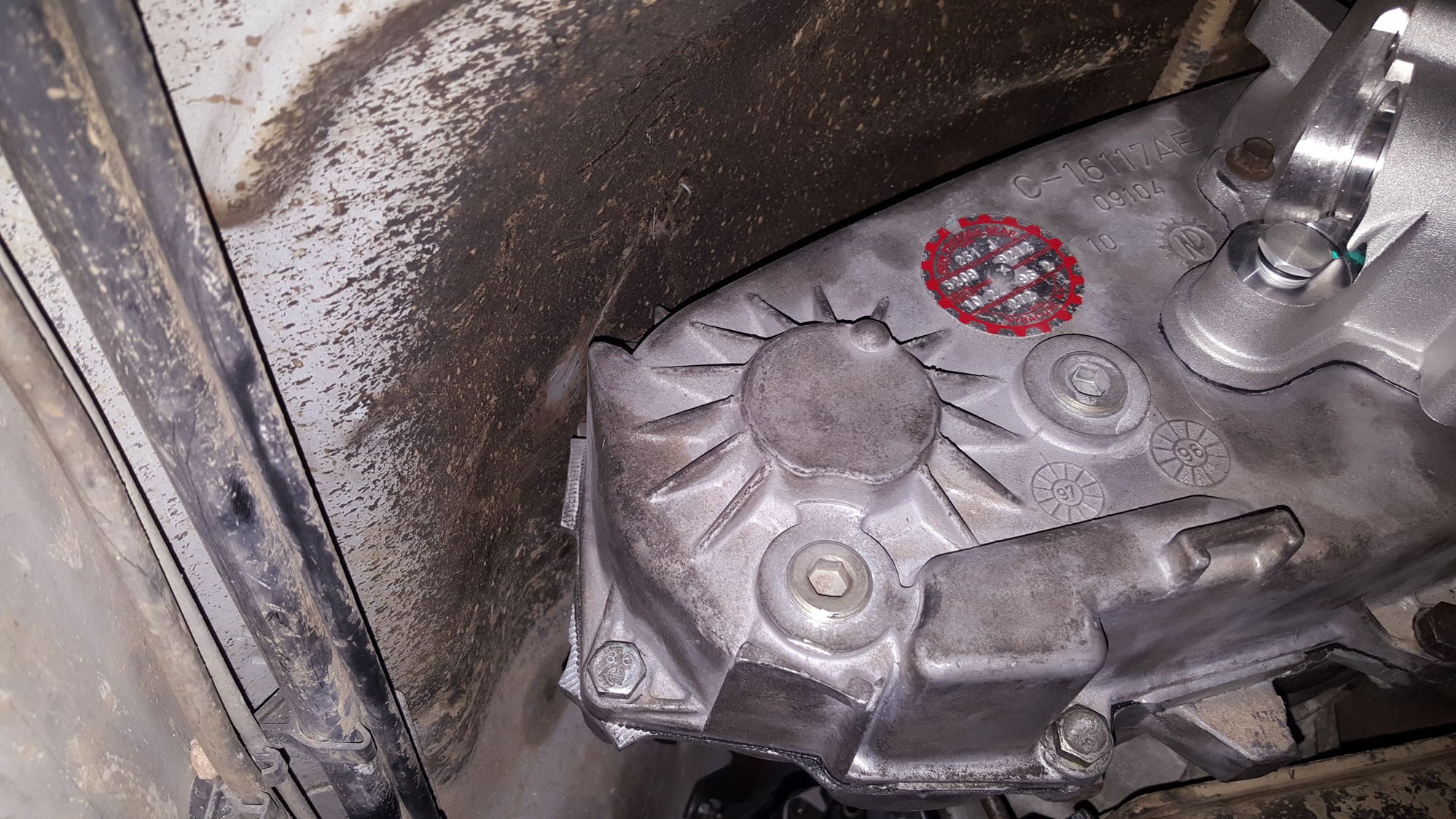

Mine
Notice there is no room to clock it up but there is going down.
