Looking for New Wheels and Tires for my 2001 Jeep Cherokee Sport
#1
Newbie
Thread Starter
Join Date: Jun 2014
Location: Blue Ridge Mountains
Posts: 16
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Looking for New Wheels and Tires for my 2001 Jeep Cherokee Sport
Hi all,
I've noticed that a lot of folks buy new Jeep's, especially Jeep Wrangler's, and immediately upgrade the wheels and tires to a bigger size, then sell their brand new OEM set of wheels/tires on Craigslist.
What do I need to know to be sure the wheels fit on my 2001 Jeep Cherokee Sport?
What's the lug spacing for the 2001 Cherokee Sport?
I there anything else I should be aware of?
I've noticed that a lot of folks buy new Jeep's, especially Jeep Wrangler's, and immediately upgrade the wheels and tires to a bigger size, then sell their brand new OEM set of wheels/tires on Craigslist.
What do I need to know to be sure the wheels fit on my 2001 Jeep Cherokee Sport?
What's the lug spacing for the 2001 Cherokee Sport?
I there anything else I should be aware of?
#2
Member
Join Date: May 2014
Location: Kentucky
Posts: 111
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: I6
Your xj is 5x4.5 bolt pattern. The new jeeps don't have the same pattern. You will have have to buy adapters to run any newer wheels off if a jeep. I am running set of 17' moabs off a 2011 wrangler on my 2001 xj. All that was needed was a set of adapters. You also need to consider the size if the tire on the wheels you are wanting to run.
Google is your friend when trying to do something like this. Good luck
Google is your friend when trying to do something like this. Good luck
The following users liked this post:
ijeeep (02-09-2024)
#3
Newbie
Thread Starter
Join Date: Jun 2014
Location: Blue Ridge Mountains
Posts: 16
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Awesome! Thanks for the insight. I had no idea these adapters even existed. A simple search of "2001 xj wheel adapter" brought up a ton of options.
And are you saying I need to consider the size of the tire to be sure they fit in the wheel well without rubbing, or is there some other consideration?
Does the adapter have to take into account only the lug pattern? What about stud size, hub/center bore, and offset?
I found a great table of the bolt pattern and wheel sizes at this website:
http://www.jeep4x4center.com/knowled...ifications.htm
I need all new tires and it's more affordable to buy a whole new set of wheels and tires off Craigslist from someone who swaps their OEM wheels and tires from their new ride for beefier ones. And since I live in the mountains it's going to be great to have a spare set of wheels to put snow tires on for the winter months.
And are you saying I need to consider the size of the tire to be sure they fit in the wheel well without rubbing, or is there some other consideration?
Does the adapter have to take into account only the lug pattern? What about stud size, hub/center bore, and offset?
I found a great table of the bolt pattern and wheel sizes at this website:
http://www.jeep4x4center.com/knowled...ifications.htm
I need all new tires and it's more affordable to buy a whole new set of wheels and tires off Craigslist from someone who swaps their OEM wheels and tires from their new ride for beefier ones. And since I live in the mountains it's going to be great to have a spare set of wheels to put snow tires on for the winter months.
The following users liked this post:
ijeeep (02-09-2024)
#4
Newbie
Thread Starter
Join Date: Jun 2014
Location: Blue Ridge Mountains
Posts: 16
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
I found a set of 16 inch wheels with 225/75/16 tires from a 2014 Wrangler Unlimited Sport. And I'm having trouble making sure I'm looking at the right adapter to buy to install them on my 2001 Jeep Cherokee Sport.
Any guidance will be greatly appreciated.
Any guidance will be greatly appreciated.
#5
Beach Bum
Xj bolt pattern is 5" x 4.5"
Wranglers after 2006 is 5" x 5"
Hub/bore is the same so you want 'hub-centric' spacers for 5 x 4.5 to 5 x 5.
Get brand name like Spidertrax, they are heat treated. 1.25" thickness is plenty.

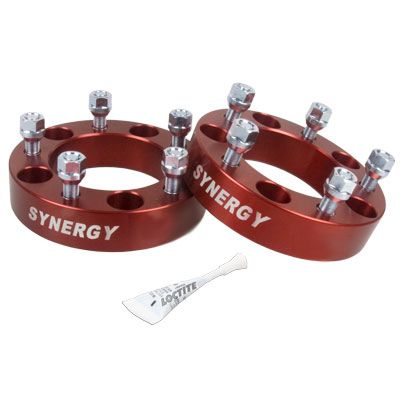

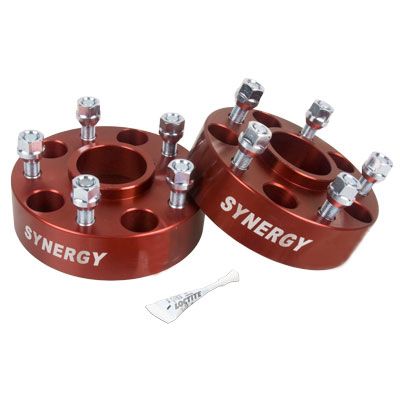

Here is a picture comparing hub-centric to lug-centric spacers. I do not recommend lug-centric spacers.
Wranglers after 2006 is 5" x 5"
Hub/bore is the same so you want 'hub-centric' spacers for 5 x 4.5 to 5 x 5.
Get brand name like Spidertrax, they are heat treated. 1.25" thickness is plenty.
Here is a picture comparing hub-centric to lug-centric spacers. I do not recommend lug-centric spacers.
The following users liked this post:
ijeeep (02-09-2024)
The following users liked this post:
ijeeep (02-09-2024)
#8
Newbie
Thread Starter
Join Date: Jun 2014
Location: Blue Ridge Mountains
Posts: 16
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
I've found several sets of brand new wheels and tires (four plus a full size spare) for around $300-$400. Like I said, people usually pull the stock wheels and tires off their new Jeep and swap for beefier ones.
You really think I can buy new rims and tires that fit my 2001 Cherokee for cheaper than $300-$400, plus the cost of adapters?
Seems like new wheels and tires would be more expensive. Four new tires alone would probably hit the $300-$400 mark pretty quickly.
You really think I can buy new rims and tires that fit my 2001 Cherokee for cheaper than $300-$400, plus the cost of adapters?
Seems like new wheels and tires would be more expensive. Four new tires alone would probably hit the $300-$400 mark pretty quickly.
#9
Beach Bum
Tire & Wheel combo was harder to find for me.
I purchased five 'ravine' wheels for $200 from a tire shop (2006 Wrangler).
New 31" tires were $135 each mounted.
I purchased five 'ravine' wheels for $200 from a tire shop (2006 Wrangler).
New 31" tires were $135 each mounted.
The following users liked this post:
ijeeep (02-09-2024)
#10
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I agree buy the proper size rims with the correct back spacing on them (to keep tires from rubbing on LCA's and other sheet metal) for your XJ. Then buy the tires when you decide exactly what size you want to run. That will depend a lot on what size lift you plan on going with.
The most popular would be a 15" rim and 8" wide with 3.75-4" of BS, that size you can install up to a 35x12:50x15's if desired. I have 2 full sets of rims for mine both steel as I off road a lot one of them are a set of beadlocks with 35's and can air down to 5psi if needed. The steel Soft Eights with the 33's I only air down to 12-15psi on a 8" rim any wider and you will knock a tire down.
Steel D-Rings or Soft Eight knock offs can be bought new for $45-55.00 in a lot of places Summit or Jegs for a few.
I bought a set (of 5) of these 33x12:50x15's Gladiator GR9000-MT's for $596 mounted/balanced/with a road hazard warranty from a local tire shop. They work great off road and no problems on the highway either, shop around and save up a little money then just buy once.
#11
Newbie
Thread Starter
Join Date: Jun 2014
Location: Blue Ridge Mountains
Posts: 16
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Ya'll make a compelling argument.
I'm probably going to take your advice then, and just shop around for some good used wheels that fit my Cherokee without the adapter and then find a good deal on some beefier tires.
I'm not looking to add a lift kit or do any crazy modifications or anything like that, (although a lift of a few inches would be sweet), I just need new tires and I figured I could get used wheels and tires for the price of new tires. This would have been good because I wanted to have a winter and summer set. Winters in the mountains around here make driving tough.
Thanks for all the advice. I guess my idea wasn't the best idea after all.
If you have any other suggestions, let me know.
I guess having two sets of wheels isn't necessary. Maybe I'll just try and find a good deal on a larger set of all-terrain tires.
I wish I knew someone in the West Virginia area I could hook up with that's down with working on their own Jeep.
I'm probably going to take your advice then, and just shop around for some good used wheels that fit my Cherokee without the adapter and then find a good deal on some beefier tires.
I'm not looking to add a lift kit or do any crazy modifications or anything like that, (although a lift of a few inches would be sweet), I just need new tires and I figured I could get used wheels and tires for the price of new tires. This would have been good because I wanted to have a winter and summer set. Winters in the mountains around here make driving tough.
Thanks for all the advice. I guess my idea wasn't the best idea after all.
If you have any other suggestions, let me know.
I guess having two sets of wheels isn't necessary. Maybe I'll just try and find a good deal on a larger set of all-terrain tires.
I wish I knew someone in the West Virginia area I could hook up with that's down with working on their own Jeep.
#12
Beach Bum
You have a good idea with the new tire wheel combo. It's just the added expense of $180 adapters that is the issue. And if an adapter is damaged somehow, the wheel will not fit without it.
The ravine wheels I run have 1/2" less backspacing than stock XJ, am using 1" spacers to compensate. But wheel will still fit and function with out them.
You will likely run into the same situation. The backspacing is often different for stock jeep wheels from other models.
Check this thread for factory jeep wheels http://www.jeepforum.com/forum/f15/a...tures-1151525/
The ravine wheels I run have 1/2" less backspacing than stock XJ, am using 1" spacers to compensate. But wheel will still fit and function with out them.
You will likely run into the same situation. The backspacing is often different for stock jeep wheels from other models.
Check this thread for factory jeep wheels http://www.jeepforum.com/forum/f15/a...tures-1151525/
#13
Senior Member
Join Date: Mar 2012
Location: Racine, WI
Posts: 974
Likes: 0
Received 8 Likes
on
7 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
I may be biased, but my list is better.
YJ, TJ, ZJ, XJ, KJ, and KK all have the same bolt pattern (5x4.5 or 5x114.3). I have a list compiled of all alloy 5x4.5 Jeep wheels with whatever extra info about them I've been able to confirm. I'll probably add the steelies to at at some point.
Jeep alloy 5x4.5 pattern wheels.
Jeep alloy 5x4.5 pattern wheels.
- 5 Slot 15x6 unknown BS (probably 4.25)
- Turbine 15x7 5.25 BS
- Lace 15x7 5.25 BS
- 5 Star 15x7 5.25 BS
- 10-hole 15x7 5.25 BS
- Teardrop 15x7 5.25 BS
- Ecco 15x7 5.25 BS ~19 lbs
- Grizzly 15x7 5.25 BS ~19 lbs
- Canyon 15x8 5.5 BS ~20 lbs
- Ravine 15x8 5.5 BS ~17-18 lbs
- Gambler 15x8? 5.5 BS
- TJ Moab 16x8 5 BS ~25.5 lbs
- Icon 16x7 5.25 BS ~21 lbs
- ZJ Timberline (aka Snowflake) 16x? 5.25 BS
- TSI 16x7? 5.25 BS
- Silver star (ZJ 5.9) 16x7 5.25 BS ~20-21 lbs
- No info on early ZJ 5 slanted spoke wheels.
- Unknown name KJ wheel 16x7 unknown BS (prolly 5.5) ~24 lbs
- Unknown name KJ wheel 16x7 unknown BS (prolly 5.5) ~24 lbs
- Unknown name KJ wheel 16x7 unknown BS (prolly 5.5) ~24 lbs
- Unknown name KJ wheel 17x7.5 unknown BS (prolly 5.5)
- Keystone 16x7 unknown BS
- Victory 17x7 unknown BS
- Echelon 18x7 unknown BS
