Junk yard overhead question
04-02-2016, 03:59 PM
#1
Member
Thread Starter
Join Date: Feb 2016
Location: Thurston County, Wa.
Posts: 209
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0 HO
Junk yard overhead question

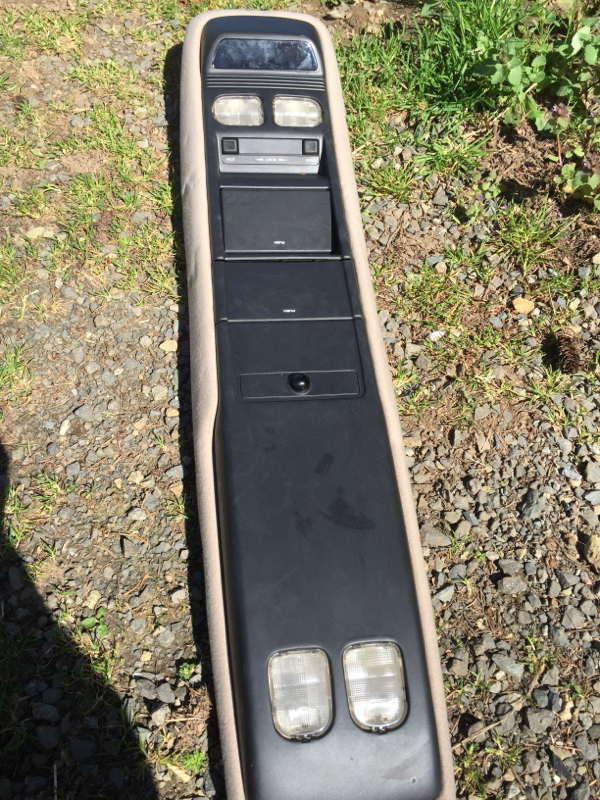

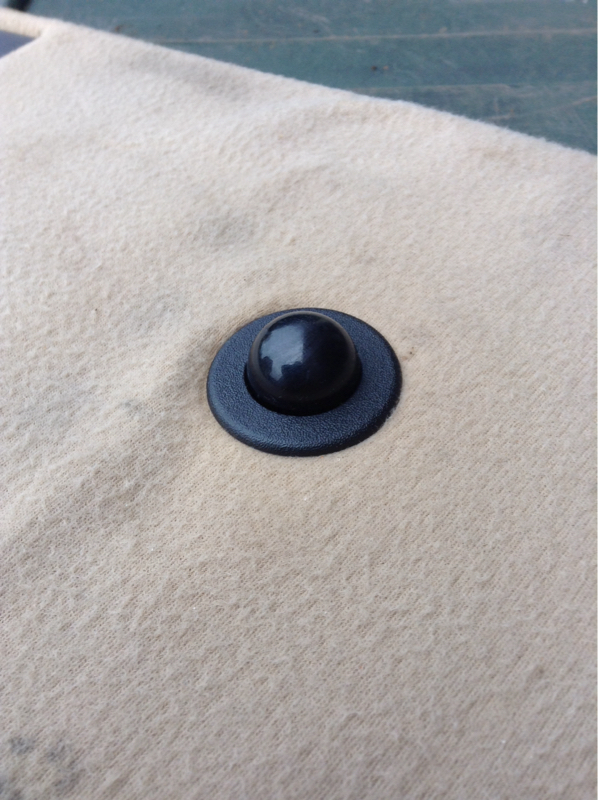

Found this today out of a ZJ. I plan to make it workers I do the headliner but I'm unsure of what the small round bubble device is. I assume it's some sort of dimmer but for what ? Anyone know ?
04-02-2016, 05:51 PM
#6
Member
Thread Starter
Join Date: Feb 2016
Location: Thurston County, Wa.
Posts: 209
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0 HO
I wonder if the compass will just need power to work ? I guess I'll take out the bubble and figure out something else to put in there...maybe a disco ball ? LOL
04-02-2016, 06:28 PM
#7
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Oh, I'm glad you followed up on that. I was torquing my brain trying to figure this out:
Yeah, there ya go!
Trending Topics
its a small spy camera so the government can see where you go in your jeep
04-07-2016, 01:51 PM
#10
Junior Member
Join Date: Oct 2013
Posts: 63
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
So I tried to get a ZJ console to work in my XJ. I got the lights to work ok but the computer would only give me a compass. All the other stuff was not available. I wired in a ZJ body computer with temp sensor and connected it to the CAN bus as well.
In the end I got a console from a 90 XJ and hooked it up and now I have the temp as well as compass. It looks better too IMO. There's a harness for it under the passenger side dash in my 96 so I didn't have to rig up much to make it work.
In the end I got a console from a 90 XJ and hooked it up and now I have the temp as well as compass. It looks better too IMO. There's a harness for it under the passenger side dash in my 96 so I didn't have to rig up much to make it work.
04-07-2016, 07:42 PM
#11
Member
Thread Starter
Join Date: Feb 2016
Location: Thurston County, Wa.
Posts: 209
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0 HO
Looks like I have some work to do. I have only been able to get lights on constant with the door open. I need to figure out the map light wire. I don't want to open the door or turn the headlight ****. I can't even get the compas to light up.
Did you pin map it by chance ?
Did you pin map it by chance ?
04-07-2016, 08:48 PM
#12
CF Veteran
04-08-2016, 09:30 AM
#14
Junior Member
Join Date: Oct 2013
Posts: 63
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
I have the pin out somewhere in my garage for that XJ plug. The plug is red with 4 wires. I believe it is 1 for constant, 1 for switched and two for the temp sensor.
The ZJ console though connects the temp sensor to the body computer.
The ZJ console though connects the temp sensor to the body computer.
