injector wiring harness SOS

Thread Tools

Search this Thread

Old Sep 2, 2013 | 04:56 PM
  #1
biglicksxj's Avatar
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 67
Likes: 0
From: Webster
Year: 2000
Model: Cherokee
Engine: 4.0I6 242
Default injector wiring harness SOS

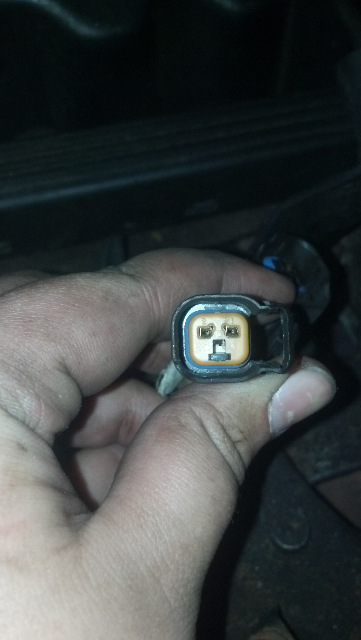

Upon replacing my injectors somehow I managed to scatter all the parts on one of my wiring harnesses I managed to find the blue rubber piece but can't find the orange piece (looks like the one in pic) what is the purpose of these and how screwed am I?
Attached Thumbnails injector wiring harness SOS-forumrunner_20130902_175658.jpg
Reply
Old Sep 2, 2013 | 10:48 PM
  #2
Radi's Avatar
CF Veteran

Joined: Apr 2012
Posts: 5,302
Likes: 23
From: Wisconsin
Model: Cherokee
Default

Holds the contact prongs in position and helps them keep their tension. Might work for a while without it, or might go intermittent pretty quickly. I'd cut one at the scrapyard and splice it in if you can't find the part.
Reply
Old Sep 2, 2013 | 11:07 PM
  #3
biglicksxj's Avatar
Thread Starter
Junior Member

Joined: Jul 2013
Posts: 67
Likes: 0
From: Webster
Year: 2000
Model: Cherokee
Engine: 4.0I6 242
Default

Alright well one of my fuel rail ports got destroyed so I got a few days now
