tcaz01

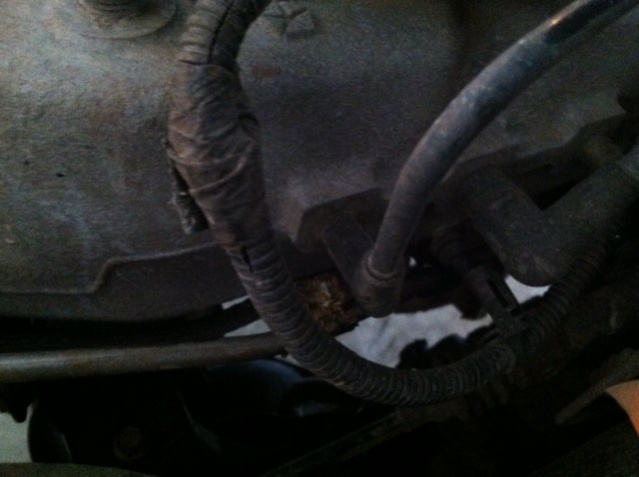

I just replaced my motor mounts and took the jeep for a ride. When I got back I smelled gas and noticed I have gas leaking from the line near my throttle body. I dont know what line it is so i attached a picture. i can hear air coming out. I'm not pro with fuel lines so I need help.

tcaz01

It looks like I have a small pin hole in the fuel line under the throttle body. How do I go about fixing this?

Rockville

You have to replace that steel pipe.
There is another way.
Cut leaking pipe where it leaks, using brake line cutter. Buy piece of high pressure rubber fuel hose and high pressure clamps. Install hose and clamps where you cut pipe. Make sure rubber hose is not touching anything.
I don't know how to attach repaired pipe to manifolf, so this is not a good way to repair the leak.

bloddy mud

JB WELD! Lol jk don do that

tcaz01

I cut the line and used a compression cuppler. It's not connected to the manifold but I really don't see that as an issue. Problem solved

Joe'sXJ

What kind of cherokee is this? Grand or regular cherokee? And what year? I had to replace all my fuel lines and this doesn't look familiar.

tcaz01

It's a 2001 xj. I pulled out the intake. The picture is right by the TB.
