help with gear pattern

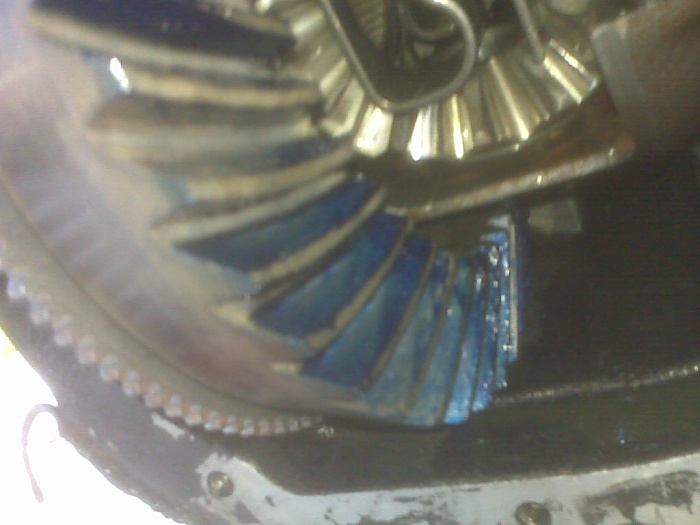

setting up 8.8. Can someone tell me how this pattern looks

Attached Thumbnails

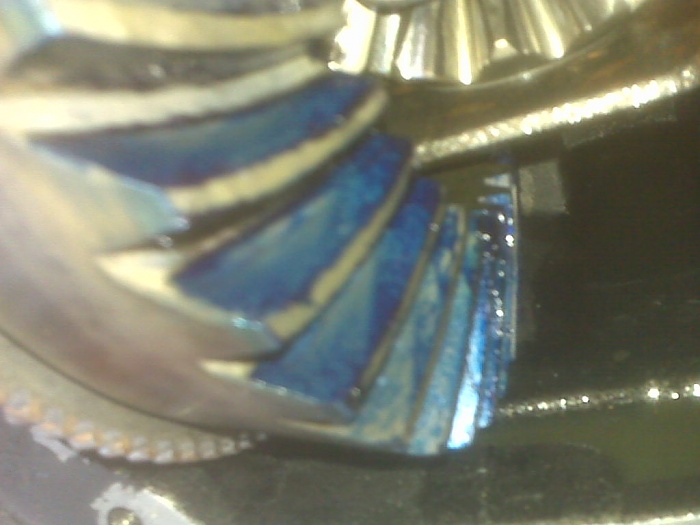

help with gear pattern-gear-install-1.jpg

Jul 18, 2010 | 08:44 AM

davida

Seasoned Member

Joined: May 2009

Posts: 296

Likes: 1

From: Wy & OK

Year: 83 CJ7 & '96 XJ & '97 XJ

Model: Cherokee

Engine: 258ci, 4.0 & 4.0

It's a little hard to see, looks a little off to me, check out this link!

http://www2.dana.com/pdf/5717.pdf

Jul 18, 2010 | 08:46 AM

davida

Seasoned Member

Joined: May 2009

Posts: 296

Likes: 1

From: Wy & OK

Year: 83 CJ7 & '96 XJ & '97 XJ

Model: Cherokee

Engine: 258ci, 4.0 & 4.0

I think you have Top heel contact

Jul 18, 2010 | 08:52 AM

chafe76

Thread Starter

Newbie

Joined: Jun 2009

Posts: 26

Likes: 1

Model: Cherokee

yeah i was thinking that i needed to shim the pinion more just wanted a second opinion

Jul 18, 2010 | 09:07 AM

OverlandZJ

CF Veteran

Joined: May 2008

Posts: 5,188

Likes: 6

From: Bristol,Pa

Year: 94

Model: Cherokee

Engine: 4.0L

Your pattern doesnt look consistent.. are you putting a load on the ring gear as you rotate for pattern?

Take a piece of wood, drop it in wedged between housing and outside of ring gear and guesstimate roughly 40lb resistance on it.

Grease is harder to read a pattern.. NAPA should have some yellow gear compound.
