Help with front sway bar bolts

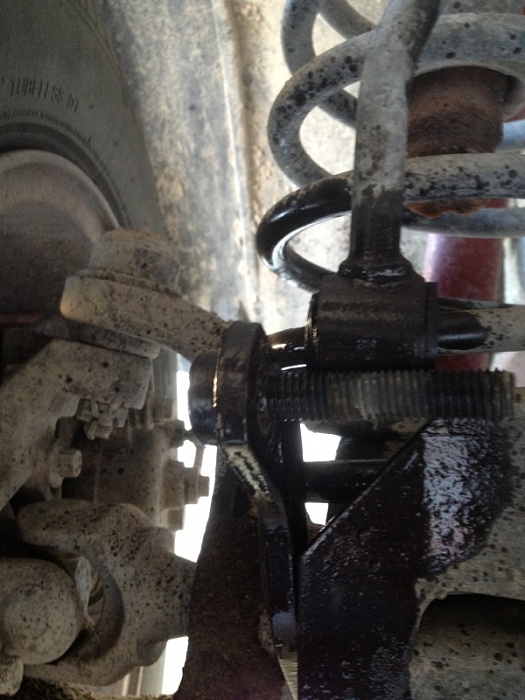

If I don't have the greatest selection of tools, what would be the easiest way to remove these bolts? (on axle)
Thanks in advance
Dave
Thanks in advance
Dave
#3
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
What's wrong with the ones in there. That one looks good.
On my '99 they are drive studs, i.e., they have splines on the part that goes through that chunk of metal they are attached to. I got new ones from the dealer before removing mine. I had to cut them off flush with the bar they go through, heat them up, then use a two jaw puller to push them out.
On my '99 they are drive studs, i.e., they have splines on the part that goes through that chunk of metal they are attached to. I got new ones from the dealer before removing mine. I had to cut them off flush with the bar they go through, heat them up, then use a two jaw puller to push them out.
#4
CF Veteran
Thread Starter
Join Date: Jul 2012
Location: Pahrump, NV
Posts: 1,185
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Originally Posted by Gee oh Dee
Hammer?
Are they threaded into the sway bar mount?
Are they threaded into the sway bar mount?
I think they are pressed in.
#5
CF Veteran
Thread Starter
Join Date: Jul 2012
Location: Pahrump, NV
Posts: 1,185
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Originally Posted by CCKen
What's wrong with the ones in there. That one looks good.
On my '99 they are drive studs, i.e., they have splines on the part that goes through that chunk of metal they are attached to. I got new ones from the dealer before removing mine. I had to cut them off flush with the bar they go through, heat them up, then use a two jaw puller to push them out.
On my '99 they are drive studs, i.e., they have splines on the part that goes through that chunk of metal they are attached to. I got new ones from the dealer before removing mine. I had to cut them off flush with the bar they go through, heat them up, then use a two jaw puller to push them out.
I'm thinking I'm going to go this route, I have a friend with a torch and some sort of cutting apparatus.
I guess for now, in just gonna roll with no sway bar. Until I can get out to his place.
Thanks for the tips guys.
#6
CF Veteran
On most, if not all, XJs the shoulder of the bolt is splined, and that portion is pressed into the bracket. They are usually in there pretty damn good. If you aren't worried about reusing the bolt I'd hit it up/down/side to side a bit to maybe loosen up the pressed fit. After that try to pound it out. A torch could help. If that doesn't work you might need some sort of bolt press/puller. Good luck!
If you rented a tie rod puller set from autozone you might be able to use that. I popped a set out with one of these before, it was hard to keep it centered though.
If you rented a tie rod puller set from autozone you might be able to use that. I popped a set out with one of these before, it was hard to keep it centered though.
Last edited by Dan91; 11-02-2012 at 06:34 PM.
#7
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
On most, if not all, XJs the shoulder of the bolt is splined, and that portion is pressed into the bracket. They are usually in there pretty damn good. If you aren't worried about reusing the bolt I'd hit it up/down/side to side a bit to maybe loosen up the pressed fit. After that try to pound it out. A torch could help. If that doesn't work you might need some sort of bolt press/puller. Good luck!
If you rented a tie rod puller set from autozone you might be able to use that. I popped a set out with one of these before, it was hard to keep it centered though.
If you rented a tie rod puller set from autozone you might be able to use that. I popped a set out with one of these before, it was hard to keep it centered though.
Trending Topics
#8
Junior Member
Join Date: Aug 2009
Location: Yellowstone National Park
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
On most, if not all, XJs the shoulder of the bolt is splined, and that portion is pressed into the bracket. They are usually in there pretty damn good. If you aren't worried about reusing the bolt I'd hit it up/down/side to side a bit to maybe loosen up the pressed fit. After that try to pound it out. A torch could help. If that doesn't work you might need some sort of bolt press/puller. Good luck!
If you rented a tie rod puller set from autozone you might be able to use that. I popped a set out with one of these before, it was hard to keep it centered though.
If you rented a tie rod puller set from autozone you might be able to use that. I popped a set out with one of these before, it was hard to keep it centered though.
#9
Senior Member
Join Date: Jan 2009
Location: Tacoma
Posts: 640
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
I have the same problem. Except i cut the actual bolt part off even with the mount, thinking itd loosen the press. Didnt work, all i have now is the bolt head stuck on the other side.
Maybe heat would work?
Maybe heat would work?
#11
Seasoned Member
Join Date: Jul 2009
Location: Lakewood, CO
Posts: 275
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 HO
pickle fork.. I bought 1, is my new best friend $10
just had to get over being easy with it (like tryin to quietly pry a tie rod joint apart .. doesnt work)
+ a handheld sledge = easy separation on stuff .. blunt quick force .. if theres room for swinging
just had to get over being easy with it (like tryin to quietly pry a tie rod joint apart .. doesnt work)
+ a handheld sledge = easy separation on stuff .. blunt quick force .. if theres room for swinging
#15
CF Veteran
Thread Starter
Join Date: Jul 2012
Location: Pahrump, NV
Posts: 1,185
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L
Originally Posted by Gee oh Dee
And yet another reason I don't use sway bars!
