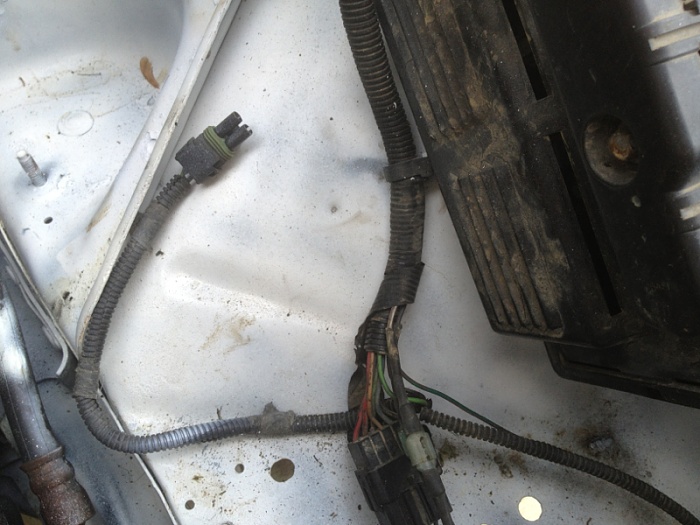

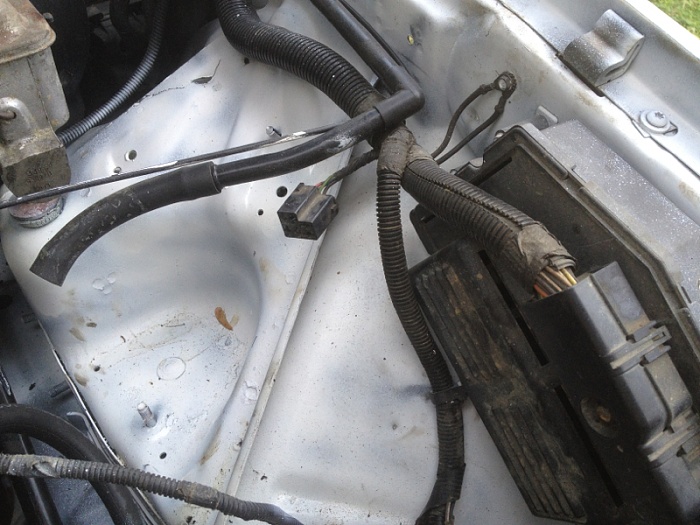

Can anyone tell me what these wires go to? I got my engine in and every thing on the motor hooked up but I have extra wires in the engine bay and I can't seem to figure out what they go to. The first to are are right next to the computer. The boxy one has 4 wires, red/blue/black/green.

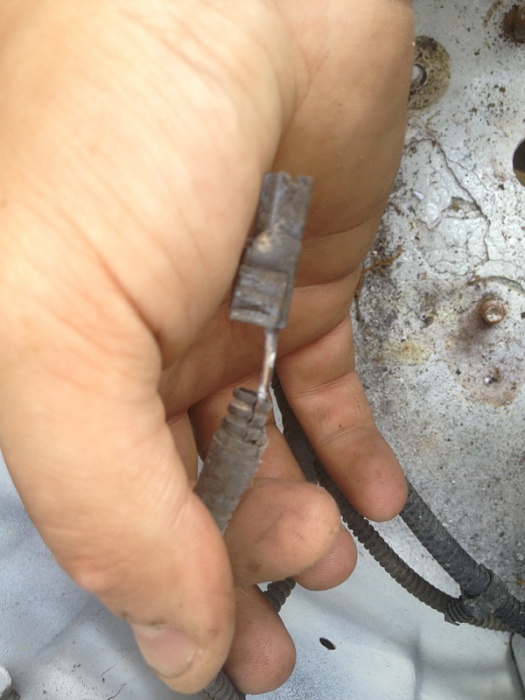

The next one has 2 wires green and black. And the last one is on the pass side comes out of the same spot as the horn wire and it looks like brown with a white stripe. Thanks
Attached Thumbnails Help?-image-3694839696.jpg   Help?-image-466708101.jpg   Help?-image-1573191016.jpg
Reply
Old May 29, 2012 | 07:52 PM
  #2
ZINGGG's Avatar
CF Veteran

Joined: Oct 2011
Posts: 4,440
Likes: 3
From: Seal Beach, CA
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

Green and black one is for your electric fan I believe. Not sure about the others though
Reply
Old May 29, 2012 | 07:53 PM
  #3
Mcwille117's Avatar
Thread Starter
Member

Joined: Aug 2010
Posts: 152
Likes: 1
From: Lansing / Ortonville Michigan
Year: 1987 / 1994
Model: Cherokee
Engine: 4.0 L6
Default

Thank you
Reply
Old May 29, 2012 | 08:05 PM
  #4
beat up jeeper's Avatar
Member

Joined: Oct 2011
Posts: 101
Likes: 0
From: ct
Year: 1991
Model: Cherokee
Engine: 4.0
Default

the other port next to the pcm is the obd1 connector
