A Note to the above intructions:
Regarding unscrewing the speedo cable at the firewall... (and this is what confused me) on my 87, it's not at the firewall, its at the transfer case. When I went back to fix the cable, where it pulled out (mentioned above) I was determined to find the above connection, then I remembered seeing that connector before... at the transfer case. Sure enough it was there. Just unscrew it and snake some slack to the front of the vehicle and up through the firewall. Worked perfectly.
And for those curious about getting the right sensors (It was a heck of a time for me) the part numbers at AutoZone (Advance had to order theirs... but normally buy from them) is TU108 (Temp sensor/switch) and PS133 (Oil Pressure sensor/switch)
Regarding unscrewing the speedo cable at the firewall... (and this is what confused me) on my 87, it's not at the firewall, its at the transfer case. When I went back to fix the cable, where it pulled out (mentioned above) I was determined to find the above connection, then I remembered seeing that connector before... at the transfer case. Sure enough it was there. Just unscrew it and snake some slack to the front of the vehicle and up through the firewall. Worked perfectly.
And for those curious about getting the right sensors (It was a heck of a time for me) the part numbers at AutoZone (Advance had to order theirs... but normally buy from them) is TU108 (Temp sensor/switch) and PS133 (Oil Pressure sensor/switch)
That pic was taken from my 87. The connection was located under the dash, mounted to the firewall behind the gas pedal. I think we are collectively finding that it is not as simple as pulling one cluster out and putting another in. What tcase do you have? Mine was N231, 4.0, AW4.
Member
Joined: Nov 2008
Posts: 142
Likes: 0
From: Indiana
Year: 1987
Model: Cherokee
Engine: 4.0
Mine is a 231 as well. 4.0, AW4. Mine has a gasket at the firewall and the cable is routed through it. The connection looks exactly the same just that it's right at the TC.
The cruise control wires are routed up to the front with the speedo cable, at which point they go their separate directions.
AMC was one you could count on to have a zillion different methods and parts, depending on the day. We have a 65 Wagoneer as well and the parts range anywhere from a 63 to 65, so you always have to compare parts.
The cruise control wires are routed up to the front with the speedo cable, at which point they go their separate directions.
AMC was one you could count on to have a zillion different methods and parts, depending on the day. We have a 65 Wagoneer as well and the parts range anywhere from a 63 to 65, so you always have to compare parts.
Last edited by RCB; May 12, 2009 at 01:12 PM.
Seasoned Member
Joined: Apr 2009
Posts: 330
Likes: 0
From: Nokomis FLA.
Year: 1992 2dr Sport 2wd & 1992 4dr Laredo 4x4
Model: Cherokee
Engine: 4.0 liter H.O.
I found 2 clusters today at the JY! one a 92 the other is a 94 both 2wd auto's so I can get the speedo sending units out of both. Going back tomorrow with more tools to get them. Anyone need parts off these retired jeep let me know.
CF Veteran
Joined: Apr 2009
Posts: 18,786
Likes: 14
From: CT.
Year: 88
Model: Comanche (MJ)
Engine: 4.0 HO
I just had mine out yesterday. The wiring was no problem it was the one piece speedo cable that was hard to get off with the little room behind to get my hand in there
Seasoned Member
Joined: Apr 2009
Posts: 330
Likes: 0
From: Nokomis FLA.
Year: 1992 2dr Sport 2wd & 1992 4dr Laredo 4x4
Model: Cherokee
Engine: 4.0 liter H.O.

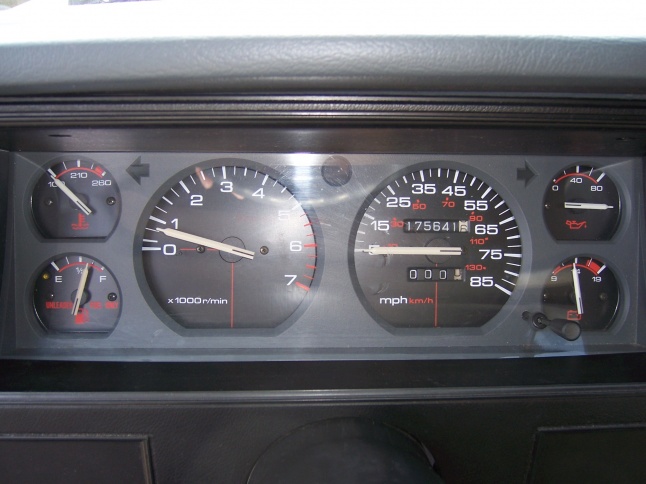

brand new sending unit....the correct one.
the one from the donor jeep didn't work so I got a new one to be sure. I am going to replace the plug tomorrow. I got the one from the JY & the one on the XJ the snappy thing is broke. so I will splice them up.
Everyone else concurs with what you said. This discussion is also on a thread called oil press sending unit or something like that.
another comment was to ground the wire & gauge should go to zero.
thanks
the one from the donor jeep didn't work so I got a new one to be sure. I am going to replace the plug tomorrow. I got the one from the JY & the one on the XJ the snappy thing is broke. so I will splice them up.
Everyone else concurs with what you said. This discussion is also on a thread called oil press sending unit or something like that.
another comment was to ground the wire & gauge should go to zero.
thanks
Last edited by patnok; May 29, 2009 at 10:09 PM.
Newbie
Joined: May 2009
Posts: 5
Likes: 0
Model: Cherokee
NEWB here.
Just traded my 91 toyota mr2 for a 96 XJ 4.0 HO 130K.
Have a question regarding the two senders needed to purchase ( oil and temp).
Are the new senders specific to the year of the vehicle (96) or to the cluster ( 91-96)?
OEM PART #'s?
I've read the walk through DIY guides posted but no one points it out.
Just want to make sure I'm buying the right senders.
Btw, SO DAMN HAPPY WITH MY CHEROKEE...JUST CAN'T WAIT FOR MY NEXT PAY CHECK TO GET HER LIFTED A BIT.
Great forum you have here too.
Any help would be much appreciated.
Thanks
Just traded my 91 toyota mr2 for a 96 XJ 4.0 HO 130K.
Have a question regarding the two senders needed to purchase ( oil and temp).
Are the new senders specific to the year of the vehicle (96) or to the cluster ( 91-96)?
OEM PART #'s?
I've read the walk through DIY guides posted but no one points it out.
Just want to make sure I'm buying the right senders.
Btw, SO DAMN HAPPY WITH MY CHEROKEE...JUST CAN'T WAIT FOR MY NEXT PAY CHECK TO GET HER LIFTED A BIT.
Great forum you have here too.
Any help would be much appreciated.
Thanks
Member
Joined: May 2009
Posts: 215
Likes: 0
Year: 1996
Model: Cherokee
Engine: I6 4.0 HO
brand new sending unit....the correct one.
the one from the donor jeep didn't work so I got a new one to be sure. I am going to replace the plug tomorrow. I got the one from the JY & the one on the XJ the snappy thing is broke. so I will splice them up.
Everyone else concurs with what you said. This discussion is also on a thread called oil press sending unit or something like that.
another comment was to ground the wire & gauge should go to zero.
thanks
the one from the donor jeep didn't work so I got a new one to be sure. I am going to replace the plug tomorrow. I got the one from the JY & the one on the XJ the snappy thing is broke. so I will splice them up.
Everyone else concurs with what you said. This discussion is also on a thread called oil press sending unit or something like that.
another comment was to ground the wire & gauge should go to zero.
thanks
I know when I broke mine they asked tons of questions - US model? Gauge? Light? all those things, maybe you got one that fits just not the right one.
CF Veteran
Joined: Apr 2009
Posts: 18,786
Likes: 14
From: CT.
Year: 88
Model: Comanche (MJ)
Engine: 4.0 HO
NEWB here.
Just traded my 91 toyota mr2 for a 96 XJ 4.0 HO 130K.
Have a question regarding the two senders needed to purchase ( oil and temp).
Are the new senders specific to the year of the vehicle (96) or to the cluster ( 91-96)?
OEM PART #'s?
I've read the walk through DIY guides posted but no one points it out.
Just want to make sure I'm buying the right senders.
Btw, SO DAMN HAPPY WITH MY CHEROKEE...JUST CAN'T WAIT FOR MY NEXT PAY CHECK TO GET HER LIFTED A BIT.
Great forum you have here too.
Any help would be much appreciated.
Thanks
Just traded my 91 toyota mr2 for a 96 XJ 4.0 HO 130K.
Have a question regarding the two senders needed to purchase ( oil and temp).
Are the new senders specific to the year of the vehicle (96) or to the cluster ( 91-96)?
OEM PART #'s?
I've read the walk through DIY guides posted but no one points it out.
Just want to make sure I'm buying the right senders.
Btw, SO DAMN HAPPY WITH MY CHEROKEE...JUST CAN'T WAIT FOR MY NEXT PAY CHECK TO GET HER LIFTED A BIT.
Great forum you have here too.
Any help would be much appreciated.
Thanks
