fastener size
#3
Newbie
Thread Starter
Join Date: Oct 2012
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

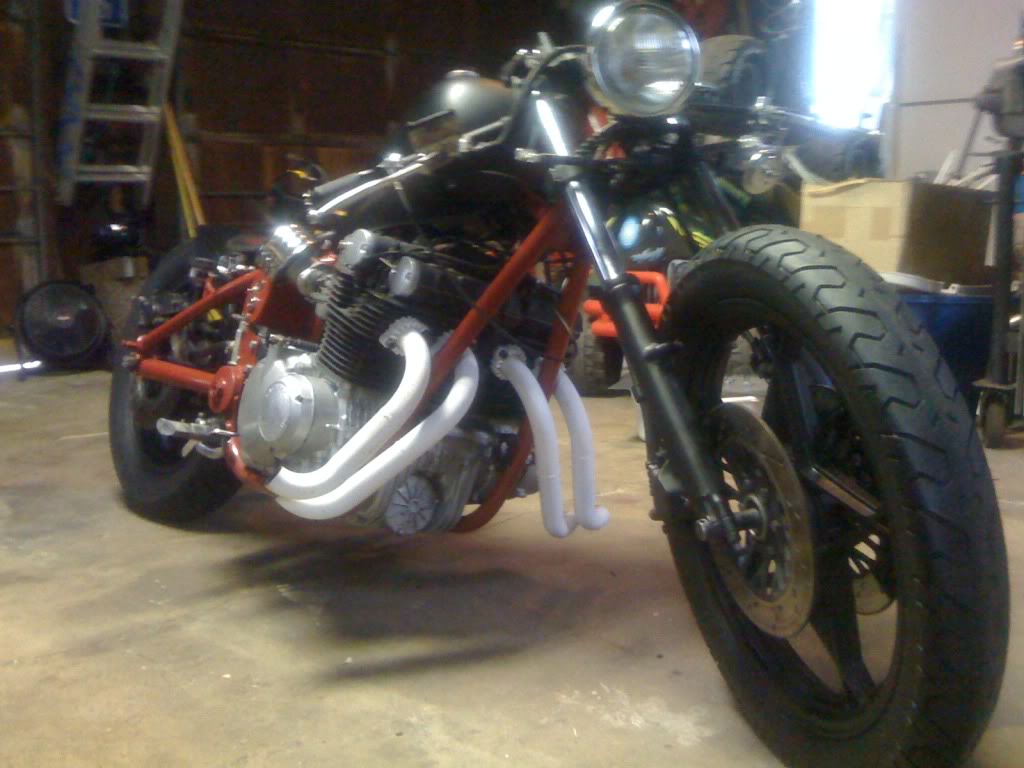

much appreciated. it appears at some point on my way into work I lost one of the 2 bolts (or it was never put on)that fastens the bottom of the shock. The other tab broke and the shock was thumping around. Also due to the fact it was pouring out this am, I couldnt get under there to check the size. I got the right size thanks to you, and it stopped raining. I'll quick fix it to get me home and bring my warranted shock back for replacement. If it dries out i'll take a spin in this and put the shock off till tomorrow!
#5
CF Veteran
Join Date: May 2008
Posts: 3,018
Likes: 0
Received 13 Likes
on
13 Posts
Year: 1988
Model: Cherokee
Engine: AMC242
Watch out - the two screw threads are often confused! If you can't turn it into the hole four or five threads' worth with your fingers (assuming the threads are clean,) go to the other size. (If an SAE won't go in smoothly, go to ISO, and vice versa.)
Since you say you've only lost one screw, look at the head of the other one to see if it's SAE or ISO. If there are "hash marks" stamped on the head (it's probably SAE8, so you'll probably see six marks - one in each corner. If it's SAE5, you'll see three hash marks - alternate corners of the head) it's SAE (5/16"-18.) If there's a number stamped into the head (probably 10.9, could be 12.9,) then it's ISO - M8-1.25 thread.
If you would, please confirm the size, thread, and your application, so I can try to keep the list updated (yes, there's a list. www.kelleyswip.com/tech.html and follow the links...)
