Driver window not working...

Thread Tools

Search this Thread

Old Oct 26, 2012 | 09:37 PM
  #1
AZSnake98's Avatar
Thread Starter
Member

Joined: Mar 2012
Posts: 160
Likes: 0
Model: Cherokee
Default Driver window not working...

I did a search couldn't find my exact problem...

Recently the window would either roll up and down... or not. A couple time when i smacked the door pretty good it would go up and down... then stop working intermittently. But now I just got home and no go. And its all the way down with a lot of money in stereo equipment in the truck... any ideas? Any help would be greatly appreciated.
Reply
Old Oct 26, 2012 | 09:47 PM
  #2
VTJeep's Avatar
CF Veteran

Joined: Jul 2010
Posts: 4,930
Likes: 3
From: 802
Year: 99
Model: Cherokee
Engine: 4.0
Default

Name:  image-4193944334.jpg
Views: 394
Size:  83.0 KB

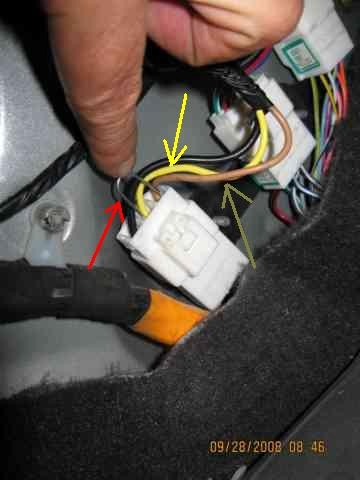

Try this. It's behind the kick panel by your left foot.
Reply
Old Oct 26, 2012 | 10:00 PM
  #3
MirageMobile's Avatar
Member

Joined: Jun 2012
Posts: 199
Likes: 1
From: MO
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by VTJeep
Attachment 151750

Try this. It's behind the kick panel by your left foot.
Isn't that fix for bypassing a faulty "window lock" button, which doesn't even apply for the driver's window.

I'd check what's getting power and what's not in the door since banging on it has helped a few times.

I've read a couple of threads where the OP commented on banging the door helped for a while, so keep searching.
Reply
Old Oct 26, 2012 | 10:06 PM
  #4
VTJeep's Avatar
CF Veteran

Joined: Jul 2010
Posts: 4,930
Likes: 3
From: 802
Year: 99
Model: Cherokee
Engine: 4.0
Default

Originally Posted by MirageMobile

Isn't that fix for bypassing a faulty "window lock" button, which doesn't even apply for the driver's window.

I'd check what's getting power and what's not in the door since banging on it has helped a few times.

I've read a couple of threads where the OP commented on banging the door helped for a while, so keep searching.
Thanks noob.

Btw, it's a bypass for the master window switch. The fix is most likely this, and it's free. The replacement switch? At the JY. Also requires pulling door panel. So you tell me.

Last edited by VTJeep; Oct 26, 2012 at 10:09 PM.
Reply
Old Oct 27, 2012 | 12:13 AM
  #5
MOvermyer's Avatar
Junior Member

Joined: Aug 2011
Posts: 122
Likes: 0
From: Indiana
Year: 1999
Model: Cherokee
Engine: 4.0
Default

you're going to have to pull the door panel. are you getting any noise when you hit the switch? if you can hear the motor turn its obviously not an electrical issue. if you cant hear anything you need to check power and ground at the switch and at the motor. I believe the motor has to be plugged in to check properly, so youll have to check at the back of the plug while its plugged in. if you have power and ground at the switch make sure its coming out. youll need the wiring diagram and a power probe would be very helpful. the power probe allows you to apply power and or ground to the switch or motor. good luck
Reply
Old Oct 27, 2012 | 12:23 AM
  #6
z28's Avatar
z28
Newbie

Joined: Oct 2012
Posts: 24
Likes: 0
From: Knoxville Tn
Year: 1999
Model: Cherokee
Engine: 4.0
Default

if it is like mine did just buy the upgread from A1 parts 84.00 shipped. Got mine today & in 15 mins like new.
Reply
Old Nov 2, 2012 | 12:35 PM
  #7
AZSnake98's Avatar
Thread Starter
Member

Joined: Mar 2012
Posts: 160
Likes: 0
Model: Cherokee
Default

Originally Posted by VTJeep
Attachment 151750

Try this. It's behind the kick panel by your left foot.
Is that just a paperclip wedged into the connector?



Originally Posted by z28
if it is like mine did just buy the upgread from A1 parts 84.00 shipped. Got mine today & in 15 mins like new.
Upgrade for what? The window motor? or the switches?


Also forgot to mention in my original post that the passenger side widow wont roll up either unless I do it from the Driver whether the lock is on or off. Doesn't matter.

Also, my headlights turned off last night while I was driving on a dark road for about a second. Scared the living **** out of me. And now they flicker on and off sometimes... I figured this was just a faulty headlight ****/switch thing. Anyone ever had this problem though? This thing is quickly becoming an electrical nightmare.
