Door wont seal. Question about door hinge
#1
Senior Member
Thread Starter
Join Date: Aug 2009
Location: St. George Utah
Posts: 683
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0L Rebuilt Renix "Low Output" haha
Door wont seal. Question about door hinge

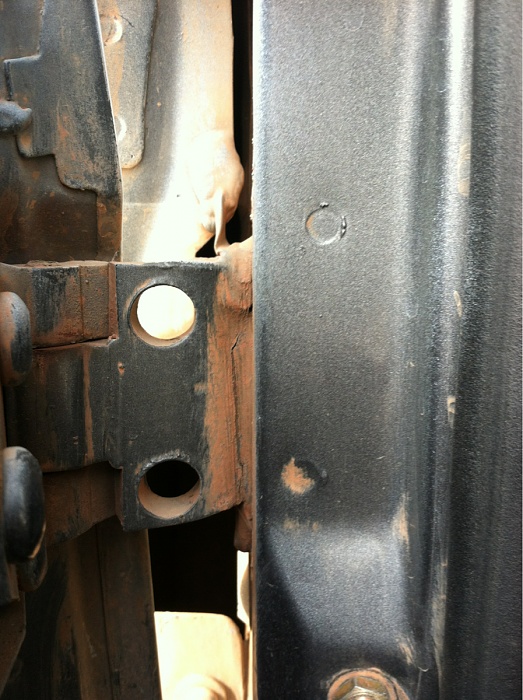

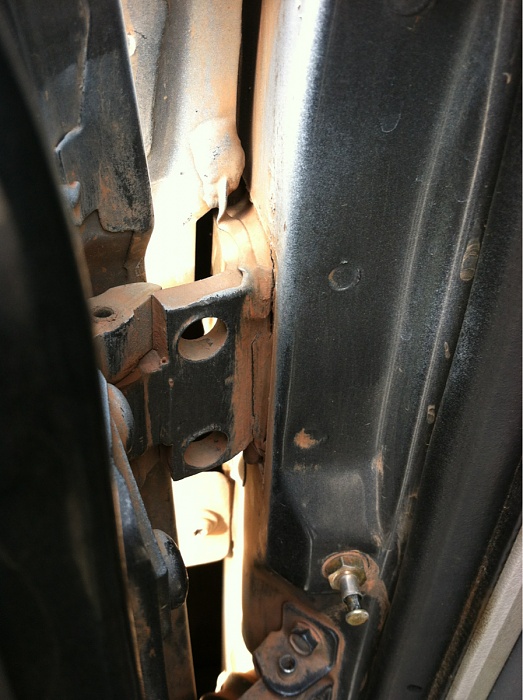

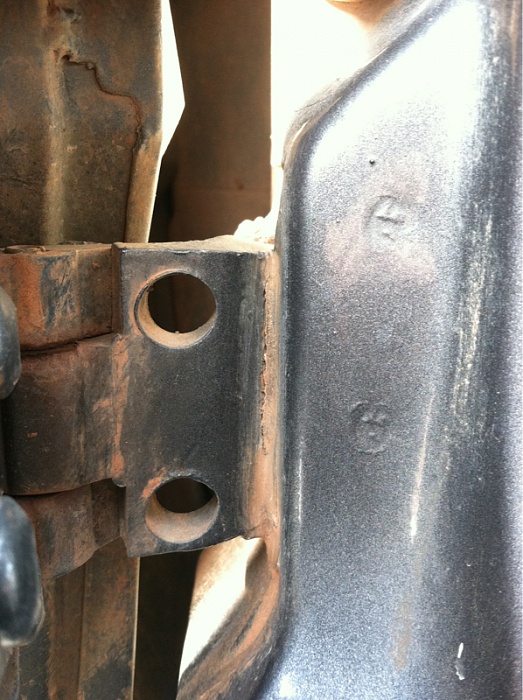

Ever since I bought my Cherokee I haven't been able to get my divers side door to seal. It has a terrible air leak on the freeway, and it's extremely annoying. Also my door won't shut unless you slam it. How do I fix this? If i pull up on my door i can see that there is movement in the bottom hinge roll pin. I know Cherokees have problems with the hinge welds failing. I notice some cracks, so here are some pics. Do they need to be welded? How do I fix this problem? I would like to make some trips to Moab, and with this air leak driving on the freeway just isn't a good time.
#4
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Those cracks do not look bad at all, that is just the seam sealer cracking. You can try adjusting the door by shimming the lower hinge between the door and hinge, and then adjust the striker on the door jamb. Another trick is to use a floor jack and lift the door up with it and kind of tweak the door back into adjustment. Just be careful when using this method that you don't over do it.
#5
Senior Member
Thread Starter
Join Date: Aug 2009
Location: St. George Utah
Posts: 683
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0L Rebuilt Renix "Low Output" haha
Originally Posted by Bustedback
Those cracks do not look bad at all, that is just the seam sealer cracking. You can try adjusting the door by shimming the lower hinge between the door and hinge, and then adjust the striker on the door jamb. Another trick is to use a floor jack and lift the door up with it and kind of tweak the door back into adjustment. Just be careful when using this method that you don't over do it.
#6
Junior Member
Join Date: Nov 2011
Location: Washington
Posts: 40
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0L
I would replace the pin before trying to shim it. If the pin is worn, then you won't be able to shim it correctly until the pin is replaced.
I bought a package of bronze sleeves and a couple new hinge pins for my Chevy at Autozone for about $5. Spent a couple hours and the door lines up just like new and opens and closes smoothly.
I bought a package of bronze sleeves and a couple new hinge pins for my Chevy at Autozone for about $5. Spent a couple hours and the door lines up just like new and opens and closes smoothly.
#7
Senior Member
Thread Starter
Join Date: Aug 2009
Location: St. George Utah
Posts: 683
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0L Rebuilt Renix "Low Output" haha
Originally Posted by Grandpaswagon
I would replace the pin before trying to shim it. If the pin is worn, then you won't be able to shim it correctly until the pin is replaced.
I bought a package of bronze sleeves and a couple new hinge pins for my Chevy at Autozone for about $5. Spent a couple hours and the door lines up just like new and opens and closes smoothly.
I bought a package of bronze sleeves and a couple new hinge pins for my Chevy at Autozone for about $5. Spent a couple hours and the door lines up just like new and opens and closes smoothly.
Trending Topics
#8
Do you have a picture from the outside or the inside showing the gap?
I have a similar problem and I had mixed results. It can be extremely difficult to align a door on these vehicles and sometimes your better not messing with them. But you may have some luck with the jack. I never gave that one any thought.
I have a similar problem and I had mixed results. It can be extremely difficult to align a door on these vehicles and sometimes your better not messing with them. But you may have some luck with the jack. I never gave that one any thought.
