Door key pad entry system retrofit
After reading several posts about folks locking themselves out of their vehicles, I had a thought. Would it be possible to retrofit a key pad on the driver's door, like what comes stock on Ford Expeditions, among others? Has anyone here done this, or knows someone who has?
I located one after-market kit that is exactly what I had in mind, but it was priced at over $400. Too rich for my blood. I wonder if the equipment could be had at the JY for less? I wouldn't even know what to ask for when I called them.
I would be willing to be the guinea pig for this if someone would be willing to help me with the particulars, i.e. wiring, parts required, etc.
Please discuss.
I located one after-market kit that is exactly what I had in mind, but it was priced at over $400. Too rich for my blood. I wonder if the equipment could be had at the JY for less? I wouldn't even know what to ask for when I called them.
I would be willing to be the guinea pig for this if someone would be willing to help me with the particulars, i.e. wiring, parts required, etc.
Please discuss.
#2
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
I would take a trip to the JY and find a vehicle with it then Buy the whole door. Take it apart slowly at the house and see how it all fits together. I am sure you will have to make mods to it, and probably run some more power. But if there is will then there is a way.
#5
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
You would need the key pad of course, but also the body computer out of the doner vehicle, and then try and wire it up and have it work properly...$400 don't sound too bad now.
#7
I know you would need the Remote Anti-theft Personality(RAP) module which is what controls the "codes" that the key pad uses. I would assume if you got the RAP out of one and feed it power then the keypad would be fairly easy to retrofit granted you could find a schematic of the RAP to see what all has to be connected and powered to operate.
Trending Topics
#8
Member
Thread Starter
Join Date: Jul 2010
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Alrighty then, so here's what I managed to work up before I went to bed today:
1. There is another aftermarket unit that sells for approx $180. It is wireless and has a battery that is not user-serviceable. It is supposedly "universal" in application. This seems the path of least resistance, but for some reason, it makes me nervous. I will ferret out further details on this next week when I have some time off.
2. I spent some time on a Ford Explorer forum reading about how their keyless entry system works. It seems like there are two parts to it, the RAP, and something called the General Electronics Module. The second has something to do with the door sensors and overhead lighting. I am planning on finding out more about this next week as well.
3. I need to make a list of what vehicles this equipment came as a stock option in.
4. I figured that before I start in on hacking something into what I already have, I need to know exactly how it works. I guess this entails purchasing the 1996 shop manuals with wiring diagrams. This is probably where I will start. If anyone has any insight into the power lock wiring, as well as the existing keyless entry wiring, please post up, now is the time.
5. If this turns out to be feasible, not only practically, but financially, I will do a write-up, from start to finish.
1. There is another aftermarket unit that sells for approx $180. It is wireless and has a battery that is not user-serviceable. It is supposedly "universal" in application. This seems the path of least resistance, but for some reason, it makes me nervous. I will ferret out further details on this next week when I have some time off.
2. I spent some time on a Ford Explorer forum reading about how their keyless entry system works. It seems like there are two parts to it, the RAP, and something called the General Electronics Module. The second has something to do with the door sensors and overhead lighting. I am planning on finding out more about this next week as well.
3. I need to make a list of what vehicles this equipment came as a stock option in.
4. I figured that before I start in on hacking something into what I already have, I need to know exactly how it works. I guess this entails purchasing the 1996 shop manuals with wiring diagrams. This is probably where I will start. If anyone has any insight into the power lock wiring, as well as the existing keyless entry wiring, please post up, now is the time.
5. If this turns out to be feasible, not only practically, but financially, I will do a write-up, from start to finish.
#9
This should help you out.
"Trucks built before 2-OCT-2000 have RAP module installed, trucks built after 2-OCT-2000 have a CSM installed in them to give you an idea of the cut off date."
So you know that anything after 10-2-00 have RAP.

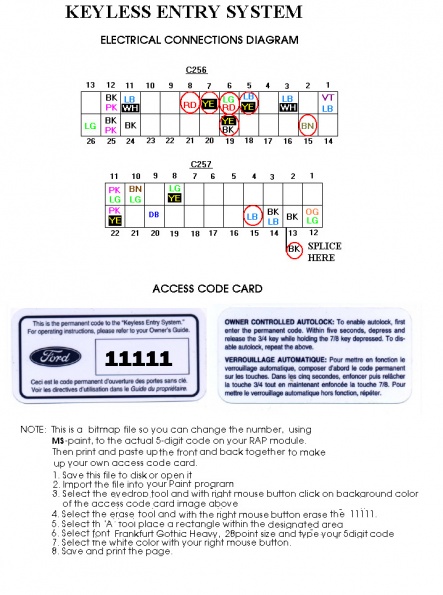

Here is an install in a lightning that did not come with the key pad from the factory.
http://www.svtlightnings.com/svt/how...ad_install.htm
Note since you are stripping this out of a car and not buying new look where the radio goes above that opening in the dash you should see a sticker or stamp in the plastic, this is the original 5 digit code that unlocks the doors.
That should get you going.
"Trucks built before 2-OCT-2000 have RAP module installed, trucks built after 2-OCT-2000 have a CSM installed in them to give you an idea of the cut off date."
So you know that anything after 10-2-00 have RAP.
Here is an install in a lightning that did not come with the key pad from the factory.
http://www.svtlightnings.com/svt/how...ad_install.htm
Note since you are stripping this out of a car and not buying new look where the radio goes above that opening in the dash you should see a sticker or stamp in the plastic, this is the original 5 digit code that unlocks the doors.
That should get you going.
Last edited by Weou09; 07-30-2010 at 07:34 PM.
#11
Seasoned Member
Join Date: Jul 2010
Location: Central Florida
Posts: 491
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
http://www.a1electric.com/keypad.htm
Any shop that sells car alarms can get you one. These are sold by many diffrent alarm manufacturers.
Any shop that sells car alarms can get you one. These are sold by many diffrent alarm manufacturers.
#12
Senior Member
Join Date: May 2009
Location: Middlesex County CT
Posts: 559
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 H.O
Those might be good as a retrofit but i would never own a ford with a functional stock one. the code is on a sticker on the drivers side trunk hinge on sedan models. If a thief prys your trunk open they now have the code to easily come back and get into your car at a later date if they want.
#13
Member
Thread Starter
Join Date: Jul 2010
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Those might be good as a retrofit but i would never own a ford with a functional stock one. the code is on a sticker on the drivers side trunk hinge on sedan models. If a thief prys your trunk open they now have the code to easily come back and get into your car at a later date if they want.
#14
Member
Thread Starter
Join Date: Jul 2010
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
http://www.a1electric.com/keypad.htm
Any shop that sells car alarms can get you one. These are sold by many diffrent alarm manufacturers.
Any shop that sells car alarms can get you one. These are sold by many diffrent alarm manufacturers.
#15
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Those might be good as a retrofit but i would never own a ford with a functional stock one. the code is on a sticker on the drivers side trunk hinge on sedan models. If a thief prys your trunk open they now have the code to easily come back and get into your car at a later date if they want.
