checked with the local napa on a new crank position senser and they are showing 2 different ones for a 94 with auto trans.....
Shows a different one for the country edition and the SE edition..... anyone run into the before ?



Hi, could be because there were 2 motors for that year, a 2.5 and a 4.0?...Tj



Showing 2 for the 4.0 in their book.... will ck with the jeep dealer in a bit to see what they say.



OK the difference may be a round plug or a square one. I had changed mine in my 94 and they gave me the wrong one at first...Tj



just got off phone with dealer...... It is a difference in the plugs.



Ahh thought so ...Tj



Per Autozone the flatter plug is for vehicles "With updated OBD2 connector (Option code XCY)" Which is odd it would say this for a 1994 vehicle as OBD2 wasn't until 96. The flat connector they show for the 94 is very similar for the 97-01 plug.

The plugs for the CPS changed at least 4 times over the life of the XJ. 87-90, 91-92, 93-96, and 97-01.



87-90 CPS

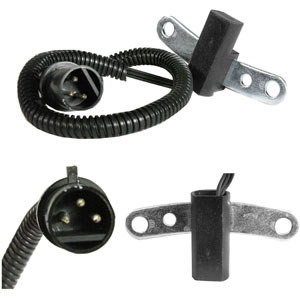

91-92 CPS



93-96 CPS



97-01 CPS
