Cracked frame question.
#1
Member
Thread Starter
Cracked frame question.
Hello everyone.
The other day i was hearing a noise whenever i turn the wheel to the left.

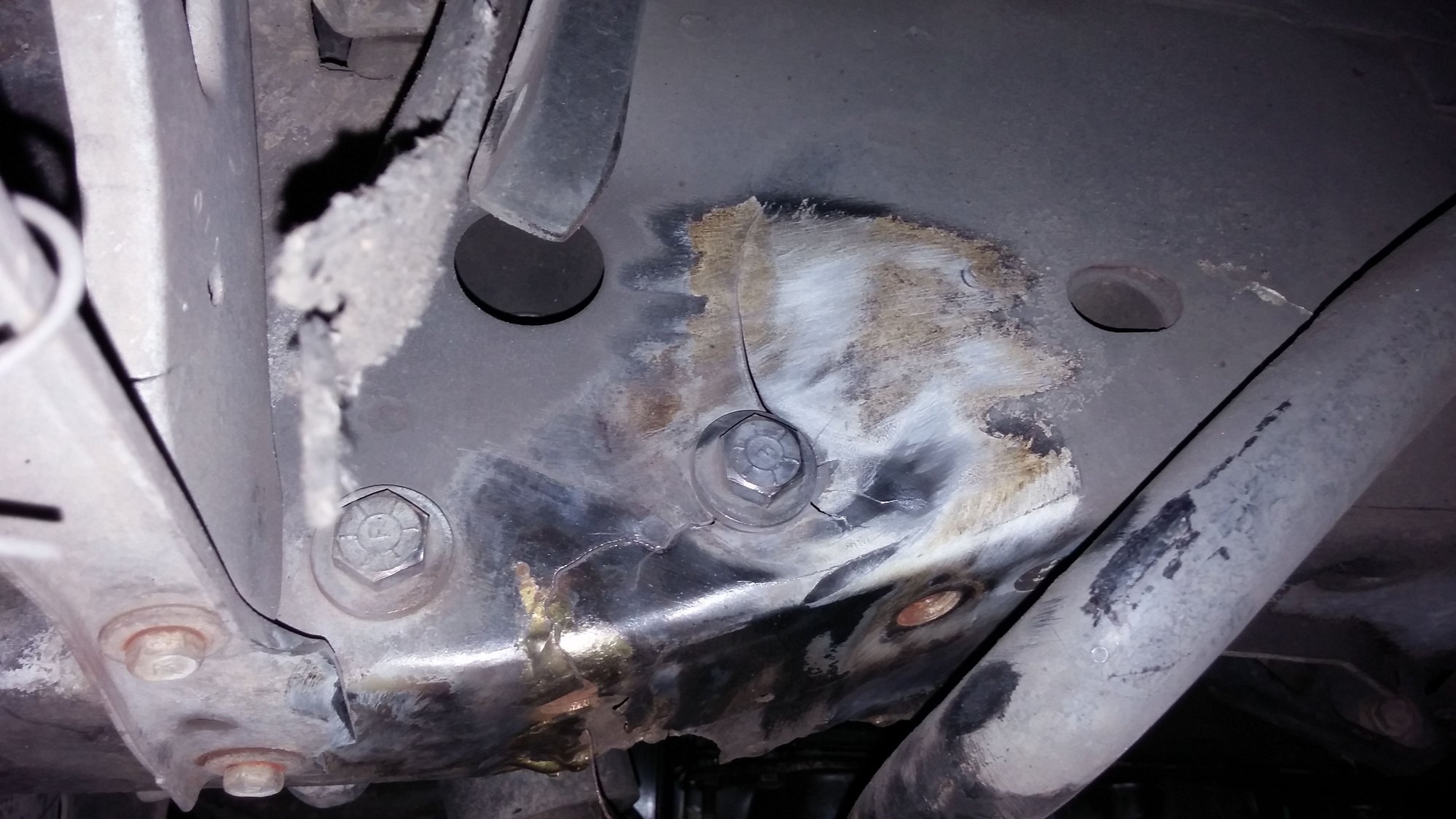

When i inspected i noticed the famous frame crack. From viewing this pictures can anyone suggests a good fix for this? I was thinking buying a frame plate kit but i don't know how bad is it. Thanks
The other day i was hearing a noise whenever i turn the wheel to the left.
When i inspected i noticed the famous frame crack. From viewing this pictures can anyone suggests a good fix for this? I was thinking buying a frame plate kit but i don't know how bad is it. Thanks
#3
Member
Join Date: Mar 2010
Location: SO CAL
Posts: 182
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
is this the infamous steering frame crack that everyone sells plates to prevent? not trying to be a jerk, i am really curious. It looks like it has been broken before and was partially brazed.
#4
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Yes it can be repaired but you should have experience welding on a frame of this thickness for sure or farm it out to someone who does then have the plating done again experience on the thin frame material. The reason I say this is my lack there of and send my welding out to a friend who has a Welding Shop.
My son's 98 XJ did the same thing and my friend repaired and plated his, drives fine and no issues to date.
My son's 98 XJ did the same thing and my friend repaired and plated his, drives fine and no issues to date.
Last edited by Fred/N0AZZ; 10-05-2014 at 06:44 AM.
#5
Member
Thread Starter
@ red4dr, yes i could tell that PO tried to repaired. I never looked this area and knew it was a common problem after search it, So my bad.
@ Fred/N0AZZ, so basically weld the crack, plate it and weld again? Thanks man for the ideas that's what i was thinking. I just want to hear some ideas here because where i live people want to half-*** things.
@ Fred/N0AZZ, so basically weld the crack, plate it and weld again? Thanks man for the ideas that's what i was thinking. I just want to hear some ideas here because where i live people want to half-*** things.
#6
CF Veteran
Steering
My son's 94 XJ developed a severe crack. Instead of fixing it we decided to retire his rig and bought him a 95 XJ that runs great. He is switching all the good parts over and I took the axles and put them under my 91 XJ to gain gearing and the 8.25 Chrysler.
To be safe I decided that I would plate my 91 XJ steering area with this
http://www.rustysoffroad.com/jeep-st...nt-plates.html
I don't think it would work for a repair but I hope it will prevent the problem.
To be safe I decided that I would plate my 91 XJ steering area with this
http://www.rustysoffroad.com/jeep-st...nt-plates.html
I don't think it would work for a repair but I hope it will prevent the problem.
