Cig lighter power outlet difference/swap?
#1
Junior Member
Thread Starter
Join Date: Feb 2013
Location: PA
Posts: 69
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Cig lighter power outlet difference/swap?

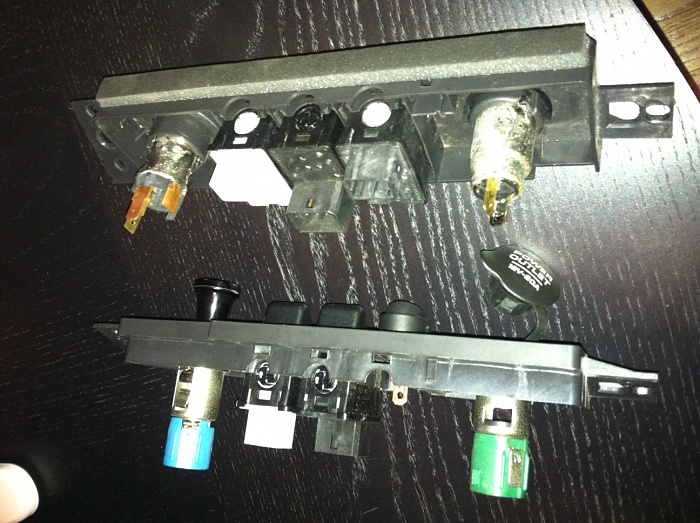

A picture tells 1000 words, so what is going on here? I bought a 3 switch bezel to replace my 2 switch one and the cig. lighter and power outlet plugs are different, and I can't figure out how to take them out of the bezels to swap them. Can anyone give me a hand? Did they switch what style plug they used at some point?
#2
Member
Join Date: Oct 2012
Location: SE Michigan
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.6L Stroker
My 2000 XJ has the bottom version with the colored connectors. It looks like the top two just have standard quarter inch flat contacts, so you could just clip your connectors off and crimp the wires to a standard blade style connector and plug them in as long as you get the polarity correct.
But to answer your other question, there are two small rectangular slots on the sides of the metal sleeve. There are two angled tabs molded into the walls of the plastic face plate. You need to use a razor blade from the back to pry the tabs out of the rectangular slots or use a small screwdriver to push the tabs out from inside the metal sleeve. Once the tabs are no longer catching on the rectangular slots of the metal walls, the outlets should push out thru the front.
But to answer your other question, there are two small rectangular slots on the sides of the metal sleeve. There are two angled tabs molded into the walls of the plastic face plate. You need to use a razor blade from the back to pry the tabs out of the rectangular slots or use a small screwdriver to push the tabs out from inside the metal sleeve. Once the tabs are no longer catching on the rectangular slots of the metal walls, the outlets should push out thru the front.
Last edited by Cerveja; 02-26-2013 at 09:52 PM.
#3
Junior Member
Thread Starter
Join Date: Feb 2013
Location: PA
Posts: 69
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
My 2000 XJ has the bottom version with the colored connectors. It looks like the top two just have standard quarter inch flat contacts, so you could just clip your connectors off and crimp the wires to a standard blade style connector and plug them in as long as you get the polarity correct.
But to answer your other question, there are two small rectangular slots on the sides of the metal sleeve. There are two angled tabs molded into the walls of the plastic face plate. You need to use a razor blade from the back to pry the tabs out of the rectangular slots or use a small screwdriver to push the tabs out from inside the metal sleeve. Once the tabs are no longer catching on the rectangular slots of the metal walls, the outlets should push out thru the front.
But to answer your other question, there are two small rectangular slots on the sides of the metal sleeve. There are two angled tabs molded into the walls of the plastic face plate. You need to use a razor blade from the back to pry the tabs out of the rectangular slots or use a small screwdriver to push the tabs out from inside the metal sleeve. Once the tabs are no longer catching on the rectangular slots of the metal walls, the outlets should push out thru the front.
