Chipped the bolt surface on the knuckle... look ok?
#1
Member
Thread Starter
Join Date: Jun 2017
Posts: 107
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Chipped the bolt surface on the knuckle... look ok?
I was removing the wheel bearing from the knuckle and broke a bolt. Grinded, hammered, pried, and eventually air hammered for the final separation.
Going to replace the wheel bearings.

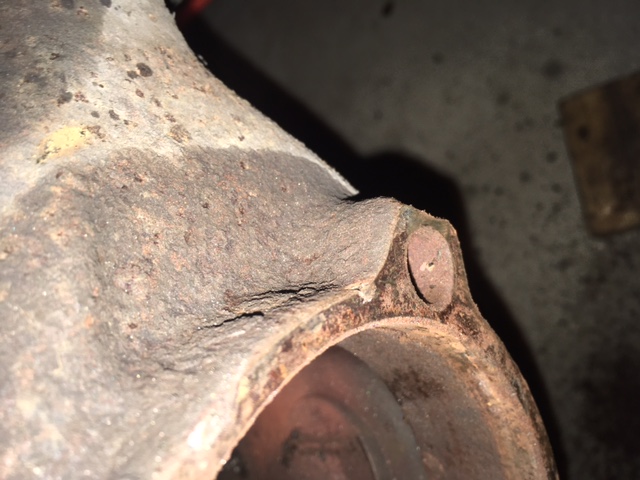

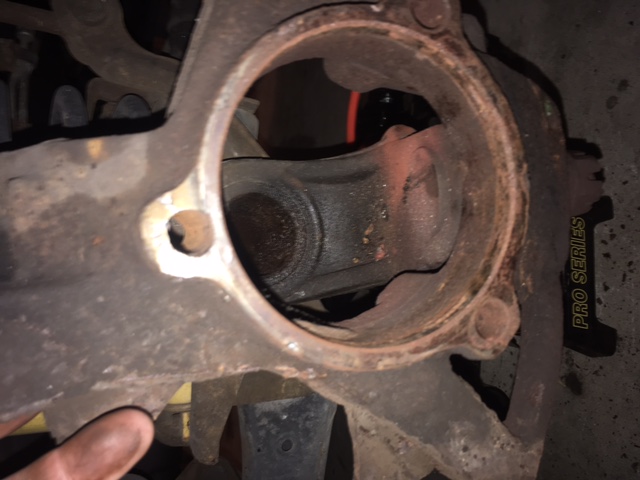

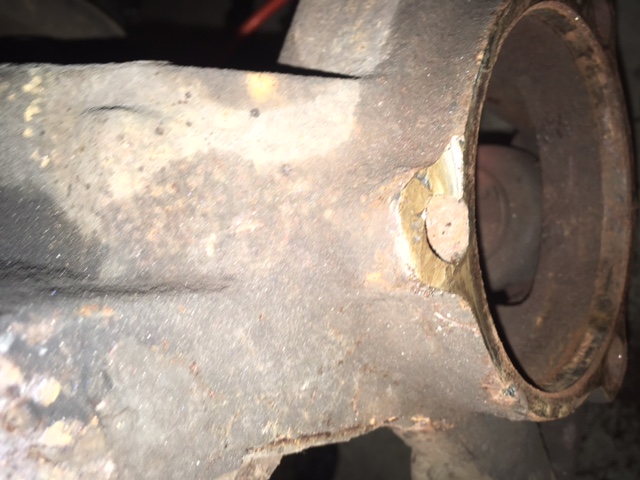

BUUUUUT... I managed to take a small chip out of the knuckle right where one of the surfaces mates up. See the pic. I have pic of the affected area from 2 angles and a pic of one that is not affected.
It's not much... but ... it's my daughter's car... think its ok or would you replace the knuckle altogether?
Going to replace the wheel bearings.
BUUUUUT... I managed to take a small chip out of the knuckle right where one of the surfaces mates up. See the pic. I have pic of the affected area from 2 angles and a pic of one that is not affected.
It's not much... but ... it's my daughter's car... think its ok or would you replace the knuckle altogether?
#2
Senior Member
That wouldn't worry me too much as the bolts come in from behind and hold the hub. Plus it's sunk inside the knuckle pretty far. The hub will seat on the entire surface anyway. If you were only going to use two of the three hub bolts, that would be a far different story (and not recommended). The underside of the hub bolt is taking the load on the one side of the knuckle and the entire surface of the knuckle is on the other. You may get water in there which will rust the bolt prematurely.
Last edited by 67 GMC; 10-18-2017 at 07:21 PM.
#3
Senior Member
Join Date: Mar 2014
Location: Eastern Long Island, NY
Posts: 952
Received 55 Likes
on
50 Posts
Year: 1996
Model: Cherokee
Engine: I6 Cyl / 4L
If it was you driving it, I would say go for it. But since it is your daughter, sleep better and replace it. Junk yards should have them at affordable prices.
#4
Senior Member
There's nothing unsafe about bolting that up with the chip in my non-professional opinion. It's not structural-look at the hub, look at the seating surface. The three bolts hold it against the seating surface. Obviously, if unsafe he wouldn't be working on the Jeep - he'd take it to a mechanic.
Maybe we shouldn't even work on Jeeps unless we're Class A mechanics. Maybe we shouldn't drive 18 year old vehicles. Maybe we shouldn't drive period. Take the bus. Maybe don't leave the house either...
Maybe we shouldn't even work on Jeeps unless we're Class A mechanics. Maybe we shouldn't drive 18 year old vehicles. Maybe we shouldn't drive period. Take the bus. Maybe don't leave the house either...
#5
CF Veteran
Join Date: May 2015
Location: Arizona
Posts: 4,481
Likes: 0
Received 16 Likes
on
12 Posts
Year: 97
Model: Cherokee
Engine: 4.0
I'm with these guys... I think it will be fine. Just put some locktite on those and torque that one up last but stop before it starts to tweek and possibly break the bolt tab. The locktite should hold it.
#6
::CF Administrator::
OP, you have access to a MIG welder? Preheat with a torch just around the area to be welded, fill with weld. Then hit it with the torch right after, and put a little heat on it, take it off, a little heat, take it off, the point of this is to let it cool down slowly so it doesn't crack....grind smooth were needed, and chase the mount hole with a drill bit. It'll look like new.
#7
CF Veteran
Join Date: May 2015
Location: Arizona
Posts: 4,481
Likes: 0
Received 16 Likes
on
12 Posts
Year: 97
Model: Cherokee
Engine: 4.0
OP, you have access to a MIG welder? Preheat with a torch just around the area to be welded, fill with weld. Then hit it with the torch right after, and put a little heat on it, take it off, a little heat, take it off, the point of this is to let it cool down slowly so it doesn't crack....grind smooth were needed, and chase the mount hole with a drill bit. It'll look like new.
Trending Topics
#8
CF Veteran
Join Date: Jun 2016
Location: Santa Clarita California
Posts: 2,138
Likes: 0
Received 277 Likes
on
243 Posts
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0L
I would not think twice about it bolt up the new bearing . the bearing will seat all the way around the hub and the part of the ear that is not chip . I don't think I would weld it , I would replace it if it bothered you that much , bolt up the new bearing and torque to spec. then you can take it for a ride and when you get back you can recheck the torque .
#9
::CF Administrator::
Here's the problem with that...it's cast. Cast materials are brittle. Once compromised, cracking becomes a major concern. It may look "ok" but there's micro cracking you can't see. Micro cracks can become major cracks...and break. Remember, ALL the weight is riding on that hub, and where it mounts. That part sees a LOT of stress. I'd fix it. ESPECIALLY if it was my daughters car. I'd never forgive myself if something happened to her, that I had the opportunity to prevent.
IF IT WERE ME- I would repair, or replace. Preferably repair, as replacement is WAY more work.
My OPINION
Good luck sir!
IF IT WERE ME- I would repair, or replace. Preferably repair, as replacement is WAY more work.
My OPINION
Good luck sir!
#10
Member
Thread Starter
Join Date: Jun 2017
Posts: 107
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Thanks to all for the comments. Very helpful. I don't have access to a MIG welder. That is a longer term project for me.
She uses the car primarily to get back and forth to school ... about 10 minutes each way, never really going over 40 mph. I am going to bolt it back up and get the car inspected. In the meantime, I'll hit the JY for a replacement. I saw a bunch of them there this weekend.
Thanks guys.
She uses the car primarily to get back and forth to school ... about 10 minutes each way, never really going over 40 mph. I am going to bolt it back up and get the car inspected. In the meantime, I'll hit the JY for a replacement. I saw a bunch of them there this weekend.
Thanks guys.
#11
CF Veteran
Join Date: May 2015
Location: Arizona
Posts: 4,481
Likes: 0
Received 16 Likes
on
12 Posts
Year: 97
Model: Cherokee
Engine: 4.0
Here's the problem with that...it's cast. Cast materials are brittle. Once compromised, cracking becomes a major concern. It may look "ok" but there's micro cracking you can't see. Micro cracks can become major cracks...and break. Remember, ALL the weight is riding on that hub, and where it mounts. That part sees a LOT of stress. I'd fix it. ESPECIALLY if it was my daughters car. I'd never forgive myself if something happened to her, that I had the opportunity to prevent.
IF IT WERE ME- I would repair, or replace. Preferably repair, as replacement is WAY more work.
My OPINION
Good luck sir!
IF IT WERE ME- I would repair, or replace. Preferably repair, as replacement is WAY more work.
My OPINION
Good luck sir!
#12
CF Veteran
My opinion for what it is worth is that this is no big deal. That is on the outside of the knuckle. The unit bearing is pulled into it and the bearing uses the entire rest of that machined surface to rest against. The bolts pull from the other side and none of those surfaces are compromised in the pic.
#13
Senior Member
My opinion for what it is worth is that this is no big deal. That is on the outside of the knuckle. The unit bearing is pulled into it and the bearing uses the entire rest of that machined surface to rest against. The bolts pull from the other side and none of those surfaces are compromised in the pic.
#14
Senior Member
Join Date: Apr 2013
Location: Dawson Springs, KY
Posts: 780
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1985
Model: Cherokee
Engine: 2.5L
There's nothing unsafe about bolting that up with the chip in my non-professional opinion. It's not structural-look at the hub, look at the seating surface. The three bolts hold it against the seating surface. Obviously, if unsafe he wouldn't be working on the Jeep - he'd take it to a mechanic.
Maybe we shouldn't even work on Jeeps unless we're Class A mechanics. Maybe we shouldn't drive 18 year old vehicles. Maybe we shouldn't drive period. Take the bus. Maybe don't leave the house either...
Maybe we shouldn't even work on Jeeps unless we're Class A mechanics. Maybe we shouldn't drive 18 year old vehicles. Maybe we shouldn't drive period. Take the bus. Maybe don't leave the house either...
Doesn't the brake dust shield mount between the unit bearing and that part of the knuckle? So the unit bearing doesn't actually touch it at all.
#15
Senior Member
The hub fits in the opening on the knuckle. I think the opening in the dust shield is bigger and the shield is held in place by the bolts. Can't remember-I think I put mine on and forgot the shield the first time I did it!
Last edited by 67 GMC; 10-20-2017 at 06:01 PM.
