Brake pads not making full contact with rotor
#1
Banned
Thread Starter
Join Date: Oct 2012
Location: USA
Posts: 1,744
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L i6
Brake pads not making full contact with rotor
Outer rotor is as you'd expect, all shiny and clean from pad contact.
Inner rotor surface has a narrow stripe of clean metal and then just rust on the surface.
The inner pad is not making full contact.
What do I need to replace?
Rotor?
Caliper?
Pads?
Inner rotor surface has a narrow stripe of clean metal and then just rust on the surface.
The inner pad is not making full contact.
What do I need to replace?
Rotor?
Caliper?
Pads?
#2
CF Veteran
You need to check two things. The pad mount for grooves in it made by the pad being only in one spot too long. The fix for that is to weld and grind it smooth. The other is the rods the caliper slide on. The caliper needs to move smoothly back and forth
#3
Banned
Thread Starter
Join Date: Oct 2012
Location: USA
Posts: 1,744
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L i6
Not sure what the "pad mount" is.
Also not sure what you mean by "pad in one spot for too long"
The pad is technically working, since there is a clean ring on the rotor surface.
Also not sure what you mean by "pad in one spot for too long"
The pad is technically working, since there is a clean ring on the rotor surface.
#4
Banned
Thread Starter
Join Date: Oct 2012
Location: USA
Posts: 1,744
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L i6
I don't think the pad was frozen in one place, b/c the rotor has clean grooves on it.
That means at least some part of the pad is moving and working
I think some junk has built up on the pads
That means at least some part of the pad is moving and working
I think some junk has built up on the pads
#5
CF Veteran
Join Date: Nov 2017
Location: Groton, MA
Posts: 3,695
Received 234 Likes
on
207 Posts
Year: 1995
Model: Cherokee(XJ)
Engine: I6 4.0L
Where is the clean ring? Is it at the top or bottom of the pad surface? In other words, does it look like the pad is hitting it at an angle?
Pad surface is the part on the steering knuckle where the pads slide. It is common to see grooves form in this part.
You would see problems with the pad sliding on the knuckle on the inner pad since the outer pad is fixed. Of course, this could also be a caliper problem where the piston isn't moving out of the bore or an issue where the caliper isn't sliding on the guides correctly.
Also extremely low quality pads or a warped rotor could be at play.
Pictures would be extremely helpful.
Pad surface is the part on the steering knuckle where the pads slide. It is common to see grooves form in this part.
You would see problems with the pad sliding on the knuckle on the inner pad since the outer pad is fixed. Of course, this could also be a caliper problem where the piston isn't moving out of the bore or an issue where the caliper isn't sliding on the guides correctly.
Also extremely low quality pads or a warped rotor could be at play.
Pictures would be extremely helpful.
#7
Banned
Thread Starter
Join Date: Oct 2012
Location: USA
Posts: 1,744
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L i6
If I remove any of this, I am just going to replace it with new parts.
Labor and effort are worth 1000% compared to cost of parts.
Rotors and pads are Raybestos installed in 2012 (40k miles ago)
Pads were $50 in 2012, now they are $73
Rotors were $42 in 2012, now they are $43
I am just going to replace rotors and pads.
Labor and effort are worth 1000% compared to cost of parts.
Rotors and pads are Raybestos installed in 2012 (40k miles ago)
Pads were $50 in 2012, now they are $73
Rotors were $42 in 2012, now they are $43
I am just going to replace rotors and pads.
Trending Topics
#8
CF Veteran
Join Date: Nov 2017
Location: Groton, MA
Posts: 3,695
Received 234 Likes
on
207 Posts
Year: 1995
Model: Cherokee(XJ)
Engine: I6 4.0L
That doesn't sound like a cheap set of pads. I'm not familiar with that brand but I think they're pretty reputable.
You don't want to just replace the pads and rotors without being confident that there isn't an issue with the caliper - you'll just end up ruining the new parts.
Let me see if I can dig up the picture of the ruts that were mentioned.
If you want to just replace parts to correct the issue, I'd do the calipers too. Are you doing this yourself or having a shop do the work?
You don't want to just replace the pads and rotors without being confident that there isn't an issue with the caliper - you'll just end up ruining the new parts.
Let me see if I can dig up the picture of the ruts that were mentioned.
If you want to just replace parts to correct the issue, I'd do the calipers too. Are you doing this yourself or having a shop do the work?
#9
CF Veteran
Join Date: Nov 2017
Location: Groton, MA
Posts: 3,695
Received 234 Likes
on
207 Posts
Year: 1995
Model: Cherokee(XJ)
Engine: I6 4.0L
https://www.cherokeeforum.com/attach...r-dsbefore.jpg
This pic shows the ruts that the pads can get hung up on. If yours has the ruts the best fix is to weld a little metal in and smooth it out, but if they're not deep you can sand the edges and put a good brake lube on and be ok for a bit.
This pic shows the ruts that the pads can get hung up on. If yours has the ruts the best fix is to weld a little metal in and smooth it out, but if they're not deep you can sand the edges and put a good brake lube on and be ok for a bit.
#10
::CF Administrator::
If I remove any of this, I am just going to replace it with new parts.
Labor and effort are worth 1000% compared to cost of parts.
Rotors and pads are Raybestos installed in 2012 (40k miles ago)
Pads were $50 in 2012, now they are $73
Rotors were $42 in 2012, now they are $43
I am just going to replace rotors and pads.
Labor and effort are worth 1000% compared to cost of parts.
Rotors and pads are Raybestos installed in 2012 (40k miles ago)
Pads were $50 in 2012, now they are $73
Rotors were $42 in 2012, now they are $43
I am just going to replace rotors and pads.
I'll find some pics and post in a few.
#11
::CF Administrator::

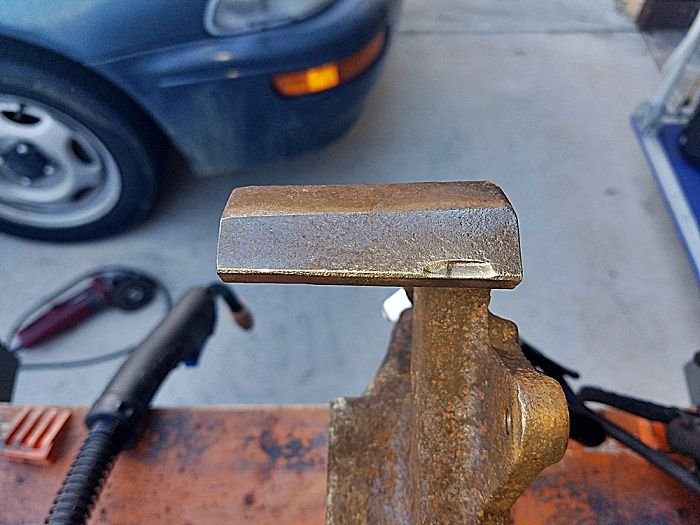

So here's what we're talking about...you see the groove worn on the pad guide, then what it looks like after it's filled and ground smooth with the rest. I did this with my knuckles removed, but have also done it on other guys rigs while still on the car. It's easy and fast, and the shop should be able to handle it easily if they're worth their salt.
#12
Banned
Thread Starter
Join Date: Oct 2012
Location: USA
Posts: 1,744
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L i6
Those little divots should not be there?
Those are formed from the "ears" of the brake pads?
How does that even happen? Car sitting for years?
I will look for these divots, but my pads are moving, since there is shiny metal on both sides of the rotor.
Those are formed from the "ears" of the brake pads?
How does that even happen? Car sitting for years?
I will look for these divots, but my pads are moving, since there is shiny metal on both sides of the rotor.
#13
Banned
Thread Starter
Join Date: Oct 2012
Location: USA
Posts: 1,744
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L i6
Thanks for the photos.
Why does the XJ have bizarro complications on literally every single project?
Brake jobs one step up from Jiffy Lube flunky that cost $40 with coupons.
How does only the XJ require a freaking welder and grinder to do the ****ing brakes?
I've done rotors/pads on all of my cars, and never once ran into this.
Why does the XJ have bizarro complications on literally every single project?
Brake jobs one step up from Jiffy Lube flunky that cost $40 with coupons.
How does only the XJ require a freaking welder and grinder to do the ****ing brakes?
I've done rotors/pads on all of my cars, and never once ran into this.
Last edited by BimmerJeeper; 08-10-2018 at 10:21 PM.
#14
::CF Administrator::
Thanks for the photos.
Why does the XJ have bizarro complications on literally every single project?
Brake jobs one step up from Jiffy Lube flunky that cost $40 with coupons.
How does only the XJ require a freaking welder and grinder to do the ****ing brakes?
I've done rotors/pads on all of my cars, and never once ran into this.
Why does the XJ have bizarro complications on literally every single project?
Brake jobs one step up from Jiffy Lube flunky that cost $40 with coupons.
How does only the XJ require a freaking welder and grinder to do the ****ing brakes?
I've done rotors/pads on all of my cars, and never once ran into this.
Edit: I just gotta ask, any of these vehicles you speak of, do they have the same age, neglect, and corrosion as the Barnacle? Just saying, rust and corrosion are game changing.
Last edited by Rogue4x4; 08-10-2018 at 10:49 PM.
