Ambient air tempature sensor
I have a 1990 cherokee and my overhead console says SC where the temp should be.
Is there a way to check the sensor? And what does SC mean.
Thankyou.
Is there a way to check the sensor? And what does SC mean.
Thankyou.
04-14-2010, 08:50 PM
#2
Junior Member
Join Date: Mar 2010
Location: Tulsa, Oklahoma
Posts: 61
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
SC is indicating a "Short Circuit" in the sensor wiring or in the sensor itself. Drat, I forgot the testing procedure and Im not at home this week to look it up.
04-14-2010, 09:06 PM
#4
Junior Member
Join Date: Mar 2010
Location: Tulsa, Oklahoma
Posts: 61
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
That would be an open circuit. Usually if its throw all sorts of temps then your sensor probably is going. Found up under the radiator on the bumper brace.
Keep in mind if you are sitting still in traffic that temp will rise until you get going again.
04-14-2010, 09:07 PM
#5
Junior Member
Join Date: Mar 2010
Location: Tulsa, Oklahoma
Posts: 61
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
I wont get home until Friday evening from business travel but I do have the testing procedures at the house. I can post them then unless someone else has them.
04-14-2010, 09:07 PM
#6
Seasoned Member
Thread Starter
Join Date: Feb 2010
Location: so cal
Posts: 298
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
04-14-2010, 09:09 PM
#7
Seasoned Member
Thread Starter
Join Date: Feb 2010
Location: so cal
Posts: 298
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Trending Topics
04-14-2010, 09:11 PM
#8
Junior Member
Join Date: Mar 2010
Location: Tulsa, Oklahoma
Posts: 61
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
LoL...well if the temp is above 131 degrees then you'll get the SC but if its that hot you have more to worry about then a sensor! LOL
04-28-2010, 05:25 PM
#10
Junior Member
Join Date: Mar 2010
Location: Tulsa, Oklahoma
Posts: 61
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
Totally forgot! Suppose to reming me as Im getting old.

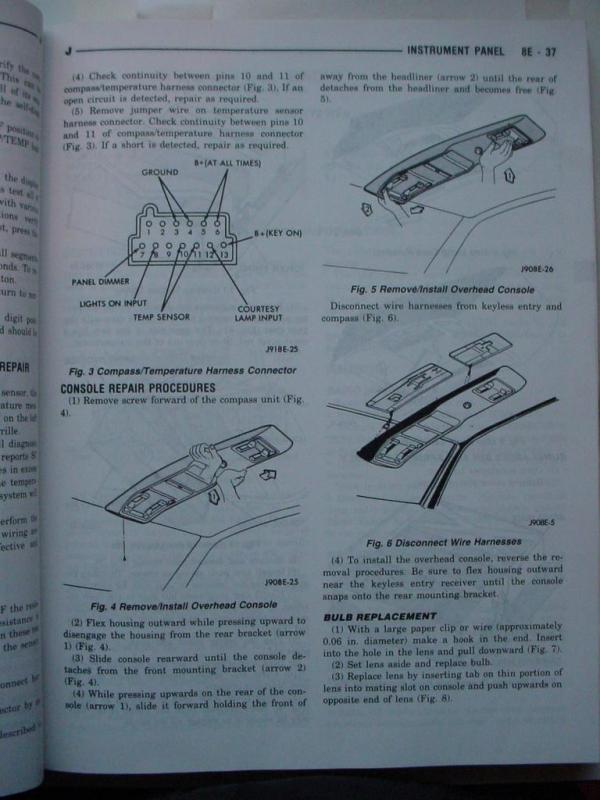

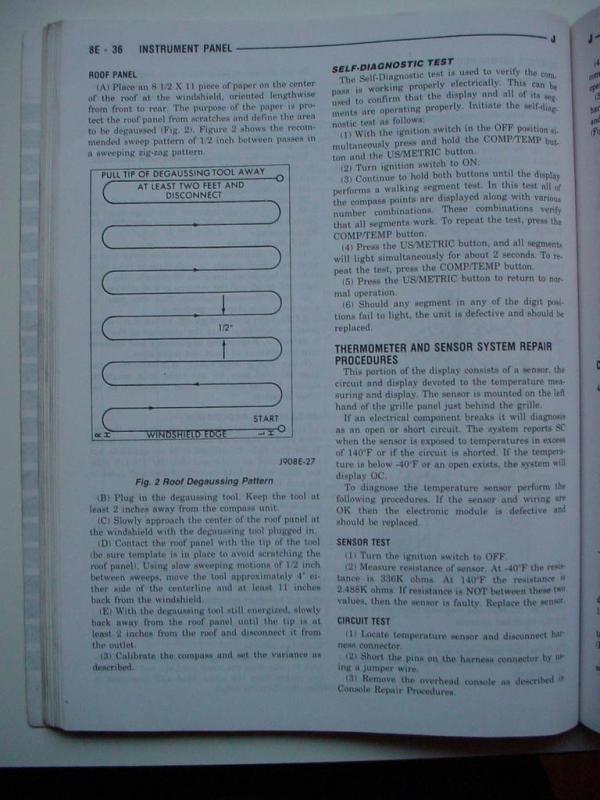

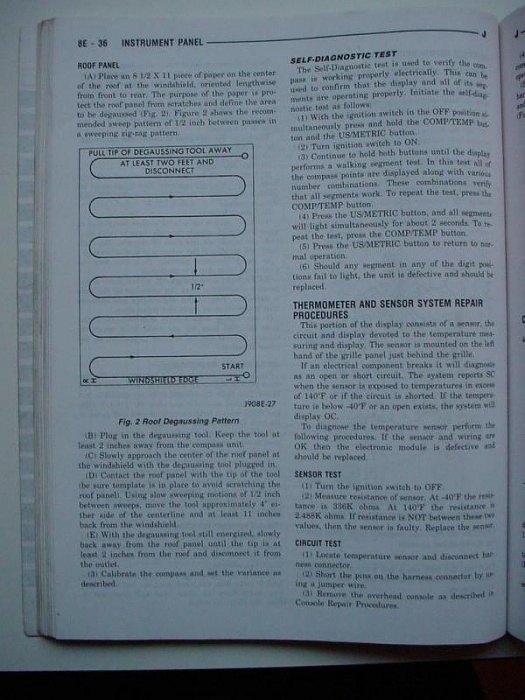

Ive attached the pertinent pages to test the sensor and console. Hope this helps.
Ive attached the pertinent pages to test the sensor and console. Hope this helps.
04-29-2010, 06:16 AM
#11
CF Veteran
Join Date: Aug 2009
Location: Oshkosh, WI.
Posts: 4,118
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
If you want a good laugh. The local Mopar/Jeep parts dealer, wants $695.00 for a replacement comp/temp module. (a twenty year old part) I almost drop the phone, when I heard that. I should of asked what kind of warranty it had.
04-29-2010, 03:33 PM
#12
CF Veteran
Join Date: Aug 2009
Location: Las Vegas
Posts: 1,263
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996 Limited
Model: Grand Cherokee
Engine: 5.2
Ya they told me it was over 600 bucks to. Just find someone parting a XJ and but it off them. I got one from Jeep85 on this forum. Does anyone know how to test just the sensor down by the bumper or if any other Jeep sensors will work?
05-01-2010, 12:08 AM
#14
Junior Member
Join Date: Mar 2010
Location: Tulsa, Oklahoma
Posts: 61
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
Disconnect the line from the sensor and with an ohmmeter measure for resistance between 336K and 2.488K ohms. If not replace. RockAuto.com has them.
