99 Cherokee 4.0 spark on #1 and #6 only
#1
Newbie
Thread Starter
Join Date: Feb 2017
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
99 Cherokee 4.0 spark on #1 and #6 only
It hickup when starting but will never actually start. I've changed the PCM, TPS, map, distributor and cam sensor, cap, rotor, new battery. I only get spark on #1 and #6. White wire to coil says I'm suppose to have 12v constant, but I dont have any voltage until I start to crank it. Help!! Please and thank you
#2
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
It hickup when starting but will never actually start. I've changed the PCM, TPS, map, distributor and cam sensor, cap, rotor, new battery. I only get spark on #1 and #6. White wire to coil says I'm suppose to have 12v constant, but I dont have any voltage until I start to crank it. Help!! Please and thank you

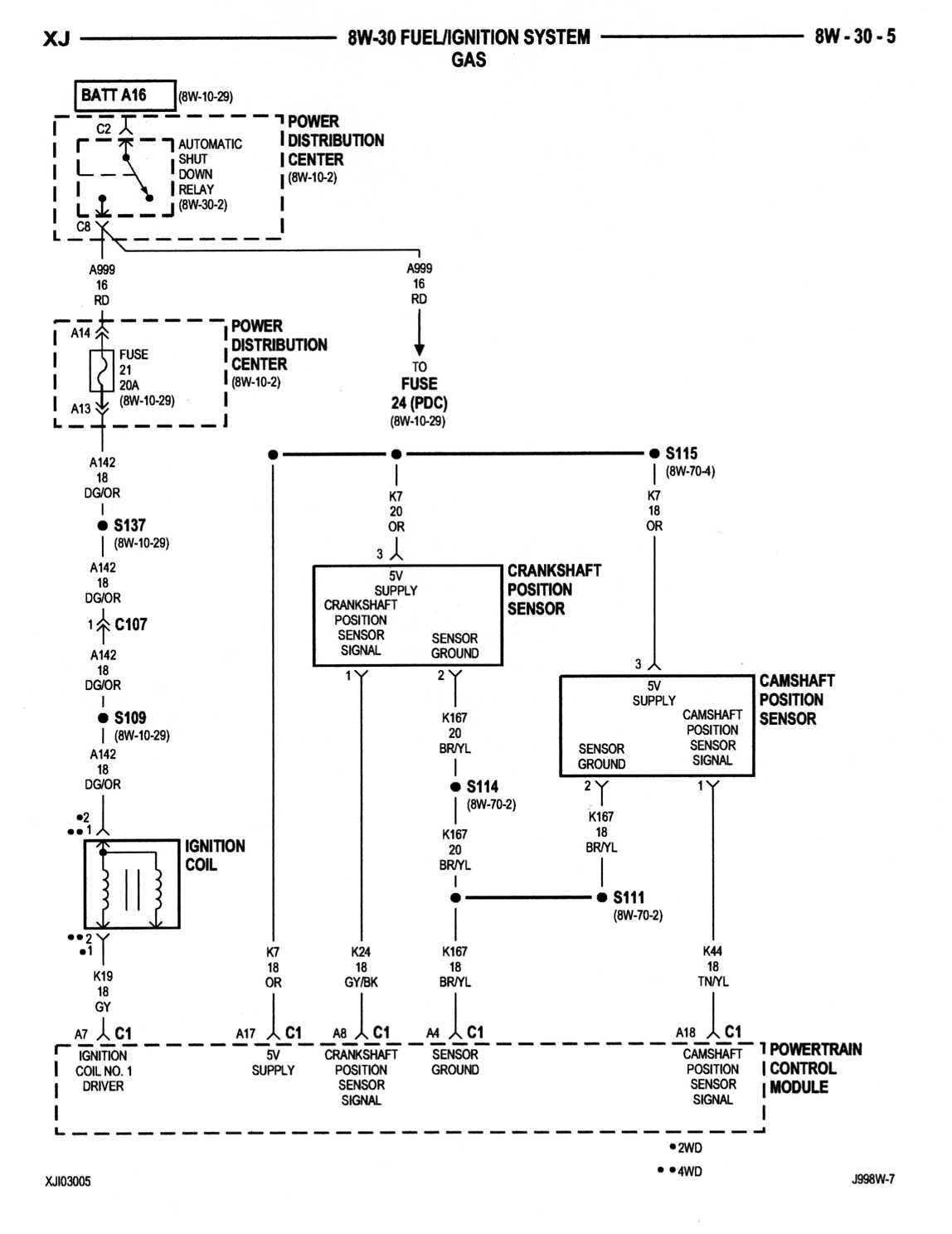

Here's the '99 diagram for ignition, crank, and cam sensor (below).
The Gray wire from the PCM to the coil is the coil (ground) driver and the Dark Green/Orange tracer wire is 12 Volts the power input to the coil from the ASD relay.
When the PCM sees an engine rotation signal from the crank sensor it with activate the ASD relay - powering the coil.
The crank sensor sees three sets of 'windows' in the flex plate which trigger the signals to the PCM. The crank sensor signals are paired, in terms of which cylinders are ready to fire. The companion cylinders are:
1-6
5-2
3-4
The cam sensor is supposed to sort out exactly which cylinder is ready to fire, and sends these signals to the PCM.
If the cam sensor is not receiving the 5-2, 3-4 signals it goes stupid and nothing happens when those cylinders are ready to fire.
I suspect your crank sensor is defective (weak magnet [?]).
.
