Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

96 high back Cherokee seats

Thread Tools

Search this Thread

Old Mar 15, 2023 | 03:45 PM
  #1
Santara's Avatar
Thread Starter
Newbie
10 Year Member

Joined: Sep 2015
Posts: 6
Likes: 0
From: PA.
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Default 96 high back Cherokee seats

Can you unbolt the bottoms of seats from the tracks, and swap the driver & passenger sides ????
Reply
Old Mar 15, 2023 | 04:21 PM
  #2
Saudade's Avatar
CF Veteran
5 Year Member
Veteran: Air Force
Community Favorite

Joined: Aug 2020
Posts: 2,124
Likes: 578
From: SoCal
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
Default

Yes you can. Bear in mind that the "bungie" to hold the seatbelt will be wrong side. If you have power seats, you'll need to remount the panel (no holes for the screws).
Reply
Old Mar 17, 2023 | 02:11 PM
  #3
Santara's Avatar
Thread Starter
Newbie
10 Year Member

Joined: Sep 2015
Posts: 6
Likes: 0
From: PA.
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Default Did not work

Saudade ; I removed the seats, swapped the seats onto the tracks, and went to reinstall and it did not work. The seats extended into the door opening. I would have to drill the floor to remount the tracks, or make plates to refit the seats to the tracks. Down to one car ant to put the seats back for now. Thanks, Santara
Reply
Old Mar 17, 2023 | 02:43 PM
  #4
Saudade's Avatar
CF Veteran
5 Year Member
Veteran: Air Force
Community Favorite

Joined: Aug 2020
Posts: 2,124
Likes: 578
From: SoCal
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0L
Default

Perhaps I misunderstood. The seat bases (both manual and power) do not swap. The cushions do. When my driver side backrest frame cracked, I swapped the passenger side over while I had the backrest welded. I found a good condition set at a local salvage yard.

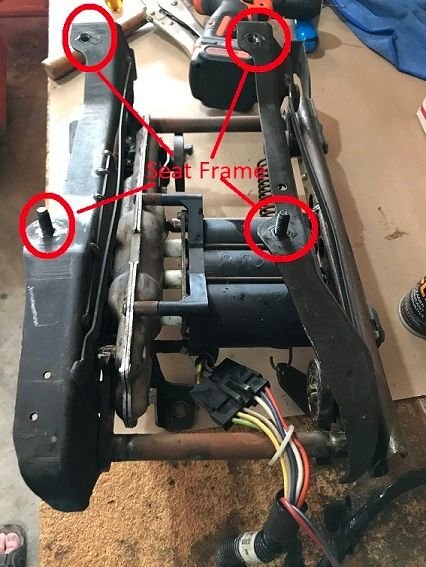

The seat cushion is held on by 4 bolts (2 front and 2 rear). Here's a pic of the seat from underneath at the rear.




The backrest is then held on by 2 bolts and 2 nuts that secure the backrest to the frame.

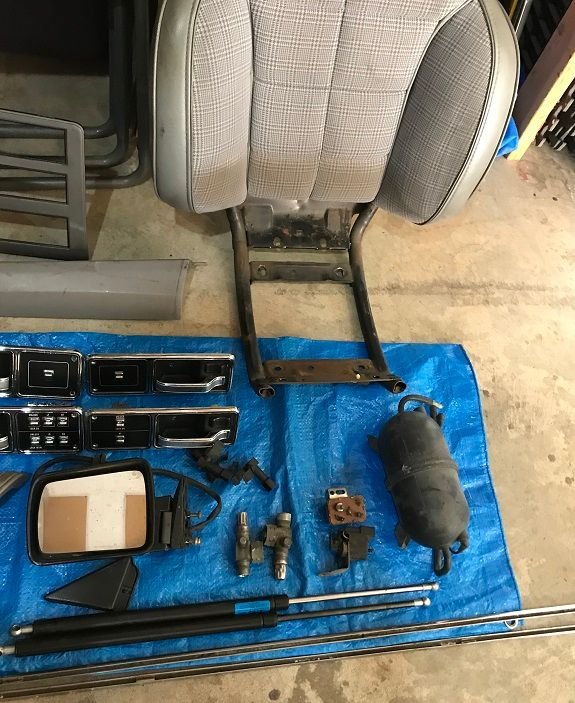

Here's the cushions and backrest cover I salvaged.



On an earlier hunt, I pulled a good backrest frame and a few other parts.




Reply
