88 xj electrical issues...ignition switch MIA
#1
Newbie
Thread Starter
Join Date: Feb 2016
Location: Dayton, OH
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
88 xj electrical issues...ignition switch MIA
First time posting so please let me know if the images don't show up.
I just revived an 88 XJ (4.0 auto 4wd) after it sat for a few years due to a broken drivers window. I got it running but realized a lot of the electronics weren't functioning
Working: brake lights, emergency flashers, radio (only if the key is turned backwards, not while running)
Not working: turn signals, headlights, wipers, horn, cigarette lighter
After some quick searching I concluded it was the ignition switch so I bought the part and tore apart the dash looking to replace the switch on top of the steering column. I did not find the switch and didn't find anything resembling the part I bought. See pictures below:

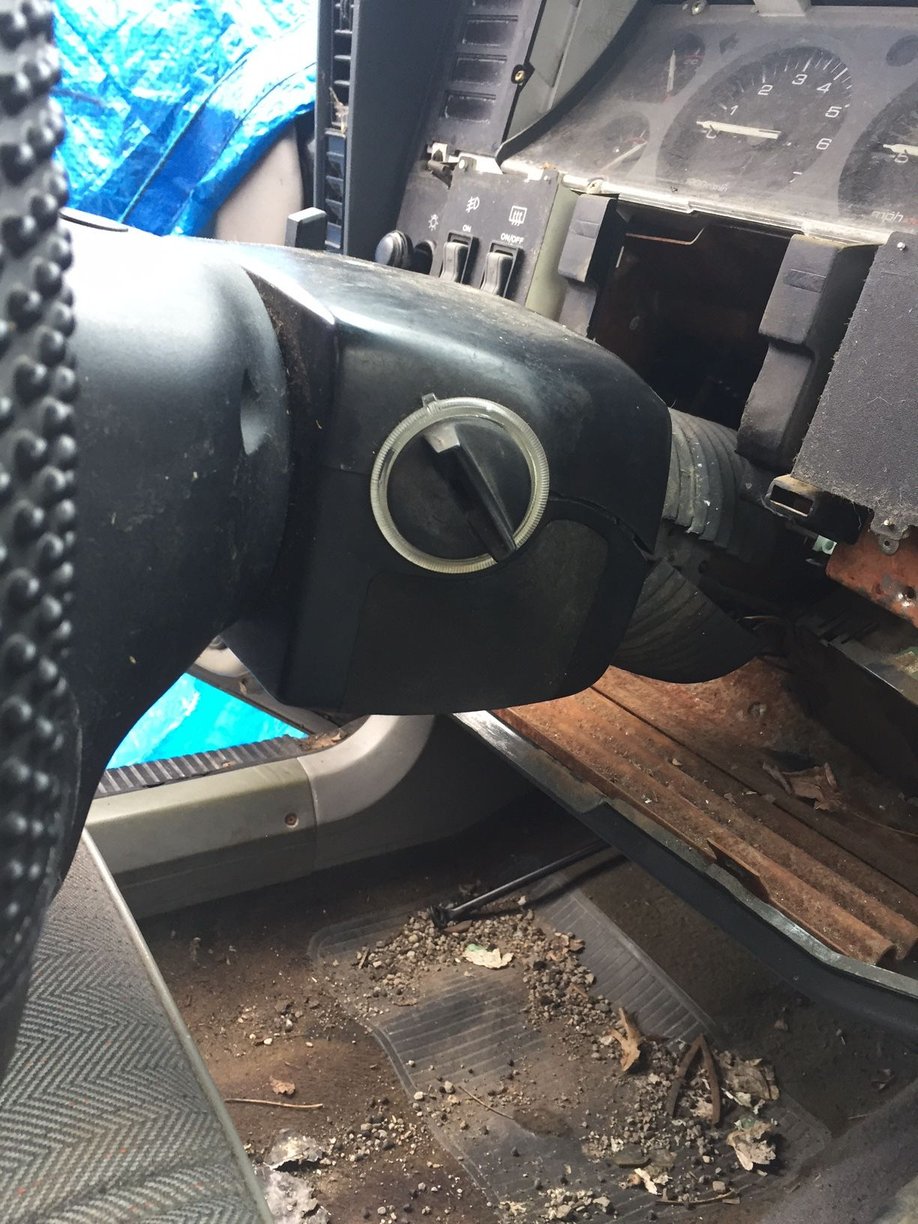

Steering column
steering column closeup
Do some XJs have a different ignition switch configuration? Or not have one at all? Are early year XJs different?
The rod from the ignition lock is alongside the right side of the steering column. There is some sort of cylindrical component with two wires coming from it, one of which goes to the fuse box. Picture of the fuse box:
fuse box. I think the black/white wire comes from the ignition rod
Any help is appreciated.
I just revived an 88 XJ (4.0 auto 4wd) after it sat for a few years due to a broken drivers window. I got it running but realized a lot of the electronics weren't functioning
Working: brake lights, emergency flashers, radio (only if the key is turned backwards, not while running)
Not working: turn signals, headlights, wipers, horn, cigarette lighter
After some quick searching I concluded it was the ignition switch so I bought the part and tore apart the dash looking to replace the switch on top of the steering column. I did not find the switch and didn't find anything resembling the part I bought. See pictures below:
Steering column
steering column closeup
Do some XJs have a different ignition switch configuration? Or not have one at all? Are early year XJs different?
The rod from the ignition lock is alongside the right side of the steering column. There is some sort of cylindrical component with two wires coming from it, one of which goes to the fuse box. Picture of the fuse box:
fuse box. I think the black/white wire comes from the ignition rod
Any help is appreciated.
#2
Senior Member
Join Date: Mar 2010
Location: Alaska
Posts: 589
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee(XJ)
hmm maybe someone replaced the steering column with another type, as far i know the ignition switch on my 88 xj sits right on top of the column with the rod running right to it not on the side with the highbeam switch mounted together on the column
Marc
Marc
Last edited by LadyKenai; 03-06-2018 at 10:34 PM.
#3
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

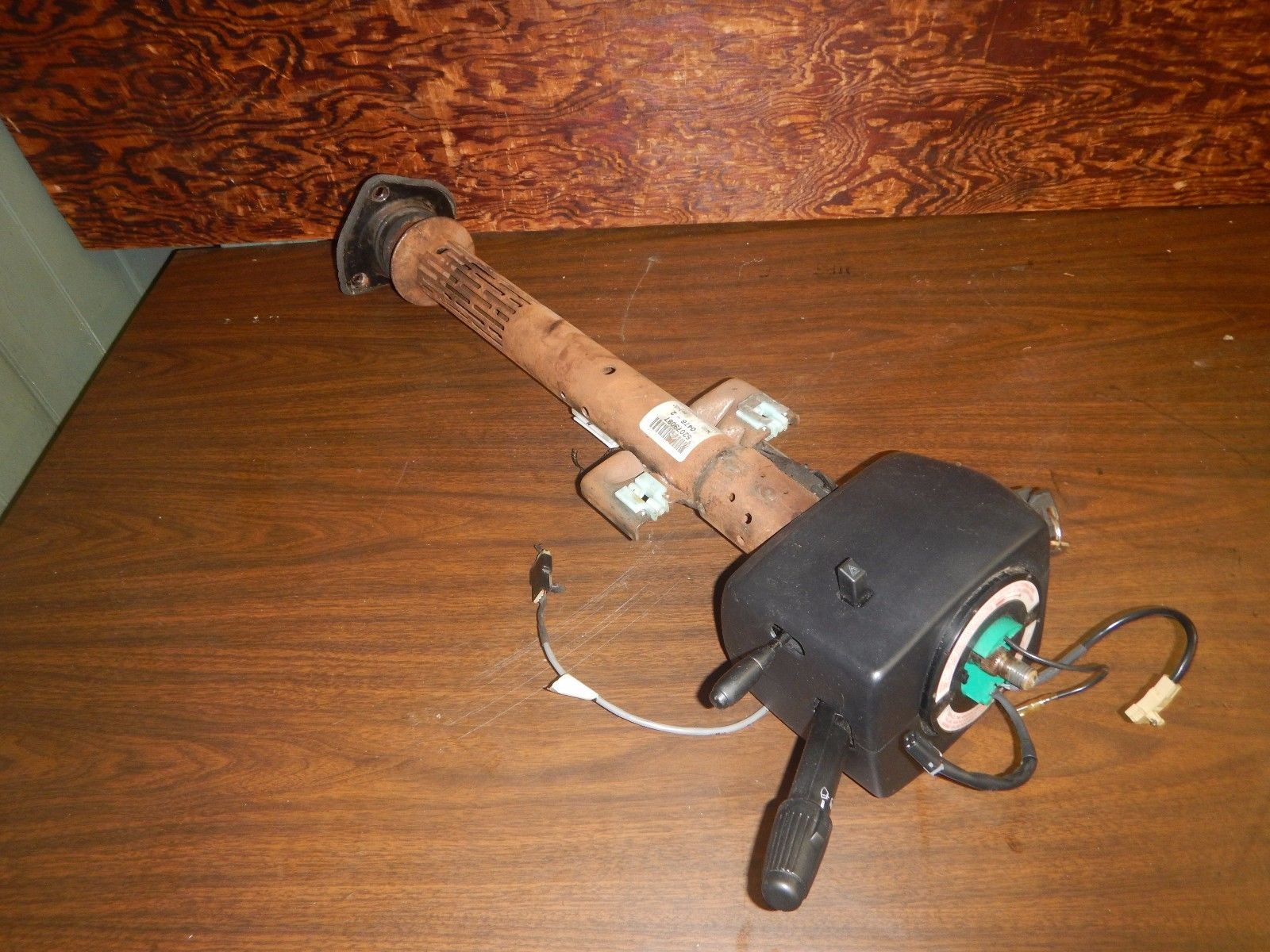

Someone swapped coloumns to newer style. Ignition switch is where key goes in...
Last edited by freegdr; 03-07-2018 at 05:11 AM.
#5
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

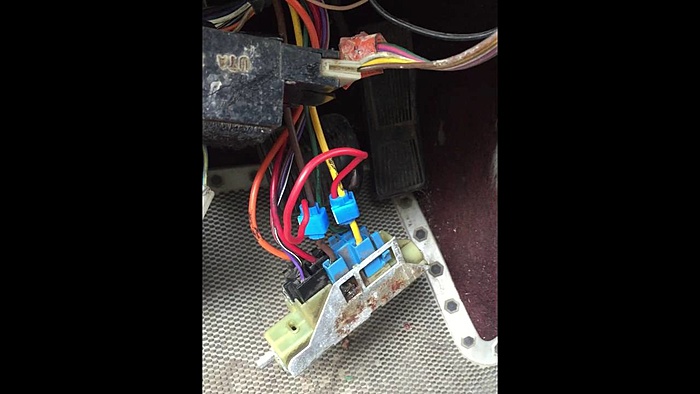

The reason nothing working correcty is that colloumn only feeding current to that 1 bus bar in fuse box. I suggest look under dash and see if the black and blue plugs are there for original switch. And install proper coloumn to restore complete function to fuse box. Your actually back feeding power thru fuse box.
Last edited by freegdr; 03-07-2018 at 12:31 PM.
Trending Topics
#8
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
This show 97 to 2001 but its wrong pictuers are 95 and down.....https://www.cherokeeforum.com/how-to...-column-399280
#10
Newbie
Thread Starter
Join Date: Feb 2016
Location: Dayton, OH
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
No blue plug. There are several connectors that aren't plugged into anything. See pictures below. Any idea what the plugs are for are appreciated.
#11
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Think those are speakers and sentenial light option. These colors would be on other side of the coloumn...Post a pick of your steering wheel also.
#15
Senior Member
Join Date: Jul 2011
Location: West Covina, Ca.
Posts: 535
Likes: 0
Received 25 Likes
on
21 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Look for the Vin# of Jeep in Question and write it down.
Then inter the complete VIN# into this site; then post the results this will probably solve the mystery of what year this Jeep started out to be.
https://www.cherokeeforum.com/vindecoder.php
Then inter the complete VIN# into this site; then post the results this will probably solve the mystery of what year this Jeep started out to be.
https://www.cherokeeforum.com/vindecoder.php
Last edited by djgrayxj; 03-11-2018 at 08:22 PM.
