86 xj 2.5 Under Dash connector IDs
Here's a bundle hanging out after the instrument panel has been removed. An adjacent bundle connects to the cigarette lighter.

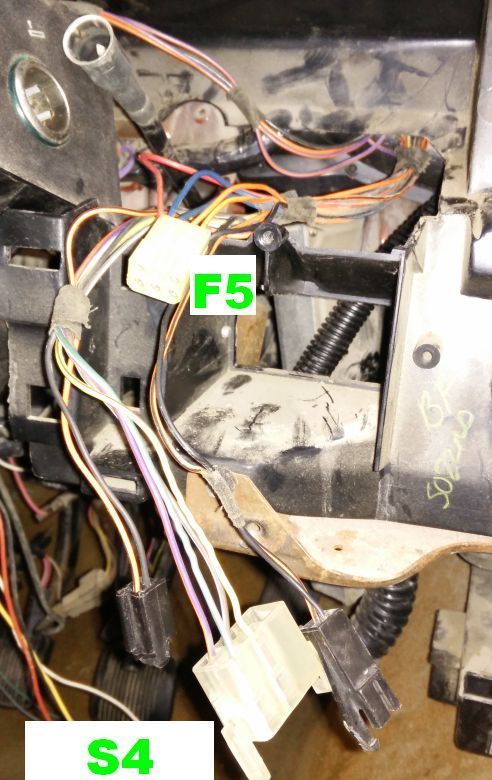

Bundle under dash with two white unknown connectors plus 3 black instrument light connectors
Can some please identify F5 and S4 connectors?

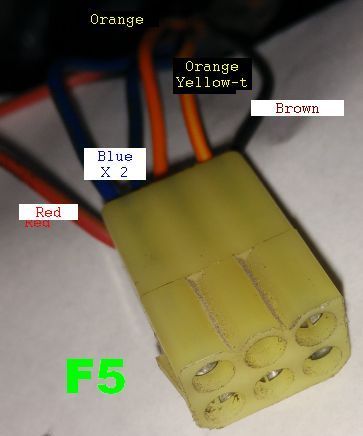

Five round female connects (one open slot). Red, 2 blue wire to same pin, orange, orange w/yellow tracer, brown.

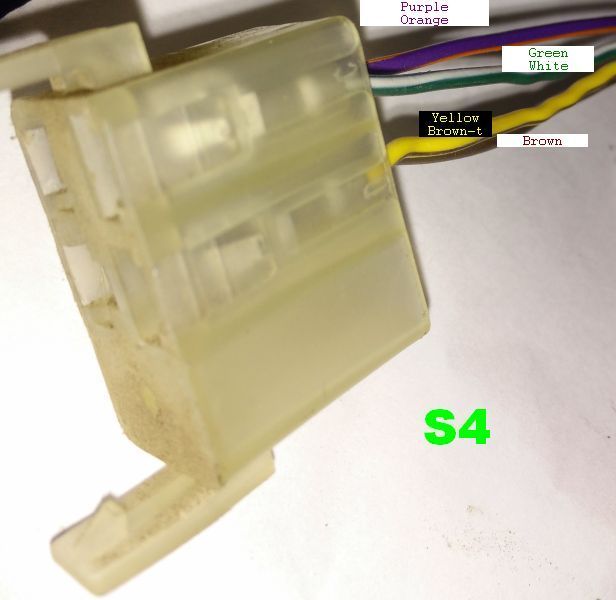

Four spade receptors, Purple/Orange, Green/White, Yellow/Brown tracer, Brown. Connector style is similar to the two on the instrument panel.
Bundle under dash with two white unknown connectors plus 3 black instrument light connectors
Can some please identify F5 and S4 connectors?
Five round female connects (one open slot). Red, 2 blue wire to same pin, orange, orange w/yellow tracer, brown.
Four spade receptors, Purple/Orange, Green/White, Yellow/Brown tracer, Brown. Connector style is similar to the two on the instrument panel.
