Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

33-10.50

Thread Tools

Search this Thread

Old Jul 21, 2010 | 10:43 PM
  #1
zte87's Avatar
Thread Starter
Senior Member

Joined: Jul 2010
Posts: 536
Likes: 1
From: anacortes, wa
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default 33-10.50

High you guys I am wanting to know how much lift I would need to clear 33-10.50! I have a 1.75 coil spacers in the front and a add a leaf and shackle in the rear! I was waundering if I were to add a tuff country 3.5 lift (with new leafs) It would be enough to clear them? and also would I run into any probs putiing the two lifts together like that it would put me at around 5 inchs in the front! for the rear I would keep the shackle and ditch the aal! so what do you guys think? oh yah my wheels are 15x8 with 3.75 bs!
Reply
Old Jul 21, 2010 | 10:48 PM
  #2
rweaver138's Avatar
CF Veteran

Joined: Oct 2009
Posts: 1,640
Likes: 0
From: Northeast CT
Year: 99
Model: Cherokee
Engine: 4.0
Default

with 5 inches of lift you'll clear those tires no problem, although you may have to trim the bumper cap a bit
Reply
Old Jul 21, 2010 | 10:51 PM
  #3
zte87's Avatar
Thread Starter
Senior Member

Joined: Jul 2010
Posts: 536
Likes: 1
From: anacortes, wa
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default

what bumper caps lol! http://www.tuffcountry.com/jeep-lift...lift-kits.html he is a link to the lift do you think it could handle the 1.75 spacer with out running into problems?
Reply
Old Jul 21, 2010 | 10:53 PM
  #4
rweaver138's Avatar
CF Veteran

Joined: Oct 2009
Posts: 1,640
Likes: 0
From: Northeast CT
Year: 99
Model: Cherokee
Engine: 4.0
Default

are you saying you took the bumper cap off? cuz thats where the tires rub if so then your golden
Reply
Old Jul 21, 2010 | 11:08 PM
  #5
leo3000's Avatar
CF Veteran

Joined: May 2009
Posts: 1,537
Likes: 1
From: AL
Year: 2001
Model: Cherokee
Engine: 4.0l
Default

you will still have to trim unless you dont take the sway bars off
Reply
Old Jul 21, 2010 | 11:28 PM
  #6
zte87's Avatar
Thread Starter
Senior Member

Joined: Jul 2010
Posts: 536
Likes: 1
From: anacortes, wa
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default

Name:  tylerdriveing.jpg
Views: 1732
Size:  77.4 KB he is a pic of how its sits now! I was planing on cutting the front fender flush with the reflecter if I can do it and still have it look clean! I want to keep the stock flares but have no problem triming them back! lol my son like to act like his is driveing the jeep lol! I plan on getting quick disco so yeah no swaybar for me off road!

Last edited by zte87; Jul 21, 2010 at 11:30 PM.
Reply
Old Jul 21, 2010 | 11:33 PM
  #7
rweaver138's Avatar
CF Veteran

Joined: Oct 2009
Posts: 1,640
Likes: 0
From: Northeast CT
Year: 99
Model: Cherokee
Engine: 4.0
Default

Originally Posted by zte87
I was planing on cutting the front fender flush with the reflecter if I can do it and still have it look clean! I want to keep the stock flares but have no problem triming them back!!
yes do that

didnt realize yours was an older style so disregard the "bumper cap" statements. but yes it would look good if you trim it flush with the light
Reply
Old Jul 21, 2010 | 11:46 PM
  #8
zte87's Avatar
Thread Starter
Senior Member

Joined: Jul 2010
Posts: 536
Likes: 1
From: anacortes, wa
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default

do you think it would still look ok with the stock flares being cut there?
Reply
Old Jul 22, 2010 | 12:47 AM
  #9
djlarroc's Avatar
CF Veteran

Joined: Jun 2009
Posts: 3,071
Likes: 0
From: Denver, CO
Year: 1997
Model: Cherokee
Engine: 4.0
Default

It will definitely look ok.

Here's a few pics of mine:

Name:  Jeepside.jpg
Views: 2091
Size:  39.2 KB

Here's some crappy pics I just took. You're going to have a gap in there, but still looks good, and I got major clearance for the 34s. Remember to cut and fold the rear.

Name:  frontflare.jpg
Views: 921
Size:  22.1 KB

Name:  rearflare.jpg
Views: 972
Size:  21.6 KB
Reply
Old Jul 22, 2010 | 12:58 AM
  #10
zte87's Avatar
Thread Starter
Senior Member

Joined: Jul 2010
Posts: 536
Likes: 1
From: anacortes, wa
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default

thats looks sick do you have any pics of it from the front? I think when I cut the fender there I will also cut the stock bumper back some to!
Reply
Old Jul 22, 2010 | 02:22 AM
  #11
96_xj's Avatar
Honorary Moderator

Joined: Mar 2010
Posts: 8,135
Likes: 16
From: Gilbert AZ/Las Cruces NM
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
Default

if you trim your fenders you will have plenty of clearence like posted above. here is your exact same tire size you are asking about:



4.5" lift in the rear in this picture:


and an overall 4.5" lift with 33 x 10.5's:



the issue you willl run into if you do not trim is bending your fenders and slicing your tires:

Name:  0720081133.jpg
Views: 951
Size:  149.9 KB
Name:  0720081130.jpg
Views: 947
Size:  117.7 KB
Reply
Old Jul 22, 2010 | 09:21 AM
  #12
zte87's Avatar
Thread Starter
Senior Member

Joined: Jul 2010
Posts: 536
Likes: 1
From: anacortes, wa
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default

can any one with 33-10.50 post up pics of there setup!
Reply
Old Jul 22, 2010 | 10:56 AM
  #13
djlarroc's Avatar
CF Veteran

Joined: Jun 2009
Posts: 3,071
Likes: 0
From: Denver, CO
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Originally Posted by zte87
thats looks sick do you have any pics of it from the front? I think when I cut the fender there I will also cut the stock bumper back some to!
Here's a picture from the front, but I have an Iron Scorpion bumper.
Name:  Jeepfront.jpg
Views: 2827
Size:  45.0 KB

My fenders sit flush against the body, they are just moved up about 2", and so there is that gap where the body line is. I also had to trim off the bottom of the flare where it curves under the body.

96_xj doesn't look like he had to trim the bottom end off, but his flares aren't sitting as flush.
Reply
Old Jul 22, 2010 | 02:08 PM
  #14
zte87's Avatar
Thread Starter
Senior Member

Joined: Jul 2010
Posts: 536
Likes: 1
From: anacortes, wa
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default

I love that bumper how much was it and were did you get it?
Reply
Old Jul 22, 2010 | 02:20 PM
  #15
Madbutcher's Avatar
Member

Joined: Jun 2010
Posts: 183
Likes: 0
Model: Cherokee
Default

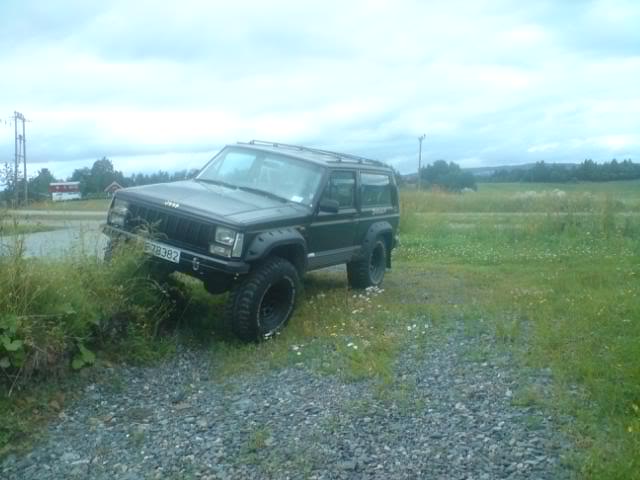

her's mine 3,5" lift and 33x12,5





Name:  DSC00131.jpg
Views: 932
Size:  37.6 KB
Reply
